Description
Factory-Direct Galvanized Z Sections — Q235B and Q345B cold-formed profiles rolled and galvanized in-house, shipped with full mill test certificates and CE documentation to 50+ countries.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B / Q345B Galvanized Z Section Steel |
| Product Type | Z Section Steel (Cold-formed Structural Channel) |
| Steel Grade | Q235B, Q345B, SS400, S235JR |
| Standard | ASTM, EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
| Section Shape | Z section (C section and U section also available) |
| Thickness | 0.6–30 mm |
| Length | 6 m, 9 m, 12 m, or customized |
| Technique | Hot rolled / Cold rolled / Galvanized |
| Surface Treatment | Galvanized, Hot Rolled |
| Tolerance | ±5% (general), ±1% (precision) |
| Processing Service | Welding, Cutting |
| Application | Building structures, bridges, transmission towers, lifting machinery, ships, industrial furnaces, reaction towers, container racks, warehouse shelves |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Purlins and girts for portal-frame warehouses, roof support beams, bridge walkway framing |
| Industrial Equipment | Conveyor support structures, reaction tower scaffolding, lifting machinery frames |
| Energy & Utilities | Transmission tower cross-arms, solar panel mounting rails, substation structural bracing |
| Marine & Heavy Engineering | Ship deck stiffeners, container rack uprights, industrial furnace support frames |
| Storage & Logistics | Warehouse pallet racking uprights, mezzanine floor beams, container stacking frames |
When Tolerance Drift Turns a Purlin Order into a Site Rejection
Tight dimensional control on cold-formed galvanized Z sections separates bolt-ready framing from weeks of on-site rework.
Specifying Customized Galvanized Z Section Steel for a warehouse purlin system seems straightforward — until the flange width drifts beyond ±2 mm and bolt holes no longer align with the rafter brackets. On a recent project bound for West Africa, a batch of Z sections arrived with inconsistent galvanized coating thickness: heavy on the outer face, nearly bare inside the return lip. The contractor caught it during fit-up, not at customs. [NEED_CITE: EN 10147 continuous hot-dip galvanized structural steel sheet requirements]
Coating unevenness of this kind accelerates corrosion at the most stressed fold lines — exactly where structural integrity matters most. Combined with negative tolerance stacking on thin-gauge sections, the hidden cost is not the replacement material; it is the crane time, the delayed roof closure, and the re-inspection fees that follow.
Matching Section Geometry to Structural Load Paths
Cold-formed galvanized Z sections derive their load-bearing efficiency from the folded geometry — the return lips stiffen the flanges against lateral-torsional buckling under gravity loads. When specifying Customized Galvanized Z Section Steel for roof purlins or wall girts, the section depth and lip length must correspond to the span and the tributary area each member carries. Our cold-forming lines cover thickness from 0.6 mm through 30 mm, allowing a single procurement to span light-gauge cladding supports and heavier bridge walkway framing without splitting orders across multiple suppliers.
Structural Codes, Corrosion Class, and Certification Alignment
Engineering design to EN 1993-1-3 or AISC guidelines requires confirmed material properties and consistent coating mass. For projects in C3 to C5 corrosion environments — coastal warehouses, industrial furnaces, marine deck structures — the galvanized coating must meet EN 10147 or ASTM A653 minimum mass requirements, verified on the mill test certificate. [NEED_CITE: EN 10147 continuous hot-dip galvanized structural steel sheet requirements] CE certification per EN 10210 and EN 10219 governs EU market entry; ASTM A653 governs North American imports. Specifying the correct standard upfront avoids customs holds and third-party inspection failures at destination.
Steel Grade Selection and Forming Process
Q235B and Q345B represent the Chinese GB/T 700 and GB/T 1591 structural grade families, roughly paralleling S235JR and S355JR in the EN system and SS400 in JIS G3101. For Customized Galvanized Z Section Steel, Q235B suits general framing where formability matters most — its lower carbon equivalent supports tighter bend radii without cracking at the fold. Q345B delivers higher yield strength for longer spans or heavier load conditions, trading some forming ease for structural efficiency. SS400 and S235JR serve as direct specification equivalents when project documents reference Japanese or European standards.
Hot-dip galvanizing after cold-forming provides full coverage including the inner return lips and the web-to-flange transition zones — critical for sections exposed to condensation or splash zones. Hot-rolled surface options remain available when the application does not demand corrosion protection, reducing unit cost for indoor industrial furnace supports or temporary works.
The Hidden Cost of Unverified Section Steel
Ordering galvanized Z sections without confirmed chemistry and mechanical test data creates risk that surfaces only at installation. A mill test certificate showing manganese below the S235JR minimum, for example, means yield strength cannot be guaranteed — and structural engineers will reject the batch regardless of visual coating quality. [NEED_CITE: steel grade equivalence between EN and ASTM standards] Negative tolerance abuse on thin-gauge sections compounds the problem: the theoretical weight looks competitive, but the actual load capacity falls below design assumptions. Customs authorities in regulated markets routinely hold shipments lacking proper CE documentation or correct EN standard references, turning a material cost saving into weeks of demurrage and project delay.
Procurement Confidence from Mill to Site
Every heat of Q235B and Q345B galvanized Z section steel is tested in our in-house physical and chemical laboratory before release. Full mill test certificates document chemical composition and mechanical properties per the specified standard. Third-party inspection by SGS or BV is arranged on request, with reports issued before container sealing. Our 2,800+ specification range covers Z, C, and U sections across the full 0.6–30 mm thickness band, meaning mixed-order projects — purlins, girts, and heavier beam sections — ship from a single source with unified documentation. Custom non-standard lengths and cut-to-drawing services eliminate on-site welding and secondary cutting. Professional container loading with anti-damage measures protects the galvanized coating throughout ocean transit, and complete export documentation supports smooth customs clearance in the destination country.
Documentation & Compliance
- Mill test certificate documenting Q235B or Q345B chemical composition and mechanical properties per GB/T 700 or GB/T 1591, with heat number traceability
- CE certificate per EN 10210 / EN 10219 for projects requiring EU market compliance and notified body verification
- ISO 9001:2015 quality management certificate covering the full cold-forming and galvanizing process chain
- SGS or BV third-party inspection report confirming dimensional tolerance, coating thickness, and surface quality before shipment
- Material traceability by heat number stamped on each bundle, cross-referenced to the mill test certificate
- Customs documentation package including packing list, bill of lading, and certificate of origin formatted for the destination market
Packaging, Loading & Delivery

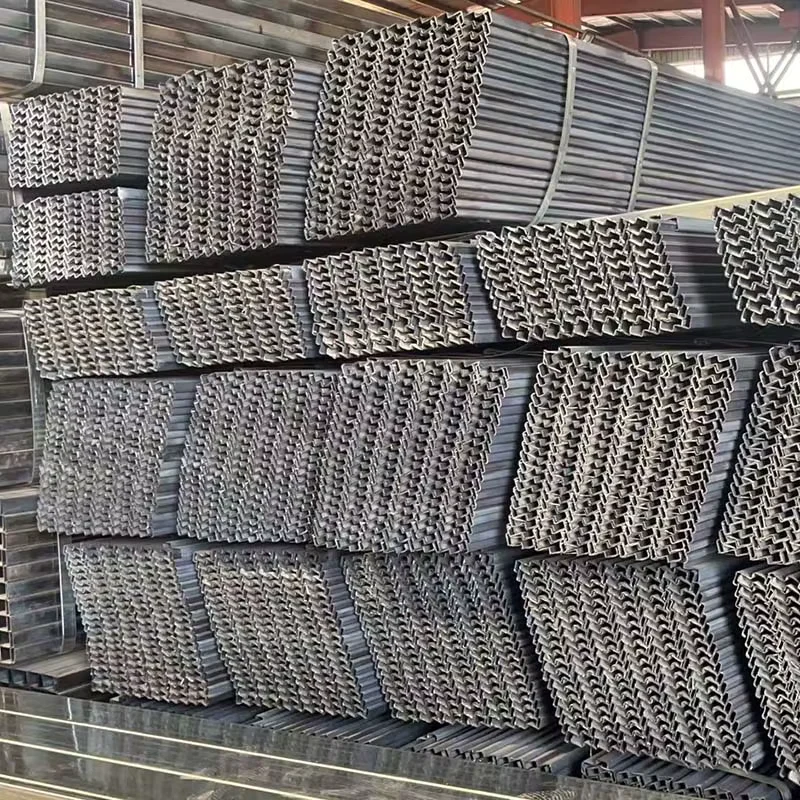

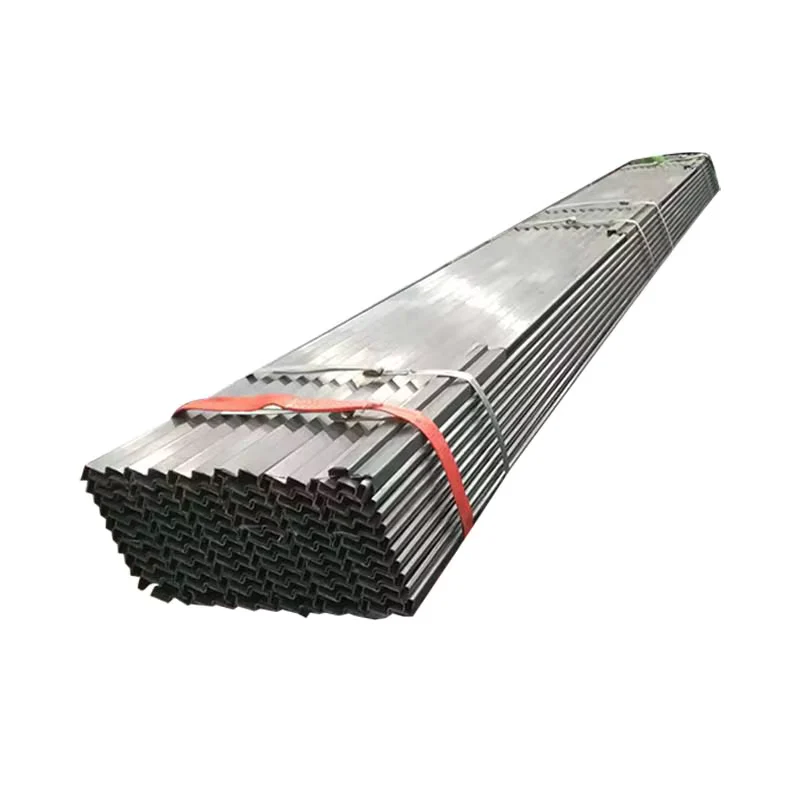

- Galvanized Z sections bundled with high-tensile steel strips and edge protectors to preserve the zinc coating during ocean transit and handling
- Custom cut lengths of 6 m, 9 m, or 12 m nested for container optimization, maximizing payload per 20ft or 40ft unit
- Hot-rolled sections available with anti-rust oil coating; galvanized sections shipped bare to avoid coating damage from temporary protective compounds
- Heat number and steel grade stenciled on each bundle end for rapid site identification and MTC cross-reference
- FOB, CIF, and DDP shipping terms available, with professional container loading plans provided before dispatch
- Mixed-section orders combining Z, C, and U profiles consolidated into single shipments with unified documentation
Starting Your Galvanized Section Steel Inquiry
Submit your section geometry, steel grade, thickness, length, and destination port to receive a detailed quotation with unit pricing, production lead time, and applicable mill test certificate format. Non-standard dimensions and cut-to-drawing requirements are reviewed within 12 hours, with engineering confirmation before production begins. Certification and customs documentation requirements are confirmed at inquiry stage to prevent destination delays.
Request Your Galvanized Z Section Quotation
Share your drawing or specification list — we return pricing, MTC format, and delivery terms within one working day.
