Description

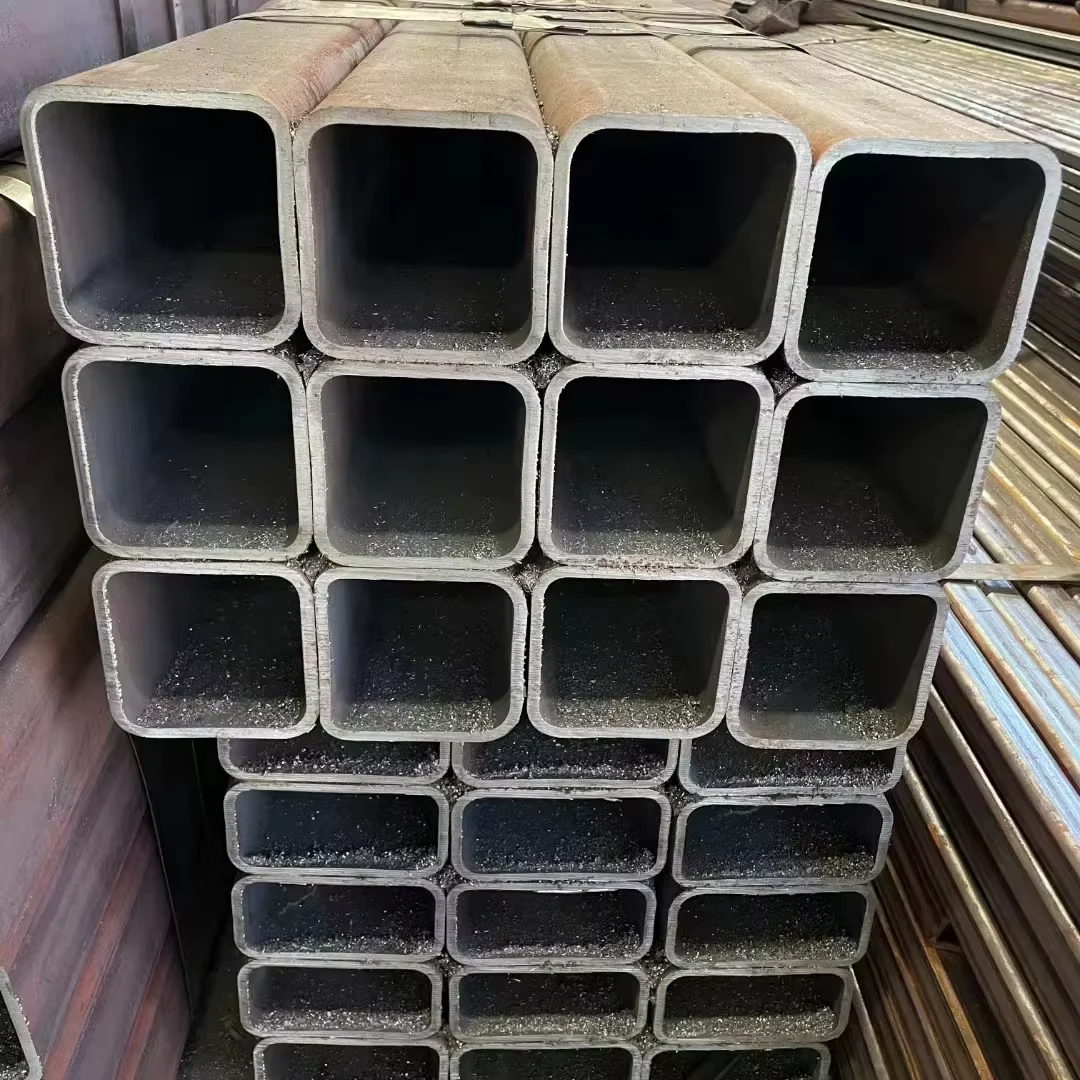

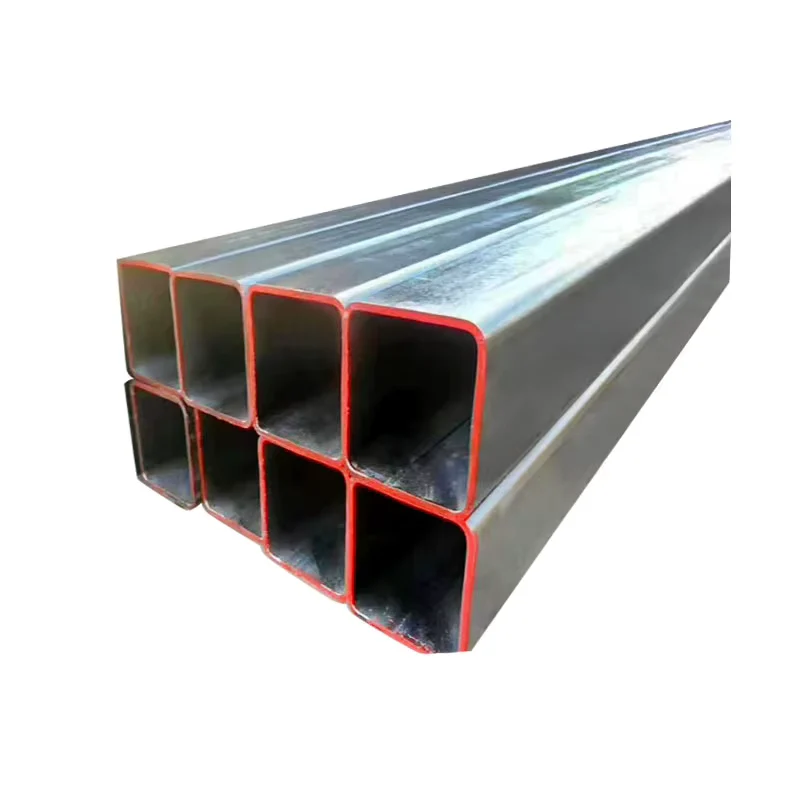

Direct Mill Supply for JIS-Standard Seamless Square Tubes — Every Q195/Q235/Q345 batch tested in-house before shipment, with full MTC and third-party inspection available.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q195/Q235/Q345 Seamless Square Steel Tube |
| Product Type | Seamless Square Steel Tube (Seamless Square Hollow Section) |
| Steel Grade | Q195, Q215, Q235, Q345, S235JR, S275JR, S355JR |
| Standard | JIS G3466, API, CE, ISO 9001 |
| Section Shape | Square |
| Size Range | Customizable side lengths |
| Wall Thickness | Customizable |
| Length | 1–12 m (standard 6 m / 12 m) |
| Technique | Seamless |
| Surface Treatment | Black Painted / Cold Rolled / Hot Rolled |
| Tolerance | ±1% |
| Ends | Plain |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Application | Construction, Mechanical engineering, Steel structure engineering, Shipbuilding, Solar power bracket, Power engineering, Power plant, Agricultural and chemical machinery, Glass curtain wall, Car chassis, Airports |
| MOQ | 10 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Steel Structure | Building frames, column supports, truss members for warehouses and industrial plants |
| Mechanical Engineering | Hydraulic cylinder barrels, conveyor roller shafts, machine base frames |
| Glass Curtain Wall & Facade | Architectural mullion structures, exposed steel framing for commercial buildings |
| Power & Energy | Solar mounting bracket structures, power transmission tower bracing |
| Shipbuilding & Marine | Deck stiffeners, internal structural framing for cargo holds |
| Agricultural & Chemical Machinery | Equipment frames, sprayer boom structures, chemical plant support columns |
Where Seamless Tolerance Decides Structural Assembly Fit
A ±1% tolerance on a seamless square tube means the difference between a bolt-up on site and a re-cut in the yard.
When procurement teams source a Seamless Square Steel Tube JIS Standard Supplier, the most common failure point is not the steel grade itself but the dimensional consistency across the full order. A batch with inconsistent side lengths or wall thickness variation forces fabricators to re-measure every piece, delaying welding jigs and pushing up labor costs. On curtain wall projects where exposed square tubes form the visible facade grid, even minor out-of-tolerance sections create uneven joint lines that architects will reject. [NEED_CITE: dimensional tolerance requirements for structural hollow sections in JIS G3466]
Matching Seamless Square Hollow Sections to Structural Load Paths
Seamless square tubes in Q195 through Q345 grades serve load-bearing frames where uniform wall thickness matters more than cost savings. The seamless process eliminates the weld seam entirely, giving consistent strength around all four corners — critical when tubes carry compressive loads as columns or resist torsion in machinery bases. For glass curtain wall applications, the cold-rolled or black-painted surface provides a clean base for powder coating without the weld-line discoloration that ERW tubes sometimes show after finishing. Our production covers 2,800+ specifications, meaning non-standard side lengths and wall thicknesses can be rolled to order rather than forcing designers to adapt to catalog sizes.
Engineering Compliance and Certification Requirements
Projects specifying JIS G3466 seamless square tubes typically require full traceability from heat number to finished length. European buyers need CE marking under EN 10210/10219 for structural hollow sections, while Middle East and Southeast Asian specifiers often accept JIS or GB equivalents with third-party verification. [NEED_CITE: steel grade equivalence mapping between JIS G3466 and EN 10210 standards] The ±1% tolerance on our Seamless Square Steel Tube JIS Standard production is verified by our in-house physical and chemical laboratory before any shipment leaves Jinan. For projects requiring SGS or BV inspection, we arrange third-party witness testing during production, with full reports included in the shipping documentation package.
Steel Grade Selection and Seamless Process Fundamentals
The Q-series grades (Q195, Q235, Q345) follow the Chinese GB system where the number indicates minimum yield strength in MPa — Q235 delivers higher load capacity than Q195 for the same cross-section, while Q345 serves heavier structural frames. When international specs call for S235JR or S355JR, these map closely to Q235 and Q345 respectively in mechanical properties, though chemical composition limits differ slightly. [NEED_CITE: steel grade equivalence between GB Q-series and EN S-series structural steels] The seamless manufacturing process starts from solid round billets pierced and drawn to square profile, producing uniform wall thickness with no longitudinal weld — this matters for applications requiring internal pressure resistance or where the tube will be bent, since the weld seam in ERW tubes can become a failure point under forming stress. Surface treatment choice depends on the installation environment: black painted tubes suit indoor structural frames, cold-rolled finishes provide tighter dimensional accuracy for precision machinery, and hot-rolled surfaces work for heavy structural members where appearance is secondary.
Hidden Costs of Sourcing Without Verified Mill Documentation
Ordering seamless square tubes without proper mill test certificates creates risk at multiple project stages. Customs authorities in EU and regulated markets increasingly reject shipments lacking CE documentation or proper EN standard references, causing container demurrage charges and project delays. [NEED_CITE: customs clearance requirements for structural steel imports with CE marking] Material substitution — receiving Q195 when Q345 was specified — may not surface until fabrication begins, when cutting or welding reveals unexpected hardness or poor formability. The cost of replacing installed tubes far exceeds the original price difference between grades, especially on high-rise facade work where access equipment is already deployed.
Procurement Advantages Direct from the Mill
Every Seamless Square Steel Tube JIS Standard order ships with mill test certificates documenting chemical composition and mechanical properties per JIS G3466, verified by our own laboratory before release. Our 41 invention patents include proprietary technologies for dimensional control that maintain the ±1% tolerance across the full 2,800+ specification range. Custom non-standard sizes and lengths are produced to order with 10-ton MOQ, avoiding the compromise of adapting designs to stock limitations. Professional container loading plans are drawn for each shipment, with anti-damage measures preventing the bending and surface defects that plague poorly packed tube consignments. Full international certifications — ISO 9001:2015, Lloyd’s CE, Singapore FPC — are maintained current, with SGS and BV third-party inspections available on request.
Documentation & Compliance
- Mill test certificate documenting Q195/Q235/Q345 chemical composition and mechanical properties per JIS G3466, with heat number traceability
- CE certificate covering EN 10210/10219 structural hollow section requirements for European market shipments
- ISO 9001:2015 quality management certificate validating production process controls
- SGS or BV third-party inspection report available upon request, covering dimensional verification and mechanical testing
- Material traceability documentation linking each tube to specific heat numbers and production batches
- Complete customs documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Seamless square tubes bundled with steel strips and edge protectors, preserving black painted or cold-rolled surface finish during ocean transit
- Custom wooden cradles for 12-meter lengths preventing mid-span sagging and corner damage in container loading
- Heat number and steel grade stenciled on each tube end for site identification and traceability verification
- Container loading plans optimized for Q195–Q345 square tube dimensions, maximizing payload while preventing shift during transit
- FOB, CIF, and DDP shipping terms available with full export documentation and tracking to destination port
Initiating Your Seamless Square Tube Procurement
Submit your required side lengths, wall thickness, steel grade, surface treatment preference, and total quantity to receive a detailed quotation within 12 hours, including mill test certificate samples and production lead time confirmation. For non-standard dimensions outside catalog ranges, our engineering team provides custom sizing proposals with technical feasibility assessment. Specify your destination port and certification requirements upfront to ensure quotation includes all compliance documentation.
Request Quotation with Mill Test Certificate
Send your Seamless Square Steel Tube JIS Standard specifications, quantities, and destination to receive pricing and compliance documentation.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxjypipe.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjypipe.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the grade equivalence between Q235/Q345 and international standards like S235JR/S355JR?
A: Q235 corresponds closely to S235JR in yield strength, while Q345 aligns with S355JR. Chemical composition limits differ slightly between GB, EN, and JIS systems, so we provide detailed equivalence mapping with each inquiry and confirm the appropriate grade for your specific application requirements.
Q: Can you provide third-party inspection before shipment?
A: Yes, we arrange SGS or BV third-party inspection upon request. The inspection covers dimensional verification, visual surface check, and witness testing of mechanical properties, with full reports included in your shipping documentation package.
Q: What is the minimum order quantity for custom non-standard sizes?
A: Our MOQ for Seamless Square Steel Tube JIS Standard production is 10 tons. Custom side lengths and wall thicknesses outside standard catalog ranges are produced to order, with typical production lead times confirmed at quotation stage.
Q: How do you ensure dimensional tolerance of ±1% across the full order?
A: Every batch undergoes dimensional verification in our in-house physical laboratory before release. Mill test certificates document actual measurements for each heat number, providing full traceability from production to delivery.
Q: What surface treatment options are available and how do they affect lead time?
A: We offer black painted, cold rolled, and hot rolled surface treatments. Black painted and hot rolled finishes are typically available from stock or with shorter production cycles, while cold rolled surfaces requiring tighter finish controls may extend lead times slightly, confirmed at quotation.
