Description

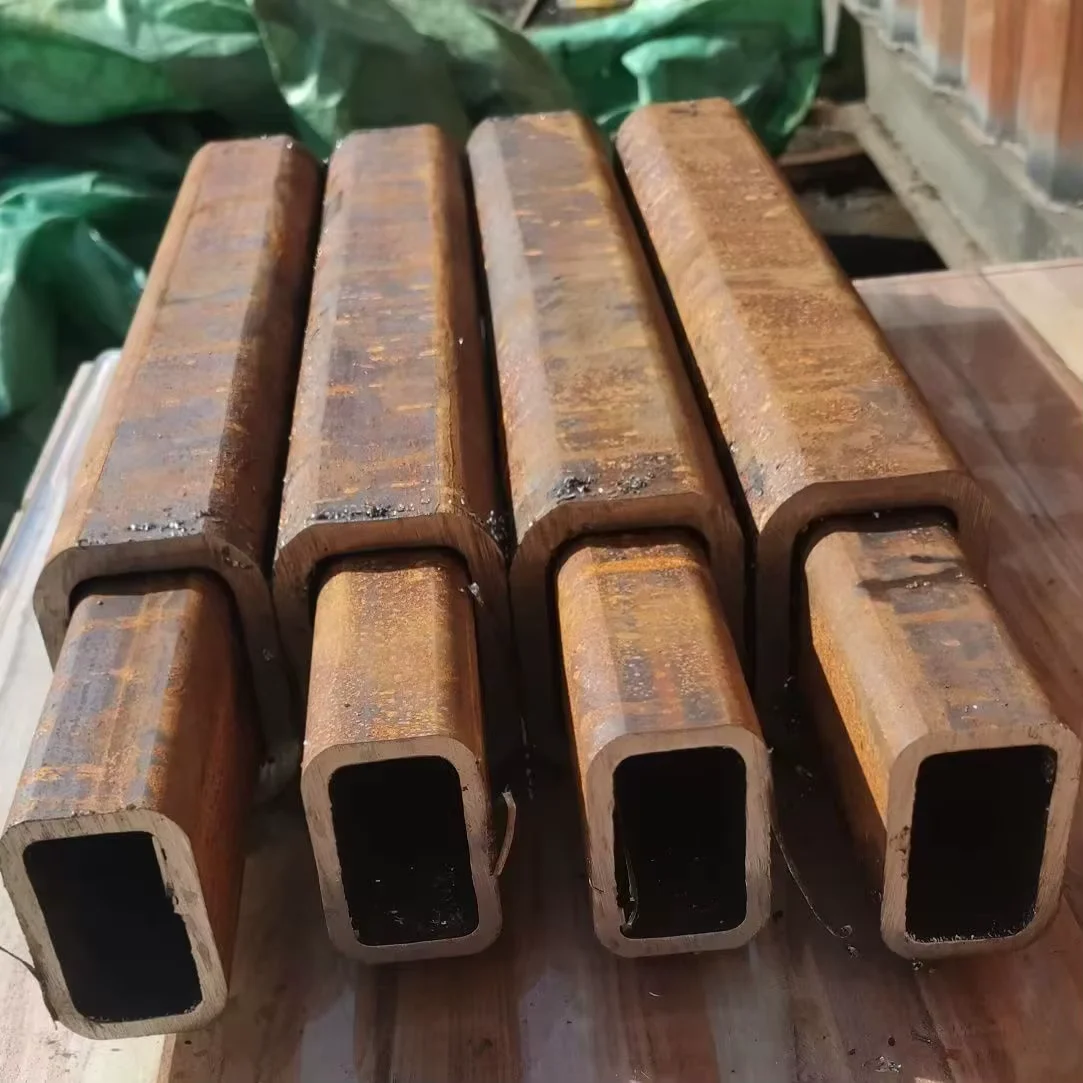

Factory-direct thick-wall seamless tubes — ASTM A500 seamless square steel tube produced in-house with ±1% tolerance and full MTC per heat number.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A500 Seamless Square Steel Tube |
| Product Type | Seamless Square Steel Tube / Seamless Rectangular Hollow Section |
| Steel Grade | 20#, S20C, S10C, S15C, Q195, Q235, Q345, S235JR, S275JR, S355JR |
| Standard | ASTM A500, ASTM A213, DIN EN 10217-1, GB |
| Section Shape | Square / Rectangular |
| Size Range | 15×15 mm – 500×500 mm (square); 20×30 mm – 800×1200 mm (rectangular) |
| Wall Thickness | 0.5 mm – 12 mm |
| Length | 5.8 m – 12 m (or as required) |
| Technique | Seamless (Hot Rolled) |
| Surface Treatment | Black / Bright / Galvanized (40–500 g/m²) / Painted |
| Tolerance | ±1% |
| Ends | Plain |
| Application | Steel structures / Construction frames / Machinery / Scaffolding / Furniture |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & EPC | Building frames, column bases, scaffolding uprights, roof truss members |
| Machinery Manufacturing | Equipment bases, conveyor frames, hydraulic cylinder housings |
| Architectural Facades | Glass curtain wall sub-frames, exposed structural columns, canopy supports |
| Infrastructure | Bridge handrail posts, sound barrier frames, solar mounting structures |
What Negative Tolerance Costs on a Thick-Wall Structural Order
A 0.3 mm wall deviation on a 12 mm seamless square tube can void an inspector’s sign-off and stall an entire shipment at customs.
I once watched a container of seamless hollow sections get rejected at destination because the buyer’s caliper read wall thickness below the minimum allowed by the purchase specification. The tubes were technically within the mill’s standard tolerance band, but the project spec demanded tighter control. That gap between mill tolerance and project expectation is where procurement budgets bleed — through re-inspection fees, air-freight replacements, and delayed crane schedules. When sourcing an ASTM A500 thick wall seamless square steel tube supplier, the question is never just price per ton; it is whether the supplier’s lab enforces tolerance discipline before the tubes ever reach the quenching bed. [NEED_CITE: ASTM A500 dimensional tolerance requirements for structural tubing]
Matching Thick-Wall Seamless Sections to Structural Load Paths
Hot-rolled seamless square and rectangular hollow sections carry load uniformly across all four faces, making them suitable for compression members and moment-resisting frames where welded seams could become fatigue initiation points. The 15×15 mm to 500×500 mm side-length range covers everything from light machinery guards to heavy column sections, while wall thickness up to 12 mm handles concentrated point loads from crane rails or equipment mounts. An ASTM A500 thick wall seamless square steel tube supplier that controls both chemistry and dimensional tolerance in-house eliminates the mismatch risk between material certificates and actual section properties.
Engineering Compliance Across GB, EN, and ASTM Frameworks
Structural engineers specifying these tubes often cross-reference GB/T 8162, EN 10210, and ASTM A500 depending on the project’s governing code. Grade equivalence between Q345, S355JR, and ASTM A500 Grade C is not always one-to-one — carbon content and manganese ranges differ subtly, and a missing conversion note on the mill test certificate can trigger a customs hold in the EU. [NEED_CITE: steel grade equivalence mapping between GB, EN, and ASTM standards] Surface treatment selection matters equally: black finish suits indoor structural frames, hot-dip galvanized coating at 40–500 g/m² protects outdoor scaffolding and solar mounts, and painted finishes match architectural color specs for exposed facade members. CE certification under EN 10210 / EN 10219 is mandatory for EU-bound shipments, while ASTM A500 documentation satisfies North American specifiers.
How Hot-Rolled Seamless Process Defines Corner Integrity and Wall Uniformity
Unlike ERW tubes that form from coil and weld a longitudinal seam, hot-rolled seamless square tubes start from a solid billet pierced and elongated through a mandrel mill, then shaped into square or rectangular profile. This process produces a continuous grain flow around all four corners — no weld line, no heat-affected zone, and no seam-related weakness under cyclic loading. Wall thickness stays uniform across flat faces and corner radii because the material displaces rather than folds. For grades like Q345 and S355JR, the seamless route preserves the full yield strength envelope that structural calculations depend on. Surface options — black, bright, galvanized, or painted — are applied after forming, so the zinc or paint layer coats a dimensionally stable substrate rather than a work-hardened weld seam.
Hidden Costs of Sourcing Without Verified Mill Documentation
Ordering thick-wall seamless tubes from a trader who cannot produce heat-number-traceable test certificates creates downstream risk: the inspector rejects the batch, the general contractor delays the pour schedule, and the buyer absorbs demurrage and replacement freight. Worse, if the steel grade does not match the certificate — say Q235 shipped as Q345 — the structural engineer must recalculate load capacity, potentially requiring redesign of connections already fabricated. [NEED_CITE: consequences of non-conforming steel materials in structural construction] Certification gaps also block EU customs clearance; a missing or incorrectly referenced EN 10210 mark means the container sits at the port until the importer either arranges retroactive testing or absorbs the loss.
Why Buyers Choose Our Mill for ASTM A500 Seamless Sections
Every ASTM A500 thick wall seamless square steel tube we ship carries a mill test certificate generated by our own physical and chemical laboratory — not a forwarded document from a third-party trader. Our three production lines cover over 2,800 specifications, so when a project calls for a non-standard side length or an extra-heavy wall, we do not need to subcontract; the billet goes through our own piercing and forming stands. We hold CE certification under EN 10210 / EN 10219, ISO 9001:2015 registration, and SGS / BV verification, which means EU and regulated-market buyers clear customs without retroactive inspection costs. Custom non-standard sizes are available with a 1 Ton MOQ, and our loading team uses purpose-built cradles and edge protectors to prevent surface damage and bending during ocean transit.
Documentation & Compliance
- Mill test certificate documenting Q345 or S355JR chemical composition and mechanical properties per ASTM A500, traceable to heat number
- CE certificate under EN 10210 / EN 10219 for EU market structural hollow section compliance
- ISO 9001:2015 quality management system certificate covering seamless tube production processes
- SGS or BV third-party inspection report available upon request before container loading
- Material traceability tag on each bundle linking heat number to mill test certificate
- Full customs document set: packing list, bill of lading, certificate of origin, commercial invoice
Packaging, Loading & Delivery

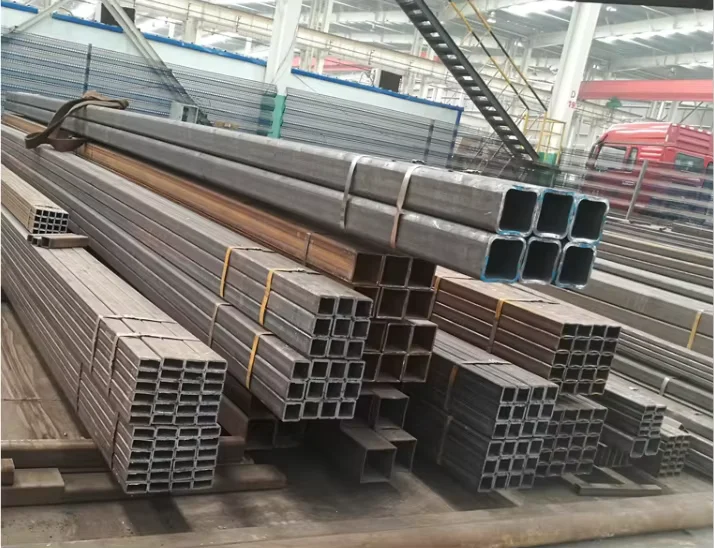

- Thick-wall seamless square tubes bundled with high-tensile steel strips, separated by timber sleepers to prevent surface contact damage during ocean transit
- Galvanized ASTM A500 tubes wrapped with waterproof paper and edge protectors to preserve zinc coating integrity at corners and weld zones
- Container loading optimized for 5.8 m and 12 m lengths using nested square profiles to maximize payload per 20ft and 40ft container
- Cut-to-length service available for non-standard project lengths, with plain ends deburred and marked with heat number and steel grade
-唛头 stenciled on each bundle end showing steel grade, size, heat number, and purchase order reference for site identification
- Shipping terms FOB / CIF / DDP with door-to-door tracking provided until container arrival at destination port
Start Your ASTM A500 Seamless Tube Inquiry
Send your specification sheet — section size, wall thickness, steel grade, surface treatment, quantity, and destination port — and receive a detailed quotation with unit price, lead time, and shipping terms within 12 hours. Request a sample section and mill test certificate for quality confirmation before committing to a production order.
Request ASTM A500 Seamless Square Tube Quotation
Submit your dimensions, grade, and quantity to receive pricing and mill test certificates.
Mobile / WhatsApp / WeChat: +86 188 5315 7756
Email: admin@sdxjypipe.com
Frequently Asked Questions
Q: How do Q345 and S355JR map to ASTM A500 grades?
A: Q345 and S355JR both offer higher yield strength than ASTM A500 Grade B and are generally comparable to Grade C in structural applications, though carbon and manganese ranges differ slightly. We provide grade equivalence documentation with every shipment to satisfy project engineers and customs authorities.
Q: Can you produce non-standard sizes and what is the MOQ?
A: Yes, our production lines cover over 2,800 specifications including non-standard side lengths and wall thicknesses up to 12 mm. The minimum order quantity is 1 Ton, and custom sizes enter production within typical lead times after deposit confirmation.
Q: What is the difference between seamless and ERW for square tubes?
A: Seamless square tubes are hot-rolled from solid billets with no weld seam, providing uniform grain flow around all corners and superior performance under cyclic or impact loading. ERW tubes are formed from coil with a longitudinal weld, which suits lower-stress applications at lower cost. For structural frames and machinery bases requiring full certification, seamless is the preferred choice.
Q: How do you guarantee dimensional tolerance and corner quality?
A: Every batch undergoes dimensional and mechanical testing in our in-house physical and chemical laboratory before shipment. Tolerance is held at ±1%, and full inspection reports with photographs are provided for buyer review prior to container loading.
Q: What certifications are provided for EU customs clearance?
A: We supply CE certification under EN 10210 / EN 10219, ISO 9001:2015 quality certificates, and mill test certificates conforming to EN 10204 3.1. Third-party inspection by SGS or BV is available upon request to satisfy regulated-market import requirements.
