Description

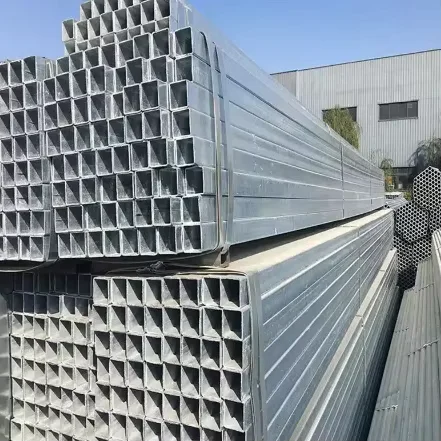

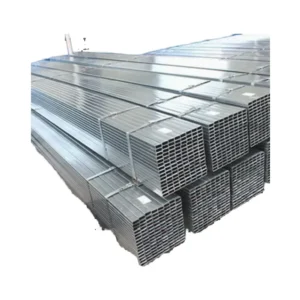

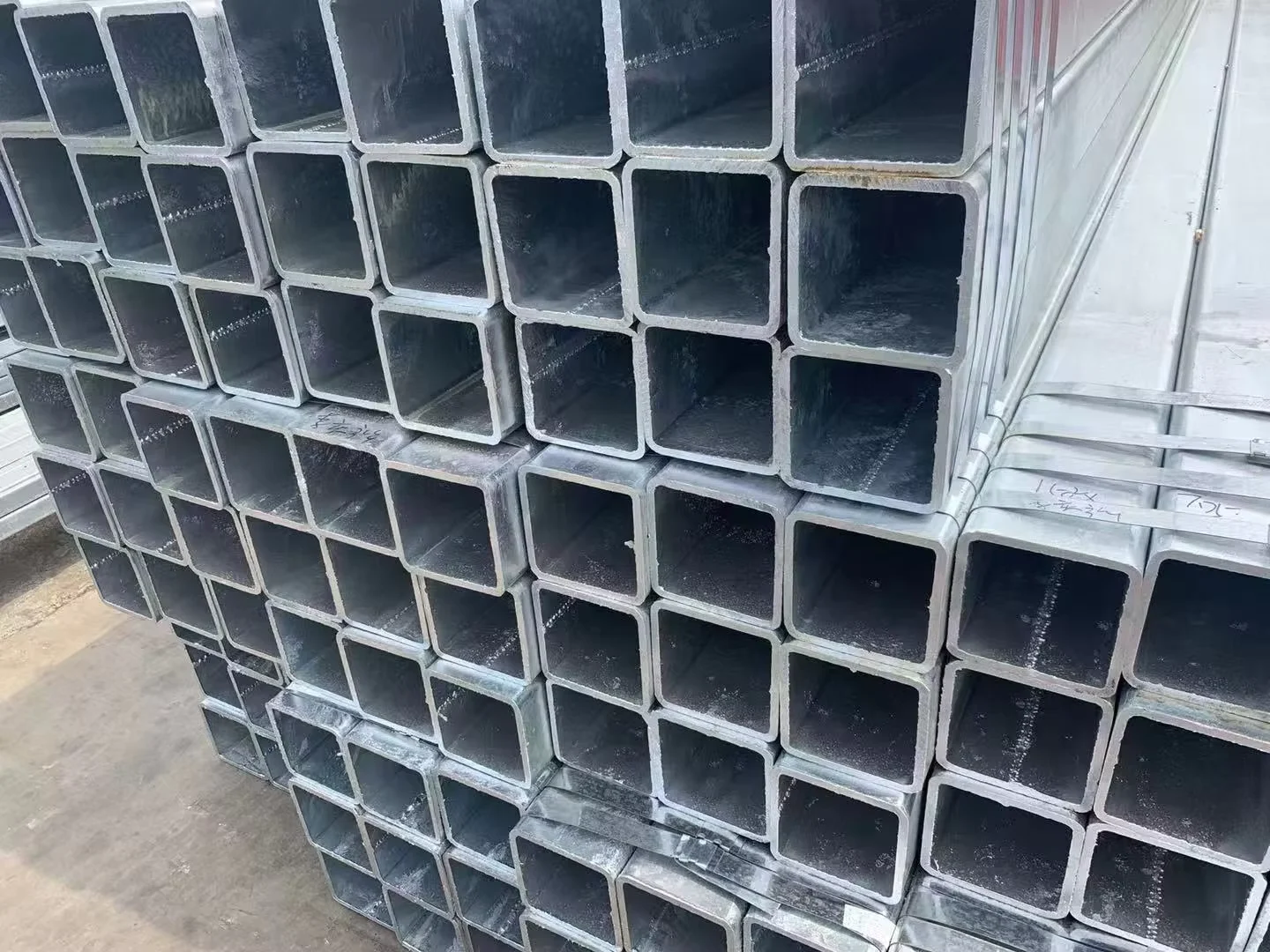

Factory-Direct Galvanized Square Steel Tube — Hot-dip galvanized SHS produced in-house with wall thickness up to 40 mm, shipped with full EN 10219 and ASTM A500 mill test certificates directly from our Jinan facility.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square Steel Tube |
| Product Type | Square Hollow Section |
| Steel Grade | A53 Grade B, A500 Grade A/B/C, STK400, SS400, ST42.2, S355JR, Q195–Q690 |
| Standard | ASTM A53, A500, A36, A795; BS 1387; EN 10255; ISO 65; ANSI C80; DIN 2440; JIS G3444; GB/T 3091, GB/T 13793 |
| Section Shape | Square |
| Size Range | 21.3 mm – 660 mm (1/2″ – 26″) |
| Wall Thickness | 6 mm and above, up to 40 mm |
| Length | 5.8 m / 6 m / 11 m or custom |
| Technique | Hot-dip Galvanized |
| Surface Treatment | Hot-dip Galvanized |
| Tolerance | ±1% / ±5% |
| Ends | Plain, Beveled, Threaded, Grooved |
| Application | Fluid transmission, construction, hydraulic and precision machinery, power, boiler, petrochemical, structural frames |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Municipal Infrastructure | Water and gas transmission pipelines, underground utility conduits |
| Construction & Steel Structure | Building frames, column supports, roof trusses, scaffolding systems |
| Machinery Manufacturing | Hydraulic cylinder bodies, precision equipment frames, conveyor structures |
| Power & Petrochemical | Boiler support structures, pipeline racks, equipment platforms |
Where Zinc Coating Thickness Decides Project Acceptance
Inconsistent hot-dip galvanizing is the single most common reason galvanized square steel tube shipments fail site inspection.
Early in my career, I watched an entire batch of 10 mm wall thickness galvanized tubes get rejected at a gas pipeline acceptance inspection. The surface looked bright and uniform to the naked eye, but coating thickness tests revealed the zinc layer could not withstand underground corrosion conditions specified in the project specification. That experience shaped how I approach every Galvanized Square Steel Tube order — coating weight is verified in our in-house laboratory before any shipment leaves the facility. Buyers sourcing from multiple suppliers without certified mill test reports frequently encounter this exact problem: tubes that pass visual inspection but fail metallurgical testing at the project site [NEED_CITE: hot-dip galvanizing coating thickness standards for structural hollow sections].
Matching Hot-Dip Galvanized SHS to Structural and Corrosive Environments
Galvanized Square Steel Tube in A500 Grade B and S355JR grades serves projects where both structural load-bearing capacity and long-term corrosion protection are non-negotiable. The hot-dip galvanizing process bonds zinc metallurgically to the steel substrate, providing cathodic protection that outperforms paint or powder coating in outdoor and buried applications. For municipal water and gas networks, this means decades of maintenance-free service even in aggressive soil conditions. Our 2,800+ specification range ensures that non-standard dimensions required by specific engineering drawings can be fulfilled from a single source, eliminating the need to split orders across multiple mills.
Engineering Compliance and Certification Requirements
Structural hollow sections used in load-bearing frames must conform to dimensional and mechanical requirements defined by EN 10219 for cold-formed welded structural hollow sections or ASTM A500 for cold-formed welded and seamless carbon steel structural tubing. When Galvanized Square Steel Tube is specified for EU market projects, Lloyd’s CE certification under EN 10210/EN 10219 is mandatory for customs clearance and engineer approval [NEED_CITE: CE marking requirements for structural steel hollow sections in European Union]. For North American projects, ASTM A53 and A500 grade compliance with proper mill test certificates satisfies AISC and local building code requirements. Wall thickness tolerance directly affects theoretical weight calculations and structural load capacity — negative tolerance beyond specification limits compromises both [NEED_CITE: dimensional tolerance requirements for cold-formed structural hollow sections].
Steel Grade Selection and Hot-Dip Galvanizing Process
The steel grades offered for Galvanized Square Steel Tube span three major international systems: ASTM (A53 Grade B, A500 Grade A/B/C), EN (S355JR), and GB (Q195–Q690). Q-series grades follow Chinese national standards with yield strength designations, while S-series grades conform to European EN standards with specified minimum yield values at room temperature. ASTM A500 Grade C provides higher yield strength than Grade B, making it suitable for heavier structural applications. The hot-dip galvanizing process involves immersing fabricated steel tubes in molten zinc bath at approximately 450°C, forming a series of zinc-iron alloy layers bonded to the steel surface. This metallurgical bond ensures the coating cannot peel or flake during cutting, welding, or field handling. Wall thickness up to 40 mm is available for heavy-duty structural applications where standard commercial tubes fall short.
Hidden Costs of Non-Compliant Galvanized Tube Procurement
Purchasing Galvanized Square Steel Tube without verified coating thickness and proper grade certification creates costs that far exceed the initial price difference. Material that fails to meet EN 10219 dimensional tolerance triggers rejection at project inspection, requiring costly replacement and schedule delays. Missing CE documentation blocks customs clearance for EU-bound shipments, generating demurrage charges and storage fees [NEED_CITE: customs clearance documentation requirements for structural steel imports]. Tubes with insufficient zinc coating corrode prematurely in service, leading to early replacement and potential liability claims. Negative tolerance abuse reduces actual wall thickness below design specifications, compromising structural safety without visible indication until failure occurs.
Procurement Advantages from Direct Factory Supply
As the original inventor of sharp-corner rectangular steel tubes in China holding 41 invention patents, we operate three production lines covering 2,800+ specifications with wall thickness up to 40 mm. Every Galvanized Square Steel Tube order is supported by our in-house physical and chemical laboratory performing dimensional measurement, mechanical testing, and zinc coating thickness verification before shipment. Full international certifications include ISO 9001:2015, Lloyd’s CE (EN 10210/EN 10219), Singapore FPC, and SGS/BV third-party verification. Custom non-standard sizes, cutting, punching, and bending services eliminate secondary processing at the project site. Professional container loading with anti-damage measures ensures tubes arrive without bending or surface coating damage. We export to 50+ countries with complete documentation and tracking support.
Documentation & Compliance
- Mill Test Certificate documenting A500 Grade B chemical composition and yield strength per ASTM A500 for each heat number
- CE certificate under EN 10219 confirming conformity for Galvanized Square Steel Tube exported to European Union member states
- ISO 9001:2015 quality management system certificate covering hot-dip galvanizing and tube fabrication processes
- SGS or BV third-party inspection report verifying zinc coating thickness and dimensional tolerance before container loading
- Material traceability documentation linking each Galvanized Square Steel Tube bundle to specific heat number and production batch
- Customs documents including packing list, bill of lading, and certificate of origin for S355JR grade structural hollow sections
Packaging, Loading & Delivery

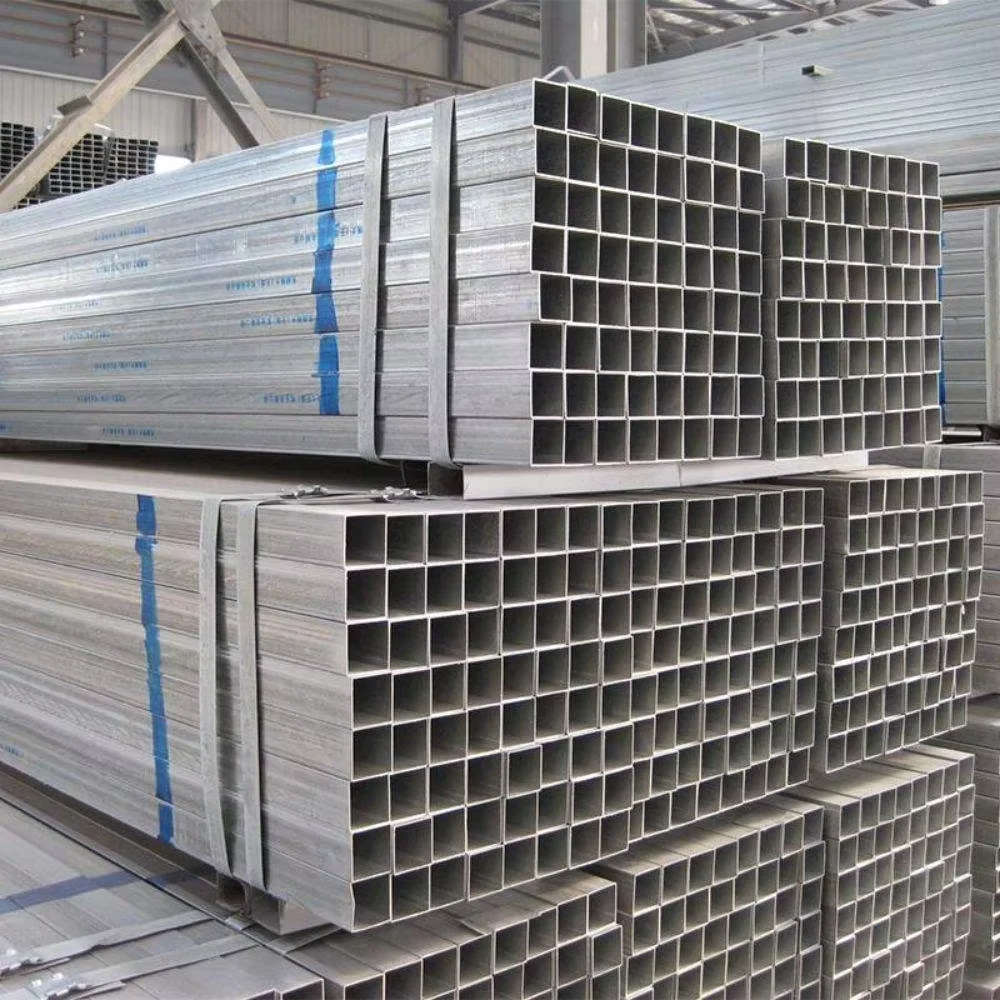

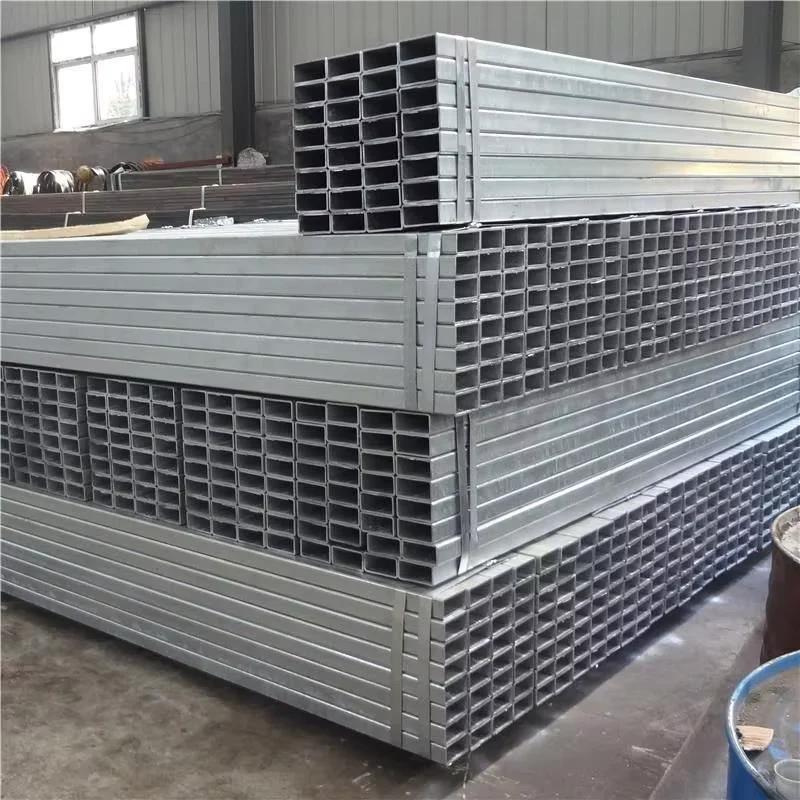

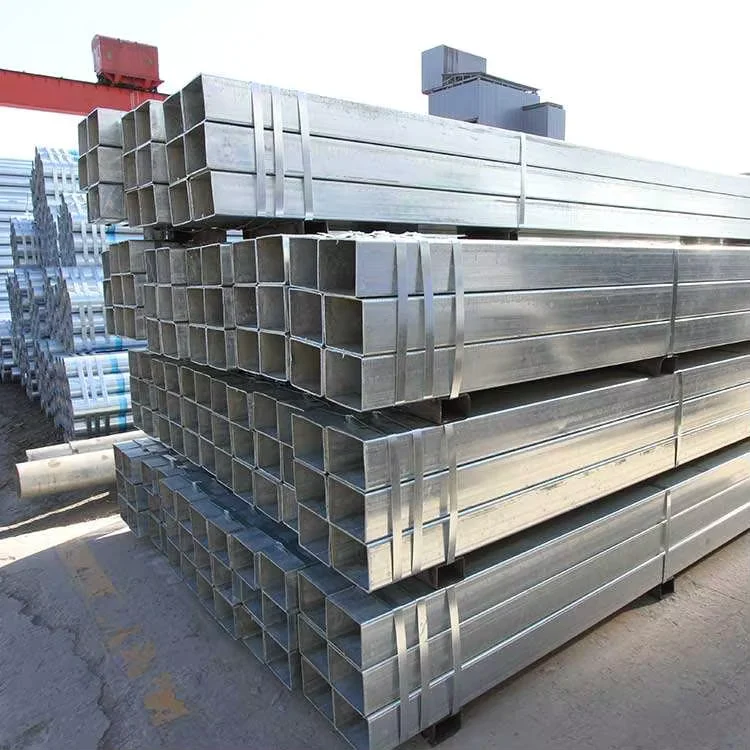

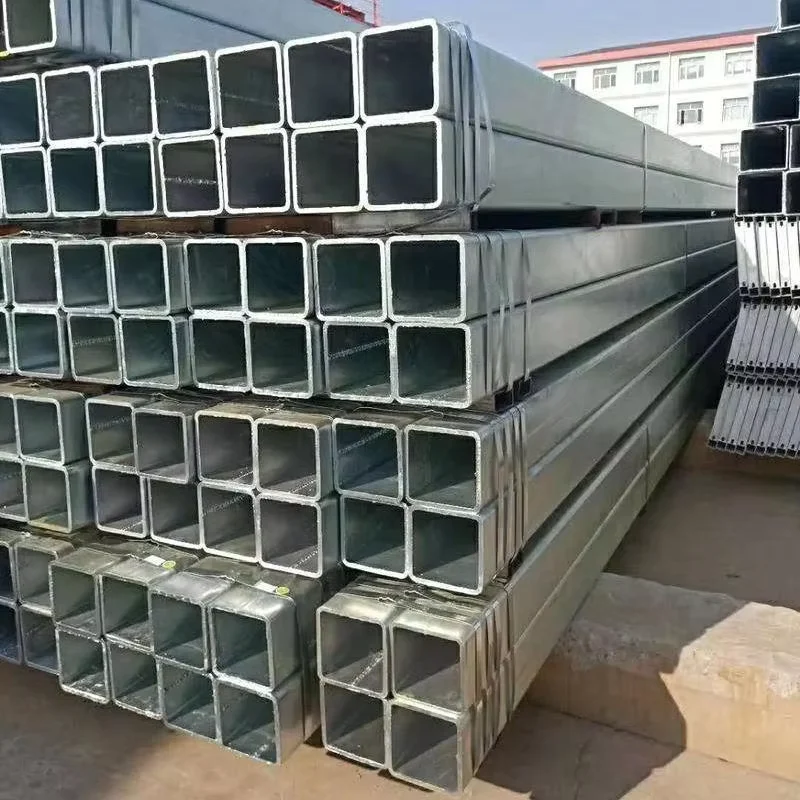

- Galvanized Square Steel Tube bundled with steel strips and edge protectors to preserve hot-dip zinc coating during ocean transit
- Surface protection maintained through proper stacking separation preventing zinc layer abrasion between adjacent tubes
- Container loading optimized for 5.8 m and 6 m lengths maximizing payload for 21.3 mm to 200 mm side dimension range
- Custom cutting to project-specific lengths available before galvanizing ensuring clean edges and complete zinc coverage
- Heat number and steel grade markings applied to each tube end for site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with door-to-door logistics coordination for Galvanized Square Steel Tube orders
Initiating Your Galvanized Square Steel Tube Inquiry
Submit your required dimensions, steel grade, surface treatment preference, quantity, and destination port to receive a detailed quotation within 12 hours. Our technical team will confirm specification availability, provide mill test certificate samples, and arrange SGS/BV third-party inspection if required. Custom non-standard sizes and processing services are quoted separately with clear lead time expectations.
Request Galvanized Square Steel Tube Quotation with Mill Test Certificate
Provide your project specifications including size, wall thickness, steel grade, and quantity to receive pricing and certification documentation.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxjypipe.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjypipe.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between hot-dip galvanized and pre-galvanized square steel tube?
A: Hot-dip galvanizing immerses the finished tube in molten zinc, creating a metallurgical bond with coating thickness typically 60-80 micrometers, suitable for outdoor and buried applications. Pre-galvanized tube is made from pre-coated steel coil with thinner zinc layer, appropriate for indoor or non-corrosive environments only.
Q: Can you provide ASTM A500 Grade C Galvanized Square Steel Tube with CE certification?
A: Yes, we produce Galvanized Square Steel Tube in A500 Grade A, B, and C grades with full CE certification under EN 10210/EN 10219 through Lloyd’s Register, enabling customs clearance and engineer approval for EU market projects.
Q: What is the minimum order quantity for custom non-standard sizes?
A: The standard MOQ is 1 Ton for stock sizes. Custom non-standard dimensions outside our regular 2,800+ specification range may require higher minimum quantities depending on production setup requirements.
Q: Do you provide third-party inspection before shipment?
A: Yes, SGS and BV third-party inspection services are available upon request to verify dimensional tolerance, zinc coating thickness, and mechanical properties before container loading.
Q: What steel grade equivalents exist between ASTM, EN, and GB standards?
A: ASTM A53 Grade B roughly corresponds to EN S235JR and GB Q235B. ASTM A500 Grade C aligns with EN S355JR and GB Q345B. Our technical team provides detailed equivalence tables for specific project requirements.
