Description
Factory-Direct Galvanized Supply — SD XJY Pipe produces GB-standard Q235B and Q345B galvanized square steel tubes on its own ERW lines with in-house zinc coating and mill test certification, eliminating trading markups.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square Steel Tube |
| Product Type | Galvanized Square Steel Tube |
| Steel Grade | Q235B, Q345B, SS400, A36 |
| Standard | GB |
| Section Shape | Square |
| Size Range | Customized |
| Wall Thickness | Customized |
| Length | Customized |
| Technique | ERW / Welded |
| Surface Treatment | Zinc Coated / Galvanized |
| Application | Concrete construction support, Scaffolding, Structural frames |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & EPC | Concrete formwork support systems, scaffolding uprights and ledgers, structural frames for warehouses |
| Infrastructure | Bridge temporary works, sound barrier posts, highway sign gantry columns |
| Industrial Facilities | Mezzanine floor framing, equipment support platforms, conveyor structure legs |
Where Zinc Coating Thickness Decides Site Acceptance for BS EN Standard Pre Galvanized Square Tube Export Quality
Micron-level coating uniformity is the single most common reason galvanized tubes fail third-party inspection at destination ports.
I have seen entire container loads of galvanized square tubes rejected in Rotterdam because spot checks showed zinc thickness dipping below 40 microns on inner weld seams — even though the outer faces passed. The ERW weld zone absorbs heat differently during galvanizing, and mills that rush the fluxing step leave thin patches that corrode within months on scaffolding exposed to coastal humidity. [NEED_CITE: EN 10219 cold-formed hollow section galvanizing requirements]
Beyond coating, buyers frequently discover that “GB standard” tubes shipped without proper equivalence documentation cannot clear EU customs under EN 10219, forcing costly re-certification or return freight. The combination of inconsistent zinc adhesion and missing mill test traceability turns a routine procurement into a project delay.
How GB-Standard Galvanized Square Tubes Match Concrete Support and Scaffolding Loads
BS EN Standard Pre Galvanized Square Tube Export Quality in Q235B serves typical scaffolding uprights where yield strength above 235 MPa provides adequate safety margins for temporary works up to standard lift heights. Q345B upgrades load capacity for heavier formwork systems and mezzanine frames without increasing wall thickness. The square section offers four flat bearing surfaces for clamp connections, reducing slippage compared to round tubes in cup-lock scaffolding systems. Our ERW lines produce these tubes with consistent corner geometry that matches scaffolding coupling tolerances, a detail we refined after observing field failures from out-of-square sections.
Engineering Compliance and Certification Pathways for Galvanized Structural Tubes
Structural frames designed to EN 1993-1-1 require documented material properties; Q235B and Q345B map broadly to S235JR and S355JR respectively, but equivalence must be confirmed through chemical composition comparison rather than assumed. [NEED_CITE: steel grade equivalence between GB and EN standards] Galvanized coatings for outdoor scaffolding typically require minimum 600 g/m² zinc mass (approximately 42 microns per side) per EN ISO 1461 for 20-year corrosion protection in C3 environments. For projects targeting EU markets, CE marking under EN 10219 demands factory production control audits and declared performance values — certifications SD XJY Pipe holds through Lloyd’s register. Custom cut lengths reduce on-site welding, preserving the zinc coating integrity at connection points.
Steel Grade Selection and ERW Weld Integrity for Galvanized Square Tubes
Q235B remains the workhorse grade for scaffolding and light structural frames, offering adequate formability and weldability at lowest cost. Q345B provides approximately 40 percent higher yield strength for the same cross-section, allowing thinner walls or longer spans in formwork systems. SS400 and A36 serve as Japanese and American equivalents when project specifications reference JIS or ASTM standards. [NEED_CITE: mechanical properties comparison of Q235B Q345B SS400 A36]
The ERW welding process creates a longitudinal seam that requires careful control during galvanizing — the weld zone’s different microstructure can cause uneven zinc pickup if the annealing and fluxing stages are not properly balanced. SD XJY Pipe’s in-house physical and chemical laboratories test every heat for weld seam integrity before galvanizing, preventing the “zinc bare spot” defects that plague poorly controlled ERW-to-galvanizing transitions.
Hidden Costs of Incorrect Galvanized Square Tube Procurement
Specifying Q235B when structural calculations demand Q345B leads to deflection failures or costly mid-project upgrades. Missing CE documentation blocks customs clearance for EU-bound shipments, triggering demurrage charges that exceed the tube cost itself. [NEED_CITE: customs clearance requirements for structural steel tubes in EU] Negative tolerance abuse — where actual wall thickness falls below declared values — reduces load capacity and voids engineering certifications, exposing contractors to liability. Re-galvanizing rejected tubes at destination costs three to four times the original coating expense and delays project handover.
Why SD XJY Pipe Delivers Reliable Galvanized Square Tubes
SD XJY Pipe operates three dedicated ERW production lines covering 2,800+ specifications, allowing single-source procurement for mixed-size scaffolding orders without splitting shipments across multiple mills. Our in-house理化实验室 issues mill test certificates for every heat number, documenting chemical composition and mechanical properties per GB standards with optional equivalence statements for EN/ASTM. Full international certifications — ISO 9001:2015, Lloyd’s CE under EN 10219, Singapore FPC, and SGS/BV third-party verification — satisfy import requirements for EU, Middle East, and Southeast Asian markets. Custom cut-to-length service reduces on-site waste and preserves zinc coating at connection points. Professional container loading with edge protectors and anti-abrasion padding prevents zinc coating damage during ocean transit — a lesson learned from early export claims. Exports to 50+ countries demonstrate proven logistics coordination for DDP and CIF terms.
Documentation & Compliance
- Mill test certificate documenting Q235B or Q345B chemical composition (C, Mn, Si, P, S) and yield/tensile strength per GB/T 700 or GB/T 1591
- CE certificate under EN 10219 for cold-formed welded structural hollow sections, covering galvanized square tubes exported to EU markets
- ISO 9001:2015 quality management system certificate validating production process control for galvanized square steel tubes
- SGS or BV third-party inspection report verifying zinc coating thickness, dimensional tolerance, and surface quality before shipment
- Material traceability by heat number stamped on each tube, linking to corresponding mill test certificate
- Customs documentation including packing list, bill of lading, and certificate of origin for destination port clearance
Packaging, Loading & Delivery

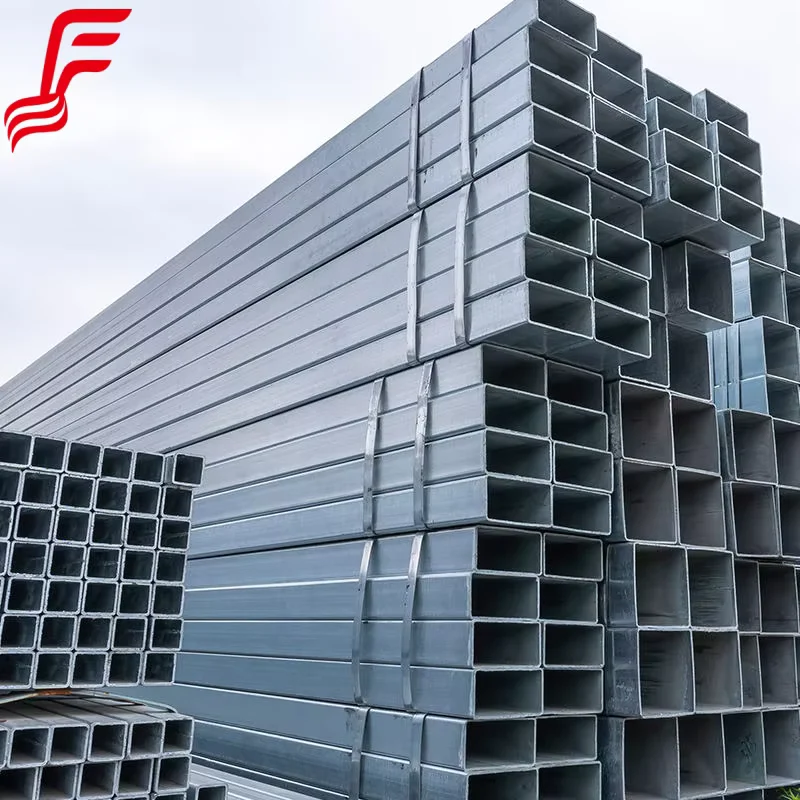

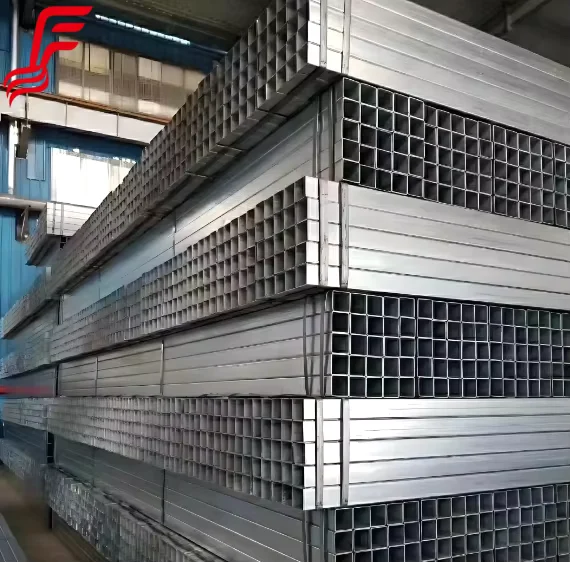

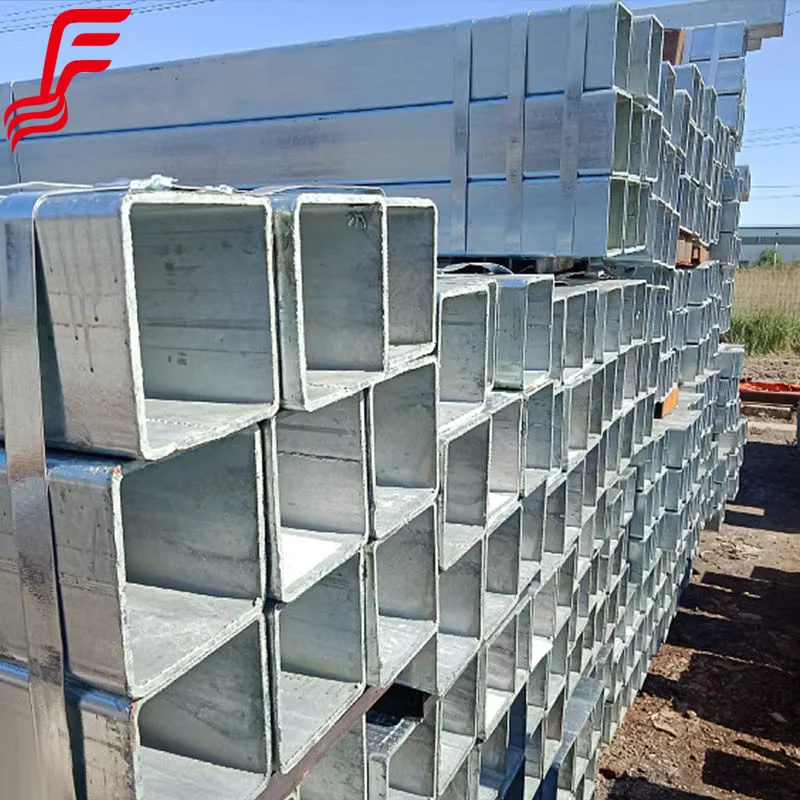

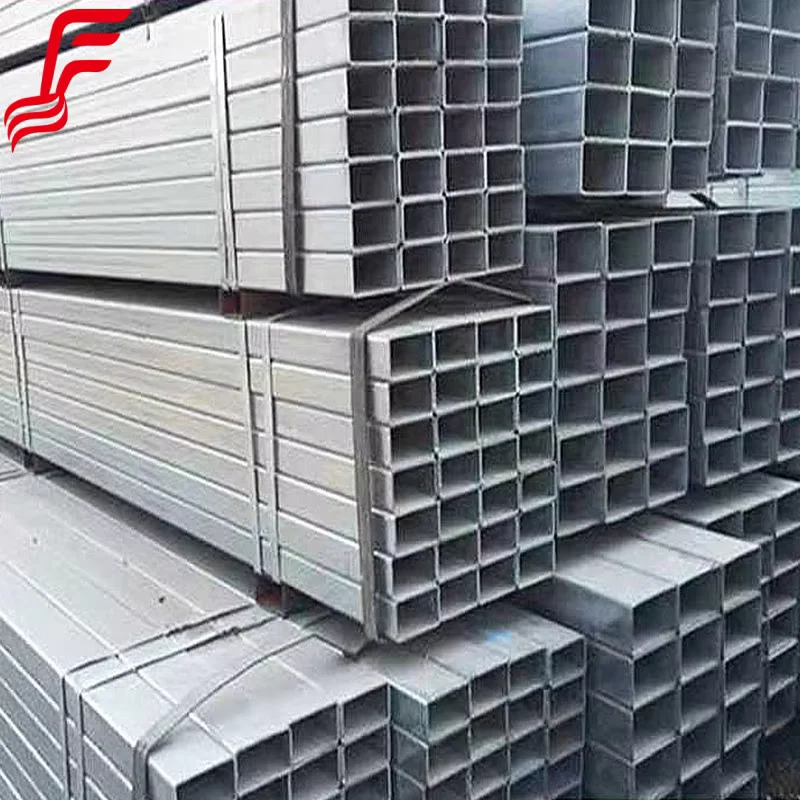

- Galvanized square tubes bundled with steel strips and edge protectors to preserve zinc coating during ocean transit and prevent corner denting
- Seaworthy packaging with waterproof wrapping for Q235B and Q345B galvanized tubes, protecting zinc surface from white rust during container shipping
- Container loading optimization for customized lengths, maximizing 20ft and 40ft GP capacity while maintaining weight distribution for scaffolding tube shipments
- Custom cut-to-length service available for galvanized square tubes, reducing on-site cutting waste and preserving zinc coating integrity at connection points
- Heat number and steel grade marking on each tube bundle, enabling site traceability and inspection verification for Q235B Q345B SS400 A36 grades
- FOB Qingdao, CIF destination port, or DDP door-to-door delivery terms available for galvanized square steel tube exports to EU, Middle East, and Southeast Asia
How to Request Quotation and Technical Documentation for Galvanized Square Tubes
Submit your required steel grade (Q235B, Q345B, SS400, or A36), outer dimension, wall thickness, length, and total quantity to receive a detailed quotation within 12 hours, including unit price per ton or piece, production lead time, and shipping terms. Specify destination port and certification requirements — CE marking for EU projects, SGS/BV inspection for regulated markets, or standard GB mill test certificates for domestic and non-regulated exports. Non-standard sizes and custom cut lengths are available with low MOQ of 5 tons, supported by full dimensional and coating thickness inspection reports before shipment.
Frequently Asked Questions
Q: What is the minimum order quantity for galvanized square steel tubes?
A: The MOQ is 5 tons for standard sizes in Q235B and Q345B grades. Custom sizes and cut lengths follow the same MOQ, with typical production lead times of 15-25 days for non-stock specifications.
Q: Can you provide mill test certificates for Q235B and Q345B galvanized tubes?
A: Yes, every heat number receives a mill test certificate documenting chemical composition and mechanical properties per GB/T 700 (Q235B) or GB/T 1591 (Q345B). Third-party inspection by SGS or BV is available upon request for destination port verification.
Q: Do your galvanized square tubes comply with EN 10219 for EU market import?
A: SD XJY Pipe holds CE certification under EN 10219 for cold-formed welded structural hollow sections. While GB standard Q235B and Q345B are produced, equivalence statements to S235JR and S355JR can be provided based on chemical composition comparison, subject to project engineer approval.
Q: How do you protect the galvanized zinc coating during shipping?
A: Galvanized square tubes are bundled with steel strips and edge protectors, wrapped in waterproof material to prevent white rust formation, and loaded in containers with anti-abrasion padding to preserve zinc coating integrity during ocean transit.
Q: What steel grades are available for galvanized square tubes?
A: Standard production covers Q235B, Q345B, SS400, and A36 grades. These serve as Chinese, Japanese, and American equivalents for structural applications. Custom non-standard sizes and lengths are available with 5-ton MOQ.
Request Your Galvanized Square Tube Quotation Today
Send your specifications — steel grade, dimensions, quantity, and destination — to receive pricing and mill test certificate samples within 12 hours.
