Description
Factory-Direct Steel Structure Fabrication — All Q235B and Q345B fabricated components processed in-house with full mill test certificates, eliminating trading markup on warehouse and workshop builds.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B/Q345B Fabricated Steel Structure |
| Product Type | Fabricated Steel Structure |
| Steel Grade | Q235, Q235B, Q345, Q345B |

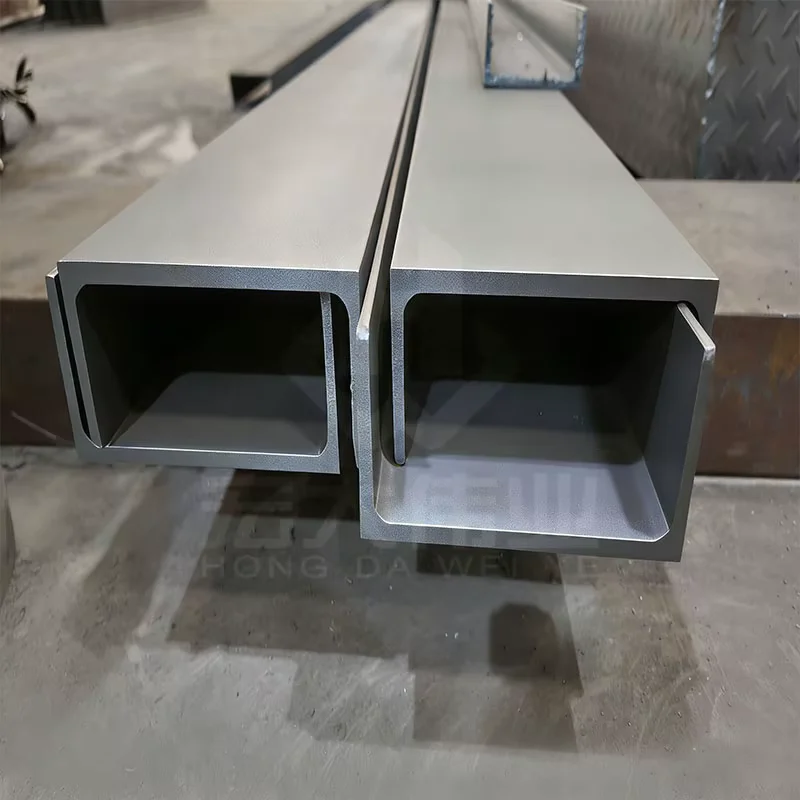

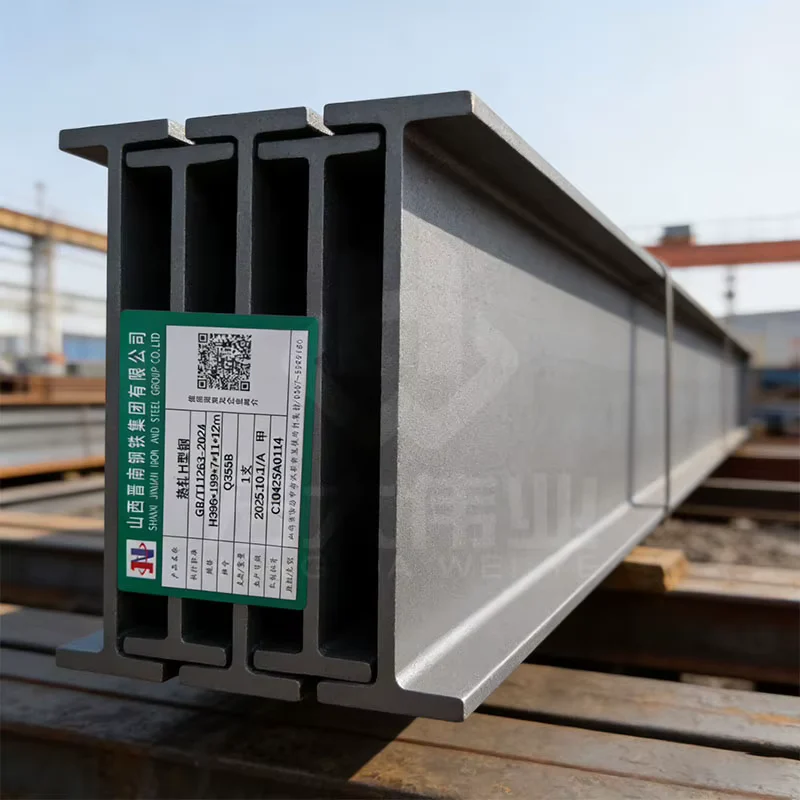

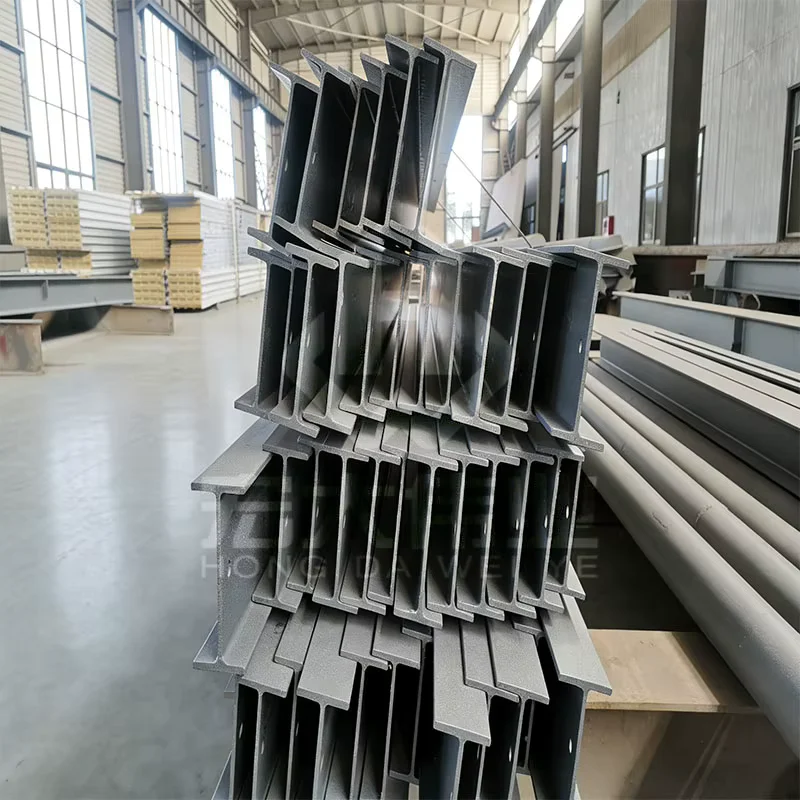

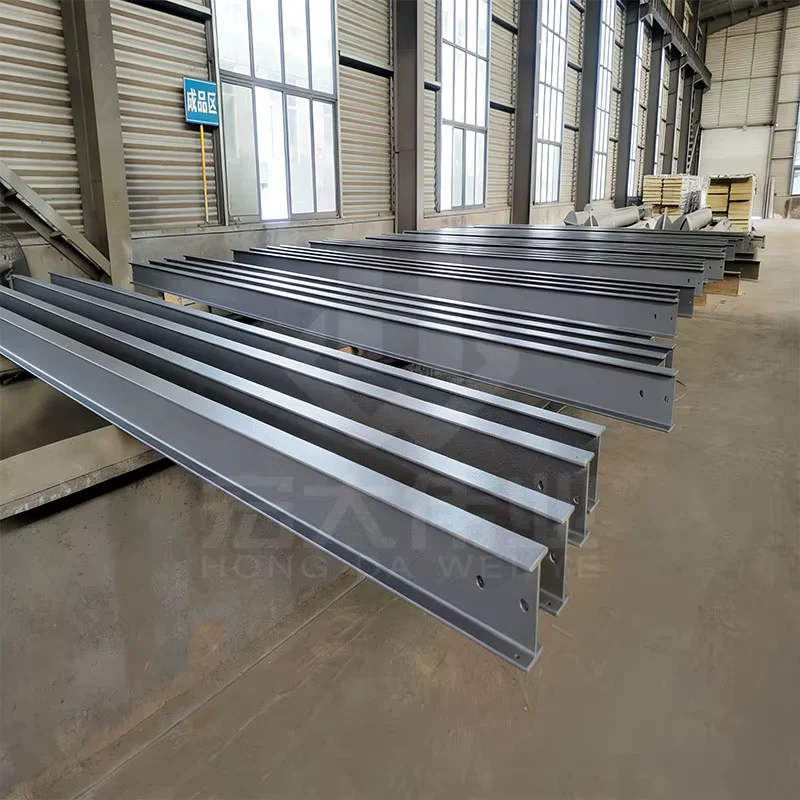

| Section Shape | H-shape Steel Beam (Main Frame), C/Z Shape Steel Channel (Purlin) |
| Technique | Customized Steel Component Processing |
| Surface Treatment | Painting / Galvanized |
| Design Style | Modern |
| Structure Type | Steel Structure |
| Color | Customized |
| Warranty | 1 Year |
| Standard | CE, ISO 9001:2008 |
| Application | Steel Warehouse, Steel Workshop, Garage, Building Materials |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Industrial Construction | Portal frame steel warehouses with H-beam columns and rafters |
| Manufacturing Facilities | Heavy-duty steel workshops with Q345B main frames and C/Z purlin roof systems |
| Commercial & Auxiliary | Steel garages, equipment shelters, and auxiliary storage buildings |
| EPC & General Contracting | Prefabricated steel building kits for overseas infrastructure projects |
Where Material Grade Mismatches Derail Steel Warehouse Timelines
Wrong steel grade on a main frame beam means re-fabrication, not re-negotiation.
Project engineers ordering Q235B H-beams for warehouse columns sometimes receive Q195 or unmarked material at site — the columns pass visual inspection but fail load calculations during engineer sign-off. The entire frame must be dismantled and replaced. On a recent workshop project in West Africa, mixed-grade purlins arrived without heat numbers, forcing the client to order replacement C-channels by air freight at three times the original material cost. [NEED_CITE: steel grade equivalence between GB Q-series and EN S-series standards]
How H-Beam Frames and Purlin Systems Match Structural Load Paths
A steel warehouse or workshop relies on two load-bearing layers: the primary H-beam portal frame carries vertical gravity loads and lateral wind forces, while the secondary C/Z purlin system distributes roof and wall cladding loads back to the main frame. When Q345B is specified for the main frame in large-span warehouses, the higher yield strength allows longer column spacing — reducing the total number of frames needed. The Custom Structural Steel Fabrication Service Manufacturer processes both layers from provided drawings, ensuring bolt-hole positions, connection plates, and purlin cleats align before components leave the factory.
Engineering Compliance and Surface Protection for Harsh Environments
Steel structures for warehouses in coastal or industrial zones face corrosion demands that dictate surface treatment selection. Hot-dip galvanized H-beams and purlins resist atmospheric corrosion for decades without maintenance, while painted finishes offer cost-effective protection for indoor workshops with controlled environments. Structural design must follow applicable codes — EN 1993 for European projects, AISC for North American builds — with material certifications matching the specified standard. CE marking and ISO 9001:2008 quality documentation ensure customs clearance and engineer approval across regulated markets. [NEED_CITE: EN 1993 steel structure design code requirements for industrial buildings]
Understanding Q235B vs Q345B: Grade Selection for Structural Frames
The Q-series steel grading system follows Chinese GB standards, where the number indicates minimum yield strength in MPa. Q235B serves standard warehouse frames with moderate span and load requirements, offering good weldability and formability at lower cost. Q345B delivers higher yield strength for heavy-duty workshops, crane-supporting structures, and large-span buildings where reduced member sizes offset the material premium. Both grades come with full mill test certificates documenting chemical composition and mechanical properties. For international projects, equivalence mapping applies — Q235B aligns broadly with S235JR and ASTM A36, while Q345B corresponds to S355JR and ASTM A572 Gr.50 in general structural use. [NEED_CITE: GB Q-series to EN S-series and ASTM steel grade equivalence tables]
Surface treatment selection directly impacts lifecycle cost. Galvanized components require no field painting and resist corrosion in humid or saline environments, making them the default for agricultural warehouses and coastal workshops. Painted finishes suit indoor applications where aesthetics matter and maintenance access is straightforward. The Custom Structural Steel Fabrication Service Manufacturer applies surface treatment after fabrication to ensure full coverage on welded joints and connection plates.
The Hidden Cost of Unverified Steel in Warehouse Projects
Ordering fabricated steel structures without verified mill test certificates creates compounding risks. Material that fails to meet Q345B yield requirements may pass dimensional checks but collapse under crane loads or snow accumulation. Missing CE documentation blocks EU customs clearance, stranding containers at port while demurrage charges accumulate. Dimensional errors in bolt-hole positioning force on-site re-drilling or complete component replacement — both destroying project timelines. [NEED_CITE: structural steel quality verification requirements per EN 1090]
Why Project Buyers Source Custom Structural Steel Fabrication Service Manufacturer Through Us
Every H-beam and purlin is fabricated in our own facility with in-house physical and chemical laboratories testing each batch before release. Mill test certificates accompany every shipment, documenting chemical composition and mechanical properties per heat number. Our engineering team processes client drawings directly — supporting non-standard dimensions, modern architectural finishes, and custom connection details. CE certification and ISO 9001:2008 compliance ensure smooth customs clearance across 50+ export markets. Professional container loading with anti-deformation bracing prevents the bending damage that plagues poorly packed structural steel during long ocean transits. Third-party inspection through SGS or BV is available before shipment for clients requiring independent verification.
Documentation & Compliance
- Mill test certificate documenting Q235B/Q345B chemical composition and yield strength per GB standards, with heat number traceability for every H-beam and purlin
- CE certificate confirming compliance with EN 1090 structural steel fabrication requirements for EU market projects
- ISO 9001:2008 quality management certificate covering the full fabrication process from material incoming to final inspection
- SGS or BV third-party inspection report available upon request, verifying dimensional accuracy and surface treatment quality before shipment
- Material traceability records linking each fabricated component to its original heat number and mill test certificate
- Complete customs documentation including packing list, bill of lading, and certificate of origin for smooth port clearance
Packaging, Loading & Delivery
- H-beam main frame components bundled with steel strips and wooden saddles, sized to match container length and prevent shifting during ocean transit
- Galvanized C/Z purlins packed with edge protectors and separator pads to preserve zinc coating integrity without surface scratching
- Professional container loading plans drawn for each shipment, with anti-deformation bracing and blocking calculated for Q235B/Q345B steel structure components
- Custom cutting to project-specified lengths available, reducing on-site welding and accelerating warehouse erection timelines
- Heat number and steel grade markings stenciled on every major component for site identification and traceability verification
- FOB, CIF, and DDP shipping terms supported with professional container loading supervision and door-to-door logistics coordination
Start Your Steel Structure Procurement With Verified Documentation
Submit your warehouse or workshop drawings with specified steel grade, surface treatment preference, and target quantity to receive a detailed quotation including mill test certificate samples and CE compliance confirmation. Our engineering team reviews your structural design within one business day, identifying any specification gaps or grade optimization opportunities before production begins.
Get Your Custom Steel Structure Quote With Full Certification
Send your project drawings and specifications to receive a detailed quotation with mill test certificates and loading plans.
Mobile/WhatsApp/WeChat: +86 188 5315 7756 | Email: admin@sdxjypipe.com | Website: www.sdxjypipe.com
Frequently Asked Questions
Q: Can you fabricate steel structures based on our own architectural drawings and 3D models?
A: Yes. Our engineering team processes client-provided drawings and 3D models directly, fabricating H-beam frames, C/Z purlins, and connection components to your exact dimensions. We support non-standard sizes and modern design requirements, with detailed shop drawings submitted for your approval before production begins.
Q: How do Q235B and Q345B compare to ASTM A36 and S355JR for structural applications?
A: Q235B aligns broadly with ASTM A36 and EN S235JR in yield strength and chemical composition, suitable for standard warehouse frames. Q345B corresponds to ASTM A572 Gr.50 and EN S355JR, offering higher yield strength for heavy-duty workshops and large-span buildings. Full mill test certificates are provided for grade verification.
Q: What are the differences between painted and galvanized finishes for warehouse steel structures?
A: Hot-dip galvanized finishes provide long-term corrosion resistance without maintenance, ideal for coastal, agricultural, or humid environments. Painted finishes offer cost-effective protection for indoor workshops with controlled environments and allow color customization. Both treatments are applied after fabrication to ensure full joint coverage.
Q: Do your steel structures come with CE marks and EN-compliant documentation for EU projects?
A: Yes. Our fabricated steel structures carry CE certification confirming compliance with EN 1090 fabrication requirements. We provide ISO 9001:2008 quality certificates, mill test certificates with heat number traceability, and complete customs documentation for smooth EU market clearance.
Q: How are large steel structure components packed and loaded to prevent damage during ocean freight?
A: H-beam components are bundled with steel strips and wooden saddles, while galvanized purlins use edge protectors and separator pads. Professional loading plans with anti-deformation bracing are drawn for each shipment, preventing bending and surface damage during long ocean transits.
