Description
Direct Mill Fabrication — In-house cutting, welding, and NDT inspection eliminate third-party coordination risks for Q235B and Q345B structural components.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Custom Structural Steel Fabrication |
| Product Type | Fabricated Steel Structure |
| Steel Grade | SS400, S235JR, A36, Q235B, Q345B, Q460, 45#, 304, 316 |
| Standard | GB, JIS, ASTM, AISI, DIN, BS, ISO |
| Section Shape | Custom structural shapes per drawing |
| Weight Range | 10 kgs – 20,000 kgs |
| Technique | Cutting, Drilling, Bending, Welding (TIG/MIG/Spot), Assembling |
| Surface Treatment | Powder Coating, Painted, Galvanized, or Natural |
| Heat Treatment | Normalization, Annealing, Quenching and Tempering (45#) |
| NDT | PT, MT, UT, RT |
| Application | Steel structure construction, Power stations, Power plants, Large generators, Liftfork, Material handling equipment, Vessels |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Steel Structure Construction | Building frames, bridge girders, industrial warehouse portals |
| Power Generation | Generator base frames, turbine hall support structures, boiler support beams |
| Material Handling | Forklift mast assemblies, crane boom sections, conveyor support frames |
| Marine & Vessels | Deck stiffeners, hull reinforcement frames, ballast tank structures |
Where Tolerance Drift Costs More Than Material on a Fabricated Frame Order
A 3mm cutting deviation on a welded base plate means the entire assembly fails fit-up at site.
When procurement teams source custom structural steel fabrication from multiple vendors — plates from one supplier, welding from another, machining from a third — the tolerance stack-up becomes invisible until erection day. I watched a 20ft container of fabricated panels sit at Veracruz port because the drill holes didn’t align with the anchor bolts. The rework cost doubled the original margin. The root cause wasn’t the steel grade; it was uncoordinated cutting tolerances between suppliers who never spoke to each other. [NEED_CITE: tolerance stack-up in multi-supplier steel fabrication]
Matching Q345B and Q235B Fabrications to Structural Load Paths
Custom structural steel fabrication for building frames and power plant supports requires matching steel grade selection to actual stress conditions. Q235B handles secondary structures and bracing where yield strength demands stay moderate, while Q345B serves primary load-bearing members in high-rise frames and crane runways. Our fabrication workflow starts with raw material verification — every plate and section carries a heat number traceable to its mill test certificate before CNC cutting begins. This eliminates grade substitution risks that surface only during third-party inspection at destination.
Engineering Compliance and Surface Protection for Harsh Environments
Structural steel fabrications destined for power stations and marine applications face competing demands: load-bearing capacity under dynamic stress, corrosion resistance in humid or saline atmospheres, and dimensional accuracy for bolted connections. Hot-dip galvanizing protects Q235B bracing in outdoor infrastructure, while powder coating suits Q345B architectural frames where appearance matters alongside durability. For 45# steel components requiring machined surfaces, quenching and tempering achieve the hardness needed for bearing interfaces without brittleness. Non-destructive testing — penetrant, magnetic particle, ultrasonic, and radiographic — verifies weld integrity before shipment, meeting EN 1993 and AISC requirements for critical connections. [NEED_CITE: NDT requirements for structural steel welds per EN 1090]
Steel Grade Selection and Welding Process Fundamentals
Q235B and Q345B represent the workhorse grades for Chinese-standard structural fabrication, with Q345B offering roughly 50% higher yield strength for primary members in heavy-load applications. SS400 and S235JR serve equivalent roles in JIS and EN systems respectively, while A36 covers ASTM-specification projects in North America. The choice between TIG and MIG welding depends on joint configuration and material thickness — TIG delivers cleaner penetration on thin-gauge 304 and 316 stainless components, while MIG handles high-deposition rates on thick Q345B plates. For 45# medium-carbon steel, pre-heating before welding and post-weld heat treatment prevent hydrogen-induced cracking in heavy sections. Surface treatment selection follows service environment: galvanized coatings last 20+ years in rural atmospheres, while painted systems with primer-topcoat combinations suit industrial settings where color coding identifies structural members.
The Hidden Price of Unverified Material and Missing Certificates
Ordering fabricated structures without mill test certificates or third-party inspection creates downstream risks that dwarf the initial savings. Material substitution — receiving Q235B when Q345B was specified — compromises load capacity and fails engineering approval during structural review. Missing CE documentation blocks customs clearance for EU-bound shipments, stranding containers at port while demurrage charges accumulate. Weld defects undetected without NDT inspection lead to field failures, forcing costly teardowns and schedule delays that exceed the fabrication cost itself. [NEED_CITE: consequences of missing MTC in steel procurement]
Why Project Teams Specify Our Fabrication Services
Our facility integrates cutting, drilling, bending, welding, and assembly under one roof, eliminating the coordination gaps that cause tolerance drift across multi-supplier orders. Every heat of raw material receives chemical and mechanical testing in our in-house laboratory before fabrication begins — no certificate is issued without verified data. We hold ISO 9001:2015 certification alongside Lloyd’s CE marking for EN 10210/10219 compliance, ensuring documentation meets EU customs and engineering approval requirements. Custom non-standard sizes and odd-length cuts are standard practice, not special orders, with professional container loading designed to prevent bending damage during ocean transit. Third-party inspection through SGS or BV is arranged on request, with full dimensional reports and photographic evidence provided before shipment.
Documentation & Compliance
- Mill test certificate documenting Q235B and Q345B chemical composition and mechanical properties per GB/T 700 and GB/T 1591
- CE certificate confirming compliance with EN 10210/10219 for structural hollow sections and fabricated assemblies
- ISO 9001:2015 quality management system certificate covering fabrication processes and inspection protocols
- SGS or BV third-party inspection report verifying dimensional accuracy, weld quality, and surface treatment thickness
- Material traceability by heat number linking each fabricated component to its original mill test certificate
- Customs documentation including packing list, bill of lading, and certificate of origin for destination clearance
Packaging, Loading & Delivery

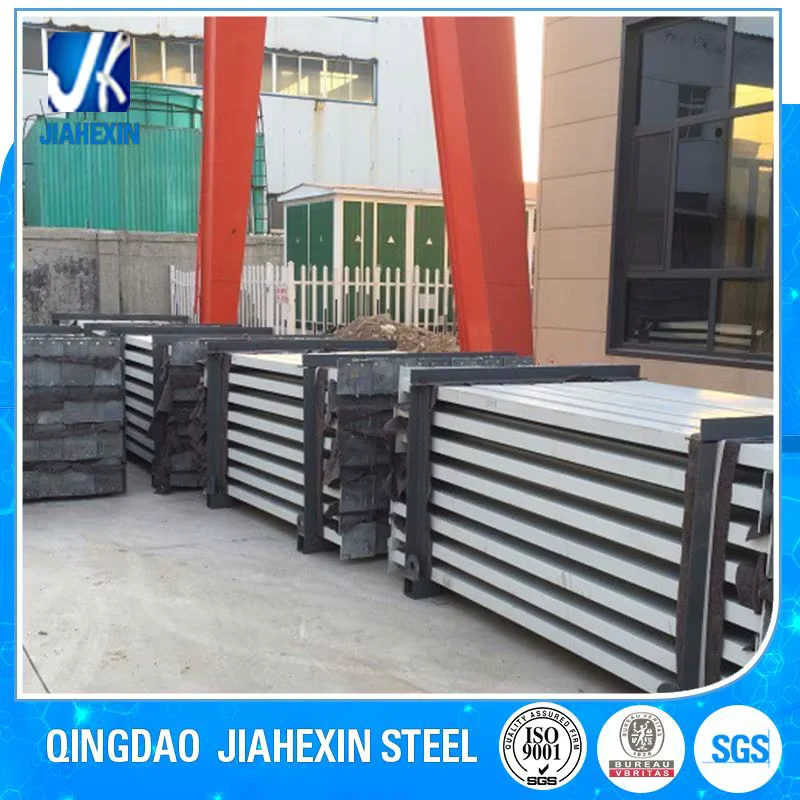

- Heavy fabricated structures secured with steel strip bundles and timber cradles to prevent shifting during container loading
- Galvanized components wrapped with edge protectors and separated by rubber spacers to preserve zinc coating integrity
- Custom-cut Q345B beams stacked by length and weight sequence for efficient 20ft and 40ft container utilization
- Powder-coated assemblies individually wrapped in PE film to prevent surface scratching during transit and handling
- Heat number and steel grade stenciled on each component for on-site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional container loading plans optimized for destination port handling
Requesting a Fabrication Quote with Verified Documentation
Submit your structural drawings specifying steel grade, dimensions, surface treatment, and quantity to receive a detailed quotation including unit pricing, production lead time, and shipping terms. We provide mill test certificates and third-party inspection options before contract signing, ensuring material compliance and dimensional accuracy are confirmed prior to fabrication.
Start Your Custom Structural Steel Fabrication Inquiry
Send your specifications and destination port to receive a quotation with mill test certificate options within 12 hours.
Contact: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Email: admin@sdxjypipe.com
WhatsApp: +86 188 5315 7756
Frequently Asked Questions
Q: What steel grades and standards do you support for custom fabrication?
A: We fabricate structures using SS400, S235JR, A36, Q235B, Q345B, Q460, 45#, 304, and 316 steel grades, compliant with GB, JIS, ASTM, AISI, DIN, BS, and ISO standards. Material selection depends on load requirements, service environment, and destination market certification needs.
Q: Can you provide third-party inspection and material traceability?
A: Yes, we arrange SGS or BV third-party inspection upon request, with full dimensional reports and photographic evidence provided before shipment. Every component carries a heat number traceable to its original mill test certificate, ensuring complete material traceability from raw stock to finished fabrication.
Q: What surface treatment options are available for structural steel?
A: We offer hot-dip galvanizing, powder coating, painted finishes, and natural (uncoated) options depending on service environment and project specifications. Galvanizing suits outdoor infrastructure and marine applications, while powder coating provides color-matched finishes for architectural and industrial structures.
Q: What is the typical lead time for custom fabrication orders?
A: Standard fabrication orders ship within typical production lead times after drawing approval and deposit receipt. Complex assemblies requiring extensive welding, machining, or heat treatment require longer production schedules, confirmed during quotation based on drawing complexity and order quantity.
Q: Do you offer design and engineering services for custom structures?
A: We work from customer-provided drawings and specifications, offering technical consultation on steel grade selection, welding processes, and surface treatment recommendations. Our engineering team reviews fabrication drawings for manufacturability and tolerance feasibility before production begins.
