Description
Factory-Direct Fabrication — All cutting, welding, and surface treatment executed in-house under ISO 9001:2015 controls, eliminating third-party coordination across your custom structural steel fabrication service supplier chain.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Custom Structural Steel Fabrication |
| Product Type | Fabricated Steel Structure |
| Steel Grade | Carbon Steel per GB, AISI, ASTM, BS, DIN, JIS |
| Standard | GB, AISI, ASTM, BS, DIN, JIS |
| Technique | Cutting, Laser Profiling, Bending, Punching Hole, Welding, Slotting, Stamping |
| Surface Treatment | Galvanizing / Powder Coating / Painting |
| Tolerance | +/-5% |
| Drawing Format | CAD / DWG / STEP / PDF |
| Service | ODM / OEM |
| Package | By bundle or Custom |
| Delivery Time | 15 days (depending on order quantity) |
| Application | Steel structures / Construction frames / Industrial equipment / Custom fabrication projects |
| MOQ | 1 PCS |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Steel Structure Companies | Building frames, industrial platforms, mezzanine structures, bracing assemblies |
| Construction Contractors | Custom brackets, column base plates, connection nodes, embedded anchor assemblies |
| Machinery Manufacturers | Precision-welded equipment frames, conveyor support structures, machine base plates |
| Infrastructure & EPC | Bridge gusset plates, solar mounting brackets, pipe rack supports |
Where Fragmented Sourcing Drives Up Your Custom Structural Steel Fabrication Cost
Coordinating separate vendors for cutting, welding, and finishing introduces tolerance stacking, surface damage in transit between shops, and delayed material traceability.
Procurement teams routinely source raw plate from one mill, send it to a laser profiling shop, then move cut parts to a welding fabricator, and finally ship to a galvanizer — four handoffs, four chances for dimensional drift or surface contamination. Each transfer adds freight cost, handling damage risk, and schedule float that compounds on critical-path projects. Material heat numbers get lost between shops, making mill test certificate traceability impossible at final inspection.
A custom structural steel fabrication service supplier that controls the full workflow from raw material receipt through final surface treatment keeps heat numbers intact, holds tolerance at each stage, and delivers one accountable delivery window. [NEED_CITE: integrated fabrication workflow advantages in structural steel procurement]
Matching Fabrication Output to Structural Engineering Demands
Every fabricated component on a steel frame carries specific load paths — column base plates must transfer axial compression cleanly into concrete anchors, while bracing gussets distribute lateral forces across bolt groups. Our custom structural steel fabrication service supplier workflow starts from your CAD/DWG/STEP files and translates them directly to CNC programs, so the as-built geometry matches the engineer’s design intent before the first weld arc strikes. We handle carbon steel grades across GB, ASTM, and JIS systems, letting your structural engineer specify the exact material called out in the calculation book without forcing substitutions.
Engineering Compliance and Certification Alignment
Structural frames in the EU must conform to EN 10219 for cold-formed sections and EN 10210 for hot-finished hollow sections, while North American projects typically require ASTM A500 or A36 compliance — mixing these up at the customs desk triggers inspection holds and re-documentation costs. [NEED_CITE: EN 10219 and ASTM A500 dimensional tolerance requirements] Our in-house physical and chemical laboratories verify incoming plate chemistry before fabrication begins, and we issue mill test certificates keyed to each heat number so your third-party inspector (SGS or BV) can close out the shipment without chasing paperwork. For projects in corrosive environments, we coordinate hot-dip galvanizing or powder coating after welding is complete, preserving zinc thickness at weld zones and avoiding field touch-up.
Steel Grade Selection and Process Logic
Carbon steel grades across GB (Q235, Q345), ASTM (A36, A572), and JIS (SS400, SM490) systems represent increasing yield strength tiers — selecting the right grade determines whether your bracket can carry the design load at the specified thickness, or whether you must upsize and pay for extra tonnage. The fabrication process itself matters: laser profiling delivers clean edges for weld prep, CNC punching maintains hole position tolerance for bolted connections, and press brake bending forms angles without cracking the outer fiber. Surface treatment choice follows the exposure environment — hot-dip galvanizing suits outdoor structural members exposed to weather, powder coating provides aesthetic finish for architectural facades, and shop primer works for interior frames that will receive field coating later.
The Hidden Cost of Unverified Fabrication
Accepting a fabricated component without mill test certificate traceability means you cannot prove to the site inspector that the base plate under a loaded column actually matches the grade on the drawing — and that gap can trigger a full structural audit, bolt-by-bolt re-inspection, or worst case, component replacement after erection. [NEED_CITE: structural steel material traceability requirements per EN 1090] Tolerance stacking from multi-shop handoffs leaves bolt holes misaligned at the connection, forcing field reaming or custom shims that delay crane schedules. Certification gaps — missing CE marking for EU-bound shipments, or absent MTC for ASTM-specified material — block customs clearance and strand your cargo at the port while your project timeline burns.
Why Source Fabrication from a Mill-Integrated Operation
We run three production lines covering 2,800+ specifications and hold 41 invention patents — including China’s original sharp-corner rectangular tube technology — which means when your project needs a fabricated bracket welded to our own structural tube, both components come from one quality system with matched heat numbers. Our in-house laboratory performs chemical and mechanical testing before any material enters the fabrication queue, so your mill test certificate reflects actual test data, not paperwork generated from a supplier’s declaration. We hold CE certification under EN 10210/EN 10219, ISO 9001:2015, and Singapore FPC, with SGS and BV verification on file — documents that clear EU and regulated-market customs without supplemental inspection. For export orders, we design container loading plans specific to your fabricated geometry, using custom cradles and edge protectors so welded assemblies arrive without distortion or coating damage.
Documentation & Compliance
- Mill test certificate documenting carbon steel chemical composition and mechanical properties per the specified GB, ASTM, or JIS grade, keyed to heat number
- CE certificate covering EN 10210/EN 10219 compliance for structural hollow sections and fabricated assemblies destined for EU markets
- ISO 9001:2015 quality management certificate covering the full fabrication workflow from material receipt through final inspection
- SGS or BV third-party inspection report available upon request, covering dimensional verification, weld visual inspection, and coating thickness measurement
- Material traceability report linking each fabricated component to its source heat number and original mill test certificate
- Complete customs documentation package including packing list, bill of lading, and certificate of origin formatted for destination-port clearance
Packaging, Loading & Delivery

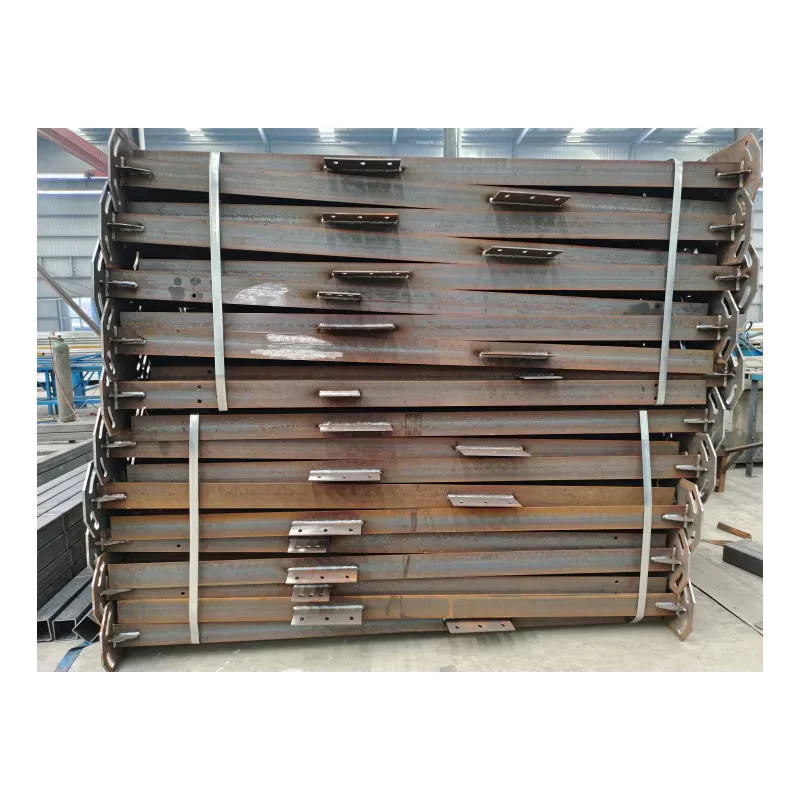

- Fabricated carbon steel assemblies bundled with steel stripping and edge protectors, sized to prevent weld joint distortion during ocean transit

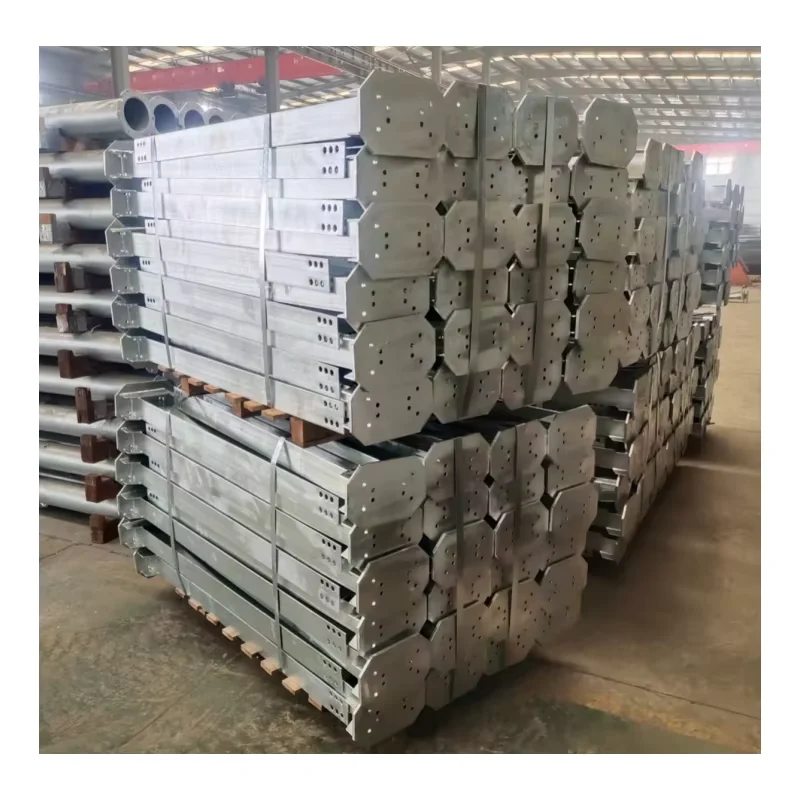

- Galvanized components wrapped with plastic sheeting over zinc coating to prevent white rust formation and surface scratching during handling
- Container loading plans optimized for fabricated geometry — custom cradles and timber blocking for irregular shapes, maximizing 20ft and 40ft container payload
- Custom cutting and slotting to your drawing dimensions, eliminating field modification and reducing on-site welding requirements
- Heat number and steel grade stenciled on each component for site identification and inspector traceability verification
- FOB, CIF, and DDP shipping terms available, with professional container loading supervision and door-to-door tracking until arrival
Moving Your Fabrication Inquiry Forward
Submit your CAD/DWG/STEP/PDF drawings with specified steel grade, surface treatment preference, quantity, and destination port — we respond within 12 hours with a detailed quotation covering unit pricing, production lead time, and shipping terms. Request mill test certificates and third-party inspection arrangements upfront so documentation aligns with your project’s compliance requirements from day one.
Start Your Custom Structural Steel Fabrication Inquiry
Share your drawings, steel grade, and destination to receive a quotation with mill test certificate documentation within 12 hours.
Contact: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjypipe.com
Website: www.sdxjypipe.com
Frequently Asked Questions
Q: What steel grades and standards are available for custom fabrication?
A: We fabricate in carbon steel per GB (Q235, Q345 series), AISI/ASTM (A36, A572), BS, DIN, and JIS (SS400, SM490) standards. Grade equivalence across these systems is confirmed before production so your engineer’s specified material is matched without substitution.
Q: How do you ensure material traceability and quality control?
A: Every heat of incoming material is tested in our in-house physical and chemical laboratory before fabrication begins. Mill test certificates are issued per component, keyed to heat number, and third-party inspection (SGS/BV) is available before shipment.
Q: What is the typical lead time for custom fabrication orders?
A: Production timelines depend on order complexity and quantity. Standard fabricated components from stock material ship faster, while custom sizes and multi-process assemblies follow typical production lead times confirmed at quotation stage.
Q: Can you handle non-standard sizes and small-batch orders?
A: Yes. Our MOQ is 1 piece, and we accept CAD/DWG/STEP/PDF drawings for fully custom dimensions. Single-piece prototyping and small-batch production runs are supported with the same quality controls as volume orders.
Q: What surface treatment options are available and how do they affect durability?
A: We offer hot-dip galvanizing for long-term corrosion protection in outdoor and industrial environments, powder coating for architectural aesthetics and UV resistance, and shop primer painting for interior frames receiving field coating. Treatment selection depends on exposure environment and project specification.
