Description
Factory-direct seamless square hollow sections — Every ASTM A500 seamless square steel tube passes through our in-house ultrasonic thickness testing before dispatch, keeping dimensional tolerance within ±5%.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A500 / A53 / A106 Seamless Square Steel Tube |
| Product Type | Seamless Square Steel Tube (Seamless Square Hollow Section) |
| Steel Grade | A53, A106, A179, A333, A519, A500, A335, Q195, Q235, Q235B, Q345, Q345B, St37, St42, St37-2, St35.4, St52.4, St35 |
| Standard | ASTM A53, A106, A179, A333, A519, A500, A335, DIN |
| Section Shape | Square |
| Wall Thickness | 1 mm – 60 mm |
| Length | 6m / 9m / 12m or customized |
| Technique | Hot Rolled / Cold Rolled / Cold Drawn (Seamless) |
| Surface Treatment | Black / Bright / Galvanized / Painted / Oiled |
| Tolerance | ±5% |
| Ends | Plain / Beveled / Threaded |
| Application | Fluid Pipe / Boiler Pipe / Drill Pipe / Hydraulic Pipe / Gas Pipe / Oil Pipe / Chemical Fertilizer Pipe / Structure Pipe / Steel Structures / Machinery / Construction Frames |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas / Petrochemical | High-pressure fluid transport lines, boiler tubes, chemical fertilizer pipelines |
| Steel Structure & Construction | Load-bearing columns, building frames, portal frame structures |
| Machinery Manufacturing | Hydraulic cylinder barrels, precision mechanical components, conveyor structures |
| Infrastructure & Energy | Support structures for renewable energy installations, bridge handrails, foundation piling sleeves |
What Negative Tolerance Exceedance Costs on a Structural Frame Order
Dimensional deviation beyond acceptable limits triggers customs rejection, re-inspection fees, and project delays that far exceed the original material savings.
Procuring an ASTM A500 seamless square steel tube from an unverified source often means discovering negative tolerance violations only after arrival at the destination port. A wall thickness shortfall of even a few percentage points can cause third-party inspection failure, forcing buyers to either air-freight replacement material at multiples of the original freight cost or face structural engineering sign-off refusal. Inconsistent outer dimension profiles also create fit-up problems during welding, generating rework expenses that erase any per-ton price advantage gained upstream. [NEED_CITE: ASTM A500 dimensional tolerance requirements for structural hollow sections]
Matching Seamless Square Hollow Sections to Structural Load Requirements
The ASTM A500 seamless square steel tube serves as a primary load-bearing element in portal frames, moment-resisting frames, and column-beam assemblies where predictable compressive and flexural performance is non-negotiable. Our cold-drawn seamless process produces square sections with tight corner radii and uniform wall distribution, ensuring that calculated section modulus values hold true during fabrication. For projects spanning 50+ countries, we supply ASTM A500 Grade B and Grade C tubes that meet the yield strength tiers required by AISC and equivalent international design codes, with mill test certificates traceable to each heat number.
Engineering Compliance and Certification Pathways
Structural engineers specifying ASTM A500 seamless square steel tube typically require documentation conforming to EN 10204 Type 3.1 or 3.2, depending on the project’s regulatory jurisdiction. For EU-bound shipments, our Lloyd’s CE certification under EN 10210 and EN 10219 provides the conformity declaration needed for customs clearance and structural approval. In North American and Middle Eastern markets, ASTM A500 and A53 test reports accompanied by SGS or BV third-party inspection satisfy the majority of EPC contractor requirements. Wall thickness selection between 1 mm and 60 mm allows engineers to optimize weight-to-strength ratios without compromising on code-mandated minimums. [NEED_CITE: EN 10219 cold-formed structural hollow section certification requirements]
Steel Grade Selection and Seamless Manufacturing Process
The ASTM A500 seamless square steel tube portfolio spans carbon steel grades from A53 and A106 for pressure applications to A519 for mechanical machining, alongside Chinese Q-series grades (Q195 through Q345B) and DIN St35–St52 equivalents for projects requiring cross-standard substitution. Hot-rolled seamless tubes suit high-temperature and high-pressure environments such as boiler circuits and steam lines, while cold-drawn tubes deliver tighter dimensional control and improved surface finish for hydraulic cylinders and precision machinery components. Surface treatment selection — black, bright, galvanized, painted, or oiled — depends on the end-use environment: galvanized coatings protect against atmospheric corrosion in outdoor structural applications, while black or oiled finishes serve indoor or buried installations where coating integrity is less critical. The ±5% wall thickness tolerance we maintain across all production methods ensures that theoretical weight calculations align with actual delivered mass, eliminating the surprise cost overruns that occur when negative tolerance exceeds project allowances.
The Hidden Cost of Unverified Material Sources
Purchasing ASTM A500 seamless square steel tube based solely on the lowest quoted price often exposes buyers to material substitution risks, missing heat number traceability, and certification gaps that surface only during customs inspection or structural audit. A mill test certificate listing chemical composition and mechanical properties is meaningless if the testing laboratory lacks accreditation or if the certificate does not correspond to the actual heat of steel delivered. Projects in regulated markets — particularly the EU, Australia, and the Gulf states — routinely reject shipments lacking proper CE marking, EN standard references, or third-party inspection stamps, forcing buyers to absorb return freight, disposal fees, and replacement lead times that can extend by weeks. [NEED_CITE: steel grade equivalence between ASTM A500 and EN 10210 standards]
Why Procurement Teams Choose Our Production Facility
Our factory operates three dedicated seamless tube production lines covering hot-rolled, cold-rolled, and cold-drawn processes, producing the ASTM A500 seamless square steel tube in over 2,800 specification combinations with wall thickness reaching 60 mm. Every tube undergoes dimensional verification using ultrasonic thickness gauges in our in-house physical and chemical laboratory before release, with full mill test certificates generated per heat number. We hold 41 invention patents including proprietary sharp-corner rectangular tube technology, though our seamless square sections maintain their own tight-tolerance profile suitable for structural and mechanical applications. Lloyd’s CE certification under EN 10210 and EN 10219, ISO 9001:2015 registration, and SGS/BV verification capability allow us to serve projects across 50+ countries without documentation-related delays. Custom non-standard sizes, cut-to-length services, and professional container loading with anti-damage measures ensure that every shipment arrives ready for fabrication.
Documentation & Compliance
- Mill test certificate documenting ASTM A500 Grade B/C chemical composition and mechanical properties per heat number
- Lloyd’s CE certificate (EN 10210/EN 10219) for EU market structural compliance
- ISO 9001:2015 quality management system certificate covering seamless square tube production
- SGS or BV third-party inspection report available upon request for pre-shipment verification
- Material traceability documentation linking each tube to its original heat number and test batch
- Complete customs documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

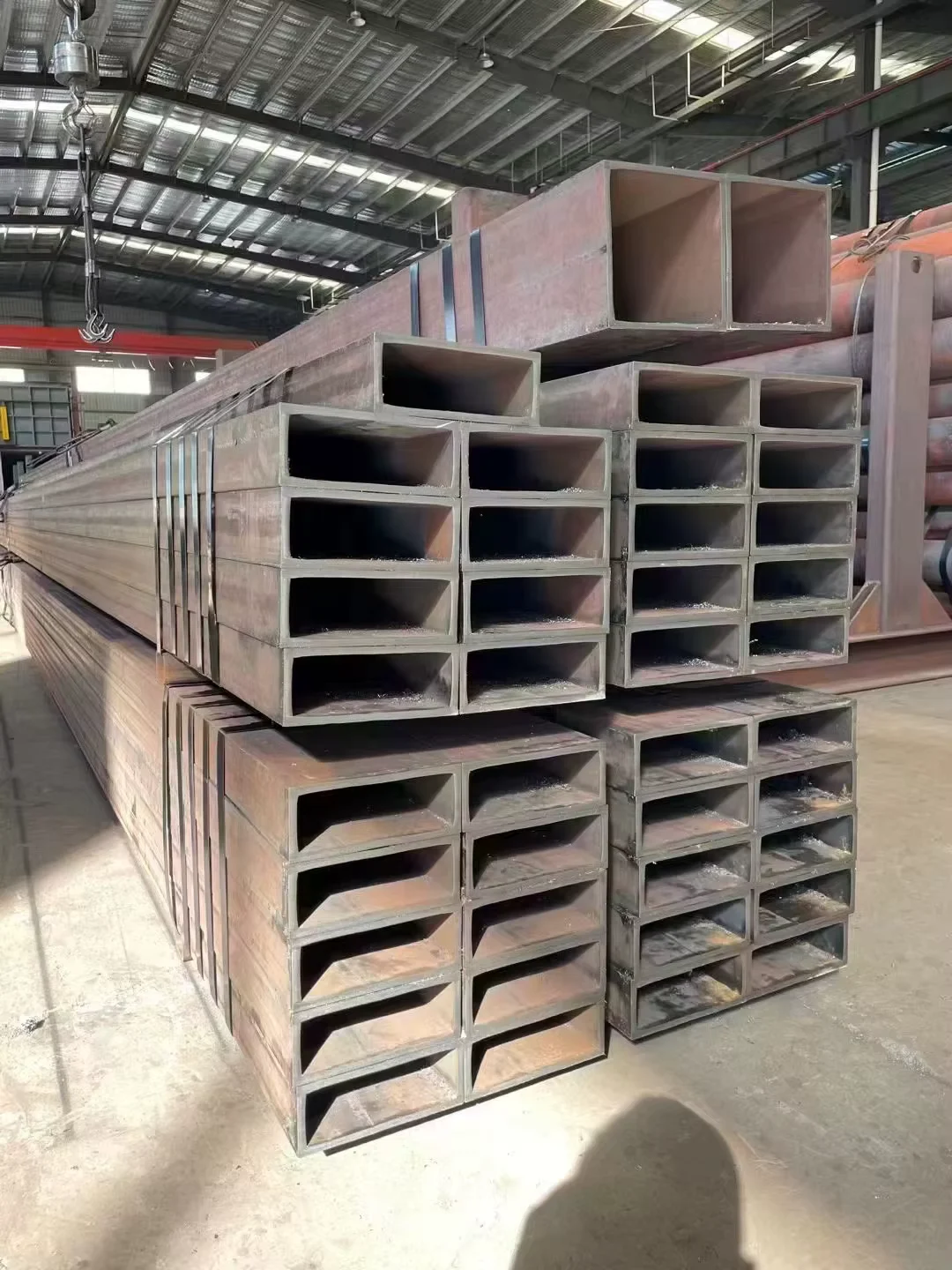

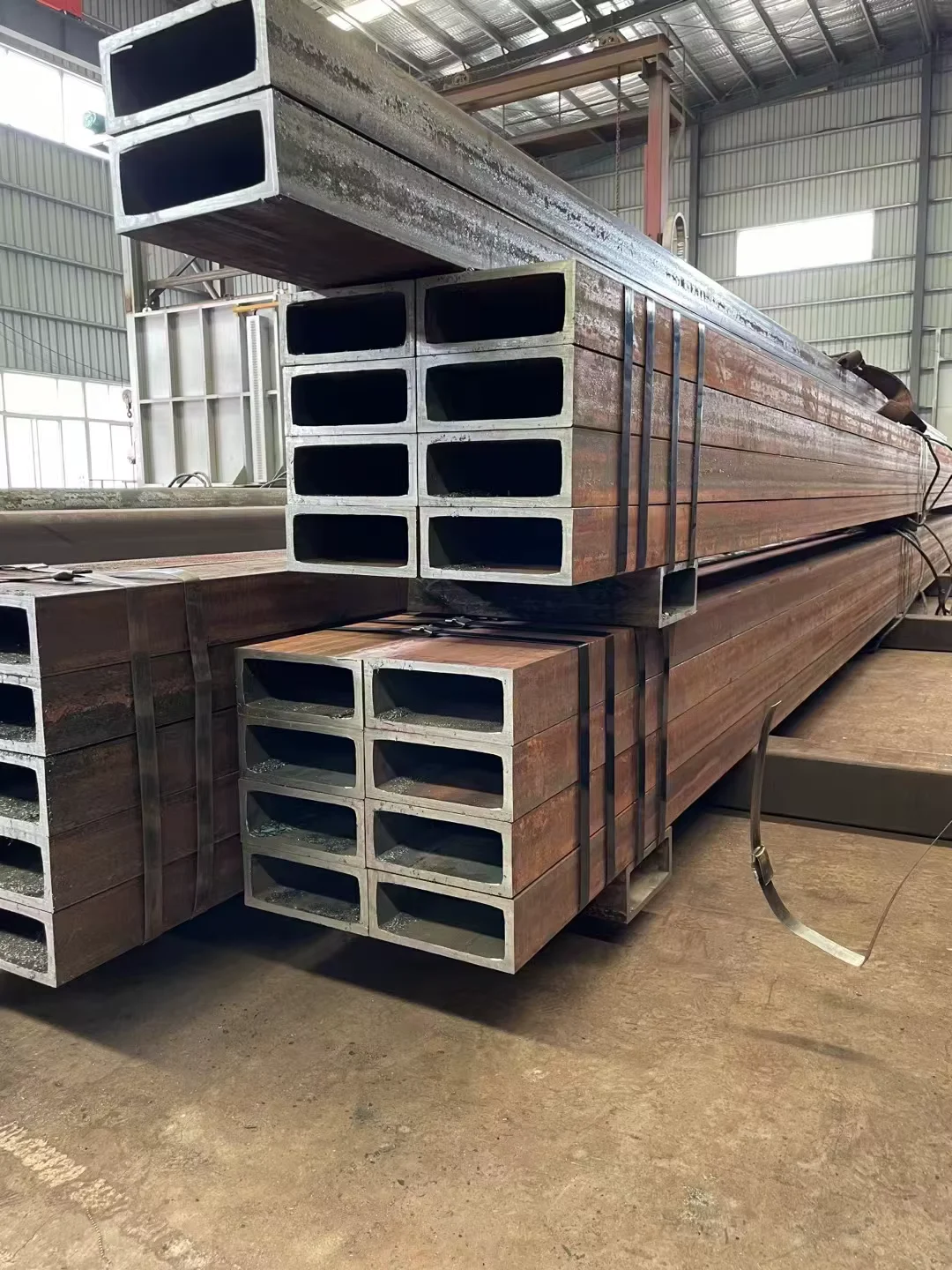

- ASTM A500 seamless square steel tubes bundled with steel strips and edge protectors to prevent corner damage during ocean transit
- Black or oiled finish tubes wrapped with waterproof paper and secured in seaworthy packaging for humid climate destinations
- Galvanized square tubes loaded with plastic caps on ends and separated by rubber spacers to preserve zinc coating integrity
- Custom cut-to-length service available for 6m, 9m, 12m, or project-specific dimensions to minimize on-site waste
- Heat number and steel grade stenciled on each tube for on-site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional container loading optimized for square section geometry
Initiating Your ASTM A500 Seamless Square Tube Inquiry
Submit your required dimensions, steel grade, surface treatment preference, quantity, and destination port to receive a detailed quotation within 12 hours, including unit pricing, production lead time, and applicable certification documentation. Our engineering team can advise on grade equivalence between ASTM, EN, and GB standards, recommend optimal wall thickness for your structural application, and arrange third-party inspection if your project requires independent verification.
Request Your ASTM A500 Seamless Square Steel Tube Quotation
Provide your specifications, steel grade, and destination to receive pricing, mill test certificate samples, and production lead time confirmation.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxjypipe.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjypipe.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: How do ASTM A500 grades compare to EN 10210 S355 or GB Q345B?
A: ASTM A500 Grade C offers yield strength comparable to EN 10210 S355J2 and GB Q345B, making these grades suitable substitutes for structural applications. We provide cross-reference documentation and can supply mill test certificates showing compliance with multiple standards simultaneously upon request.
Q: Can you provide EN 10204 3.2 certificates and arrange third-party inspection?
A: Yes, we issue EN 10204 Type 3.1 certificates as standard with every shipment and can arrange Type 3.2 certificates with independent witness inspection. SGS and BV third-party inspection services are available for pre-shipment verification at our facility.
Q: What is the MOQ for non-standard sizes and custom lengths?
A: Our MOQ remains 1 Ton even for non-standard dimensions outside our regular 2,800+ specification range. Custom lengths, wall thicknesses, and end treatments are available with typical production lead times of 15–25 days depending on order complexity.
Q: When should I choose galvanized versus black or painted finish?
A: Galvanized finish provides long-term atmospheric corrosion protection for outdoor structural applications, bridges, and exposed architectural elements. Black or oiled finishes suit indoor applications, buried installations, or projects where field painting or additional coating will be applied after fabrication.
Q: How do you prevent damage during container loading and ocean freight?
A: We use professional loading techniques specific to square and rectangular sections, including rubber spacers between layers, plastic end caps, steel strip bundling, and edge protectors. Our loading team has extensive experience securing tubes for 50+ country destinations, minimizing the risk of corner deformation or surface damage during transit.
