Description

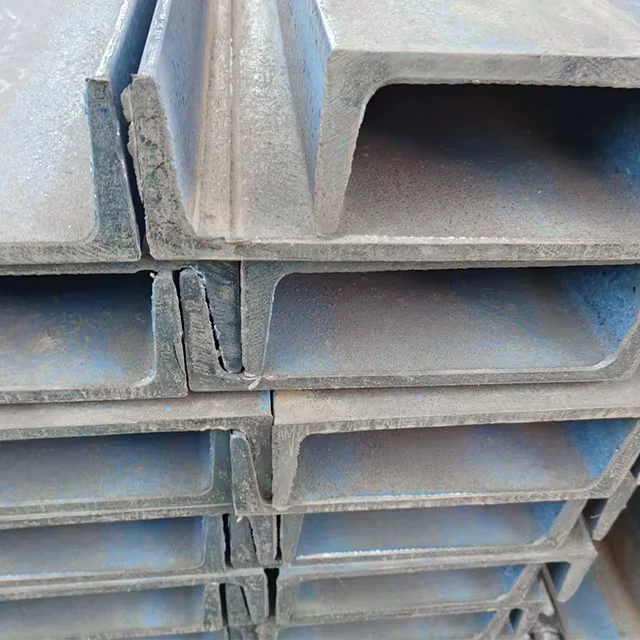

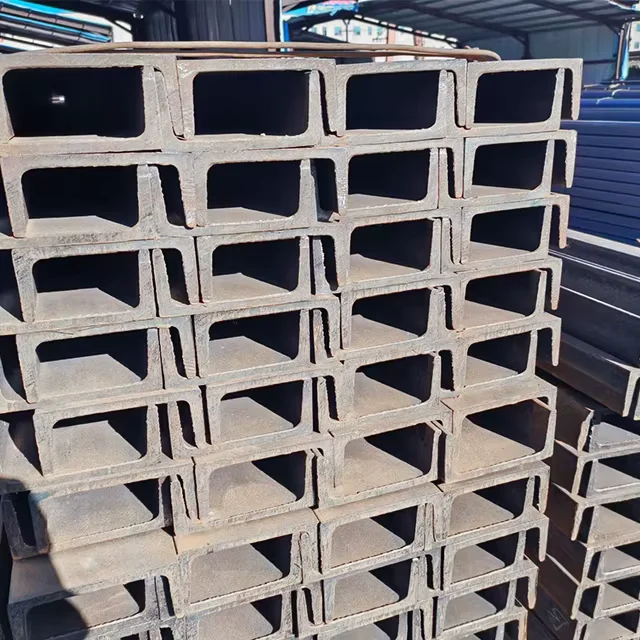

Factory-Direct Hot Dip Galvanized U/C Channel Steel — Every Q235B and Q345B channel rolls from our own hot-rolling lines, inspected in-house before galvanizing, with no trading markup between mill and job site.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 Hot Dip Galvanized U/C Channel Steel |
| Product Type | U Channel / C Channel |
| Steel Grade | Q235B, Q345B, SS400B, A36, 10#, 20# |
| Standard | GB, DIN, JIS, ASTM |
| Section Shape | U Channel / C Channel |
| Size Range | 50×25 mm – 400×102 mm (GB 10#–40# / JIS 50×25 mm–250×90 mm) |
| Length | 6 m, 12 m (customizable for large quantities) |
| Technique | Hot Rolled |
| Surface Treatment | Hot Dip Galvanized |
| Tolerance | ±1% |
| Ends | Plain / Welding & Cutting on request |
| Application | Building structures, vehicle manufacturing, industrial structures, metal construction |
| MOQ | 25 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Building & Construction | Primary frames, purlin systems, mezzanine supports, scaffolding uprights |
| Steel Structure Fabrication | Load-bearing skeletons combined with I-beams, truss bracing, column bases |
| Vehicle Manufacturing | Truck chassis cross-members, trailer side rails, equipment mounting frames |
| Industrial Infrastructure | Conveyor supports, pipe rack stringers, platform walkways, cable tray mounts |
What Missing Mill Certificates Cost on a Galvanized Channel Order
A rejected container is the most expensive line item nobody quotes.
I once watched a batch of hot dip galvanized C channel fail SGS reinspection on arrival — zinc thickness measured 42 μm against a 65 μm minimum, and the entire shipment was turned back for re-galvanizing. Weeks of delay, double freight, and a crane crew standing idle. For Hot Dip Galvanized U/C Channel Steel Q235 Supplier buyers, the real risk is not the unit price but the invisible gaps: unverified zinc adhesion, missing heat numbers, or steel grades that cannot be cross-referenced to EN or ASTM equivalents. [NEED_CITE: EN 10219 cold-formed hollow section compliance and documentation requirements]
How Q235B and Q345B Channels Match Structural Frame Demands
Hot dip galvanized U and C channels in Q235B serve as secondary framing where moderate yield strength is sufficient, while Q345B steps in for primary load paths and longer spans without upsizing the section. The hot-rolled process keeps internal grain structure uniform, which matters when channels are welded into moment frames or drilled for bolted connections on site. As a Hot Dip Galvanized U/C Channel Steel Q235 Supplier with 2,800+ specifications in-house, we match section size to span and load before galvanizing — not after.
Engineering Compliance Across GB, DIN, JIS, and ASTM Markets
Projects specifying EN 10219 or ASTM A36 equivalents need traceable grade mapping: Q235B aligns with S235JR and A36 in carbon and manganese ranges, while Q345B corresponds to S355JR and SS400B in yield tier. [NEED_CITE: steel grade equivalence between GB, EN, and ASTM standards] EU-bound shipments require CE marking under EN 10210/EN 10219 with factory production control certificates, and Singapore FPC covers Southeast Asian regulated projects. Our in-house physical and chemical laboratory re-tests every heat for dimensional accuracy, mechanical properties, and zinc coating thickness before release.
Steel Grade Selection and Hot Dip Galvanizing Logic
Q235B is a mild carbon structural steel suited to general framing where welding and forming dominate; Q345B adds manganese and micro-alloying for higher yield without sacrificing weldability. SS400B and A36 serve Japanese and North American spec sheets respectively, and the hot-rolled surface accepts zinc metallurgically rather than mechanically, giving coating adhesion that survives transport and site handling. Hot dip galvanizing at proper immersion time and bath temperature produces a zinc-iron alloy layer bonded to the substrate — not just a surface film — which is why coating thickness and adhesion must be verified per heat, not assumed per order. [NEED_CITE: hot dip galvanizing coating adhesion and thickness standards]
The Hidden Price of Unverified Galvanized Channels
Ordering by weight alone invites negative tolerance abuse; ordering by specification alone invites grade substitution. When zinc coating falls below project minimums, the entire batch faces rejection at destination port — and re-galvanizing overseas is rarely an option. When mill test certificates omit heat numbers or show chemistry outside the standard band, customs holds the container and the crane schedule collapses. For Hot Dip Galvanized U/C Channel Steel Q235 Supplier buyers, the cost is never the steel — it is the idle labor, the rescheduled erection, and the re-tendered coating. [NEED_CITE: EN ISO 1461 hot dip galvanized coating thickness requirements]
Why Procurement Teams Source Channels Through SD XJY Pipe
We operate three dedicated production lines covering more than 2,800 specifications, so 50×25 mm channels and 400×102 mm channels ship from the same warehouse with consistent zinc quality. Our 41 invention patents include China’s original sharp-corner rectangular tube technology, and the same metallurgical discipline applies to every galvanized channel we roll. Every order is tested in our own physical and chemical laboratory, backed by ISO 9001:2015, Lloyd’s CE (EN 10210/EN 10219), and Singapore FPC certifications. We hold designated-supplier status for major Chinese state-owned enterprises and listed companies, and we export to more than 50 countries with professional container loading that protects galvanized surfaces from transit damage. Custom non-standard lengths, cutting, and marking are handled in-house before galvanizing — not outsourced and re-inspected.
Documentation & Compliance
- Mill Test Certificate documenting Q235B or Q345B chemical composition and mechanical properties per GB/T 700 or GB/T 1591, with heat number traceability
- CE Certificate under EN 10210/EN 10219 for EU market customs clearance and structural approval
- ISO 9001:2015 Quality Management System certificate covering hot rolling and galvanizing processes
- SGS or BV third-party inspection report verifying zinc coating thickness, adhesion, and dimensional tolerance before loading
- Material traceability sheet linking each bundle to its heat number, chemistry, and galvanizing bath record
- Full customs documentation set: packing list, bill of lading, certificate of origin, and commercial invoice

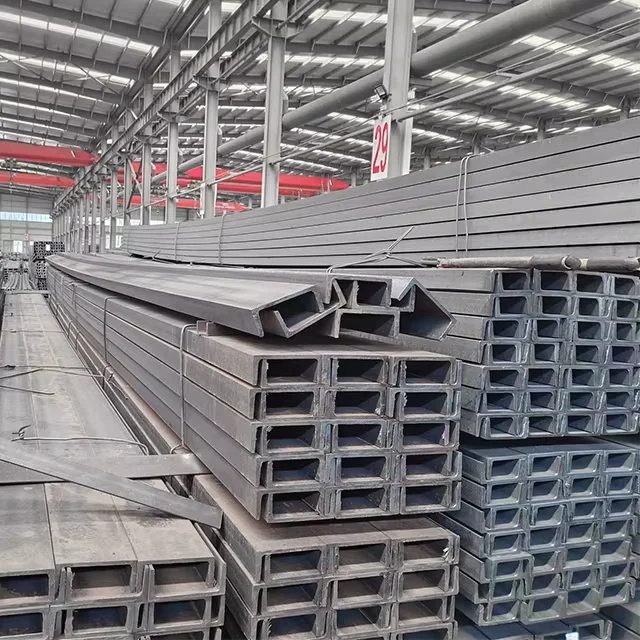

Packaging, Loading & Delivery
- Hot dip galvanized Q235B and Q345B channels bundled with high-tensile steel strips and edge protectors to preserve the zinc coating during ocean transit
- 6 m and 12 m lengths loaded in dedicated container bays with timber spacers to prevent contact damage between galvanized surfaces
- Custom-cut channels marked with heat number, steel grade, and section size before galvanizing for on-site identification
- FOB, CIF, and DDP shipping terms available from Qingdao port, with professional stowage plans optimized for 20-ton and 27-ton container payloads
- Seaworthy wrapping with waterproof paper and plastic caps on bundle ends to block moisture during long-haul shipping
Ready to Lock in Grade, Coating, and Delivery?
Send your section size, steel grade, total tonnage, and destination port, and we return a detailed quotation with unit price, production lead time, and mill test certificate format within 12 hours. Non-standard lengths and cutting requirements are confirmed against our 2,800+ specification range before the deposit is placed.
Request Your Quotation and Mill Test Certificate Today
Submit your Hot Dip Galvanized U/C Channel Steel Q235 specifications — section size, grade, quantity, and destination — and receive a full quotation with EN/GB compliance documents within 12 hours.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxjypipe.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjypipe.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the steel grade equivalence between Q235B, S235JR, and A36?
A: Q235B, S235JR, and A36 share similar carbon and manganese ranges and are widely treated as equivalent in general structural applications. Q345B corresponds to S355JR and SS400B in yield strength tier. We provide cross-reference sheets with every quotation so your engineer can confirm the match before ordering.
Q: Can you arrange third-party inspection before shipment?
A: Yes. SGS and BV inspections are arranged on request before container loading. The inspection covers zinc coating thickness, adhesion, dimensional tolerance, and visual surface quality, with a formal report issued for your records and customs.
Q: What is the MOQ for hot dip galvanized channel steel?
A: The standard MOQ is 25 tons per order. For mixed-size orders, we can combine multiple section sizes within the 50×25 mm to 400×102 mm range to reach the 25-ton threshold.
Q: Do you supply mill test certificates for every shipment?
A: Yes. Every bundle ships with a Mill Test Certificate documenting chemical composition and mechanical properties, linked to the heat number stamped on the steel. EN 10204 3.1 format is standard; 3.2 third-party witnessed certificates are available on request.
Q: Can channels be cut to non-standard lengths?
A: Yes. Standard lengths are 6 m and 12 m, but custom lengths are available for orders meeting the 25-ton MOQ. Cutting, welding preparation, and marking are performed in-house before galvanizing to ensure full zinc coverage on cut edges.
