Description

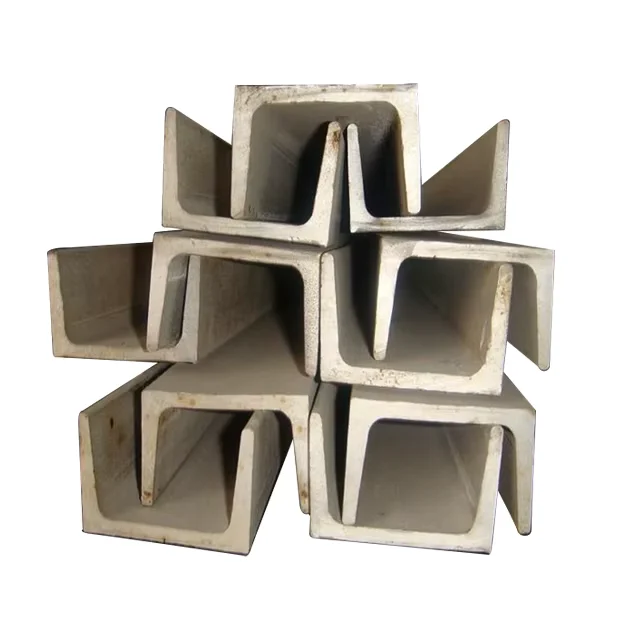

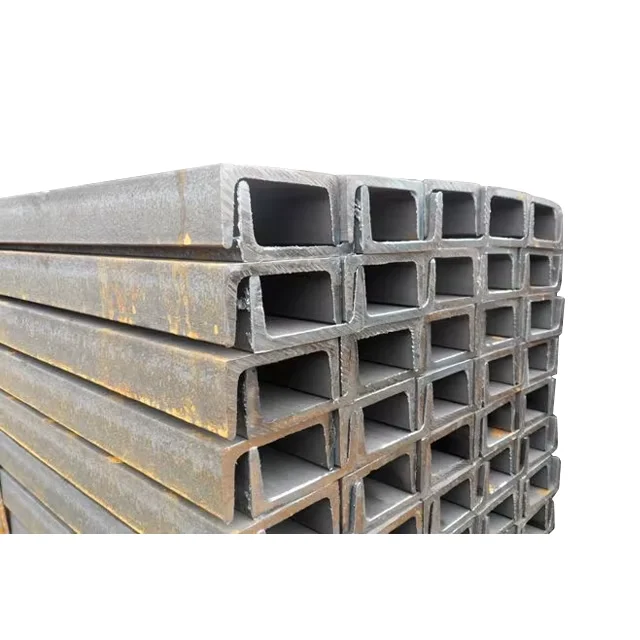

Direct Mill Supply for U Channel Steel — Hot rolled and galvanized U channels in Q235B and Q345B grades ship directly from our Jinan facility with full mill test traceability and third-party inspection support.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B/Q345B U Channel Steel |
| Product Type | U Channel Steel |
| Steel Grade | Q195, Q235B, Q345B, SS400 |
| Standard | GB, JIS, ASTM, AISI, EN, DIN |
| Section Shape | U Channel |
| Size Range | 50×25mm – 400×102mm (GB 10#–40#; JIS 50×25mm–250×90mm) |
| Wall Thickness | 3–24mm / customized |
| Length | 1–12m / 6m / 12m / customized |
| Technique | Hot Rolled |
| Surface Treatment | Galvanized / Black |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Punching, Decoiling, Cutting |
| Application | Building structure, Vehicle manufacturing, Industrial structure |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Building & Construction | Structural frames for commercial buildings, warehouse purlin systems, mezzanine support beams |
| Vehicle Manufacturing | Truck chassis cross-members, trailer frame rails, equipment mounting brackets |
| Industrial Infrastructure | Conveyor support structures, platform grating frames, pipe rack bracing used alongside I-beams |
Where Negative Tolerance on U Channels Turns Into Structural Liability
Dimensional tolerance directly governs load-bearing capacity and connection fit on structural frames.
When procurement teams order hot rolled galvanized U channel steel based on theoretical weight alone, a ±1% tolerance on a 400×102mm×24mm channel can mean several kilograms per meter lost across a multi-ton order. On a warehouse frame with dozens of purlin connections, cumulative shortfalls force field rework or rejected inspection. We have seen containers arrive at Middle East job sites where the flange width drifted beyond drawing specs — not because the mill cheated, but because the buyer never specified tolerance bands in the purchase order. [NEED_CITE: dimensional tolerance requirements for hot rolled structural channels in GB and JIS standards]
How U Channel Dimensions Match Real Structural Connections
Hot rolled U channels in the 50×25mm to 400×102mm range cover everything from light-duty bracing to heavy industrial frames. When paired with I-beams in platform construction, the U channel acts as a lateral restraint or purlin carrier — its flat back surface bolts directly to the I-beam flange without additional gusset plates. Galvanized finish handles outdoor exposure in coastal or industrial atmospheres, while black finish suits indoor or painted environments. Our production covers thicknesses from 3mm up to 24mm, meaning a single supplier can furnish both the light purlins and the heavy base channels for the same project.
Engineering Compliance and Surface Treatment Selection
Structural U channels must satisfy dimensional and material requirements under GB or JIS depending on the destination market. For projects targeting EU or regulated markets, buyers often request grade equivalence mapping — Q235B roughly aligns with S235JR under EN standards, while Q345B maps toward S355JR, though chemical composition limits differ and require mill verification. [NEED_CITE: steel grade equivalence between GB Q-series and EN S-series structural standards] Galvanized coating adds corrosion resistance for outdoor infrastructure but demands coating thickness verification before shipment — a 40μm coating where 60μm was specified will fail third-party inspection and delay the entire container. Custom cut-to-length service eliminates field cutting waste on job sites with strict dimensional requirements.
Steel Grade and Rolling Process Fundamentals
Q235B remains the default choice for general structural work across Southeast Asia and the Middle East — it offers adequate strength for frames, brackets, and non-critical load paths at competitive pricing. Q345B steps up the yield strength for heavier spans and dynamic loading conditions common in vehicle manufacturing and industrial platforms. SS400 serves Japanese-specification projects where JIS G standards govern procurement. Hot rolling produces the U channel profile in a single pass through caliber rolls, giving the section its characteristic sharp inner corner and consistent wall thickness. Unlike cold-formed channels, hot rolled U channels carry no residual stress from bending, making them preferable for welding-intensive fabrication where distortion control matters. Galvanizing after rolling provides a zinc layer that protects both faces and the inner radius — critical for channels used in outdoor bracing or coastal construction.
The Hidden Cost of Unverified U Channel Procurement
Ordering U channels without verified mill test certificates creates downstream risk across the entire project chain. Material substitution — receiving Q195 when Q345B was specified — may pass visual inspection but fails mechanical testing at the engineer’s discretion, triggering full batch rejection. Missing or incorrect certification blocks customs clearance in markets requiring EN or ASTM documentation, stranding cargo at port. [NEED_CITE: structural steel certification requirements for customs clearance in regulated markets] Tolerance drift beyond drawing specs forces field modification or scrap, erasing any per-ton savings from cheaper sourcing.
Why Procurement Teams Source U Channels From SD XJY Pipe
We operate three production lines in Jinan covering over 2,800 specifications across tubes and sections — when your project needs both U channels and I-beams in matched grades, a single purchase order eliminates cross-supplier coordination. Our in-house physical and chemical laboratory tests every heat before release, and mill test certificates issue per heat number with full chemical and mechanical data. ISO 9001:2015 certification, Lloyd’s CE marking, and SGS/BV third-party inspection availability satisfy procurement requirements across EU, Middle East, and Southeast Asian projects. Custom non-standard sizes and cut-to-length service mean you order exactly what the drawing calls for, not what the mill’s stock list happens to include. Professional container loading with anti-damage measures prevents the bending and surface scoring that triggers rejection at destination — we have seen too many competitors’ bundles arrive with crushed flange edges from improper stowage.
Documentation & Compliance
- Mill test certificate documenting Q235B or Q345B chemical composition and mechanical properties per GB standard, issued per heat number
- Grade equivalence statement mapping Q-series designations to EN S-series or JIS SS-series upon request for international projects
- ISO 9001:2015 quality management certificate covering hot rolled and galvanized U channel production
- SGS or BV third-party inspection report verifying dimensional accuracy, coating thickness, and surface quality before shipment
- Full export documentation set including packing list, bill of lading, and certificate of origin for customs clearance
- Galvanizing coating thickness test report confirming compliance with specified micron requirements
Packaging, Loading & Delivery
- Hot rolled U channels bundled with steel strips and edge protectors to preserve galvanized coating and prevent flange deformation during ocean transit
- Custom cut-to-length channels (1–12m) loaded in dedicated containers with wooden chocks to prevent shifting and telescoping
- Galvanized surfaces wrapped with waterproof paper at bundle ends to block moisture ingress during port storage and transit
- Heat number and steel grade stenciled on each piece for on-site traceability and inspection verification
- FOB, CIF, and DDP terms available with professional container loading plans optimized for 50×25mm through 400×102mm size ranges
- Full set of export documents provided for customs clearance at destination ports across 50+ countries
Getting Your U Channel Inquiry Processed
Submit your drawing specifications including section size, steel grade, surface treatment preference, quantity, and destination port — our team responds within hours with pricing, lead time, and available mill test documentation. For non-standard dimensions or custom lengths outside the 50×25mm–400×102mm range, we provide feasibility confirmation and production scheduling. Third-party inspection and certification requirements are confirmed before contract signing, not after production starts.
Frequently Asked Questions
Q: What is the grade equivalence between Q235B and international standards?
A: Q235B roughly corresponds to S235JR under EN standards and SS400 under JIS, though chemical composition limits vary by standard. We provide grade equivalence mapping with mill test certificates for international projects requiring cross-standard documentation.
Q: Can you produce U channels in non-standard sizes outside the GB and JIS ranges?
A: Yes, custom non-standard dimensions are available beyond the standard 50×25mm–400×102mm range. Submit your drawing specifications for feasibility review and production scheduling.
Q: What galvanizing coating thickness do you provide?
A: Galvanizing coating thickness is produced per your specification. We verify coating thickness in-house before shipment and can arrange SGS or BV third-party inspection to confirm compliance with your project requirements.
Q: What documentation accompanies a U channel shipment?
A: Every shipment includes mill test certificates per heat number, packing list, bill of lading, and certificate of origin. Additional certificates including ISO 9001, CE marking, and third-party inspection reports are provided based on your procurement requirements.
Q: What is the minimum order quantity for U channels?
A: The minimum order quantity is 1 ton. Custom cut-to-length service is available for orders requiring specific lengths within the 1–12m range.
