Description

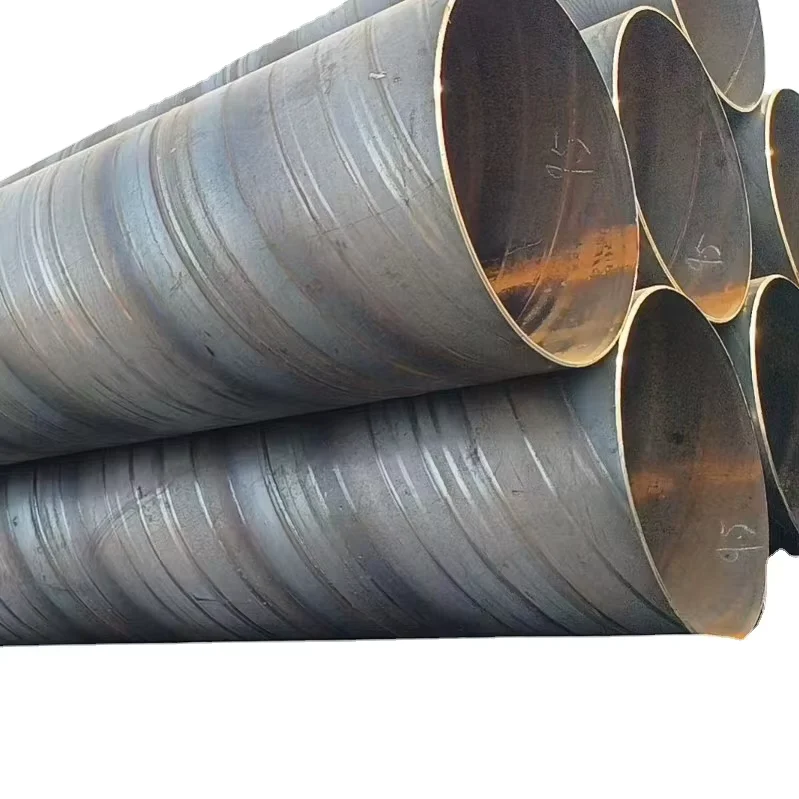

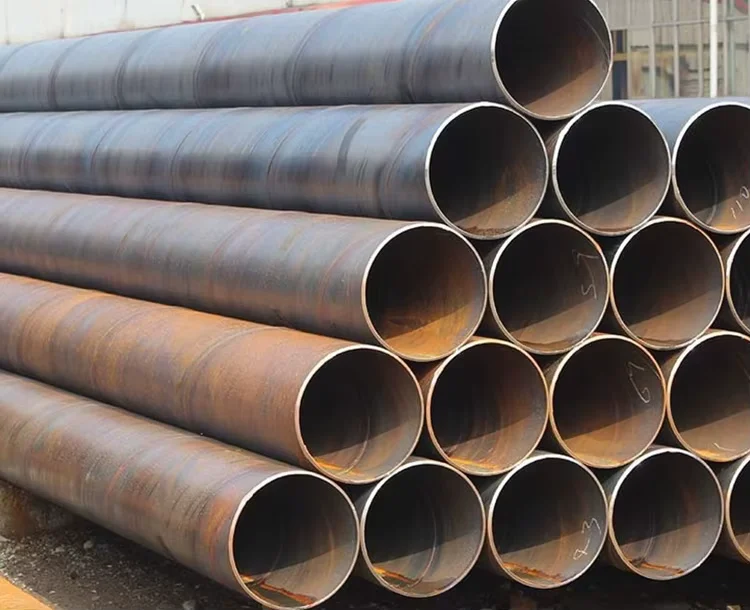

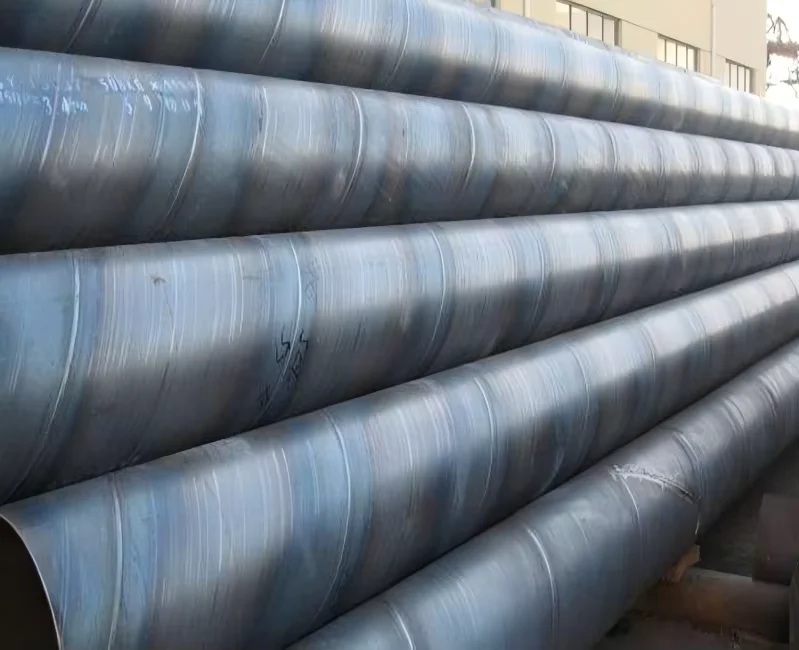

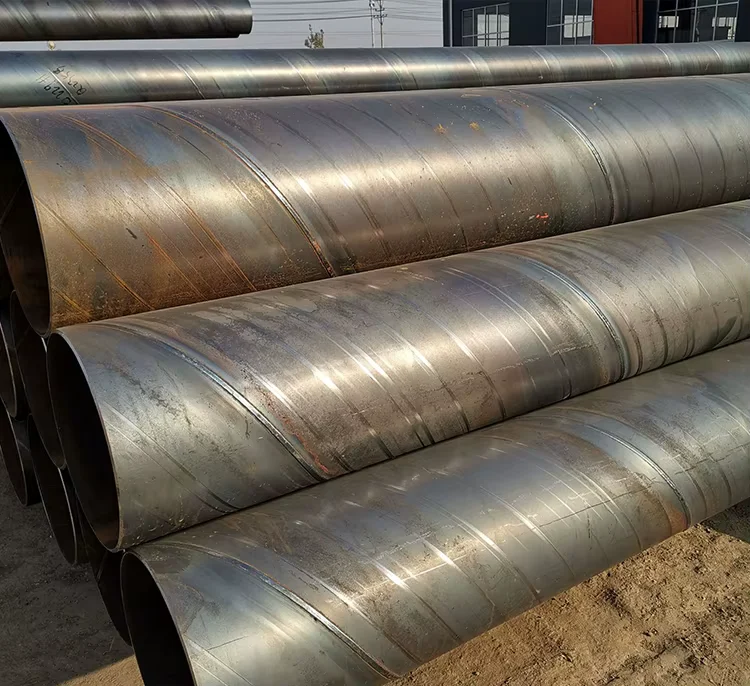

Factory-Direct Large-Diameter SSAW Pipe — In-house physical and chemical lab testing on every heat ensures wall thickness stays within ±1% tolerance before shipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A36 SSAW Steel Pipe |
| Product Type | SSAW Steel Pipe / Spiral Submerged Arc Welded Pipe |
| Steel Grade | Q195-Q345, ASTM A53-A369 (A36), ST35-ST52 |
| Standard | ASTM A36, ASTM A53-A369 |
| Section Shape | Round |
| Outer Diameter | Large Diameter (custom per order) |
| Wall Thickness | 0.5–40 mm |
| Length | 6–12 m |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Hot Rolled Finish, Non-oiled |
| Tolerance | ±1% |
| Ends | Plain / Beveled (customizable) |
| Application | Oil pipeline, water pipeline, fluid transport, gas transport, sewage transport, structure pipe |
| MOQ | 25 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Onshore and offshore crude oil transmission lines, natural gas distribution trunk lines |
| Municipal Infrastructure | Urban water supply mains, raw water intake pipelines, sewage outfall lines |
| Industrial Construction | Structural pipe for plant frameworks, conveyor supports, piling columns |
| Agricultural Irrigation | Large-diameter water diversion channels, pump station discharge lines |
Where Dimensional Tolerance Decides Pipeline Welding Quality on a 25 Ton Order
A ±1% wall thickness tolerance on large-diameter SSAW pipe prevents field welding rejection and avoids costly re-cutting at the job site.
Pipeline contractors sourcing ASTM A36 SSAW steel pipe supplier products often discover that wall thickness drifts beyond acceptable limits once pipes reach the trench. When negative tolerance exceeds 1 mm on a heavy-wall section, bevel preparation exposes the inner weld seam, and the joint fails radiographic inspection. This is not a rare occurrence — it happens when mills prioritize theoretical weight over actual measurement. [NEED_CITE: SSAW pipe dimensional tolerance requirements per API 5L and ASTM standards]
Every heat of our SSAW pipe goes through ultrasonic thickness mapping at our in-house laboratory before it leaves Jinan. I have seen entire shipments held at port because the third-party inspector found random spots where the wall was under-spec. We measure, we record, we ship with the data attached.
Matching Large-Diameter SSAW Pipe to High-Pressure Pipeline Environments
The ASTM A36 SSAW steel pipe supplier range covers wall thicknesses from 0.5 mm to 40 mm, which means the same product family can serve low-pressure drainage lines and high-pressure gas trunk lines alike. For oil and gas transmission, the spiral weld seam geometry distributes hoop stress more evenly than straight-seam alternatives on large diameters above 500 mm. The hot-rolled, non-oiled surface is ready for downstream 3PE or FBE coating without additional degreasing. Our production lines handle custom diameters per order, so EPC contractors do not need to redesign their route around available stock sizes.
Engineering Compliance and Certification Requirements for Pipeline Projects
Large-diameter spiral welded pipe used in pressurized fluid transport must comply with ASTM A53 through A369 series specifications, and the mill test certificate must document chemical composition and mechanical properties per heat number. [NEED_CITE: ASTM A36 chemical and mechanical requirements for structural and pipeline applications] For projects in the EU or Middle East, buyers often need CE marking under EN 10219 or EN 10210 in addition to the ASTM documentation — a dual-certification gap that blocks customs clearance if not addressed before shipment. Our facility holds ISO 9001:2015 certification, Lloyd’s CE approval under EN 10210/EN 10219, and Singapore FPC, so the documentation package covers multiple destination markets from a single production run. Beveled ends are cut to API or client-specified angles, and length tolerance is held within the 6–12 m range to match standard handling equipment at the site. [NEED_CITE: EN 10219 cold-formed and hot-formed hollow section certification for pipeline use]
Steel Grade Coverage and SSAW Process Fundamentals
The ASTM A36 SSAW steel pipe supplier catalog includes Q195 through Q345 for domestic-standard projects, ASTM A53 through A369 (including A36) for international specifications, and ST35 through ST52 for European-origin designs. The Q-series and ASTM A36 occupy similar yield strength territory, making them interchangeable on many structural and low-pressure pipeline applications — but the chemical composition limits differ, and the mill test certificate must reflect the exact standard specified in the purchase order. SSAW (Spiral Submerged Arc Welded) process uses a continuously fed steel coil formed into a helix and welded from both inside and outside under submerged arc, which allows production of large diameters that seamless or ERW mills cannot reach economically. The spiral seam also provides a longer weld path per unit length, distributing residual stress more gradually. Hot-rolled finish without oil coating keeps the surface clean for field welding and external anti-corrosion coating application. Wall thickness up to 40 mm covers heavy-wall requirements for high-pressure gas lines and deep-burial water mains where external load demands thicker sections.
Hidden Costs of Specifying the Wrong Grade or Accepting Out-of-Tolerance Pipe
Ordering ASTM A36 SSAW steel pipe supplier products without verifying the mill test certificate against the purchase order standard creates a chain of failures: the material arrives with chemistry that does not match the welding procedure qualification, the field welds crack during hydrostatic testing, and the project faces re-welding or full pipe replacement. [NEED_CITE: consequences of steel grade mismatch in pipeline welding procedure qualification] Negative tolerance beyond ±1% means the pipe weighs less than the theoretical calculation, which looks like a cost saving on paper but reduces the pressure rating and structural load capacity below design requirements. Certification gaps — missing CE marks, incorrect EN standard references, or incomplete heat-number traceability — cause customs holds that delay the entire project schedule. These are not theoretical risks; they are documented failure modes on pipeline projects across Southeast Asia and the Middle East.
Why Pipeline Contractors Source ASTM A36 SSAW Pipe from Our Jinan Facility
We produce SSAW pipe on our own lines in Jinan with wall thickness capability up to 40 mm, covering the full range from thin-wall drainage to heavy-wall high-pressure sections. Our in-house physical and chemical laboratory tests every heat for composition, tensile strength, and dimensional accuracy before release — no batch leaves without a complete mill test certificate. The facility covers 2,800+ specifications across square, rectangular, round, and section steel, so contractors sourcing pipe for a pipeline project can also order structural hollow sections and beams from the same supplier, consolidating logistics and reducing lead time variance. We hold ISO 9001:2015, Lloyd’s CE under EN 10210/EN 10219, Singapore FPC, and accept SGS or BV third-party inspection before shipment. Custom non-standard diameters and lengths are available with a 25 Ton MOQ, and our loading team uses dedicated cradles and edge protectors to prevent surface damage and ovality during container and break-bulk transit. Exports reach 50+ countries with full export documentation including certificate of origin, packing list, and bill of lading.
Documentation & Compliance
- Mill test certificate documenting ASTM A36 chemical composition (carbon, manganese, silicon, sulfur, phosphorus) and mechanical properties per heat number
- CE certificate under EN 10210/EN 10219 for projects requiring European conformity marking on SSAW pipe
- ISO 9001:2015 quality management system certificate covering the full SSAW production process
- SGS or BV third-party inspection report available upon request, covering dimensional checks, weld seam ultrasonic testing, and coating adhesion
- Material traceability by heat number stamped on each pipe end, matching the mill test certificate
- Full customs documentation package: commercial invoice, packing list, bill of lading, and certificate of origin for the destination country
Packaging, Loading & Delivery

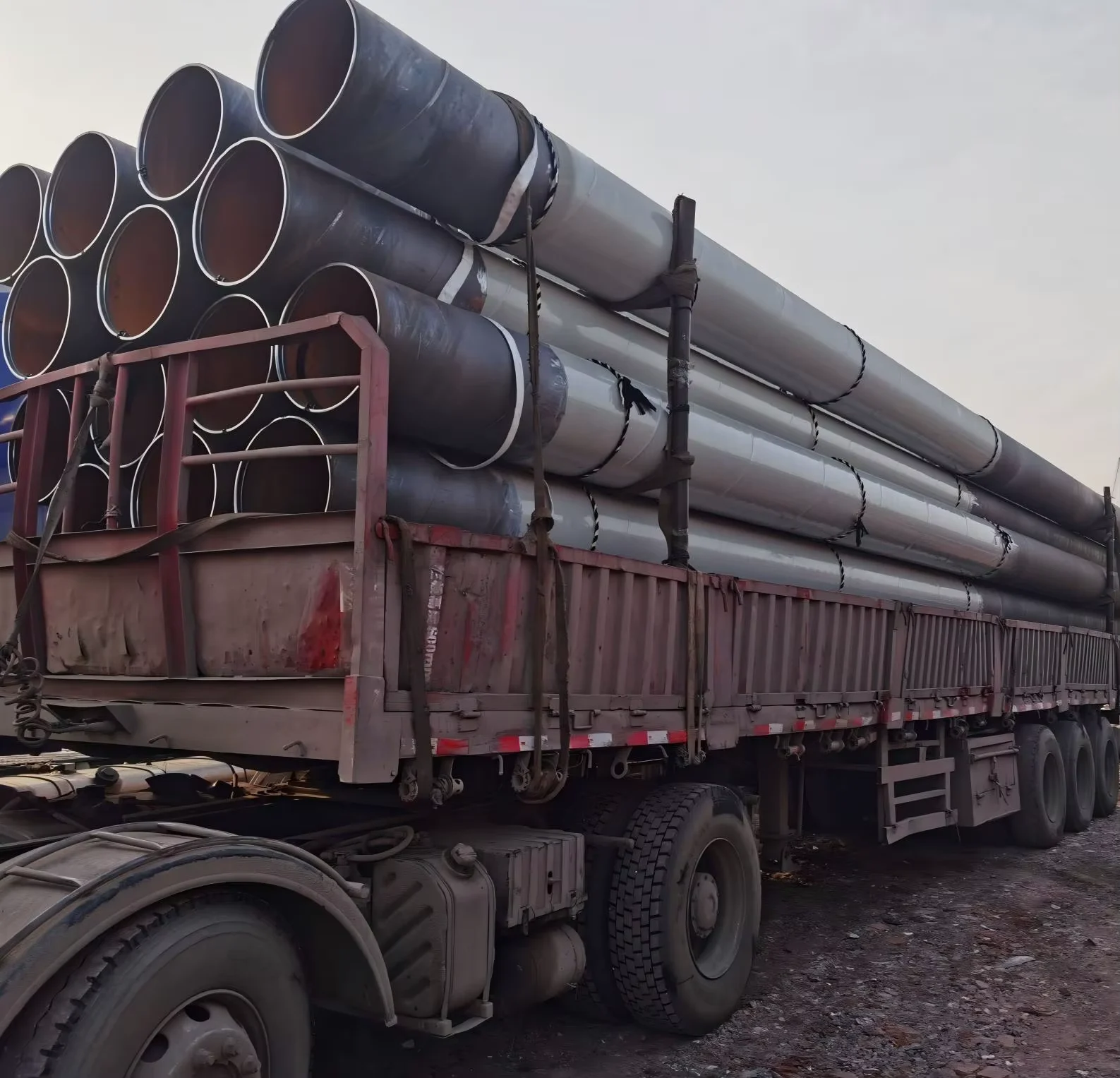

- SSAW pipes bundled with galvanized steel strips at intervals matched to the 6–12 m length, with plastic end caps on beveled ends to protect the weld preparation groove during transit
- Hot-rolled non-oiled surface left bare per specification, with optional temporary rust preventive applied for ocean shipment to high-humidity destinations
- Container loading optimized for large-diameter pipe using nested stacking with timber cradles to prevent ovality and surface contact damage; break-bulk loading available for diameters exceeding container width
- Custom cutting to site-specific lengths within the 6–12 m range, with cut ends deburred and marked with heat number, steel grade ASTM A36, and wall thickness
- Each pipe end stenciled with heat number, steel grade, outer diameter, wall thickness, and length for field identification and traceability verification
- Shipping terms FOB, CIF, or DDP available; professional loading supervision with photo documentation before container sealing
How to Request a Quotation for Your Pipeline Project
Submit your required outer diameter, wall thickness, steel grade (ASTM A36 or equivalent), total tonnage, and destination port — we respond within 12 hours with a detailed quotation including unit price, production lead time, and shipping terms. For non-standard diameters or lengths outside the 6–12 m range, we provide a custom production schedule based on your project timeline. We confirm all certification and mill test certificate requirements before contract signing, so there are no documentation surprises at customs.
Request Your ASTM A36 SSAW Pipe Quote with Mill Test Certificate
Send your specification sheet including diameter, wall thickness, grade, and quantity to receive a full quotation and sample mill test certificate within 12 hours.
Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxjypipe.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjypipe.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between ASTM A36 and Q235B for SSAW pipe applications?
A: ASTM A36 and Q235B occupy similar yield strength ranges and are often used interchangeably on structural and low-pressure pipeline projects. However, the chemical composition limits differ slightly — particularly in carbon and manganese content — and the mill test certificate must reflect the exact standard specified in your purchase order. We produce SSAW pipe in both grades and can provide equivalence documentation for projects requiring cross-standard approval.
Q: Can you provide third-party inspection before shipment for ASTM A36 SSAW steel pipe?
A: Yes. We accept SGS or BV third-party inspection at our Jinan facility before shipment. The inspection covers dimensional verification, wall thickness ultrasonic testing, weld seam quality, and visual surface check. The third-party report is issued independently and accompanies the mill test certificate in the shipping documentation package.
Q: What surface treatment options are available for downstream pipeline coating?
A: Our standard SSAW pipe ships with hot-rolled finish and non-oiled surface, which is the preferred condition for downstream 3PE, FBE, or epoxy coating application. The bare surface allows coating adhesion without additional degreasing or blasting beyond standard Sa 2.5 preparation. If you require temporary rust protection for extended ocean transit, we can apply a light preventive coating that is compatible with standard coating line procedures.
Q: What is the minimum order quantity for custom diameter ASTM A36 SSAW pipe?
A: The minimum order quantity is 25 Ton. For custom diameters outside our standard range, production lead time is typically 15–25 days depending on the specification and total tonnage. Standard sizes may ship from stock with shorter lead times. We provide a detailed production schedule after receiving your inquiry with full specifications.
Q: How do you ensure wall thickness tolerance on large-diameter SSAW pipe?
A: Every heat of SSAW pipe undergoes ultrasonic thickness mapping at multiple points along the length and around the circumference in our in-house physical laboratory. We hold tolerance within ±1% of the specified wall thickness. The measurement data is recorded in the mill test certificate, and third-party inspectors can verify the readings independently before shipment.
