Description

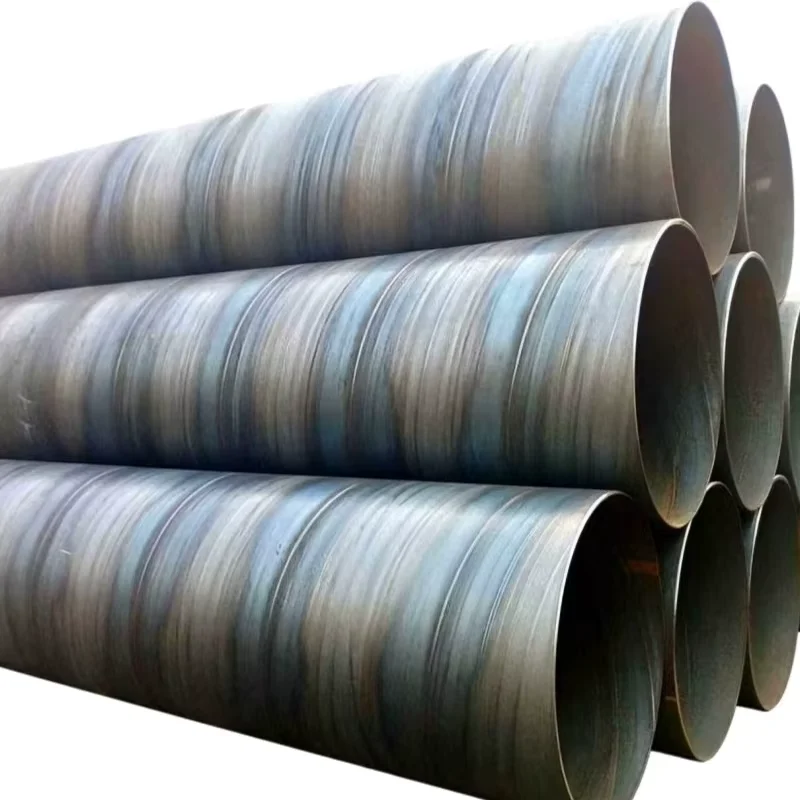

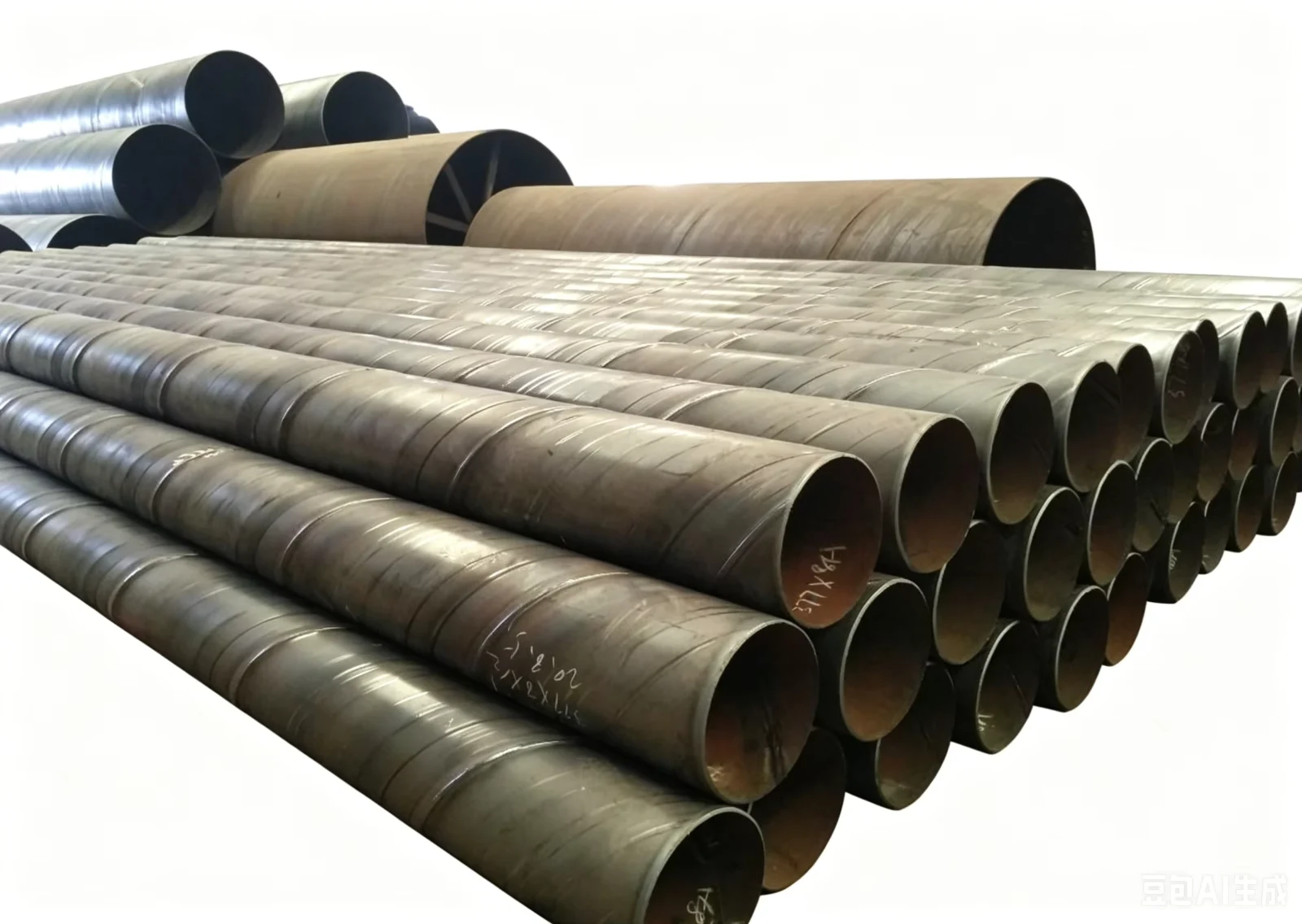

Factory-direct SSAW pipes — Q235 spiral welded steel pipes produced under GB/T 9711 with in-house lab testing and full mill test certification for bridge and municipal structural projects.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 SSAW Spiral Steel Pipe |
| Product Type | SSAW Steel Pipe / Spiral Welded Steel Pipe |
| Steel Grade | Q235 |
| Standard | GB/T 9711 |
| Section Shape | Round |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Hot Rolled |
| Oiled or Non-oiled | Non-oiled |
| Tolerance | ±1% |
| Delivery Time | Stock: 1–3 Days; Custom Order: 10–30 Days |
| Invoicing | By Theoretical Weight |
| Application | Bridges / Steel structure supports / Municipal infrastructure / Structural projects |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Bridge Construction | Main load-bearing spiral pipe columns, pier support casings, approach ramp structural frames |
| Municipal Infrastructure | Water and gas transmission mains, drainage culvert linings, utility tunnel structural supports |
| Steel Structure Engineering | Industrial platform columns, warehouse frame bracing, heavy equipment support pedestals |
| EPC Contractors | Foundation piling casings, temporary works support tubes, site infrastructure pipe racks |
Where Weld Integrity Decides Whether a Bridge Column Passes Acceptance Testing
Spiral weld quality is the single most inspected item on large-diameter SSAW pipe deliveries for structural use.
Sourcing Q235 SSAW spiral steel pipe supplier deliveries for bridge and municipal projects often means confronting weld seam inconsistencies that only surface during ultrasonic testing at the acceptance stage. Negative wall thickness tolerance pushed beyond GB/T 9711 limits triggers rejection at third-party复检, leaving entire containers stranded at port. A Q235 SSAW spiral steel pipe supplier who controls weld parameters in-house and provides batch-level mill test certificates eliminates this uncertainty before the material ever reaches the job site. [NEED_CITE: GB/T 9711 spiral welded steel pipe requirements for structural applications]
How Q235 SSAW Pipes Match Bridge and Municipal Load-Bearing Requirements
Q235 SSAW spiral steel pipe supplier products in large diameters deliver the cross-sectional rigidity that bridge column designs and municipal foundation casings demand. The spiral weld seam distributes circumferential stress more evenly than longitudinal welds on equivalent diameters, which matters when pipe columns carry axial loads from bridge decks or overhead utility structures. Hot rolled surface finish arrives non-oiled and ready for site welding or protective coating application without additional surface preparation. Our production lines handle the full diameter and wall thickness range that municipal EPC contractors specify for water transmission and structural foundation work, with ±1% dimensional tolerance holding fit-up accuracy on bolted flange connections.
Structural Code Compliance and Certification Pathways for SSAW Pipe in Civil Works
Civil engineering specifications for bridge and municipal infrastructure typically reference GB/T 9711 for spiral welded steel pipe used in load-bearing applications. The Q235 grade meets the chemical composition and mechanical property requirements defined in this standard, providing verified yield behavior for structural calculations. For projects requiring third-party verification, SGS or BV inspection can be arranged before shipment to confirm dimensional accuracy, weld seam quality, and material traceability by heat number. Custom cut-to-length service eliminates field cutting waste on fixed-span bridge column layouts, while mill test certificates accompany every batch for engineer approval at the acceptance stage. [NEED_CITE: structural steel pipe certification requirements for bridge and municipal infrastructure projects]
Q235 Grade and SSAW Process: What Structural Buyers Need to Know
Q235 is the baseline carbon structural steel grade in the GB system, widely specified for municipal and bridge applications where moderate strength and good weldability are the primary requirements. The SSAW (spiral submerged arc welded) process forms the pipe from coiled steel plate in a continuous spiral, allowing production of large diameters that would be impractical with seamless or ERW methods. The spiral weld geometry provides uniform strength distribution around the pipe circumference, which is why structural engineers specify SSAW for bridge columns and heavy-load municipal casings. Hot rolled surface treatment leaves a clean, mill-scale finish suitable for direct welding or subsequent coating application. Wall thickness tolerance held at ±1% ensures that theoretical weight invoicing reflects actual delivered material, avoiding the cost disputes that arise when negative tolerance exceeds specification limits.
The Hidden Cost of Buying SSAW Pipe Without Verified Weld Quality
Accepting Q235 SSAW pipe without mill test certificates or third-party weld inspection creates downstream risk that far exceeds the initial price difference. Weld seams with incomplete fusion or slag inclusions pass visual inspection but fail ultrasonic testing at the project acceptance stage, triggering full-batch rejection and project delay. Wall thickness measured at the lower end of negative tolerance reduces actual load-bearing capacity below structural design assumptions, creating safety liability that no amount of rework can resolve. Certification gaps — missing heat number traceability or incomplete chemical composition records — block customs clearance on regulated markets and force costly re-documentation. [NEED_CITE: consequences of non-compliant spiral welded steel pipe in structural applications]
Why Engineering Procurement Teams Source Q235 SSAW Pipe From Xin Jiyuan
Xin Jiyuan operates three dedicated production lines covering over 2,800 specifications, meaning large-diameter Q235 SSAW pipe for bridge and municipal projects ships from existing stock or enters production within typical lead times. Our in-house physical and chemical laboratory performs dimensional, mechanical, and chemical testing on every batch, generating mill test certificates that satisfy engineer approval requirements without third-party delay. Full international certifications — ISO 9001:2015, Lloyd’s CE (EN 10210/10219), Singapore FPC, and SGS/BV verification — ensure customs clearance across regulated markets. Professional container loading with anti-damage measures prevents the bending and surface damage that causes rejection at destination, while custom cut-to-length service reduces field waste on fixed-span structural layouts. We export to over 50 countries, with established logistics pathways to Middle East, Southeast Asia, and African municipal project sites.
Documentation & Compliance
- Mill test certificate documenting Q235 chemical composition and mechanical properties per GB/T 9711, with heat number traceability for every delivered pipe
- ISO 9001:2015 quality management system certificate covering SSAW pipe production processes and inspection procedures
- SGS or BV third-party inspection report available upon request, confirming dimensional accuracy, weld seam quality, and surface condition before shipment
- Lloyd’s CE certificate (EN 10210/EN 10219) supporting customs clearance for projects requiring European conformity documentation
- Complete export documentation package including packing list, bill of lading, and certificate of origin formatted for destination country requirements
- Material traceability records linking each pipe to its production heat number, supporting engineer approval and acceptance testing documentation
Packaging, Loading & Delivery
- Q235 SSAW pipes bundled with steel strip ties and edge protectors to prevent surface damage during ocean transit, with bundle weight optimized for container payload limits
- Hot rolled non-oiled surface finish requires no additional protective coating before shipment, reducing packaging complexity while maintaining mill-scale integrity until site application
- Large-diameter spiral pipes loaded with specialized cradle supports inside containers to prevent ovality deformation during handling and transport
- Custom cut-to-length service available for fixed-span bridge column and municipal foundation specifications, eliminating field cutting waste and reducing site storage requirements
- Heat number and Q235 grade identification marked on each pipe end for traceability verification at project acceptance
- FOB, CIF, and DDP shipping terms available with professional tube loading expertise developed across exports to over 50 countries
Getting Your Q235 SSAW Pipe Inquiry Quoted and Certified
Submit your required outer diameter, wall thickness, length, quantity, and destination port to receive a detailed quotation with unit pricing, production lead time, and shipping terms. Mill test certificates and third-party inspection arrangements are confirmed at the inquiry stage, so engineer approval documentation is ready before production begins. Custom cut-to-length and non-standard specification requests are reviewed by our technical team within one working day.
Request Your Q235 SSAW Pipe Quotation With Full Mill Test Certification
Send your project specifications — diameter, wall thickness, length, quantity, and destination — to receive pricing, lead time, and mill test certificate confirmation within 12 hours.
