Description

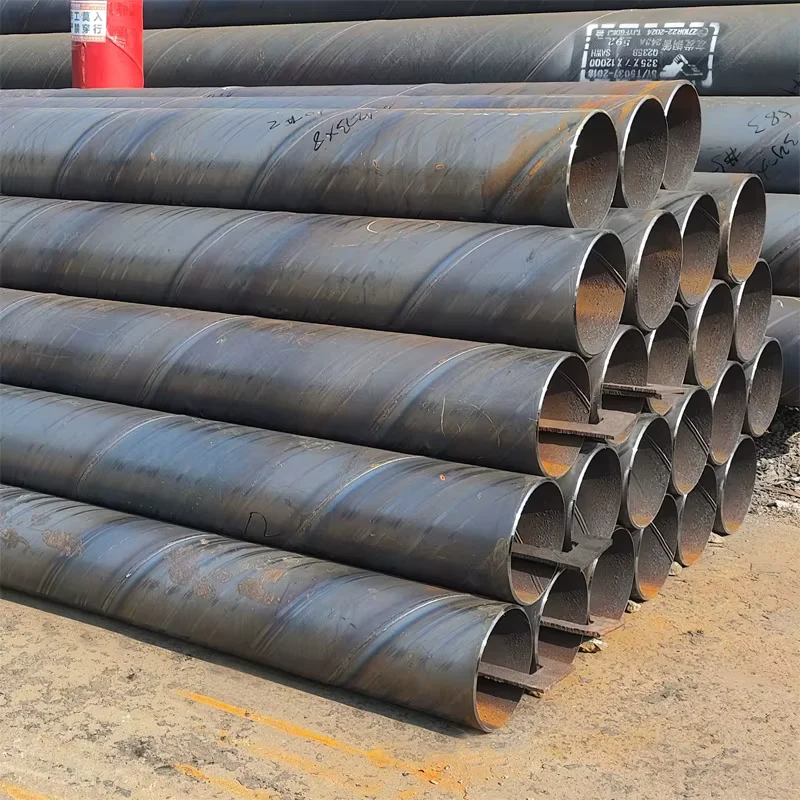

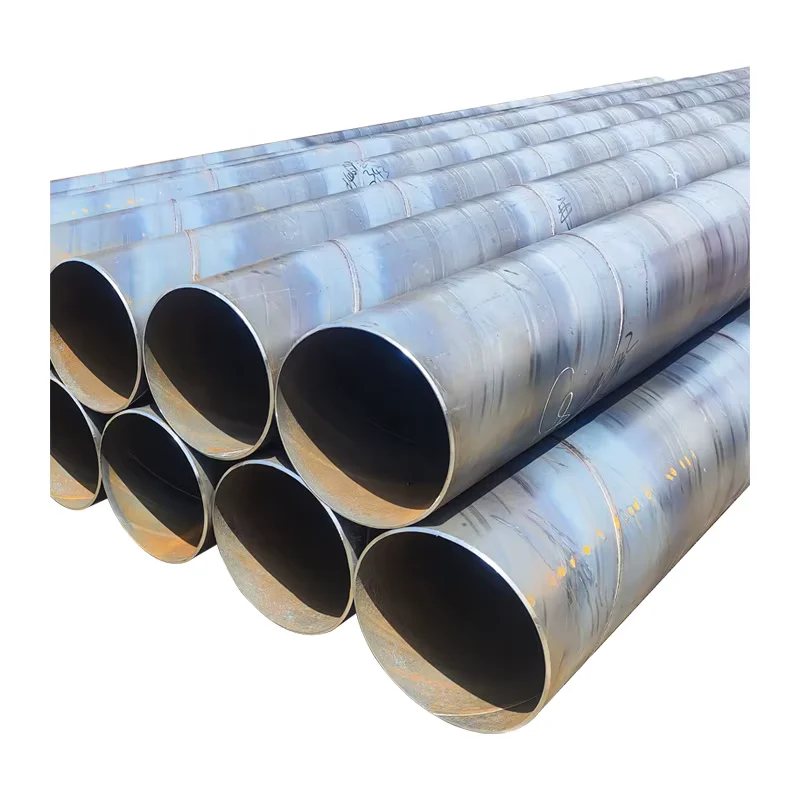

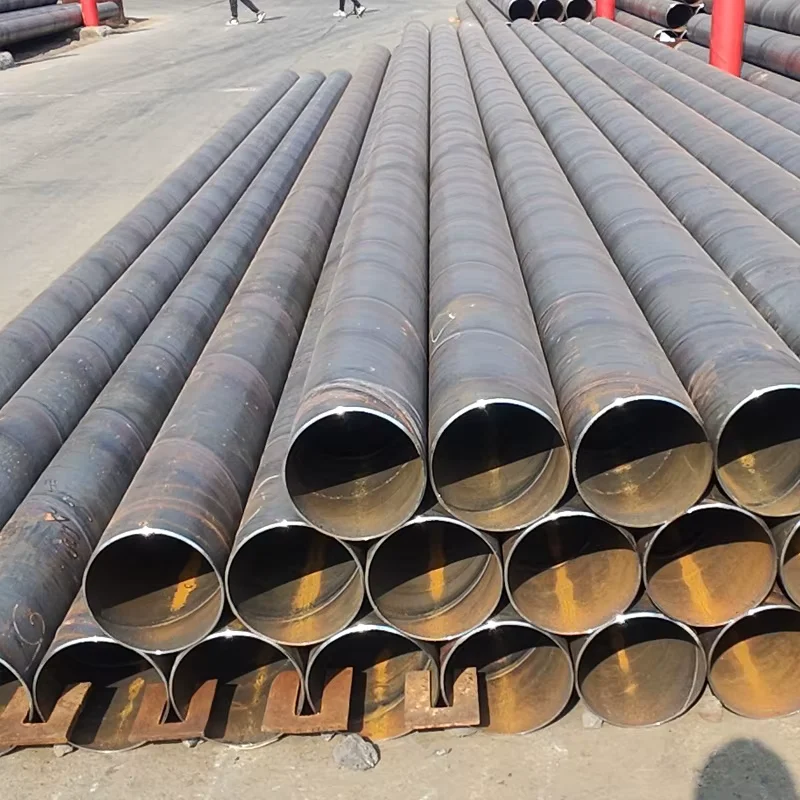

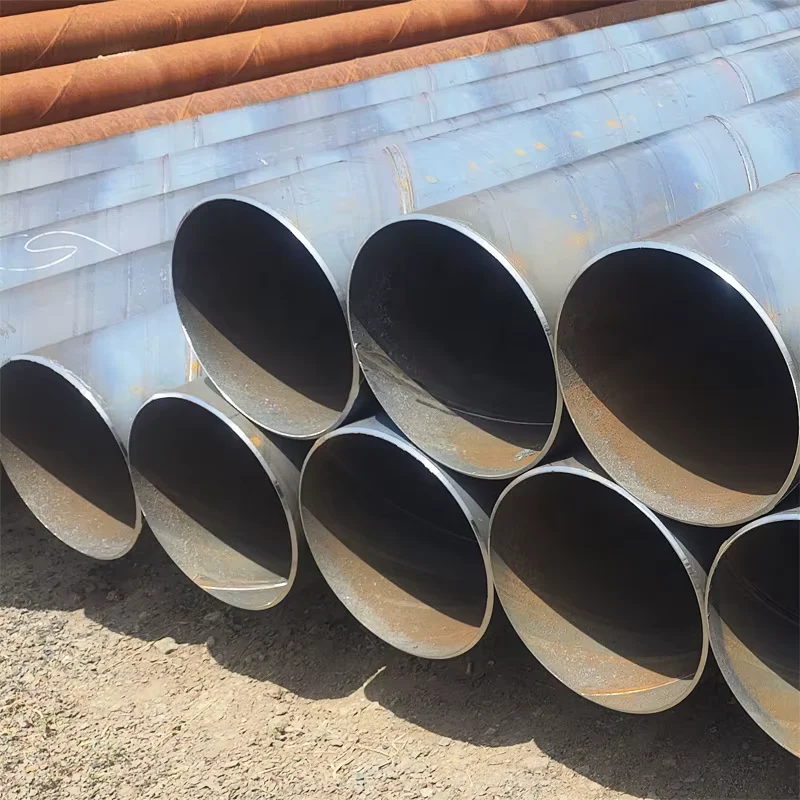

Direct Mill Supply for Large-Diameter SSAW Pipe — Every SSAW spiral welded steel pipe is ultrasonically tested for wall thickness before release, eliminating negative tolerance surprises on oil and gas pipeline projects.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | SSAW Spiral Welded Steel Pipe |
| Product Type | Round Steel Pipe / Spiral Submerged Arc Welded (SSAW) Steel Pipe |
| Steel Grade | EN10219 S355JR, ASTM A572 Grade 50, Q355B, Q355D |
| Standard | EN10219, ASTM A572 |
| Section Shape | Round |
| Outer Diameter | 610 mm – 1000 mm |
| Wall Thickness | 10 mm – 30 mm |
| Length | 12 m |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Black / Oiled / 3PE / FBE / Galvanized |
| Tolerance | ±10% |
| Ends | Plain / Beveled / Threaded |
| Application | Fluid transport, Hydraulic systems, Gas pipeline, Oil pipeline, Structural applications |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Transmission pipelines, gathering lines, slug catchers |
| Civil Infrastructure | Structural piling, bridge support columns, foundation casings |
| Industrial Plants | Hydraulic distribution networks, process fluid conveyance |
| Municipal Engineering | Gas distribution mains, water transmission trunk lines |
What Wall-Thickness Tolerance Costs on a Large-Diameter Pipeline Order
A single millimetre of negative tolerance deviation on a 1000 mm OD SSAW spiral welded steel pipe can trigger full-batch rejection at destination inspection.
Procurement teams sourcing large-diameter spiral welded pipe for oil, gas and structural projects frequently encounter inconsistent wall thickness across heats, missing CE or EN documentation that blocks EU customs clearance, and pipe ends damaged during transit due to improper container stowage. These are not theoretical risks — they translate directly into project delays, re-inspection costs, and in worst cases, structural safety concerns when load-bearing capacity falls below design assumptions. [NEED_CITE: EN 10219 dimensional tolerance requirements for structural hollow sections]
How 10–30 mm Wall Thickness Meets Heavy-Duty Pipeline and Piling Demands
The 10–30 mm wall thickness range on this SSAW spiral welded steel pipe covers the majority of pressure-rated transmission pipelines and structural piling applications across Middle East and Southeast Asian EPC projects. At 30 mm wall on a 1000 mm OD, the pipe provides sufficient hoop stress capacity for high-pressure gas transmission while maintaining weldability on-site. Our in-house laboratory re-tests every heat against both EN10219 and ASTM A572 requirements before issuing the mill test certificate, so the wall thickness you specify is the wall thickness that ships.
Engineering Compliance: EN10219, ASTM A572 and Third-Party Verification
Large-diameter SSAW pipe for structural piling must conform to EN 1993 or AISC design codes, which require documented yield strength and verified dimensional tolerances. The S355JR grade under EN10219 provides higher yield capacity than S235JR for load-bearing columns, while ASTM A572 Grade 50 serves North American structural specifications. For corrosive environments such as coastal piling or underground gas mains, 3PE or FBE coating extends service life significantly over black or oiled finish. CE certification under EN 10219 is mandatory for EU market entry, and third-party inspection by SGS or BV confirms compliance before shipment. [NEED_CITE: ASTM A572 structural steel grade requirements for pipeline and piling applications]
Steel Grade Selection and SSAW Welding Process Explained
The S355JR grade delivers higher yield strength than S235JR, making it suitable for structural columns and pressure-containing pipelines where load capacity is critical. Q355B and Q355D offer equivalent performance under Chinese GB standards, with Q355D providing improved low-temperature impact toughness for cold-climate installations. The SSAW spiral submerged arc welding process produces a continuous helical seam that distributes stress more evenly than longitudinal welds, making it the preferred choice for large-diameter pipe above 500 mm OD where seamless manufacturing becomes cost-prohibitive. Wall thickness tolerance of ±10% is standard under EN10219, but negative tolerance beyond this range reduces actual load-bearing capacity and theoretical weight — which is why we ultrasonically verify every pipe before dispatch. [NEED_CITE: SSAW versus LSAW welding process comparison for large diameter pipe]
Hidden Costs of Incorrect Grade or Missing Certification
Specifying S355JR but receiving S235JR material reduces structural load capacity without visible indication, potentially causing engineering failure under design loads. Missing CE documentation or incorrect EN standard references on mill test certificates result in customs rejection at EU ports, with demurrage and re-shipment costs often exceeding the pipe value itself. Negative tolerance beyond ±10% means you pay for theoretical weight but receive less actual steel, directly impacting project material budgets and structural safety margins. [NEED_CITE: steel grade equivalence between EN10219 S355JR and ASTM A572 Grade 50]
Why Procurement Teams Choose SD XJY Pipe for SSAW Orders
Our factory operates three dedicated SSAW production lines capable of producing large-diameter pipe up to 1000 mm OD with wall thickness reaching 30 mm, eliminating the need for multiple suppliers across different size ranges. The in-house physical and chemical laboratory performs independent testing on every heat, issuing mill test certificates that document chemical composition and mechanical properties per EN10219 and ASTM A572. Full international certifications including ISO 9001:2015, Lloyd’s CE under EN 10219, and Singapore FPC ensure compliance across EU, Middle East and Southeast Asian markets. Third-party inspection by SGS or BV is arranged on request, with complete inspection reports and photographic evidence provided before shipment. Professional container loading with anti-damage measures prevents pipe end deformation and surface scratching during ocean transit, a critical concern for 12 m length large-diameter pipe.
Documentation & Compliance
- Mill test certificate documenting S355JR chemical composition and yield strength per EN10219, issued per heat number
- CE certificate under EN10219 for structural hollow sections, required for EU customs clearance
- ISO 9001:2015 quality management system certificate covering SSAW production processes
- SGS or BV third-party inspection report confirming dimensional tolerance and weld quality before shipment
- Material traceability documentation linking each pipe to heat number and production batch
- Complete customs documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- SSAW spiral welded steel pipe bundled with steel strips and edge protectors to prevent coating damage during ocean transit
- Black or oiled finish pipes wrapped with waterproof cloth; 3PE/FBE coated pipes receive additional protective wrapping to preserve coating integrity
- 12 m length large-diameter pipe loaded in dedicated containers with wooden chocks and anti-roll measures to prevent pipe end deformation
- Heat number and steel grade stencilled on each pipe end for site identification and traceability during installation
- FOB, CIF and DDP shipping terms available with professional container loading optimized for 610–1000 mm OD pipe dimensions
Request Your SSAW Pipe Quotation with Mill Test Certificate
Submit your required outer diameter, wall thickness, steel grade, quantity and destination port to receive a detailed quotation including unit price, production lead time, and shipping terms. We provide mill test certificates and third-party inspection reports for quality confirmation before shipment, ensuring your SSAW spiral welded steel pipe meets project specifications and customs requirements.
Frequently Asked Questions
Q: What is the difference between SSAW and LSAW for large-diameter pipe?
A: SSAW uses spiral submerged arc welding to produce a continuous helical seam, making it cost-effective for large diameters above 500 mm OD. LSAW uses longitudinal welding and is typically preferred for smaller diameters or applications requiring specific weld orientation.
Q: Can you provide ASTM A572 Grade 50 material for North American projects?
A: Yes, we produce SSAW spiral welded steel pipe to ASTM A572 Grade 50 specification, with mill test certificates documenting chemical composition and mechanical properties per ASTM requirements.
Q: What surface treatment options are available for SSAW pipe?
A: Standard options include black, oiled, galvanized, 3PE coating, and FBE coating. The choice depends on service environment — 3PE and FBE provide superior corrosion protection for underground or marine applications.
Q: Do you arrange third-party inspection before shipment?
A: Yes, SGS and BV third-party inspection is available on request. We provide complete inspection reports with photographic evidence before shipment for quality confirmation.
Q: What is the wall thickness tolerance for SSAW pipe?
A: Standard tolerance is ±10% per EN10219. We ultrasonically test every pipe before dispatch to ensure wall thickness remains within specified tolerance range.
Get Your SSAW Spiral Welded Steel Pipe Quote Today
Send your specifications including outer diameter, wall thickness, steel grade, quantity and destination port to receive pricing and mill test certificate samples within 12 hours.
