Description

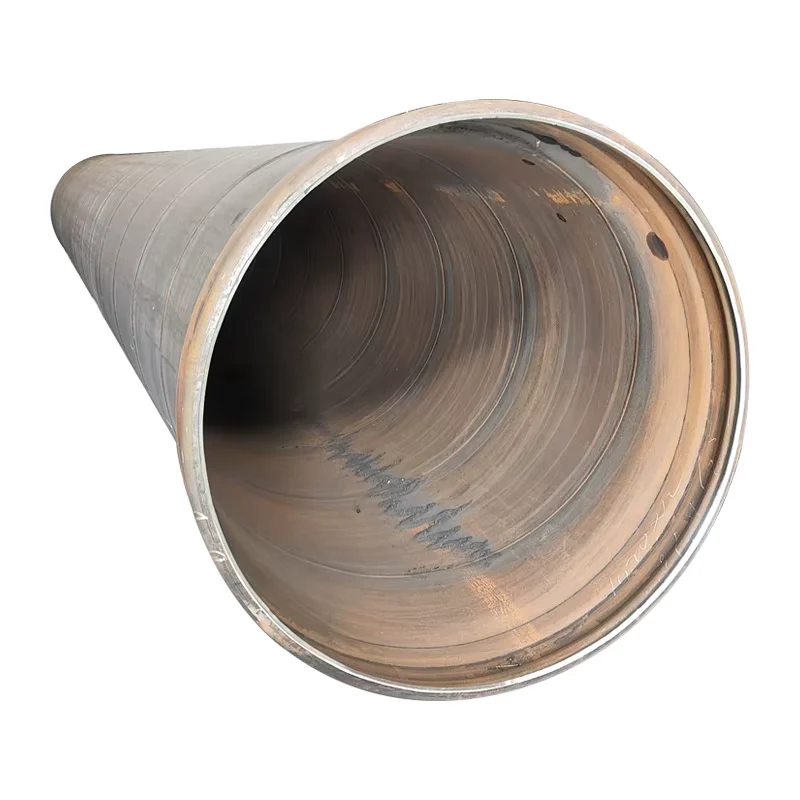

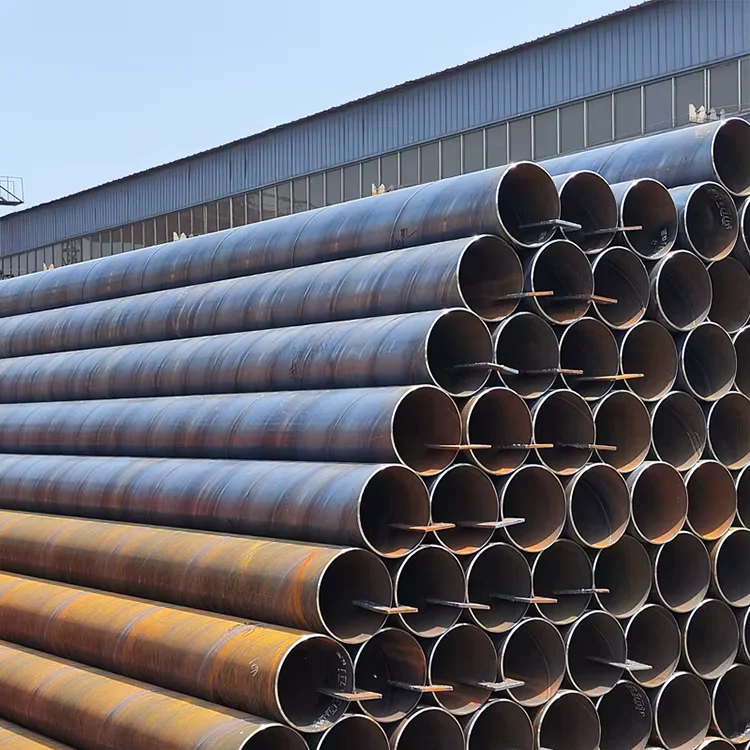

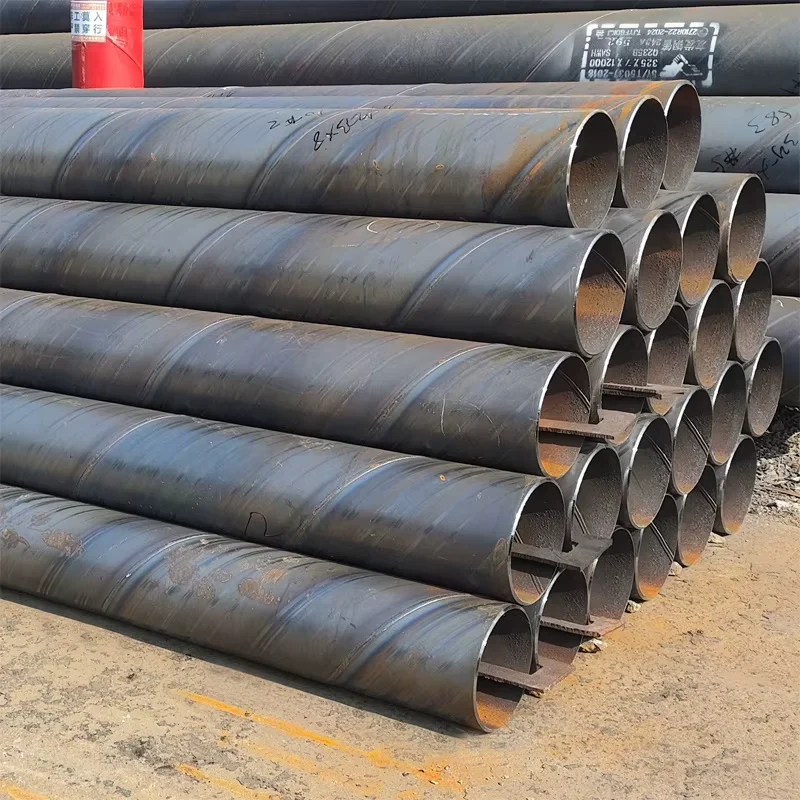

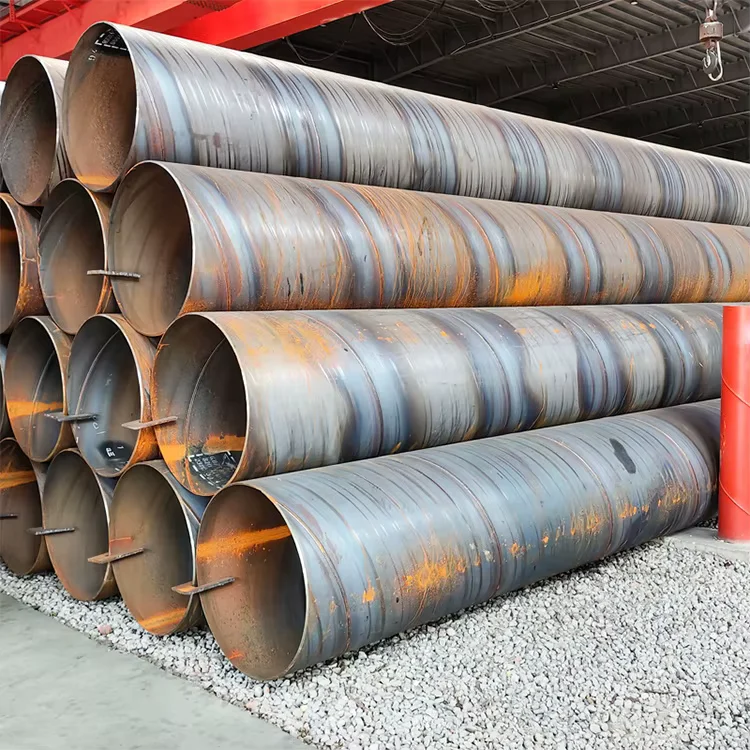

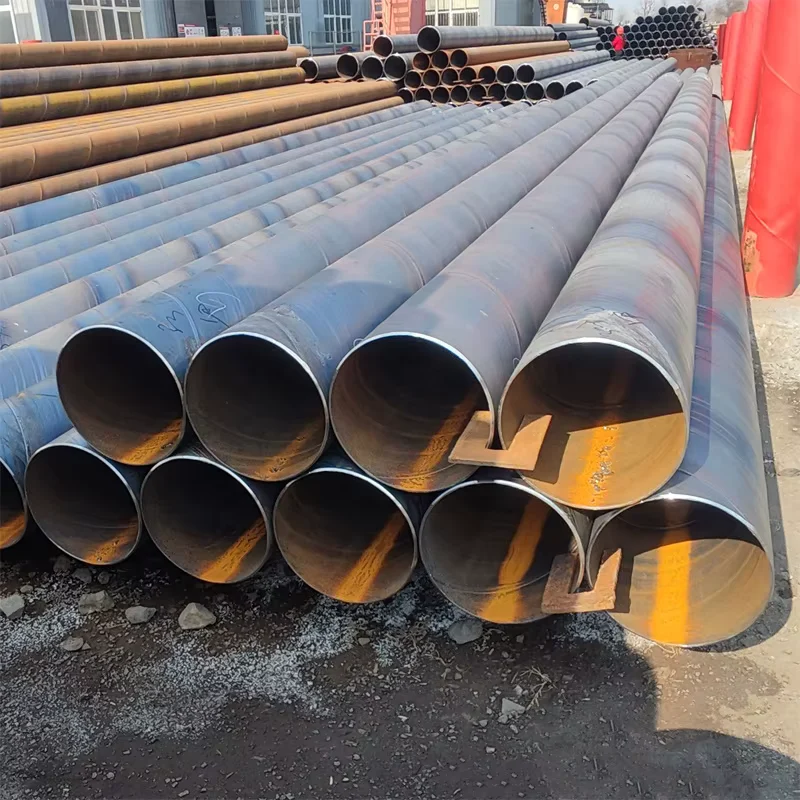

Direct Mill Supply for S355JR SSAW Pipes — Every heat number verified in-house before container sealing at Jinan port.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | S355JR SSAW Steel Pipe |
| Product Type | SSAW Steel Pipe / Spiral Submerged Arc Welded Steel Pipe |
| Steel Grade | S355JR, ASTM A572 Grade 50, Q355B |
| Standard | EN10219, ASTM A572 |
| Section Shape | Round |
| Outer Diameter | 610 mm |
| Wall Thickness | 10–30 mm |
| Length | 12 m |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Cold Rolled |
| Tolerance | ±10% |
| Ends | Plain |
| Oiled or Non-oiled | Non-oiled |
| Processing Service | Welding, Punching, Cutting |
| Invoicing | By Theoretical Weight |
| Application | Fluid transport, Hydraulic systems, Gas pipeline, Oil pipeline, Structural applications |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Transmission pipelines, gathering lines, flow stations |
| Municipal Infrastructure | Water supply mains, drainage culverts, piling foundations |
| Structural Engineering | Column supports, bridge piers, industrial platform frames |
| Mechanical & Hydraulic | Hydraulic cylinder barrels, machine base frames, conveyor rolls |
Where EN10219 Certification Decides Customs Clearance at Destination Port
A missing or incorrectly referenced CE mark under EN10219 can hold an entire SSAW shipment at EU customs for weeks.
Procurement teams ordering S355JR SSAW steel pipe for European projects frequently discover that mill test certificates reference the wrong standard clause, or that the CE declaration cites EN10210 when the contract specifies EN10219. The result is not just a paperwork delay — demurrage charges accumulate, crane schedules slip, and the site superintendent starts questioning whether the material can be welded to the approved procedure. I have seen containers of spiral welded pipes sit at Jebel Ali because the inspector could not reconcile the heat number on the pipe stencil with the chemistry column on the certificate. [NEED_CITE: EN 10219 cold-formed and welded hollow section compliance requirements]
Matching 610 mm OD Spiral Welded Pipes to Pressure and Structural Loads
S355JR SSAW steel pipe in 610 mm outer diameter with wall thickness from 10 mm to 30 mm covers the mid-range where spiral submerged arc welding delivers full-length weld integrity without the cost premium of seamless alternatives. The SSAW process produces a helical weld seam that distributes stress along the pipe axis, making it suitable for fluid transport at moderate pressures and structural piling where bending moments dominate. Our in-house laboratory tests every heat for chemical composition and tensile properties before the pipe leaves the mill floor, so the S355JR grade on the certificate matches what arrives on the barge.
Structural Code Compliance and Corrosion Environment Selection
Engineering specifications for S355JR SSAW steel pipe typically require conformity with EN 1993-1-1 for structural applications or API 5L for transmission pipelines, and the cold rolled surface finish provides a baseline for further coating if the pipe enters a corrosive service environment. For EU-bound orders, the CE mark under EN10219 is mandatory for structural hollow sections, while ASTM A572 Grade 50 equivalence opens North American procurement channels without re-testing. Wall thickness tolerance of ±10% means the designer must account for minimum-section modulus at the lower bound when calculating load-bearing capacity. Third-party inspection by SGS or BV before shipment closes the documentation gap that causes the most frequent customs rejections. [NEED_CITE: steel grade equivalence between EN 10219 S355JR and ASTM A572 Grade 50]
Understanding SSAW Process and S355JR Grade Selection
The spiral submerged arc welding process forms the pipe from a steel coil that unwinds at an angle, creating a continuous helical seam — this geometry allows 610 mm OD pipes to be produced from narrower coil widths than LSAW requires, reducing material waste. S355JR belongs to the EN 10025 non-alloy structural steel family, where the “355” denotes minimum yield strength at 16 mm thickness and the “JR” indicates 27 J Charpy impact energy at room temperature, positioning it above S275 for heavier structural frames while remaining weldable without pre-heat under normal conditions. The Q355B Chinese grade and ASTM A572 Grade 50 serve as near-equivalents in GB and ASTM systems respectively, though subtle differences in phosphorus and sulfur limits require cross-referencing before substitution on certified projects. Cold rolled surface treatment on SSAW pipes provides dimensional accuracy and a smoother finish for applications where external coating adhesion matters, while the plain ends allow field welding or mechanical coupling per project specification. [NEED_CITE: SSAW vs LSAW manufacturing process comparison for large diameter pipes]
Hidden Costs When Wall Thickness Falls Below Tolerance
Ordering S355JR SSAW steel pipe based on theoretical weight invoicing without verifying actual ultrasonic thickness measurements creates a cascade of downstream failures: the pipe passes visual inspection at the port, clears customs on paper, but fails the site engineer’s caliper check — triggering rejection, return freight, and a replacement order that pushes the project timeline by weeks. Incorrect grade substitution, such as shipping Q235B against an S355JR specification, may not surface until the welding procedure qualification test reveals lower-than-expected yield, forcing the entire batch off the critical load path. Missing or mismatched mill test certificates compound the problem, because the structural engineer cannot sign off on material traceability without a valid EN 10204 3.1 or 3.2 document tied to the specific heat number stenciled on each pipe. [NEED_CITE: EN 10204 inspection document types for steel products]
Why Engineering Procurement Teams Source S355JR SSAW Pipe From Jinan
Every S355JR SSAW steel pipe leaving our mill passes through an in-house physical and chemical laboratory where ultrasonic testing verifies weld seam integrity and spectrometry confirms composition against the EN10219 or ASTM A572 standard before the container is sealed. We hold CE certification under EN10219 and EN10210, ISO 9001:2015 registration, and Singapore FPC — meaning the same documentation package satisfies EU, Southeast Asian, and Middle Eastern customs requirements without re-issuing. Our production lines cover over 2,800 specifications across square, rectangular, and round profiles, so a project requiring 610 mm OD SSAW pipe alongside H-beams and channels can consolidate into a single shipment rather than coordinating three separate suppliers. I personally review every heat number and ultrasonic weld report because I learned early that a single container held at destination costs more in demurrage than the profit on the entire order. Professional container loading with anti-damage measures ensures the 12 m lengths arrive without bending or surface scoring that would trigger rejection at the site gate.
Documentation & Compliance
- Mill test certificate documenting S355JR chemical composition and mechanical properties per EN10219, traceable to individual heat number
- CE certificate of conformity under EN10219 for structural hollow sections exported to EU member states
- ISO 9001:2015 quality management system certificate covering the full SSAW production process
- SGS or BV third-party inspection report verifying dimensional tolerance and weld seam quality before shipment
- Material traceability sheet linking each pipe stencil number to the original coil test certificate
- Complete customs documentation set including packing list, bill of lading, and certificate of origin for destination clearance
Packaging, Loading & Delivery
- S355JR SSAW pipes bundled with steel strips at intervals matched to the 12 m length, preventing bundle shift during ocean transit
- Cold rolled surface protected by anti-rust wrapping and edge guards to preserve finish quality through port handling
- 610 mm OD × 12 m pipes loaded in nested configuration to maximize 40ft container payload while maintaining access for forklift unloading
- Heat number and S355JR grade stenciled on each pipe end for site-level traceability without bundle disassembly
- FOB Jinan or Qingdao port with CIF and DDP options available for project sites across EU, Middle East, and Southeast Asia
- Cutting to non-standard lengths and beveling for field welding available as pre-shipment processing service
Requesting a Quotation With Full Mill Documentation
Submit your project specification including outer diameter, wall thickness, steel grade preference, total tonnage, and destination port — our team returns a detailed quotation with unit pricing, production lead time, and the complete certification package within 12 hours. Non-standard lengths, end treatments, and third-party inspection arrangements are confirmed before contract signing so there are no documentation surprises at customs.
Get Your S355JR SSAW Pipe Quote With Mill Test Certificates
Send your specification sheet to receive pricing, EN10219 compliance documentation, and container loading plan.
Contact: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjypipe.com
Website: www.sdxjypipe.com
Frequently Asked Questions
Q: How does S355JR compare to ASTM A572 Grade 50 and Q355B for SSAW pipe applications?
A: S355JR (EN), ASTM A572 Grade 50, and Q355B (GB) are closely matched in yield strength for structural and pipeline use. The primary differences lie in phosphorus and sulfur limits and impact testing temperatures. We provide cross-reference documentation so your engineer can approve grade substitution without re-testing.
Q: What is the difference between SSAW and LSAW for 610 mm OD pipes?
A: SSAW forms the pipe from a coil wound at a helical angle, allowing production of 610 mm OD from narrower coil widths with a continuous weld seam. LSAW uses a single longitudinal seam and typically requires wider plate. SSAW offers cost advantages at this diameter range while maintaining full weld integrity through submerged arc welding.
Q: Can you arrange third-party inspection before shipment?
A: Yes. We coordinate SGS, BV, or Lloyd’s inspection at our mill before container loading. The inspection covers dimensional verification, visual weld examination, and review of mill test certificates. The inspection report is included in the export documentation package.
Q: What documentation is required for EU customs clearance of S355JR SSAW pipes?
A: EU imports require a CE certificate of conformity under EN10219 for structural hollow sections, a mill test certificate per EN 10204 3.1, and standard customs documents including packing list, bill of lading, and certificate of origin. We provide the complete set with every shipment.
Q: Do you offer cutting and end preparation for field welding?
A: Yes. Processing services include cutting to non-standard lengths, beveling for butt welding, and punching per project drawings. These services are confirmed during the quotation stage and reflected in the final invoice by theoretical weight.
