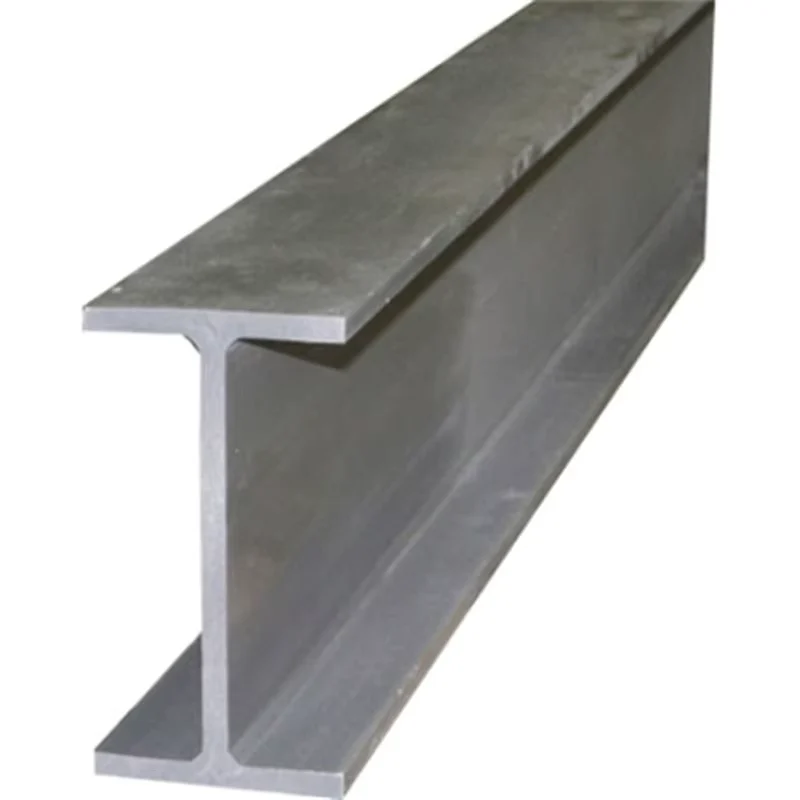

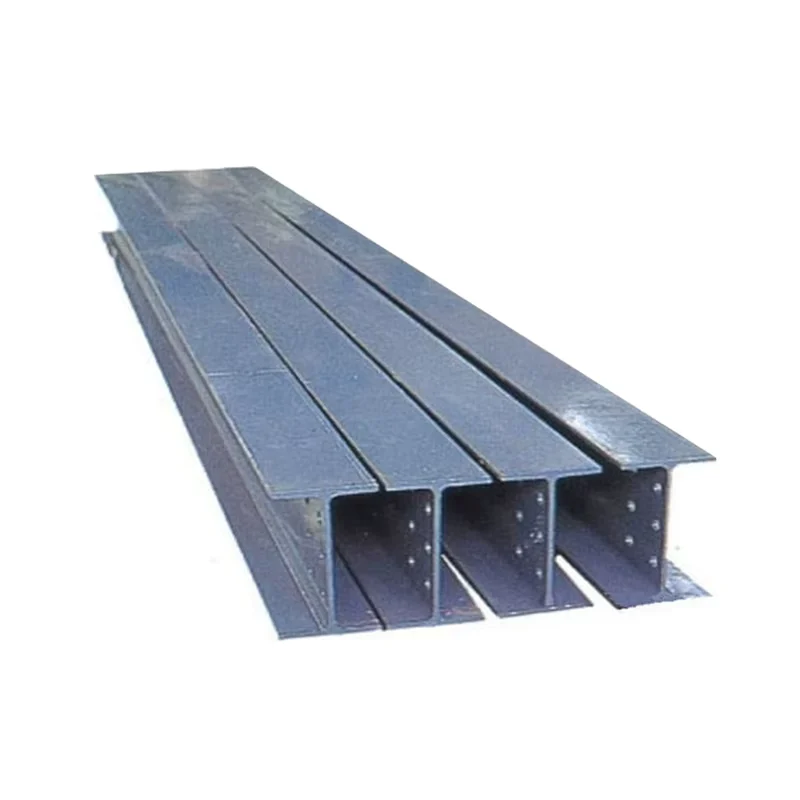

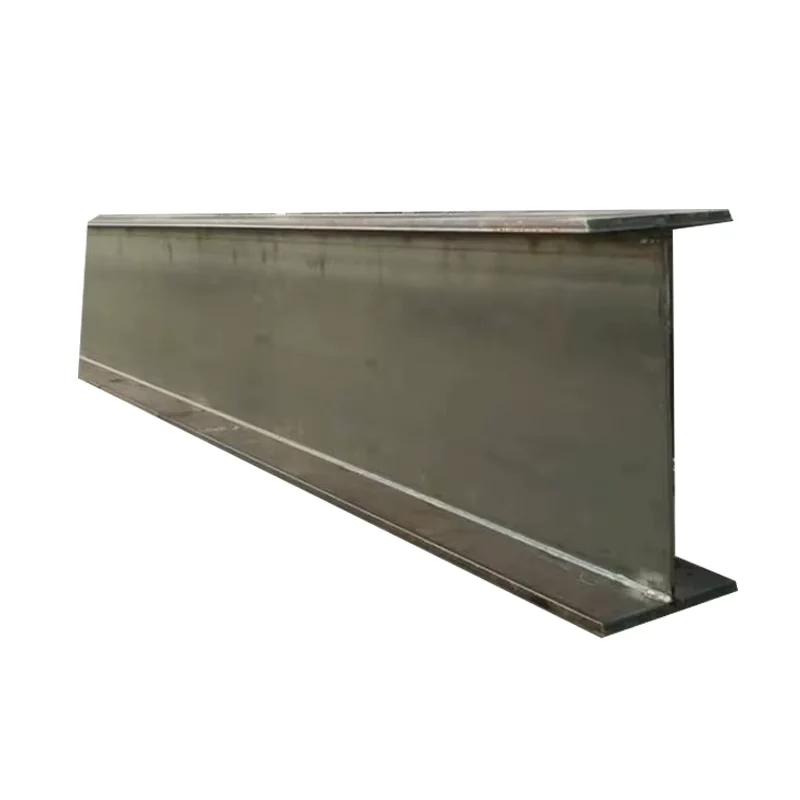

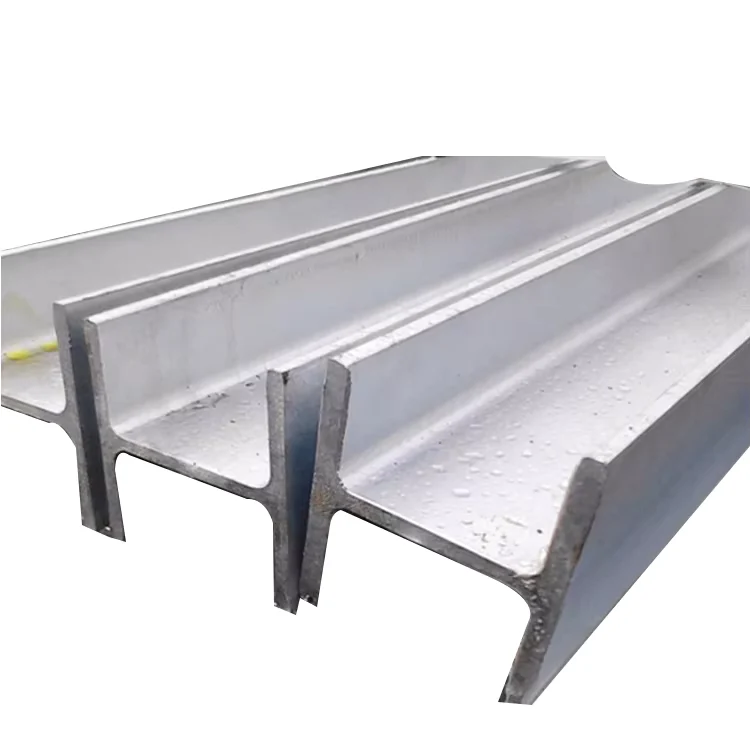

S355JR/S355J2 HEA 400 H-Beam EN 10025 Hot Rolled Supplier

Description

Direct Mill Supply for HEA 400 H-Beam — We roll and ship S355JR/S355J2 HEA 400 H-beams from our own production lines in Jinan, eliminating trader markups and ensuring full traceability from billet to mill test certificate.

Technical Specifications

Application Suitability

Where Certification Gaps Block EU Customs Clearance for S355JR HEA 400 H-beam

Missing CE marks or incorrect EN standard references on mill test certificates cause shipment rejection at European ports.

I’ve seen entire containers of H-beams held at Rotterdam because the supplier’s MTC referenced EN 10025-2 but the customs broker expected EN 10210 compliance for structural hollow sections. The steel was fine, but the paperwork didn’t match the project specification. European buyers ordering S355JR HEA 400 H-beam from China need to verify three things before signing the contract: the mill holds Lloyd’s CE certification under EN 10210/10219, the test certificates include chemical composition and mechanical properties per EN 10025, and third-party inspection (SGS/BV) is available before shipment [NEED_CITE: EN 10219 cold-formed hollow section certification requirements for EU market].

How HEA 400 Profiles Match Structural Load Requirements

The HEA 400 section delivers higher moment of inertia compared to IPE profiles of similar weight, making it the preferred choice for columns subjected to biaxial bending in industrial frames. When you specify S355J2 grade for cold-region projects, the improved low-temperature toughness prevents brittle fracture during winter construction phases. Our hot rolling process maintains ±1% dimensional tolerance across the full 12m length, ensuring end-plate connections align without on-site reaming. For S355JR HEA 400 H-beam orders destined for seismic zones, we provide Charpy impact test results at -20°C upon request.

Engineering Compliance and Grade Selection for Load-Bearing Frames

Structural engineers designing to EN 1993 (Eurocode 3) require material certificates that explicitly state the steel grade, heat number, and testing methodology. S355J2 offers better weldability and notch toughness than S355JR for thick flanges exceeding 40mm, while S355NL provides guaranteed impact properties at -50°C for Arctic infrastructure projects [NEED_CITE: steel grade selection criteria for thick-section H-beams in cold climates]. The hot rolled process eliminates residual stresses found in welded alternatives, reducing distortion during fabrication. For projects requiring ASTM A992 equivalent, we supply dual-certified material meeting both EN 10025 S355JR and ASTM A992 requirements, with a single mill test certificate covering both standards.

Understanding Hot Rolled H-Beam Manufacturing and Grade Equivalence

Hot rolling shapes the steel billet at temperatures above 1000°C, producing a uniform grain structure that delivers consistent mechanical properties across the entire cross-section. The S-series grades (S235JR, S355JR, S355J2) follow EN 10025 classification where the number indicates minimum yield strength in MPa, while the suffix denotes impact test temperature: JR for +20°C, J0 for 0°C, J2 for -20°C. When your project specification calls for ASTM A572 Grade 50, the equivalent EN grade is S355JR, though minor differences in chemical composition exist — specifically manganese content ranges slightly wider in ASTM standards [NEED_CITE: grade equivalence tables between EN 10025 and ASTM A572]. Our in-house laboratory tests every heat for carbon equivalent (CEV) to ensure weldability, particularly critical for flange thicknesses above 25mm where hydrogen cracking risk increases.

Hidden Costs of Sourcing Without Verified Mill Test Certificates

Ordering S355JR HEA 400 H-beam based on price alone often leads to three expensive surprises: material arriving with actual thickness below the specified tolerance (negative tolerance abuse), certificates showing different heat numbers than the physical markings on the steel, or missing impact test data for J2 grades. When a German EPC contractor received H-beams without proper CE documentation, the entire batch had to be re-melted at the supplier’s cost — but the project delay of six weeks cost the contractor far more in liquidated damages [NEED_CITE: consequences of non-compliant structural steel documentation in EU construction projects]. We provide full material traceability from billet to finished beam, with heat numbers laser-marked on every piece and corresponding test certificates available within 48 hours of order confirmation.

Why Source S355JR HEA 400 H-beam Directly from Our Jinan Mill

We operate three hot rolling lines producing 2,800+ H-beam and section steel specifications, with flange thicknesses up to 64mm — covering the full HEA 400 range without subcontracting to smaller mills. Every shipment includes mill test certificates issued by our ISO 9001:2015 certified laboratory, with chemical composition and mechanical properties tested per EN 10025 requirements. Our Lloyd’s CE certification under EN 10210/10219 ensures smooth customs clearance for EU projects, while Singapore FPC approval covers Southeast Asian infrastructure contracts. For custom lengths beyond standard 12m, we coordinate with specialized transport providers and handle all export documentation including certificate of origin and phytosanitary treatment certificates for wooden packaging.

Documentation & Compliance

• Mill test certificate documenting S355JR/S355J2 chemical composition (C, Mn, Si, P, S) and mechanical properties (yield strength, tensile strength, elongation) per EN 10025-2
• CE certificate under EN 10210/EN 10219 issued by Lloyd’s Register, valid for structural steel exports to EU member states
• ISO 9001:2015 quality management system certificate covering hot rolled H-beam production and testing procedures
• SGS or BV third-party inspection report available upon request, covering dimensional verification, surface quality, and witness testing
• Material traceability sheet linking each beam’s heat number to corresponding test certificates and production batch records
• Complete customs documentation package: commercial invoice, packing list, bill of lading, certificate of origin, and fumigation certificate for wooden packaging

Packaging, Loading & Delivery

• H-beams bundled with high-tensile steel strips at maximum 1.5m intervals, with edge protectors preventing damage to flange corners during ocean transit
• Bare or oiled surfaces wrapped in waterproof paper for containers shipped to humid climates (Southeast Asia, Middle East), preserving surface quality until installation
• 12m lengths loaded in 20ft containers using specialized spreader beams to prevent bending, with wooden chocks securing each bundle against movement
• Custom cutting to 5.8m or 11.8m lengths available for projects requiring optimized container loading, reducing freight costs per ton
• Heat numbers and steel grades marked with stenciled paint on both flange surfaces, visible after unloading for site verification
• FOB Qingdao port or CIF/DDP delivery to major construction ports, with professional loading supervision ensuring weight distribution compliance with vessel stability requirements

Request Your S355JR HEA 400 H-beam Quote with Full Certification Package

Submit your project specifications including steel grade, quantity in tons, required length, and destination port — we respond within 12 hours with pricing, mill test certificate samples, and confirmed lead time. For projects requiring third-party inspection or specific CE documentation, confirm these requirements upfront to avoid production delays.
