Description

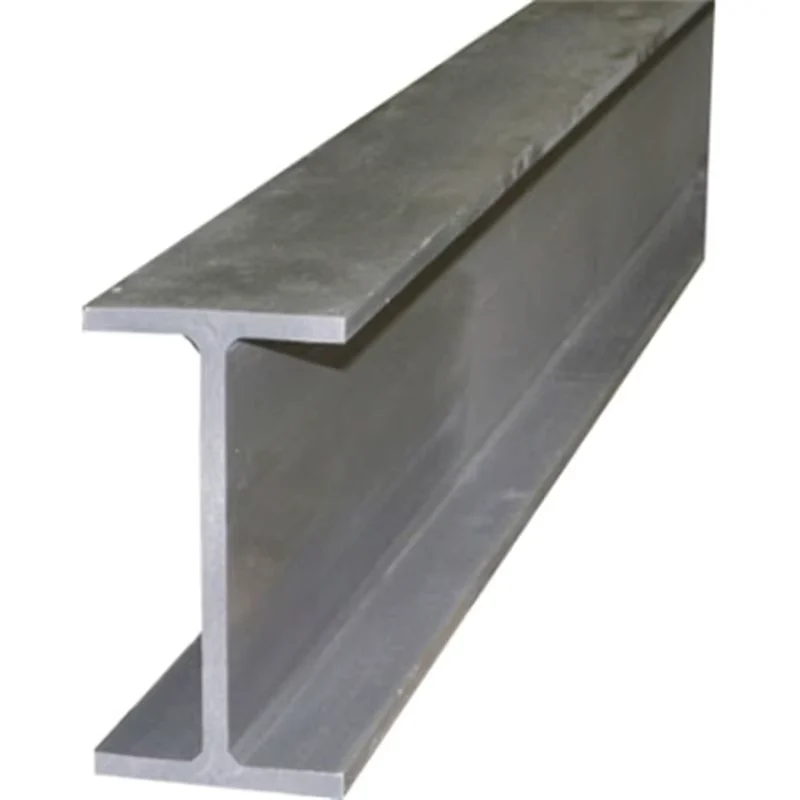

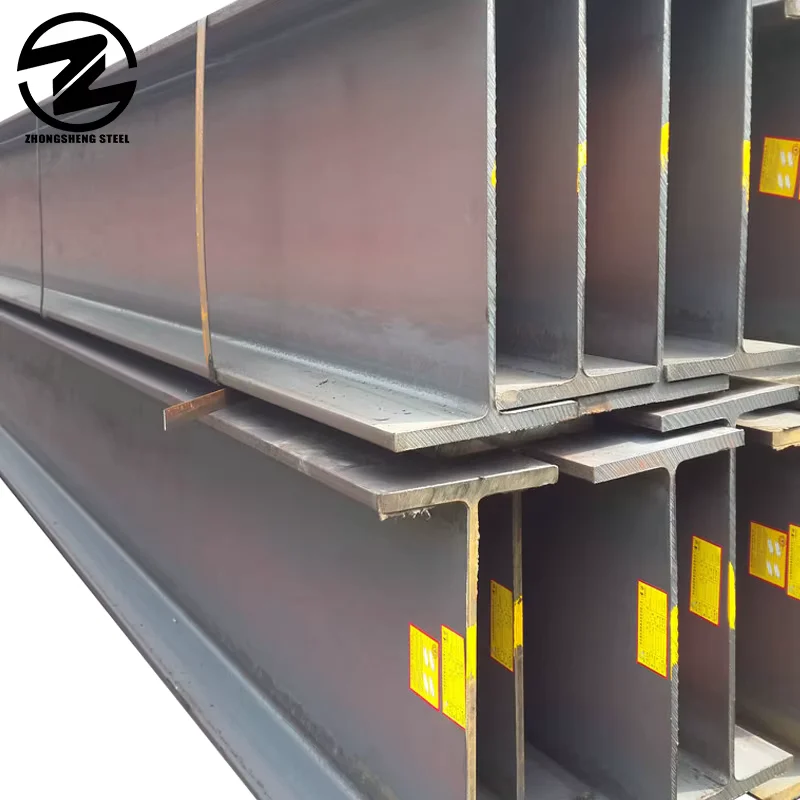

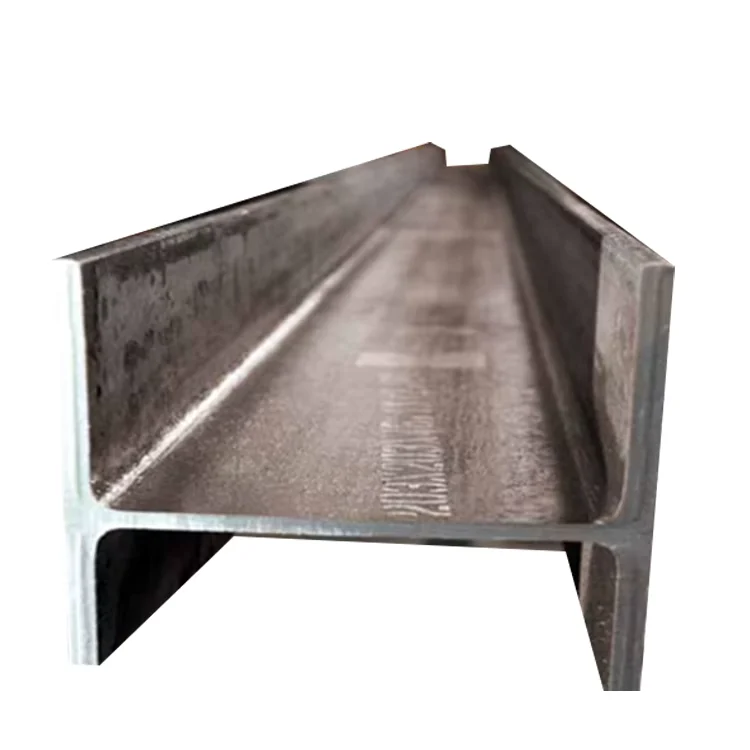

Factory-direct H-beam supply — Hot rolled ASTM A572 Grade 50 wide flange beams produced and shipped from our own mill with full mill test certificates and CE documentation for EU and North American customs clearance.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A572 Grade 50 H-Beam |
| Product Type | H-Beam / Wide Flange Beam |
| Steel Grade | ASTM A572 Grade 50, Q235, Q355B, S355JR, S355J0, A36 |
| Standard | ASTM A572, ASTM A36, ASTM A992, EN 10025, GB/T 11263, JIS G3192, BS EN, DIN |
| Section Shape | H-Beam / Wide Flange |
| Web Width | 100mm–900mm |
| Flange Thickness | 8mm–64mm |
| Web Thickness | 4.5mm–36.5mm |
| Length | As per customer request |
| Technique | Hot Rolled |
| Surface Treatment | Hot Rolled / Hot Dip Galvanized / Customized Colors |
| Tolerance | ±1% |
| Ends | Plain / Beveled |
| Application | Steel building structures, warehouse, industrial buildings, bridge construction, infrastructure projects, steel fabrication |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Steel Structure Fabricators | Primary load-bearing frames for warehouses, industrial plants, and multi-story buildings |
| EPC Contractors & Construction Companies | Bridge girders, infrastructure support columns, and foundation pile systems |
| Machinery & Equipment Manufacturers | Heavy-duty crane booms, conveyor support structures, and platform framing |
| Steel Traders & Distributors | Stock inventory of wide flange beams for regional project supply chains |
How Web-to-Flange Ratio Affects Load Distribution in Wide Flange Beams
The web-to-flange ratio determines whether an H-beam will bend, buckle, or carry the design load — and ASTM A572 Grade 50 gives you the yield strength margin that Q235 cannot.
Structural steel buyers ordering ASTM A572 Grade 50 H-beam for North American projects frequently encounter grade confusion when suppliers quote S355JR or Q355B as equivalents. The chemical composition and mechanical property windows differ across ASTM, EN, and GB standards, and substituting without verified mill test certificates creates material mismatch risks that surface only during third-party inspection or on-site weld testing [NEED_CITE: steel grade equivalence between ASTM A572 and EN 10025 standards].
Beyond grade confusion, tolerance stacking on web and flange thickness directly affects theoretical weight calculations. A ±1% tolerance on a 64mm flange thickness beam means each piece can vary by over 1mm — and across a 20-ton container load, that variance compounds into significant weight discrepancies between invoice and actual delivery weight.
Matching Wide Flange Profiles to Structural Frame Requirements
ASTM A572 Grade 50 H-beam with web widths from 100mm to 900mm and flange thickness up to 64mm covers the full range of primary framing members for steel buildings, bridges, and industrial structures. The hot rolled production process ensures consistent grain flow through the web-flange junction, which is critical for weld integrity when fabricators connect beams on-site. For projects in coastal or high-humidity environments, hot dip galvanized surface treatment provides corrosion resistance without sacrificing the dimensional accuracy required for bolted connections.
Engineering Compliance and Certification Requirements
Structural H-beams for EU markets must comply with EN 10025 hot rolled product standards and carry CE marking under the Construction Products Regulation. North American projects typically require ASTM A572 Grade 50 certification with full chemical composition and mechanical test reports traceable to heat numbers [NEED_CITE: CE marking requirements for structural steel under EN 10025]. Our in-house physical and chemical laboratory tests every heat for dimensional accuracy, tensile strength, and composition before release, and third-party inspection through SGS or BV is available for projects requiring independent verification. Custom cut-to-length service reduces on-site waste and accelerates erection schedules for time-sensitive infrastructure projects.
Steel Grade Selection and Hot Rolling Process Fundamentals
ASTM A572 Grade 50 is a high-strength low-alloy steel offering higher yield strength than A36 while maintaining good weldability and formability. The “50” designation refers to minimum yield strength of 50 ksi (345 MPa), making it the workhorse grade for bridges, buildings, and heavy structural frames where weight optimization matters. Compared to European S355JR or Chinese Q355B, ASTM A572 Grade 50 has tighter controls on carbon equivalent for improved weldability in thick sections.
Hot rolling at temperatures above the recrystallization point produces uniform mechanical properties through the beam cross-section and eliminates residual stresses that cold-formed processes can introduce. The ±1% tolerance on our ASTM A572 Grade 50 H-beam reflects controlled rolling practices that maintain dimensional consistency across the full 100mm to 900mm web width range. For projects requiring enhanced corrosion protection, hot dip galvanizing after rolling provides a metallurgically bonded zinc coating that outperforms paint systems in aggressive environments.
Hidden Costs of Incorrect Grade Specification and Tolerance Abuse
Ordering ASTM A572 Grade 50 but receiving material certified only to A36 creates structural safety concerns that may not surface until load testing or building inspection. Similarly, suppliers who push negative tolerance to the limit reduce actual delivered weight while invoicing on theoretical weight — a practice that passes cost savings to the supplier while the buyer absorbs material shortfalls and potential re-engineering costs [NEED_CITE: structural steel tolerance standards and weight calculation methods]. Missing or incomplete mill test certificates delay customs clearance and can trigger port holds, adding demurrage charges and project delays that far exceed the original material cost difference.
Why Procurement Teams Source ASTM A572 Grade 50 H-beam From Us
We produce hot rolled H-beams in-house with direct control over rolling parameters, which means tolerance consistency and grade accuracy are verified at the mill rather than trusted to third-party stockists. Our physical and chemical laboratory issues mill test certificates for every heat, documenting chemical composition and mechanical properties against ASTM A572 Grade 50 requirements. The full specification range from 100mm web width to 900mm with flange thickness up to 64mm allows single-source procurement for projects requiring multiple beam sizes. We hold CE certification under EN 10210/EN 10219, ISO 9001:2015, and Singapore FPC, with SGS and BV third-party inspection available before shipment. Custom cut-to-length, bending, and punching services reduce on-site fabrication time, and professional container loading with anti-damage measures ensures beams arrive without bending or surface defects.
Documentation & Compliance
- Mill test certificate documenting ASTM A572 Grade 50 chemical composition including carbon, manganese, and columbium content with yield and tensile strength per heat number
- CE certificate confirming compliance with EN 10025 hot rolled structural steel products for EU market customs clearance
- ISO 9001:2015 quality management system certificate covering hot rolled H-beam production and testing processes
- SGS or BV third-party inspection report available upon request for independent verification of dimensional accuracy and mechanical properties
- Material traceability documentation linking each beam to specific heat number and rolling batch for project quality audits
- Complete customs documentation including packing list, bill of lading, and certificate of origin for import clearance
Packaging, Loading & Delivery
- ASTM A572 Grade 50 H-beams bundled with high-tensile steel strips at intervals matching beam length to prevent shifting during ocean transit
- Hot dip galvanized beams packed with edge protectors and separation materials to preserve zinc coating integrity during handling and shipping
- Container loading optimized for web width and flange thickness combinations to maximize payload while maintaining weight distribution for 20ft and 40ft containers
- Custom cut-to-length service available for project-specific dimensions, reducing on-site cutting waste and accelerating erection schedules
- Heat number and steel grade marked on each beam end for on-site identification and traceability during installation
- FOB, CIF, and DDP shipping terms available with professional export documentation and tracking until port arrival or project site delivery
Request Quotation and Mill Test Certificate for Your ASTM A572 Grade 50 H-beam Project
Submit your beam specifications including web width, flange thickness, length, steel grade, quantity, and destination port to receive a detailed quotation with unit pricing, production lead time, and shipping terms. We provide mill test certificates for quality confirmation and can arrange third-party inspection through SGS or BV before shipment.
Contact SD XJY Pipe for ASTM A572 Grade 50 H-beam Inquiry
Website: www.sdxjypipe.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjypipe.com
Frequently Asked Questions
Q: What is the difference between ASTM A572 Grade 50, S355JR, and Q355B for H-beam applications?
A: ASTM A572 Grade 50 is a high-strength low-alloy steel with minimum yield strength of 50 ksi (345 MPa), commonly specified for North American bridge and building projects. S355JR per EN 10025 offers similar yield strength at 355 MPa with different impact testing requirements for European markets. Q355B per GB/T 1591 is the Chinese equivalent with comparable mechanical properties. We provide grade equivalency documentation and mill test certificates showing chemical composition and mechanical properties for each standard.
Q: How do you verify material quality and provide certification for ASTM A572 Grade 50 H-beams?
A: Every heat of ASTM A572 Grade 50 is tested in our in-house physical and chemical laboratory for dimensional accuracy, tensile strength, yield strength, and chemical composition. Mill test certificates are issued per shipment documenting results against ASTM A572 requirements. Third-party inspection through SGS or BV is available for projects requiring independent verification before shipment.
Q: Can you supply custom non-standard sizes and lengths for ASTM A572 Grade 50 H-beams?
A: Yes, we offer custom cut-to-length service for project-specific dimensions within our production range of 100mm to 900mm web width and 8mm to 64mm flange thickness. Processing services include cutting, bending, welding, punching, and decoiling to reduce on-site fabrication time. Contact us with your specific requirements for quotation and lead time.
Q: What surface treatment options are available for ASTM A572 Grade 50 H-beams?
A: We supply ASTM A572 Grade 50 H-beams in hot rolled condition as standard, with hot dip galvanized surface treatment available for enhanced corrosion resistance in outdoor and industrial environments. Custom color coating options are also available for architectural applications requiring specific aesthetic requirements.
Q: Do your ASTM A572 Grade 50 H-beams have CE certification for EU market imports?
A: Yes, our hot rolled H-beams carry CE certification under EN 10210/EN 10219 standards for structural steel products, along with ISO 9001:2015 quality management certification and Singapore FPC. We provide complete customs documentation including mill test certificates, packing lists, bills of lading, and certificates of origin for EU market clearance.
