Description

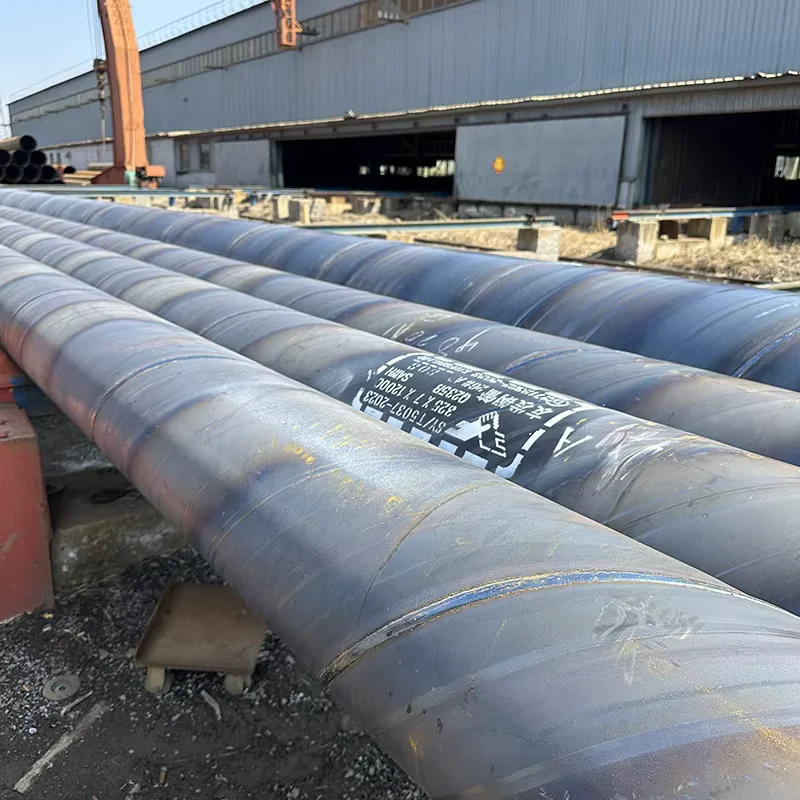

Direct Mill Supply for API 5L Spiral Pipes — Every S355J2H SSAW spiral welded steel pipe ships with in-house lab-tested mill certificates and optional SGS/BV third-party inspection before container sealing.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | S355J2H SSAW Spiral Welded Steel Pipe |
| Product Type | SSAW Steel Pipe / Spiral Welded Steel Pipe |
| Steel Grade | Grade B, X42, X46, X52, X56, X60, X65, X70 |
| Standard | API 5L |
| Section Shape | Round |
| Outer Diameter | 406.4–1524 mm (16–60 in) |
| Length | 5.8–12 m |
| Technique | SSAW (Spiral Submerged Arc Welding) |
| Surface Treatment | Bare / Oiled / Black Painting / Epoxy Painting / 3LPE / FBE |
| Ends | Bevel end with iron protector |
| Tolerance | ±5% / ±10% |
| Invoicing | By Theoretical Weight |
| Application | Oil & gas transport / Sewage transport / Piling / Fluid transmission / Bridge piling / Port construction / Wellbore casing |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Wellbore casing, flow lines, gathering pipelines |
| Infrastructure | Bridge piling, port quay wall construction, offshore platform support |
| Municipal Engineering | Large-diameter sewage transmission, stormwater drainage networks |
| Industrial | High-volume fluid transport, slurry pipelines, water intake systems |
What Certification Gaps Cost on a Casing or Piling Project
A missing or incorrect API 5L grade designation on the mill certificate can halt customs clearance and trigger full-batch rejection at the destination port.
Procuring large-diameter S355J2H SSAW spiral welded steel pipe for piling or casing work often exposes buyers to three recurring risks: weld seam quality that fails ultrasonic testing upon arrival, coating adhesion that peels during ocean transit, and material certificates that list a lower grade than what was ordered. These issues do not surface during factory visits — they emerge weeks later when the pipe reaches the job site or the customs inspector’s desk. [NEED_CITE: API 5L specification requirements for spiral welded pipe testing]
Matching Large-Diameter SSAW Pipe to Piling and Casing Demands
When engineers specify S355J2H SSAW spiral welded steel pipe for bridge piling or wellbore casing, the critical selection factors are outer diameter capacity for driving equipment, wall thickness sufficient to withstand installation stresses, and coating integrity that survives soil contact or subsea exposure. The SSAW process produces continuous spiral welds that distribute stress more evenly than longitudinal seams under external crushing loads — a key advantage for driven piles in marine environments. Our Jinan facility produces these pipes in OD 406–1524 mm with wall thickness options suited for both structural piling and pressure-rated casing applications, with 3LPE or FBE coating applied before shipment to protect against corrosion during storage and service.
Engineering Compliance and Surface Protection Selection
Large-diameter spiral welded pipes used in structural piling must meet dimensional tolerances that allow proper fit-up with pile caps and driving shoes. The API 5L standard governs chemical composition limits and mechanical testing frequency for each grade, while project specifications often add supplementary requirements for Charpy impact testing at sub-zero temperatures — particularly for North Sea or Arctic installations. [NEED_CITE: API 5L grade requirements and supplementary testing provisions] Surface coating selection depends on service environment: bare or oiled pipes suit temporary piling applications, FBE coating provides single-layer corrosion protection for buried service, while 3LPE offers mechanical damage resistance combined with cathodic disbondment protection for long-term subsea or aggressive soil conditions.
Understanding API 5L Grades and SSAW Weld Integrity
The API 5L specification covers a range of steel grades from Grade B through X70, with each designation indicating minimum yield strength in ksi multiplied by 100. For piling applications, Grade B or X42 typically provides adequate strength at lower cost, while high-pressure fluid transmission or deepwater casing may require X52–X70 grades for their higher pressure containment capacity. The SSAW manufacturing process uses continuous spiral submerged arc welding, which allows production of large diameters from narrower coil stock — making it economically viable for OD 406–1524 mm pipes that would require expensive plate for LSAW or seamless alternatives. The spiral weld orientation also provides more uniform stress distribution under external loads compared to longitudinal welds, though both processes must meet identical API 5L testing requirements for weld integrity.
Hidden Costs of Incorrect Grade or Missing Documentation
Ordering S355J2H SSAW spiral welded steel pipe based on price alone, without verifying mill test certificates against API 5L requirements, creates downstream risks that far exceed initial savings. Material delivered with incorrect chemistry or insufficient impact toughness will fail third-party inspection at destination, forcing either costly re-export or project delays while replacement material is sourced. Missing or fraudulent certificates trigger customs holds that can strand containers at port for weeks — each day incurring demurrage charges while the pile driving rig sits idle. [NEED_CITE: consequences of non-compliant steel pipe in structural applications]

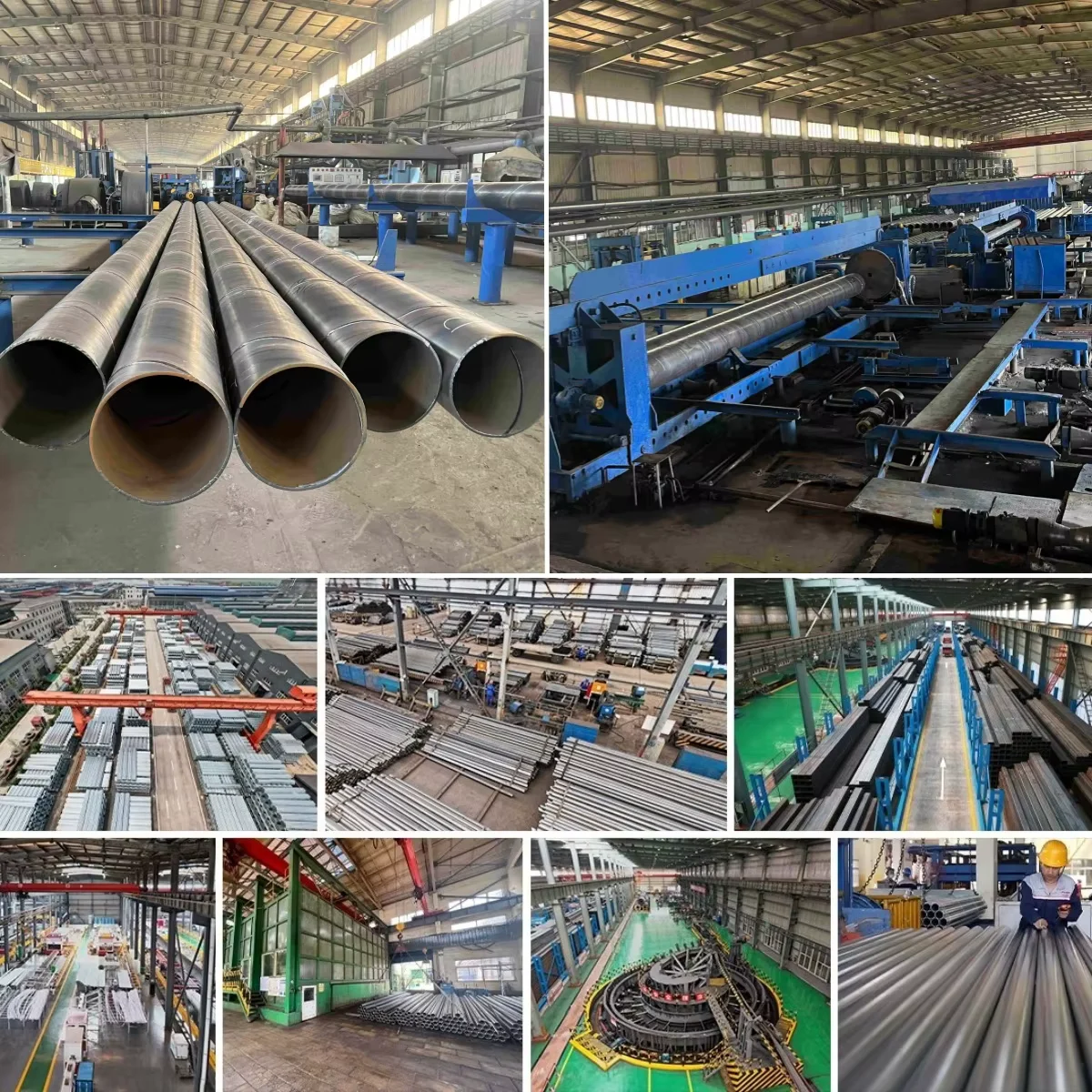

Why Procurement Teams Source SSAW Pipe from Our Jinan Facility
Every S355J2H SSAW spiral welded steel pipe leaving our facility passes through an in-house physical and chemical laboratory that verifies dimensional accuracy, weld seam integrity, and mechanical properties against API 5L requirements before release. We maintain ISO 9001:2015 certification and hold Lloyd’s CE marking for applicable standards, ensuring documentation that satisfies both customs authorities and project engineers. Our production covers the full OD 406–1524 mm range with multiple coating options, allowing buyers to consolidate piling pipe, casing, and fluid transmission requirements in a single purchase order rather than fragmenting across multiple suppliers. Professional container loading with anti-damage measures and complete export documentation — including heat-number traceability and certificate of origin — eliminates the documentation gaps that cause clearance delays in regulated markets.
Documentation & Compliance
- Mill test certificate documenting chemical composition and mechanical properties per API 5L for each heat number
- Lloyd’s CE certificate confirming compliance with applicable EN standards for structural hollow sections
- ISO 9001:2015 quality management system certificate covering manufacturing and testing processes
- SGS or BV third-party inspection report available upon request for pre-shipment verification
- Material traceability documentation linking each pipe to its heat number and test results
- Complete customs documentation including packing list, bill of lading, and certificate of origin

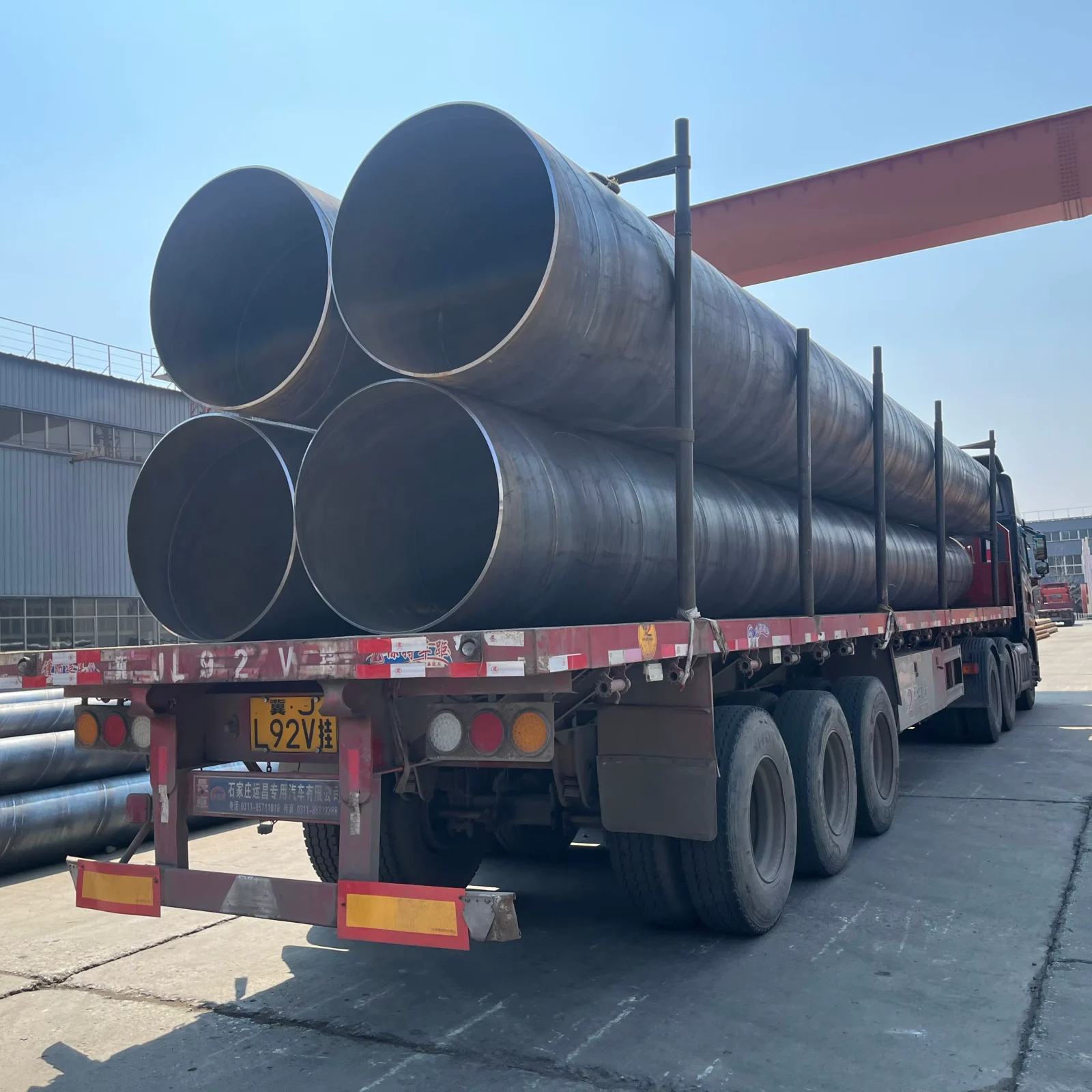

Packaging, Loading & Delivery
- SSAW pipes bundled with steel strips and edge protectors to preserve 3LPE/FBE coating during ocean transit
- Bevel ends fitted with iron protectors to prevent damage and maintain weld preparation geometry
- Container loading optimized for 5.8–12 m lengths with anti-rolling measures for large-diameter pipes
- Heat number and grade marking stenciled on each pipe for site identification and traceability
- FOB, CIF, and DDP shipping terms available with professional export packing for international delivery
Requesting Quotation and Technical Review
Submit your project specifications — including outer diameter, wall thickness, API grade, coating requirement, and quantity — to receive a detailed quotation with unit pricing, production lead time, and shipping terms. We provide mill test certificates for review before contract signing and arrange third-party inspection for buyers requiring independent verification. Custom lengths, special coatings, and non-standard dimensions are available for projects with specific engineering requirements.
Frequently Asked Questions
Q: What is the difference between Grade B, X42, X52, and X65 for SSAW pipe applications?
A: API 5L grades indicate minimum yield strength, with Grade B suitable for low-pressure applications and X42–X70 grades providing progressively higher strength for demanding service conditions. Piling applications typically use Grade B or X42, while high-pressure fluid transmission or deep casing may require X52 or higher grades for adequate pressure containment.
Q: Can you provide third-party inspection before shipment?
A: Yes, we arrange SGS or BV third-party inspection for pre-shipment verification of dimensions, coating thickness, weld integrity, and mechanical properties. Inspection reports are provided alongside mill test certificates for complete documentation.
Q: What surface coating options are available for corrosion protection?
A: We offer bare, oiled, black painting, epoxy painting, FBE (fusion-bonded epoxy), and 3LPE (three-layer polyethylene) coating options. Selection depends on service environment — bare or oiled for temporary applications, FBE for buried service, and 3LPE for aggressive soil or subsea conditions requiring mechanical damage resistance.
Q: How are large-diameter SSAW pipes loaded for container shipping?
A: Pipes are bundled with steel strips and edge protectors, with bevel ends fitted with iron protectors. Container loading is optimized for 5.8–12 m lengths using anti-rolling measures to prevent transit damage. Professional loading ensures coating integrity and dimensional accuracy upon arrival.
Q: What documentation is provided with each shipment?
A: Each shipment includes mill test certificates per API 5L, packing list, bill of lading, and certificate of origin. Heat number traceability links each pipe to its test results. Lloyd’s CE certificate and ISO 9001:2015 certification are available for projects requiring third-party quality system verification.
Get Your S355J2H SSAW Spiral Welded Steel Pipe Quote Today
Send your specifications — OD, wall thickness, API grade, coating, and quantity — to receive pricing with mill test certificates and delivery schedule within 12 hours.
