Description
Direct mill supply for large-diameter piling and pipeline projects — SSAW spiral welded steel pipes in Q235, Q345, and ASTM grades produced on-site with full API 5L compliance and mill test traceability.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 / Q345 SSAW Spiral Welded Steel Pipe |
| Product Type | SSAW Spiral Welded Steel Pipe |
| Steel Grade | Q235, Q345, ASTM A53 Grade B, ASTM A500 Grade A/B/C, ASTM A252 |
| Standard | API 5L, ASTM A53, ASTM A500, ASTM A252, GB/T 9711-2011, GB/T 3091, GB/T 13793 |
| Section Shape | Round |
| Size Range | Outer Diameter 219–4200 mm |
| Length | 6–12 m |
| Technique | SSAW (Spiral Submerged-Arc Welded) |
| Surface Treatment | Bare or Painted |
| Ends | Plain or Beveled |
| Tolerance | ±1% / ±5% |
| Application | Fluid transport, Gas pipeline, Oil pipeline, Piling, Structural applications |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Infrastructure & Civil Engineering | Steel piling for bridge foundations, retaining walls, marine wharfs |
| Oil & Gas | Onshore and offshore fluid transport pipelines, gas distribution networks |
| Industrial Construction | Large-diameter structural columns, equipment support frames |
| Municipal Engineering | Water transmission mains, drainage culverts, utility tunnel casings |
Where API 5L Certification Determines Whether Your Shipment Clears Customs
Missing or incorrect API 5L documentation is the single most common reason large-diameter pipe orders get held at destination ports.
Procurement teams sourcing API 5L SSAW spiral welded steel pipe for piling or pipeline projects frequently encounter three pain points: inconsistent wall thickness across the pipe body that fails dimensional inspection upon arrival, mill test certificates that reference the wrong standard or omit heat-level traceability, and surface condition that does not match the specified bare or painted treatment—leading to rejection by the site engineer before unloading even begins. [NEED_CITE: API 5L PSL1 and PSL2 documentation requirements for pipeline steel]
Matching OD 4200mm SSAW Pipe to Foundation and Pipeline Engineering Demands
Large-diameter SSAW spiral welded steel pipe in the 219–4200 mm range serves two distinct engineering functions: as driven or bored piling members transferring structural loads into soil, and as conveyance lines for fluid and gas under pressure. For piling use, Q345 grade provides the higher yield capacity needed to withstand driving stresses without buckling, while beveled ends enable field welding into continuous lengths. For pipeline applications, API 5L compliance ensures the weld seam meets the same radiographic and hydrostatic testing standards as seamless alternatives—critical when the line crosses regulated corridors. Our production covers both end uses from a single order, eliminating the need to split procurement between a piling supplier and a pipe mill.
Engineering Compliance Across GB, API, and ASTM Standards
Structural and pipeline projects specify steel grades through different national frameworks, and misalignment between the purchase order and the mill certificate creates customs delays or site rejection. Q235 and Q345 map to ASTM A36 and A572 respectively in structural applications, while API 5L governs pipeline-grade material with separate PSL1 and PSL2 quality levels. [NEED_CITE: steel grade equivalence between GB Q-series and ASTM standards] Beveled ends prepared to API 5L dimensions allow direct field welding without re-machining, and painted surface treatment provides baseline corrosion protection for temporary outdoor storage before installation. Third-party inspection by SGS or BV verifies dimensional tolerance and weld integrity before shipment, ensuring compliance with both the engineering specification and the importing country’s customs requirements.
Understanding SSAW Welding Process and Grade Selection
Spiral submerged-arc welding forms the pipe from a continuously fed steel coil, with the weld seam spiraling along the pipe body at a controlled angle. This process allows production of large diameters up to 4200 mm from relatively narrow coil stock—something straight-seam LSAW cannot achieve without massive plate. The spiral seam distributes stress more evenly under external loading, making SSAW pipe particularly suited for piling applications where the pipe experiences both axial compression and lateral soil pressure. Q235 grade serves general structural and low-pressure fluid conveyance, while Q345 provides approximately 30 percent higher yield strength for heavy-load piling and higher-pressure pipeline service. ASTM A53 Grade B and A500 grades cover North American specification requirements, with equivalent chemical and mechanical properties verified through our in-house laboratory. Bare surface treatment suits pipes that will receive field-applied coating such as 3PE, while painted surfaces protect against atmospheric corrosion during transit and storage.
Hidden Costs of Incorrect Grade or Missing Certification on Large-Diameter Pipe Orders
Ordering SSAW pipe without verified API 5L or ASTM compliance creates cascading costs that far exceed the initial price difference. Material that fails to meet the specified grade triggers rejection during third-party inspection, requiring replacement production and shipment at the supplier’s cost—but only if the defect is caught before installation. Once pipe is driven into the ground or welded into a pipeline, grade non-conformance becomes a structural liability that may require engineering assessment, partial extraction, or complete line replacement. [NEED_CITE: consequences of material non-conformance in pipeline and piling projects] Missing mill test certificates or incorrect heat number traceability blocks customs clearance in regulated markets, leaving containers stranded at port with daily demurrage charges accumulating.
Procurement Confidence from Mill-Direct Production and Full Documentation
As the original producer of these SSAW pipes, we control the entire process from coil selection through final inspection—there is no trading company margin between your order and our mill floor. Our in-house physical and chemical laboratory tests every heat for composition and mechanical properties, generating mill test certificates with full traceability back to the coil. We hold ISO 9001:2015 certification, Lloyd’s CE marking for EN 10210/10219, and Singapore FPC approval, with SGS and BV third-party inspection available for any order. Our professional loading team has handled thousands of large-diameter pipe shipments, using internal bracing and layered timber separators to prevent oval deformation during ocean transit—a lesson learned from early export experience that now protects every container we ship. Custom non-standard lengths and end configurations are available with typical production lead times, and we ship to ports across 50+ countries with complete export documentation.
Documentation & Compliance
- Mill test certificate documenting Q235 or Q345 chemical composition and mechanical properties per GB/T 9711-2011, with heat number traceability to the original coil
- API 5L compliance certificate confirming PSL1 or PSL2 level, weld seam radiographic test results, and hydrostatic test pressure for pipeline-grade orders
- ISO 9001:2015 quality management system certificate covering the full SSAW production process from coil intake to finished pipe inspection
- SGS or BV third-party inspection report verifying outer diameter, wall thickness, weld seam quality, and end preparation dimensions before shipment
- Material traceability sheet linking each pipe to its heat number, coil position, and production date for project quality records
- Complete customs documentation including packing list, bill of lading, and certificate of origin formatted for the destination country’s import requirements
Packaging, Loading & Delivery

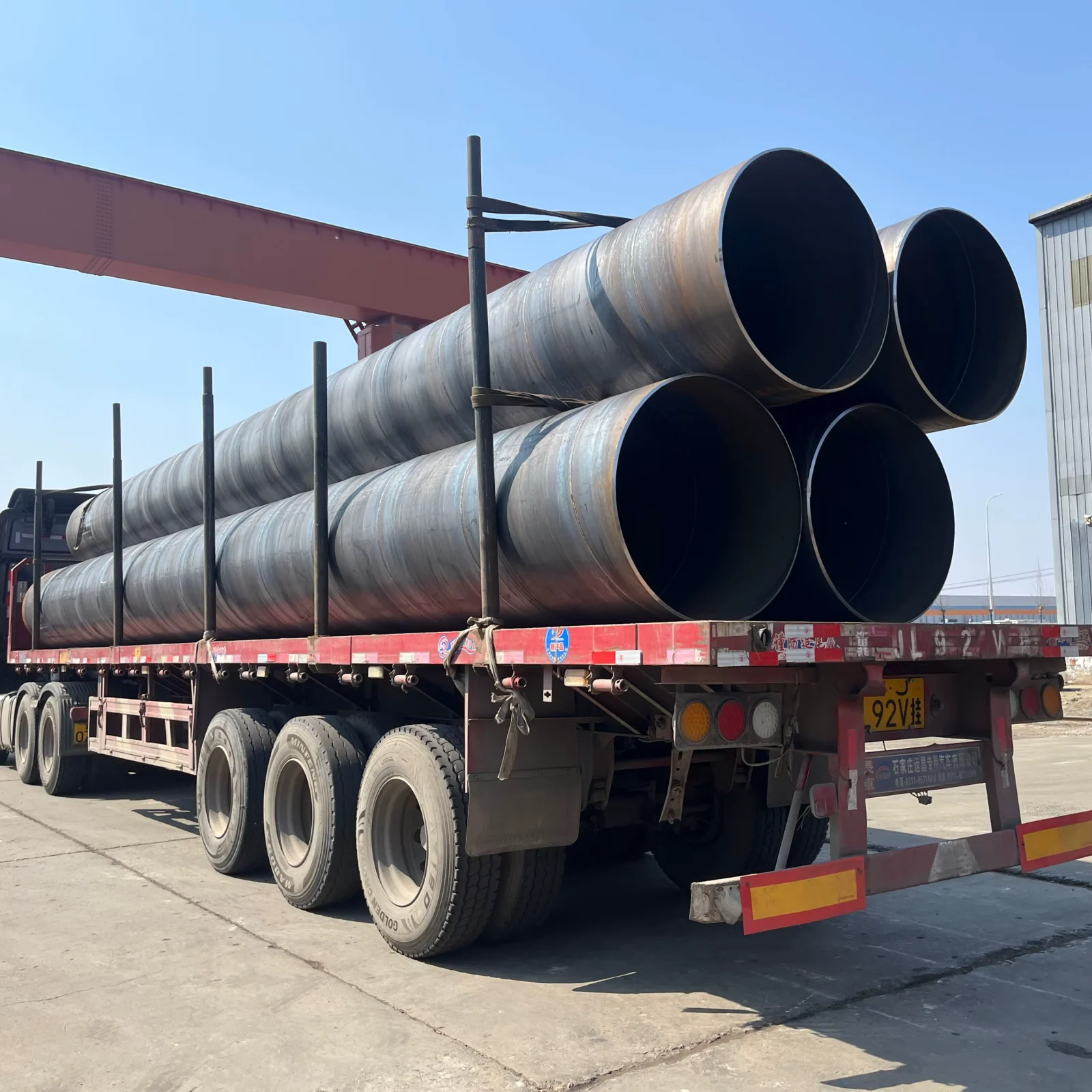

- Large-diameter Q235 and Q345 SSAW pipes bundled with steel strips and internal bracing to maintain roundness during container loading and ocean transit
- Bare surface pipes coated with anti-rust oil on both outer and inner surfaces to prevent corrosion during storage and shipping
- Painted surface pipes handled with nylon slings and edge protectors to preserve the coating finish through loading and unloading operations
- 6–12 m standard lengths loaded in nested configurations to maximize container payload, with 4200 mm OD pipes shipped on flat rack or breakbulk as required

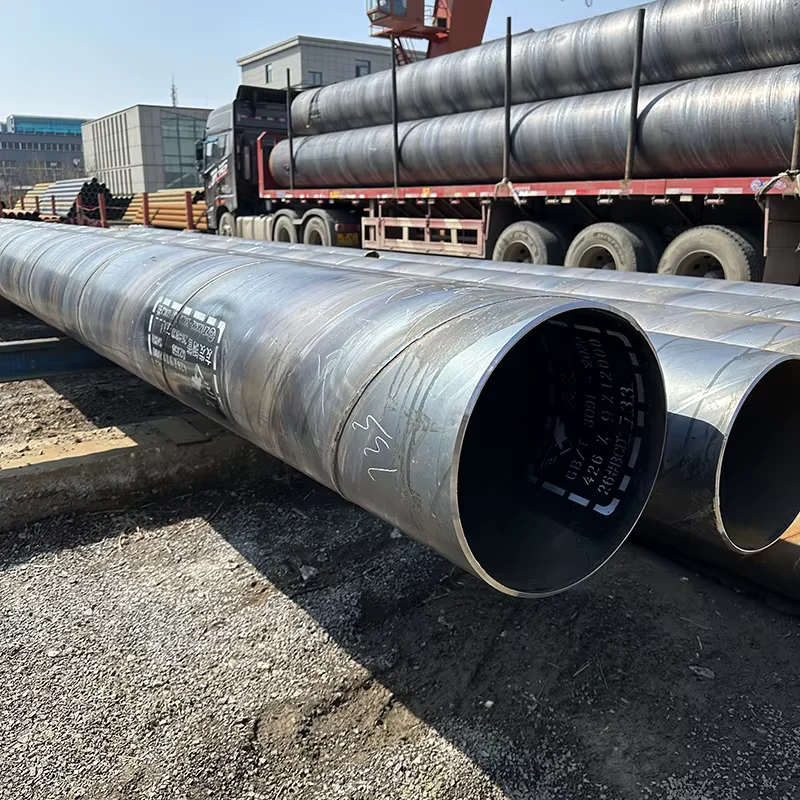

- Heat number and steel grade stenciled on each pipe end for site identification and traceability verification during installation
- FOB, CIF, and DDP shipping terms available with professional container loading plans optimized for the specific OD and wall thickness combination ordered
Getting Your SSAW Pipe Quote with Full Technical Documentation
Submit your required outer diameter, wall thickness, steel grade, length, surface treatment, and destination port to receive a detailed quotation including unit price, production lead time, and shipping terms. We provide mill test certificates, third-party inspection coordination, and professional loading plans as standard parts of the order process—not as optional extras.
Start Your SSAW Pipe Procurement with Verified Mill Documentation
Send your specifications by email or WhatsApp to receive a quotation with API 5L compliance details and mill test certificate samples within 12 hours.
