Description

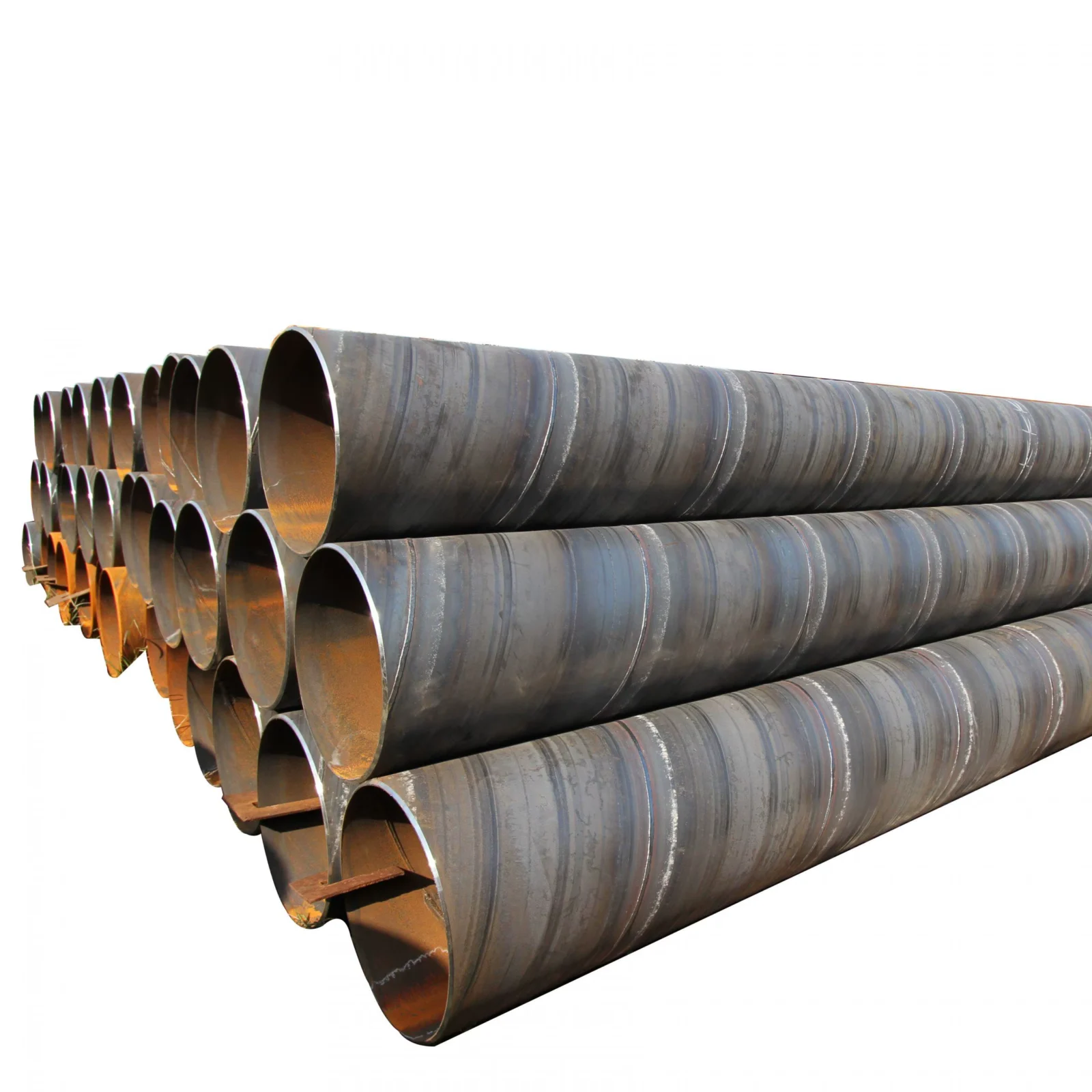

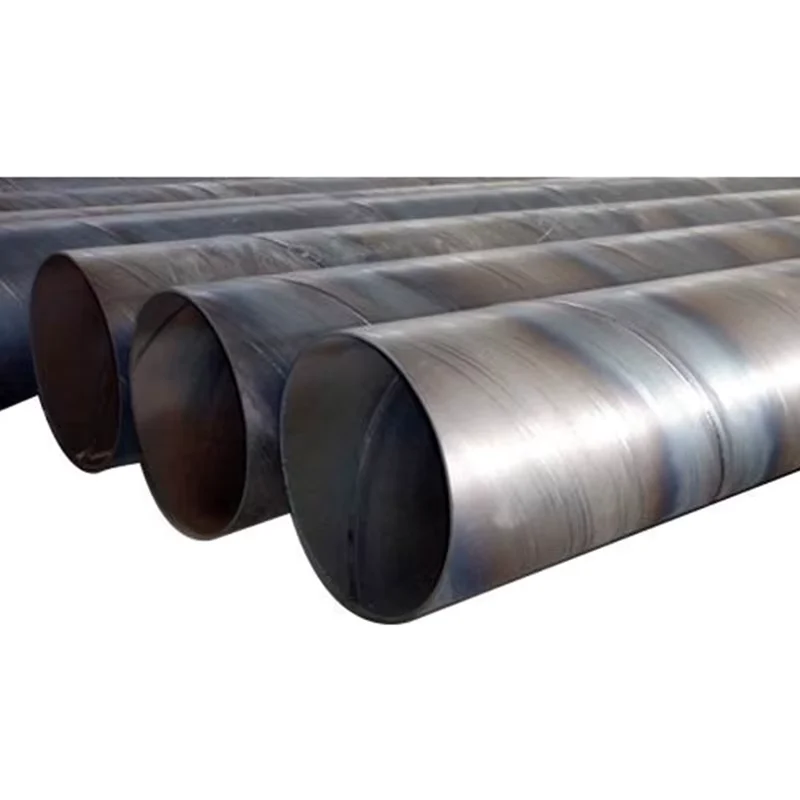

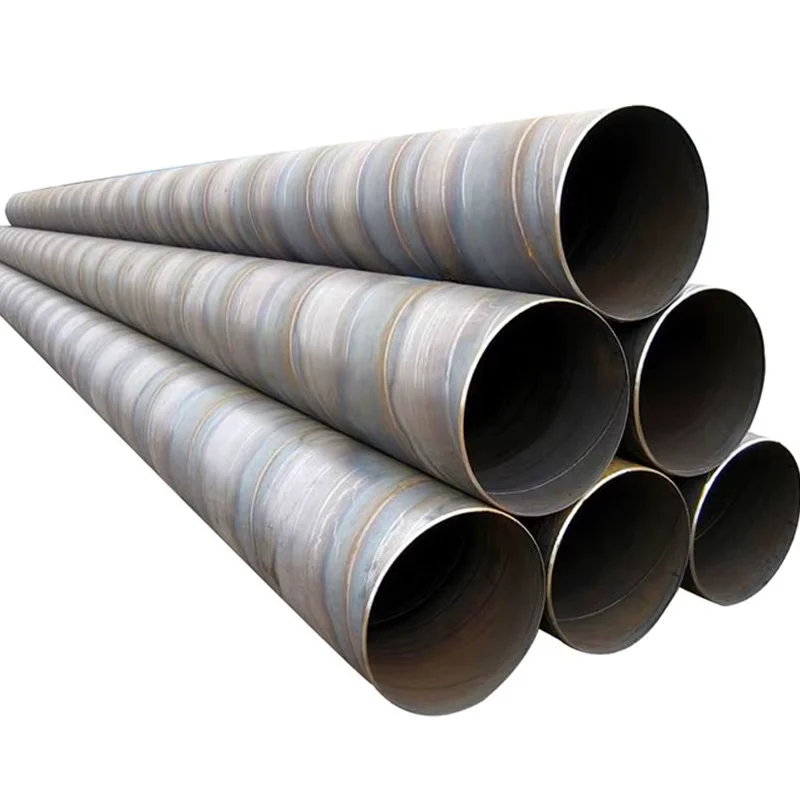

Factory-Direct SSAW Pipe Supply — Shandong Xin Jiyuan Special Steel Tube Co., Ltd produces API 5L SSAW spiral welded steel pipe in-house across three lines covering OD 219–3050mm and WT 4–30mm, eliminating broker markups on heavy-wall piling orders.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q345 SSAW Spiral Welded Steel Pipe |
| Product Type | SSAW Steel Pipe / Spiral Submerged Arc Welded Pipe |
| Steel Grade | Q235, Q345, St37, St52, X42, X52, X56, X60, X70, X80 |
| Standard | API 5L, ASTM, BS, DIN, JIS, GB |
| Section Shape | Round |
| Outer Diameter | 219mm–3050mm |
| Wall Thickness | 4.0mm–30mm |
| Length | 6–12m |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Bare / Oiled / Coating / Painting / 3PE Anti-corrosion |
| Tolerance | ±5% |
| Ends | Plain / Beveled |
| Processing Service | Cutting, Welding, Marking, Beveling, Rust Removal |
| Application | Piling foundation, water & gas transport, bridge & dock construction, petrochemical, structural piling |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Foundation & Piling | Building pile foundations, bridge pier casings, marine dock piles |
| Water Infrastructure | Municipal water supply mains, drainage networks, agricultural irrigation channels |
| Oil & Gas Transport | Slurry pipelines, gas distribution networks, petrochemical process lines |
| Heavy Civil Engineering | Port jetty structures, highway bridge substructures, industrial plant foundations |
What Wall-Thickness Tolerance Costs on a Structural Piling Order
A ±5% tolerance on a 30mm wall SSAW pipe means the thinnest point can legally measure 28.5mm — and that single millimeter decides whether the pile passes load testing or gets rejected at site.
On piling projects across the Middle East and Southeast Asia, I have seen entire containers of spiral welded pipe turned away because the监理 (supervising engineer) pulled random samples and found walls below the minimum threshold. The root cause is rarely the mill — it is the procurement chain that accepted theoretical weight pricing without demanding actual ultrasonic measurements per heat number. When an API 5L SSAW spiral welded steel pipe is specified for load-bearing piles, the buyer must confirm that the mill runs inline UT scanning and provides dimensional reports alongside the MTC, not just chemistry sheets. [NEED_CITE: API 5L dimensional tolerance requirements for spiral welded pipe]
How OD 219–3050mm Coverage Matches Piling and Transport Engineering
Piling rigs in Dubai and Jakarta frequently call for Ø610–Ø1200mm piles with 12–20mm walls, while municipal water projects in East Africa spec Ø300–Ø800mm with cement-mortar lining compatibility. An API 5L SSAW spiral welded steel pipe supplier holding the full 219–3050mm range eliminates the need to split orders between a piling specialist and a water-pipe fabricator. The spiral seam geometry distributes hoop stress more evenly than longitudinal welds at larger diameters, which matters when a Ø1500×25mm pile must resist lateral soil pressure during driving. Xin Jiyuan’s three SSAW lines cover this span under one roof, with beveling and 3PE coating completed before dispatch — so the pile arrives site-ready rather than requiring a second contractor for end prep.
Engineering Compliance Across EN, API, and ASTM Frameworks
Structural piling in the EU falls under EN 10219 cold-formed hollow sections or EN 10210 hot-formed, while API 5L governs transport pipelines — yet many Middle East EPCs accept API 5L X52/X60 for both pile and process pipe to simplify procurement. The critical compliance gap is certification: a CE mark referencing EN 10210 carries different weight at Rotterdam customs than an SGS verification letter referencing API 5L. Buyers sourcing an API 5L SSAW spiral welded steel pipe for dual-purpose projects must confirm the mill holds Lloyd’s CE for EN 10219/10210 alongside API 5L certification, and that the MTC explicitly maps the heat chemistry to both standard families. [NEED_CITE: steel grade equivalence between API 5L and EN 10210 standards]
Decoding SSAW Process and Grade Selection for Heavy-Wall Pipe

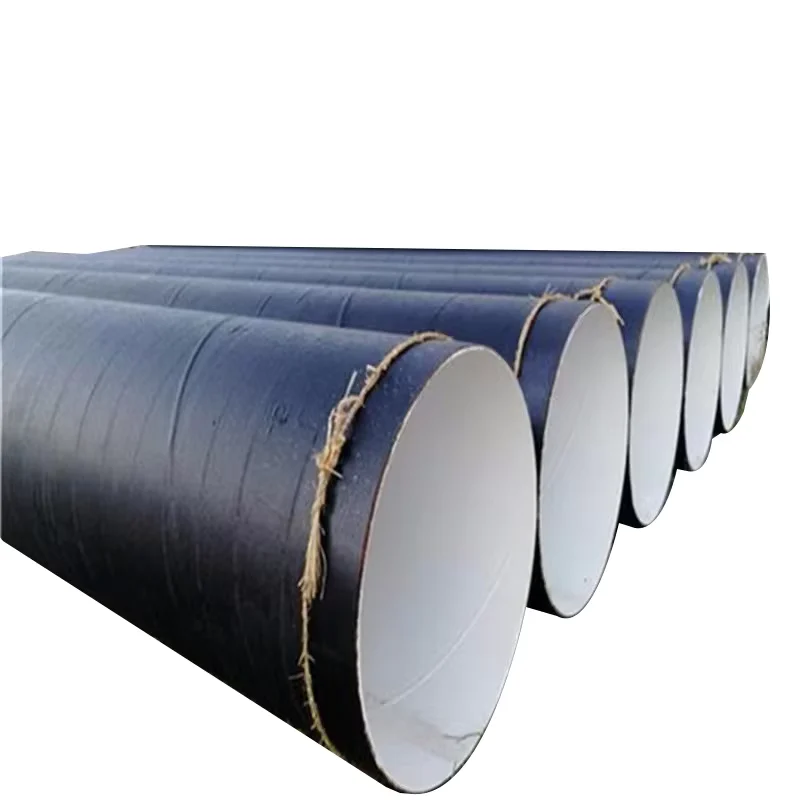

Spiral submerged arc welding allows a single mill to produce Ø219mm through Ø3050mm from the same coil stock by adjusting the forming angle — a flexibility that ERW mills cannot match beyond Ø610mm, and that seamless mills cannot approach economically above Ø508mm. The spiral seam’s helical geometry means the weld length per meter of pipe is roughly 1.3–1.8× the straight seam equivalent, but the distributed stress path makes it preferable for large-diameter piling where external coating integrity matters more than internal smoothness. Grade selection follows the project’s load and corrosion profile: Q235/Q345 serve structural piling in non-sour environments, while X52–X70 are specified for sour-service gas lines where H₂S resistance demands tighter sulphur controls. The 3PE anti-corrosion system — fusion-bonded epoxy, copolymer adhesive, and polyethylene outer layer — is the standard choice for buried piling and subsea transport, providing mechanical protection during driving plus 25–30 year cathodic disbondment resistance. Wall thickness tolerance of ±5% applies across the 4–30mm range, but buyers should note that negative tolerance compounds on heavy walls: a 30mm nominal wall at −5% yields 28.5mm, which may fall below the engineer’s minimum if the design used theoretical weight.
The Hidden Cost of Accepting Theoretical Weight Pricing
When a procurement team orders 200 tons of Ø813×16mm SSAW pipe at theoretical weight, the invoice looks clean — but if the actual wall averages 15.1mm across the lot, the pile’s load capacity drops by roughly 9% compared to the engineer’s calcs. The rebar cage may no longer fit, the driving refusal criteria shift, and the supervising engineer demands static load testing on every pile rather than a representative sample. For an API 5L SSAW spiral welded steel pipe specified to API 5L or EN 10219, the buyer must insist on actual-weight settlement with ultrasonic wall-thickness reports per heat, not just the mill’s standard MTC chemistry sheet. Missing CE documentation or an SGS report referencing the wrong standard revision means the container sits at Jebel Ali or Laem Chabang for weeks while customs request clarification — demurrage costs that erase any per-ton savings from a broker’s quote. [NEED_CITE: EN 10219 dimensional tolerance and settlement basis requirements]
Why Procurement Teams Source SSAW Pipe from Xin Jiyuan
Xin Jiyuan operates three dedicated SSAW lines producing the full 219–3050mm OD and 4–30mm WT range without subcontracting, which means the MTC, heat number traceability, and UT reports all originate from one facility rather than being stitched together from multiple traders. The in-house physical and chemical laboratory tests every heat for composition, tensile strength, and Charpy impact before the pipe leaves the mill — and the buyer receives the dimensional scan report alongside the standard MTC, not as a separate “upon request” document. With ISO 9001:2015, Lloyd’s CE for EN 10210/10219, Singapore FPC, and SGS/BV third-party verification already in place, the certification package for EU, GCC, and Southeast Asian customs is assembled before the container is stuffed. Custom non-standard lengths, bevel angles, and 3PE coating thicknesses are handled on-site, so a piling contractor ordering Ø914×20mm × 11.8m beveled piles receives exactly that — not 12m random lengths that require field cutting. Professional container loading with anti-damage measures prevents the edge dents and coating scratches that trigger rejection at destination, and the export documentation set is prepared in parallel with production rather than after dispatch.
Documentation & Compliance
- Mill Test Certificate documenting Q235/Q345 or X42–X80 chemical composition, yield strength, and tensile properties per API 5L and GB/T 9711 for each heat number
- Lloyd’s CE certificate covering EN 10210 hot-finished and EN 10219 cold-formed hollow sections for EU structural piling and transport projects
- ISO 9001:2015 quality management certificate covering the full SSAW production, coating, and inspection workflow
- SGS or BV third-party inspection report confirming outer diameter, wall thickness, weld seam UT, and 3PE coating adhesion before container sealing
- Heat-number traceability from coil mill certificate through final pipe, with chemistry and mechanical test results cross-referenced on the MTC
- Full customs document set including packing list, ocean bill of lading, certificate of origin, and CE/SGS clearance support for GCC and EU ports
Packaging, Loading & Delivery
- Bare or oiled SSAW pipes bundled with galvanized steel strips at 1.5m intervals, with end protectors on beveled Ø610mm+ piles to prevent lip damage during crane handling
- 3PE-coated pipes wrapped with bituminous felt at contact points and separated by rubberized spacers to preserve the polyethylene outer layer during ocean transit
- Container loading optimized for 6–12m lengths: Ø219–Ø406mm pipes nested in bundles for 20ft GP, Ø508–Ø914mm loaded as single-tier deck cargo in 40ft OT, Ø1016mm+ shipped on flat racks or breakbulk
- Cut-to-length service available for 11.8m piling lengths or 6m transport sections, with bevel angles matched to the project’s welding procedure specification
- Heat number, steel grade, OD×WT, and length stenciled on each pipe end in weatherproof paint, with bundle tags referencing the MTC and packing list
- FOB Jinan/Qingdao, CIF destination port, or DDP site delivery arranged, with full tracking from mill gate to port discharge
Ready to Lock In Your SSAW Pipe Specification
Submit your OD, wall thickness, steel grade, quantity, and destination port, and receive a detailed quotation with unit pricing, lead time, and the full MTC + CE/SGS certification package within 12 hours. For non-standard lengths, special bevel requirements, or 3PE coating thicknesses outside standard specs, the engineering team provides a custom fabrication drawing before production begins.
Request Your API 5L SSAW Pipe Quote and Mill Test Certificate
Send your specification sheet to admin@sdxjypipe.com or reach the export team via WhatsApp/WeChat at +86 188 5315 7756 for pricing, certification confirmation, and container loading plans.
