Description

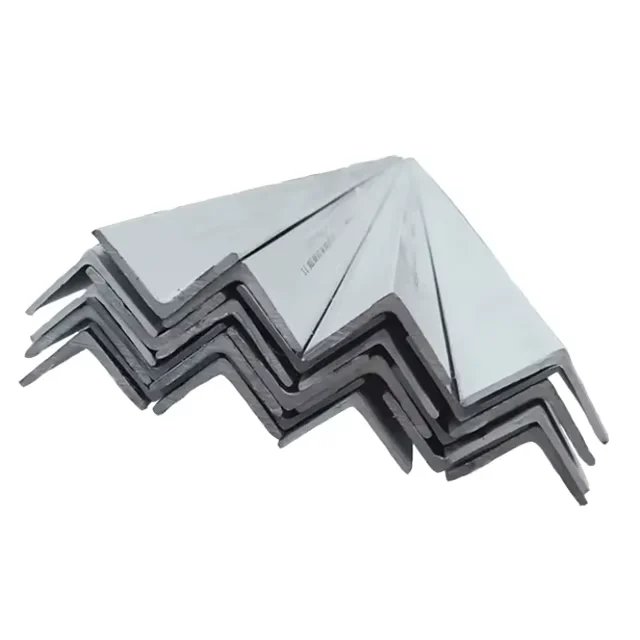

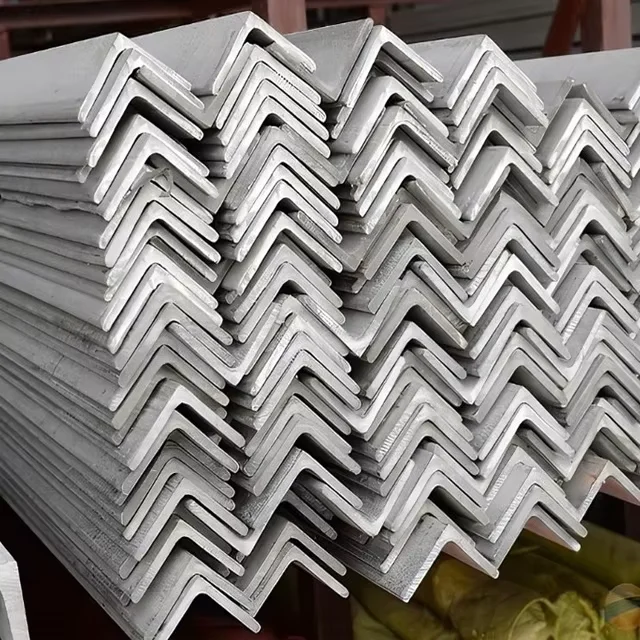

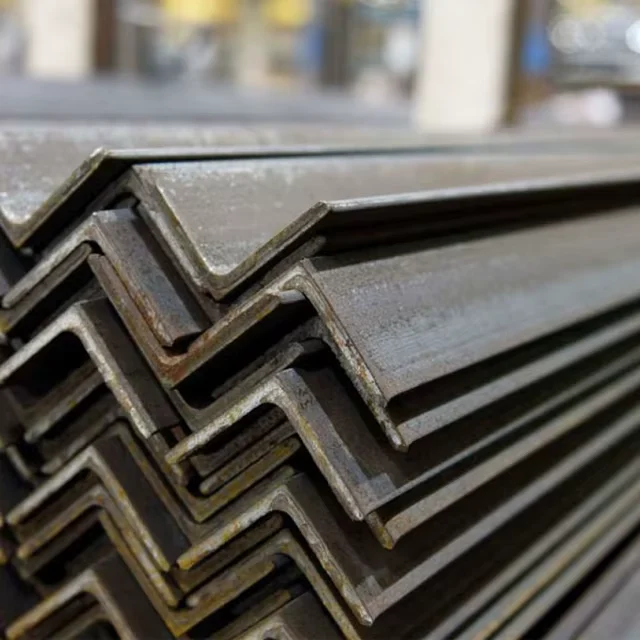

Direct Mill Supply for Structural Angle Bars — Hot rolled Q235 and Q345 angle bars shipped with full mill test certificates and third-party inspection support for EU and Southeast Asian structural projects.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q345 Angle Bar |
| Product Type | Angle Bar |
| Steel Grade | Q195, Q235, Q345, Q420, Q460, SS400, ST37-2, ST52, S235JR |
| Standard | GB/T 3636-2000, API, ASTM, BS, DIN, GB, JIS |
| Section Shape | Equal / Unequal Angle |
| Thickness | 3–24 mm |
| Length | 6 m / 9 m / 12 m |
| Technique | Hot Rolled |
| Surface Treatment | Black / Oiled / Painted (customizable) |
| Tolerance | ±10% |
| Processing Service | Cutting |
| Invoicing | By Theoretical Weight |
| Application | Building frames / Steel structures / Industrial platforms / Bridges / Infrastructure |
| MOQ | 1 Ton (sample order accepted) |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Steel Structure Companies | Trusses, brackets, connection plates, and purlin supports fabricated from hot rolled equal angle bars |
| Construction Companies | Structural framing for high-rise buildings, warehouse columns, and bridge reinforcement |
| Industrial Platforms | Walkway supports, machinery bases, conveyor frame structures, and equipment mounting brackets |
| Infrastructure Projects | Transmission tower bracing, railway platform frameworks, and port facility structural members |
What Specification Gaps Cost on a Structural Frame Order
Missing thickness or off-standard lengths force on-site rework that delays crane schedules and inflates labor costs.
When procurement teams order angle bars for steel structure projects, the most common frustration is not price — it is specification inconsistency. A batch arrives with rounded edges instead of sharp 90-degree corners, or the thickness falls outside tolerance, forcing fabricators to reject entire bundles. On a Jakarta high-rise frame I supervised, we received a shipment of equal angle bars where nearly a third had surface scoring deep enough to compromise weld prep. The contractor rejected the lot. That kind of rejection does not just cost freight — it costs weeks of schedule. Sourcing a reliable Hot Rolled Steel Angle Bar Supplier who maintains tight dimensional control and provides verifiable mill documentation eliminates this risk before the container is sealed. [NEED_CITE: dimensional tolerance requirements for hot rolled structural steel angles per EN 10056]
How Hot Rolled Angle Bars Match Structural Frame Requirements
Hot rolled equal and unequal angle bars in Q235 and Q345 grades deliver the dimensional consistency that steel structure fabricators depend on for truss assembly and bracket welding. The 3–24 mm thickness range covers everything from light-duty purlin supports to heavy-load bridge bracing members. When we supply angle bars for industrial platform projects in Southeast Asia, every bundle is cut to the exact project length before shipping — reducing on-site waste and eliminating the need for secondary cutting at the fabrication yard. As a Hot Rolled Steel Angle Bar Supplier with in-house physical and chemical laboratories, we verify every heat before release.
Engineering Compliance and Surface Protection for Long-Term Performance
Structural angle bars used in building frames and bridge infrastructure must comply with load-bearing standards that govern dimensional accuracy and material traceability. For projects in the European market, CE certification under relevant EN standards is mandatory for customs clearance — without it, the shipment sits at the port. [NEED_CITE: CE marking requirements for structural steel sections under EN 1090] The choice between black, oiled, or painted surface treatment depends on the installation environment: oiled bars suit indoor fabrication where short-term rust prevention is sufficient, while painted finishes protect outdoor structural members during transit and early-stage construction. Steel grade selection directly affects load capacity — Q345 provides higher yield strength than Q235 for the same cross-section, making it the preferred choice for primary structural members in multi-story frames. For international projects, grade equivalence mapping between GB, EN, and JIS standards ensures material substitution does not compromise structural design assumptions. [NEED_CITE: steel grade equivalence between GB Q-series and EN S-series structural steels]
Steel Grade Selection and Hot Rolling Process Explained
The Q-series grading system used in China (Q195 through Q460) designates minimum yield strength in MPa — Q235 yields at approximately 235 MPa, while Q460 reaches 460 MPa. For projects specifying European or Japanese standards, S235JR and SS400 serve as direct equivalents to Q235 in most structural applications. The hot rolling process heats steel billets above recrystallization temperature and passes them through shaped rolls to form the L-profile, producing angle bars with uniform grain structure and consistent mechanical properties throughout the cross-section. Surface treatment options — black (as-rolled), oiled, or painted — address different corrosion protection requirements: black finish is economical for indoor use or immediate painting, oiled surface prevents transit corrosion for export shipments, and painted coating extends protection for outdoor storage or aggressive environments. The ±10% thickness tolerance on hot rolled angle bars means actual dimensions may vary slightly from nominal, which is why invoicing by theoretical weight provides transparent and predictable cost calculation for project budgeting. Custom cutting service allows buyers to order exact project lengths from the 6 m / 9 m / 12 m range, minimizing waste and reducing fabrication time at the yard.
Hidden Costs of Procuring Angle Bars Without Verified Certification
Ordering structural angle bars without mill test certificates creates a cascade of downstream risks that surface only after the material reaches the job site. Fabricators who weld angle bars into trusses and brackets without verified chemical composition risk weld failure if the actual carbon equivalent exceeds design assumptions. Projects requiring CE-marked structural steel face customs rejection when certificates are missing or reference incorrect standards — the shipment gets held, demurrage charges accumulate, and the project timeline shifts. [NEED_CITE: structural steel certification requirements for CE marking under EN 1090-1] Thickness that falls outside declared tolerance affects load-bearing calculations and may trigger rejection during third-party inspection, forcing complete reorder and extended lead times. These costs are invisible at the quotation stage but compound quickly on any medium-scale structural project.
Why Project Teams Source Angle Bars Through Our Mill
Every angle bar we produce passes through our in-house physical and chemical laboratory before release — dimensional checks, tensile testing, and chemical composition analysis are completed per heat number, and results are documented in the mill test certificate. Our production coverage spans 2,800+ specifications across square tubes, rectangular tubes, round pipes, and section steel including equal and unequal angle bars, allowing project teams to consolidate tube and profile procurement from a single verified source. We hold ISO 9001:2015 certification, Lloyd’s CE marking, Singapore FPC, and accept SGS or BV third-party inspection on any order — documentation that clears customs in EU, Southeast Asian, and Middle Eastern markets without delay. Custom cutting to exact project lengths, non-standard size production, and professional container loading with anti-damage strapping are standard practice, not premium add-ons. Every container of angle bars is strapped, blocked with wooden cradles, and photographed before sealing — a procedure we implemented after learning the hard way that improper loading bends even the heaviest sections during ocean transit.
Documentation & Compliance
- Mill test certificate documenting Q235 or Q345 chemical composition and mechanical properties per GB/T 3636-2000, issued per heat number with full traceability
- CE certificate confirming compliance with applicable EN standards for structural steel sections, required for EU market customs clearance
- ISO 9001:2015 quality management system certificate covering the full production and inspection process for hot rolled angle bars
- SGS or BV third-party inspection report available on request, verifying dimensional accuracy, surface quality, and material grade before shipment
- Material traceability by heat number stamped on each bundle, linking physical delivery to laboratory test results
- Complete customs documentation package including packing list, bill of lading, and certificate of origin for import clearance at destination port
Packaging, Loading & Delivery

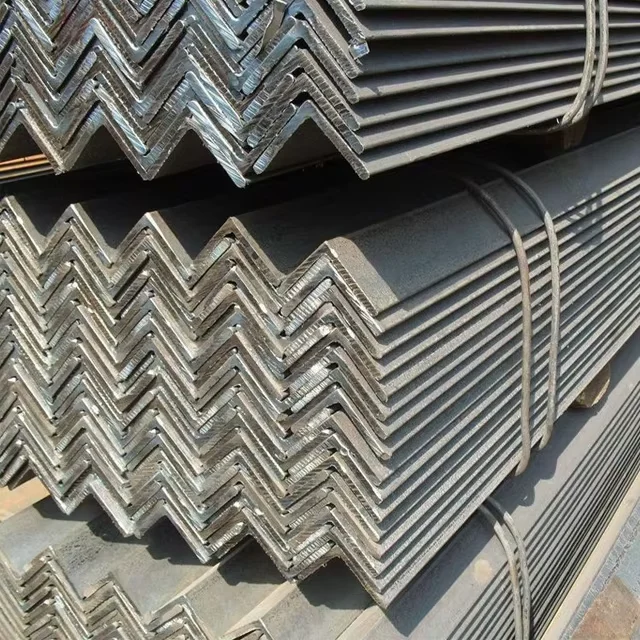

- Hot rolled angle bars bundled with steel strips in seaworthy packaging, with wooden cradles inserted at regular intervals to prevent bending during ocean transit
- Oiled or painted surface treatment protected by edge guards and interleaving materials to preserve finish quality through loading and unloading operations
- Container loading optimized for 6 m, 9 m, and 12 m lengths with weight distribution calculated to maximize payload within 20ft and 40ft container limits
- Custom cutting service available to produce exact project lengths from standard 6 m / 9 m / 12 m stock, reducing on-site waste for steel structure fabricators

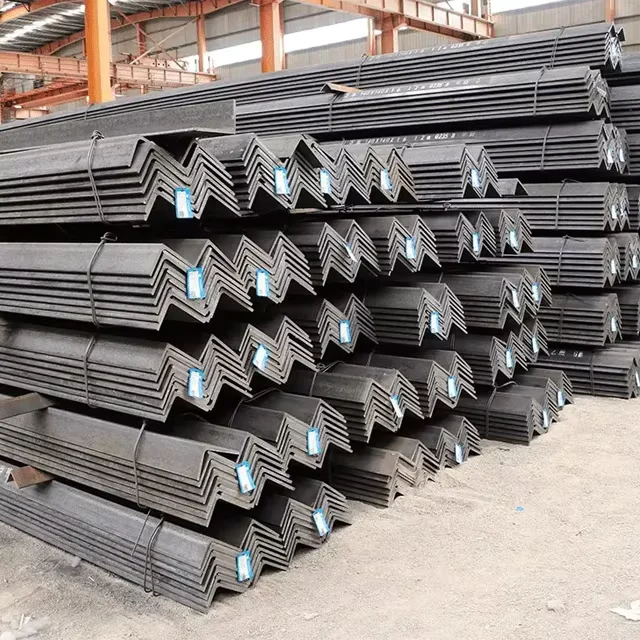

- Heat number and steel grade (Q235 / Q345 / S235JR) clearly marked on each bundle for on-site identification and material traceability verification
- Shipping terms available as FOB, CIF, or DDP with professional export documentation and container tracking until arrival at destination port
Start Your Angle Bar Procurement With Verified Documentation
Submit your required steel grade, section dimensions, thickness, length, and quantity to receive a detailed quotation with unit pricing, production lead time, and shipping terms. We provide mill test certificates and arrange third-party inspection before shipment, so your procurement team can verify material compliance before the container is sealed.
Request a Quotation with Mill Test Certificate
Send your angle bar specifications — steel grade, size, thickness, length, and quantity — to receive pricing and full documentation package.
Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxjypipe.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjypipe.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: How do I select between Q235, Q345, and S235JR for my structural project?
A: Q235 and S235JR are equivalent grades suitable for general structural framing and light-load applications. Q345 provides higher yield strength and is preferred for primary load-bearing members in multi-story buildings and bridge structures. We provide grade equivalence mapping between GB, EN, ASTM, and JIS standards to ensure correct material selection for your design specifications.
Q: What certification documents are included with each shipment?
A: Every order includes a mill test certificate documenting chemical composition and mechanical properties per heat number. We also provide ISO 9001:2015 and CE certificates as standard. SGS or BV third-party inspection reports can be arranged on request before shipment for projects requiring independent verification.
Q: Can you produce non-standard lengths or thicknesses outside the listed range?
A: Yes, we offer custom cutting from standard 6 m, 9 m, and 12 m lengths to match your exact project dimensions. Non-standard thicknesses and section sizes can be produced based on your technical drawings, with minimum order quantities confirmed during the quotation stage.
Q: What surface treatment options are available for export shipments?
A: We offer three surface treatment options: black (as-rolled) for indoor applications or immediate painting, oiled for short-term rust prevention during ocean transit, and painted for extended corrosion protection in outdoor or aggressive environments. The choice depends on your storage conditions and project timeline.
Q: How are angle bars packed to prevent damage during shipping?
A: Angle bars are bundled with steel strips and loaded with wooden cradles at regular intervals to prevent bending. Each bundle is strapped, blocked, and photographed before the container is sealed. This loading procedure ensures the material arrives at destination without surface scoring or dimensional deformation.
