Description
Factory-direct supply, no middleman markup — every Q235 hot-dip galvanized square steel tube leaves our Jinan mill with in-house lab-tested zinc coating reports and full GB/JIS traceability.
Technical Specifications
| Parameter | Value |
|---|---|

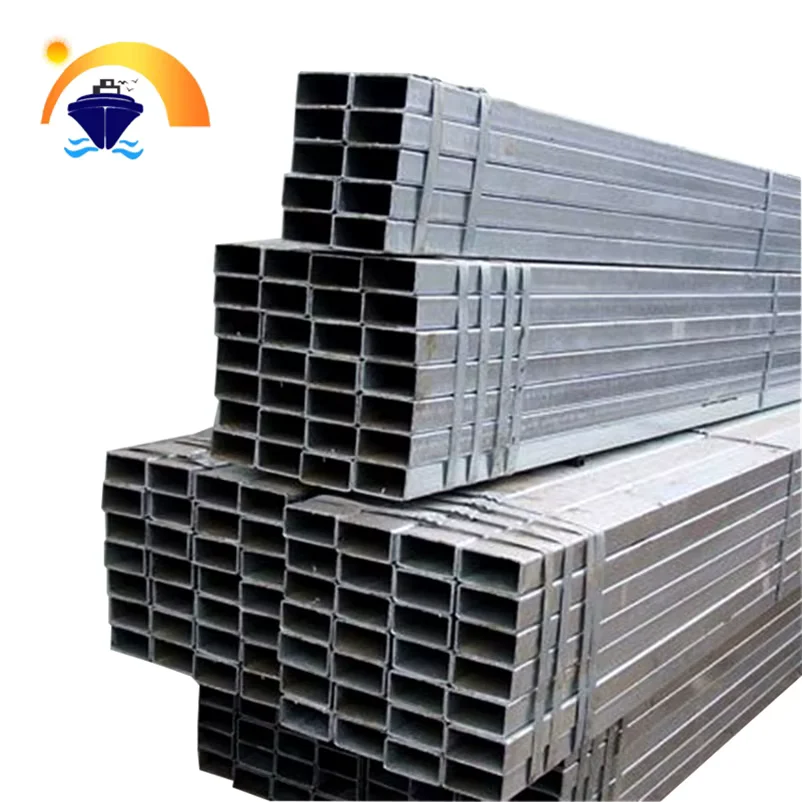

| Designation | Q235 Galvanized Square Steel Tube |
| Product Type | Galvanized Square Steel Tube |
| Steel Grade | Q195, Q215, Q235, Q345 |
| Standard | GB, JIS |
| Section Shape | Square, Rectangular, Round |
| Size Range | 10–914 mm |
| Length | Customer’s request |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Hot-Dip Galvanized |
| Tolerance | ±5% |
| Application | Construction / Structural framing / Bending & welding fabrication / Building projects |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Building | Structural frames, column supports, roof trusses for commercial and industrial buildings |
| Steel Structure Fabrication | Welded frames, base plates, and load-bearing assemblies for warehouses and workshops |
| Infrastructure & Civil Engineering | Bridge handrails, highway sign gantries, utility pole bases, and fencing systems |
| Architectural Facade & Curtain Wall | Exposed structural members requiring uniform galvanized finish for exterior aesthetics |
Where Zinc Coating Consistency Decides Site Acceptance for a Hot-Dip Galvanized Square Steel Tube
Uneven galvanizing is the single most common reason galvanized tubes fail inspection on arrival.
I have seen entire container loads of galvanized square tubes rejected at destination because the zinc layer varied from 40 to 70 microns across the same batch — the spec called for 65 microns minimum. The root cause is usually rushed dipping cycles or poor drainage control, and no amount of on-site touch-up paint fixes it. When a Hot-Dip Galvanized Square Steel Tube arrives with patchy coating, the contractor either demands a full replacement or deducts heavily from the invoice. [NEED_CITE: hot-dip galvanizing coating thickness standards for structural hollow sections]
Matching GB Q235 Galvanized Profiles to Structural Frame Requirements
A Hot-Dip Galvanized Square Steel Tube in Q235 grade serves as a reliable structural member for building frames, mezzanine platforms, and support structures where moderate yield strength and corrosion resistance are both required. The ERW process ensures consistent wall thickness and dimensional accuracy across square and rectangular sections from 10 mm to 914 mm, while the hot-dip zinc coating provides long-term protection against atmospheric corrosion in outdoor and semi-exposed environments. Our in-house laboratory tests every production batch for coating uniformity and adhesion before release, so project engineers receive tubes that meet both GB structural requirements and JIS galvanizing standards without additional third-party verification delays.
Engineering Compliance and Certification Pathways for Galvanized Hollow Sections
Structural engineers specifying galvanized square tubes for load-bearing frames typically reference national or international design codes that govern dimensional tolerance, weldability, and coating durability. GB-compliant Q235 tubes are widely accepted across Southeast Asian, Middle Eastern, and African construction markets, while JIS-aligned specifications open doors in Japan-influenced procurement systems. [NEED_CITE: structural hollow section dimensional tolerance requirements under GB and JIS standards] For projects requiring CE marking or EN 10210/10219 compliance, our Lloyd’s-certified production lines and Singapore FPC status ensure the Hot-Dip Galvanized Square Steel Tube clears customs in EU and regulated markets without documentation disputes. Custom lengths and non-standard side dimensions are produced to reduce on-site cutting waste and maintain structural continuity at connection points.
Understanding Q235 Steel Grade and Hot-Dip Galvanizing Process
The Q-series steel grades — Q195, Q215, Q235, Q345 — follow the Chinese GB system where the number after “Q” indicates the minimum yield strength in MPa. Q235 sits in the mid-range, offering a practical balance between formability and load-bearing capacity for general construction and fabrication use. The ERW welding technique produces square and rectangular tubes with tight corner radii and consistent seam integrity, suitable for bending and secondary welding operations common in structural assembly. Hot-dip galvanizing immerses the finished tube in molten zinc, creating a metallurgically bonded coating that resists chipping during transport and handling — far more durable than pre-galvanized or electroplated alternatives for outdoor structural applications. The ±5% tolerance policy ensures theoretical weight calculations remain reliable for procurement budgeting, while custom length options eliminate unnecessary field cutting that can expose bare steel at section ends.
Hidden Costs of Sourcing Galvanized Tubes Without Verified Coating and Grade Documentation
Accepting a lower price on a Hot-Dip Galvanized Square Steel Tube without mill test certificates or third-party inspection reports often leads to costly surprises: zinc coating below specification triggers rejection at site audit, grade substitution causes weld cracking during fabrication, and oversized negative tolerance reduces actual load capacity below design assumptions. [NEED_CITE: consequences of substandard galvanized coating on structural steel service life] Customs authorities in EU and GCC countries increasingly demand EN-compliant test certificates and CE markings; shipments without proper documentation face delays, re-inspection fees, or outright refusal at port.
Why Project Procurement Teams Choose Our Galvanized Tube Supply
Every Hot-Dip Galvanized Square Steel Tube we supply comes with a mill test certificate generated by our own physical and chemical laboratory — not a forwarded template from a trading desk. We hold 41 invention patents including China’s original sharp-corner rectangular tube technology, and our three production lines cover over 2,800 specifications with wall thicknesses up to 40 mm, meaning non-standard dimensions rarely require separate sourcing. Full international certifications — ISO 9001:2015, Lloyd’s CE under EN 10210/10219, Singapore FPC, and SGS/BV verification — allow our tubes to clear customs across 50+ export destinations without document-related holds. Professional container loading with anti-damage measures ensures the galvanized surface arrives intact, and our designated supplier status for major state-owned enterprises reflects consistent batch-to-batch quality control.
Documentation & Compliance
- Mill test certificate documenting Q235 chemical composition and mechanical properties per GB standard for each production heat
- CE certificate under EN 10210/EN 10219 for hot-dip galvanized hollow sections exported to EU markets
- ISO 9001:2015 quality management certificate covering ERW welding and hot-dip galvanizing processes
- SGS or BV third-party inspection report available upon request for coating thickness and dimensional verification
- Material traceability by heat number stamped on each tube for site audit and welding procedure compliance
- Full customs documentation including packing list, bill of lading, and certificate of origin for Q235 galvanized square tubes
Packaging, Loading & Delivery

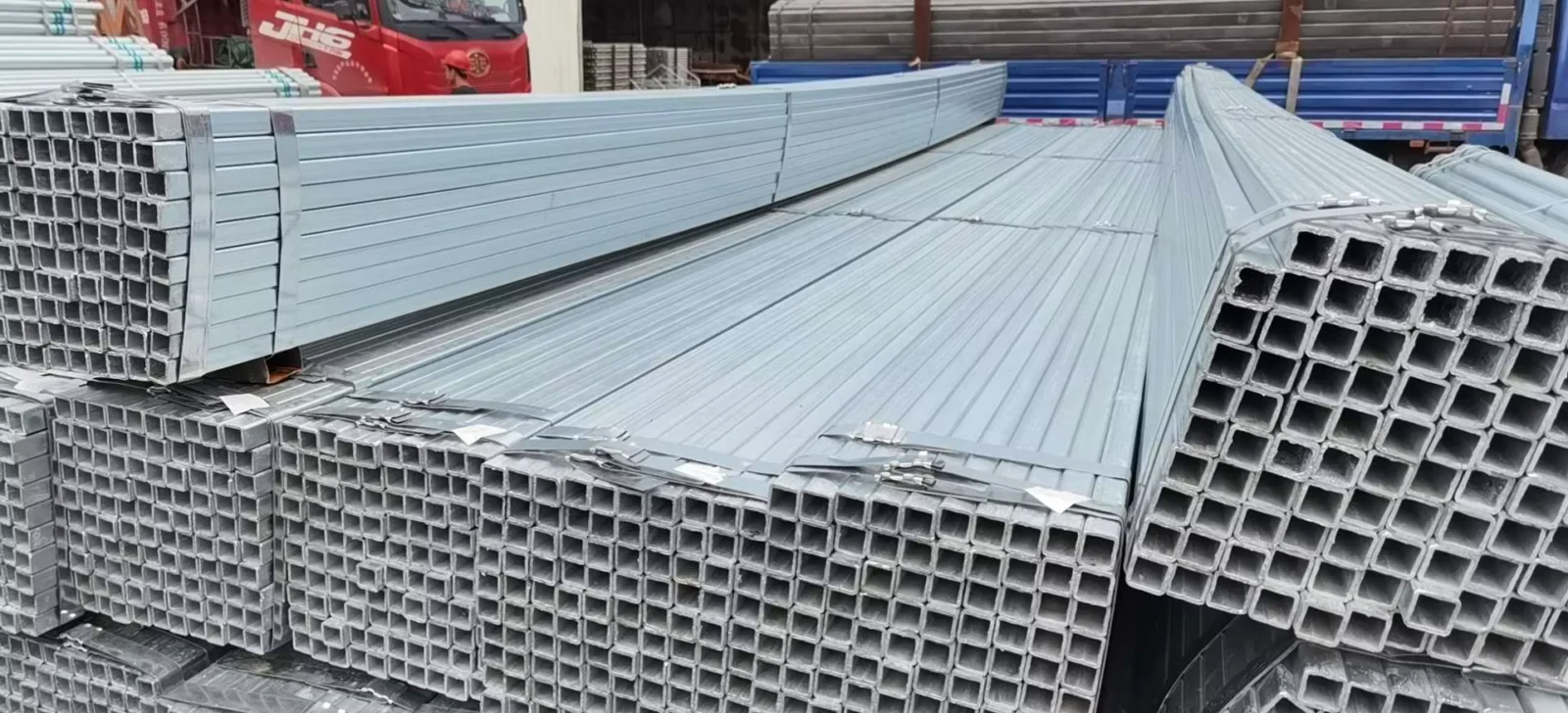

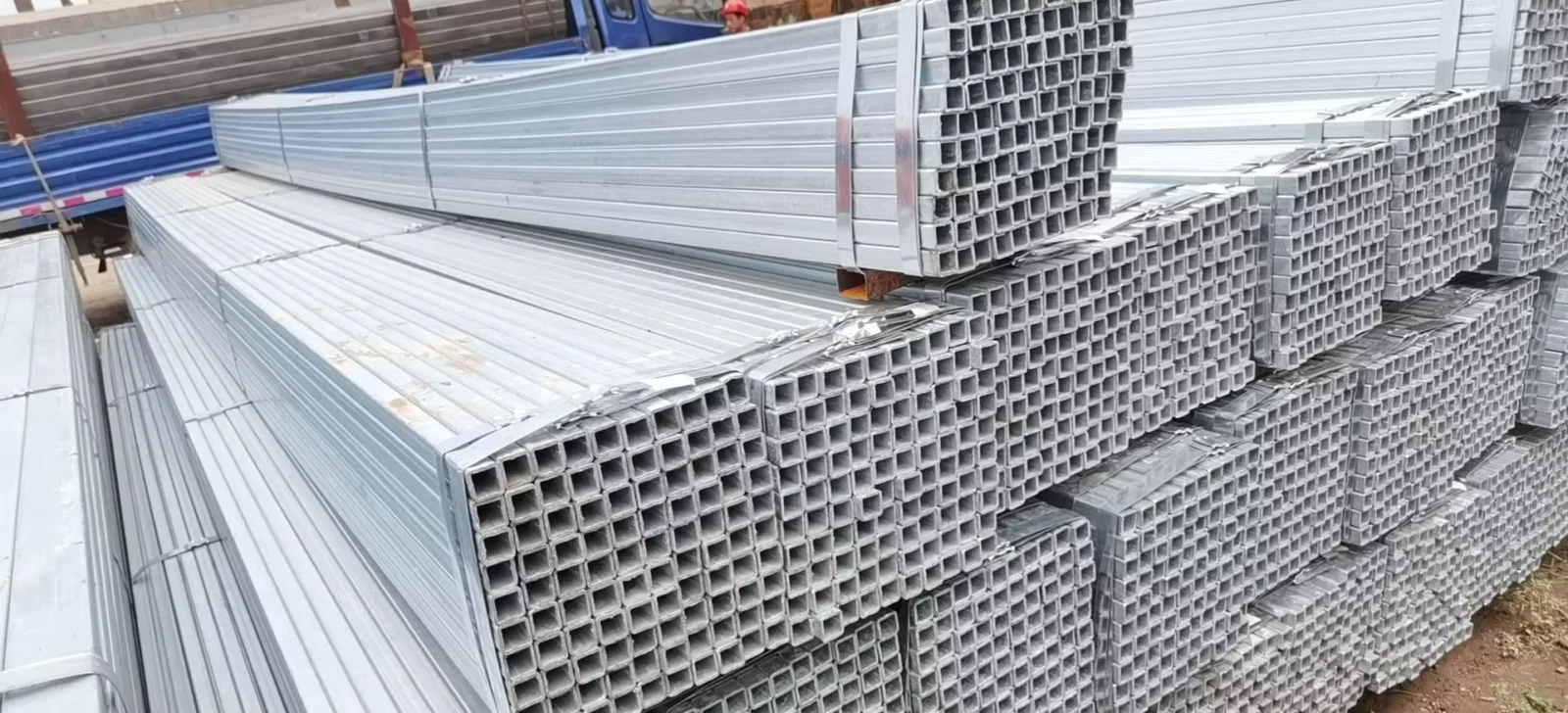

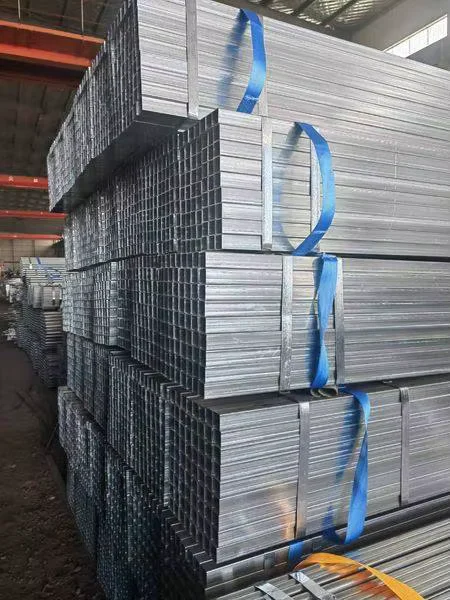

- Hot-dip galvanized square and rectangular tubes bundled with steel strips and edge protectors to preserve zinc coating integrity during ocean freight
- Surface protection maintained through careful handling and anti-scratch separators between nested sections up to 914 mm
- Container loading optimized by our professional team to maximize payload for 10–914 mm galvanized profiles while preventing bending or surface damage
- Custom cut-to-length service available for Q195–Q345 galvanized tubes to match project-specific structural member dimensions
- Heat number and steel grade clearly marked on each bundle for on-site identification and MTC cross-referencing
- FOB, CIF, and DDP shipping terms supported with full export documentation and shipment tracking until port arrival
Starting Your Galvanized Tube Procurement With Accurate Specifications
Submit your required side dimensions, wall thickness, steel grade (Q195–Q345), total quantity, and destination port to receive a detailed quotation including unit pricing, production lead time, and shipping terms within 12 hours. We will also provide sample mill test certificates and arrange SGS/BV third-party inspection if your project demands independent verification before shipment.
Frequently Asked Questions
Q: What is the difference between hot-dip galvanized and pre-galvanized steel tubes?
A: Hot-dip galvanizing immerses the finished ERW tube in molten zinc, creating a thick, metallurgically bonded coating suitable for outdoor structural use. Pre-galvanized tubes are made from already-coated steel strip, resulting in a thinner zinc layer that is more vulnerable to damage at weld points and cut edges.
Q: How do GB Q235 and ASTM A500/A36 grades compare for equivalent sourcing?
A: Q235 and ASTM A36 share similar yield strength ranges and are often treated as equivalents for general structural applications, though exact chemical composition limits differ slightly. For precision engineering or regulated markets, we provide grade equivalence documentation and can supply tubes meeting ASTM A500 Gr.B/C if required.
Q: Can you produce non-standard sizes or custom wall thicknesses for galvanized square tubes?
A: Yes, our production lines cover over 2,800 specifications including non-standard side lengths and wall thicknesses up to 40 mm. Custom sizes enter production within typical lead times, and we provide detailed dimensional drawings for confirmation before manufacturing begins.
Q: What certifications are required for exporting galvanized steel tubes to EU or regulated markets?
A: EU markets typically require CE marking under EN 10210 (hot-finished) or EN 10219 (cold-formed) standards, along with a Declaration of Performance. Our Lloyd’s CE certification and in-house test reports satisfy these requirements, and third-party inspection by SGS or BV can be arranged for additional assurance.
Q: How is theoretical weight calculated, and what is the tolerance policy for galvanized tubes?
A: Theoretical weight is calculated based on nominal dimensions and standard steel density, with a ±5% tolerance applied. Invoicing follows theoretical weight unless actual weighment is agreed upon, ensuring transparent procurement without hidden overcharges.
[Request Your Q235 Galvanized Square Steel Tube Quotation Today]
Send your specifications — size, grade, quantity, and destination — to receive pricing, mill test certificates, and delivery terms within 12 hours.
