Description
Factory-Direct Laser Cutting — 41 invention patents including China’s first sharp-corner rectangular tube, verified by ISO 9001:2015 and Lloyd’s CE certification.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel / Stainless Steel Laser Cut Tube Service |
| Product Type | Machined Steel Product (Laser Cut Tube) |
| Steel Grade | Carbon Steel, Stainless Steel (304/316), Cold-Rolled (SPCC), SGCC, Galvanized Steel, Aluminum (5052/6061), Copper & Brass |
| Process | Laser cutting, tube bending, riveting, drilling, welding, forming, assembly |
| Surface Treatment | Brushing, polishing, anodizing, powder coating, plating, silkscreen printing, sandblasting |
| Tolerance | ±0.2mm |
| Drawing Format | DWG / DXF / STEP / IGS / 3DS / STL / SKP / AI / PDF / JPG |
| Logo | Silk print, laser marking |
| Size/Color | Customized |
| Certificate | ISO9001:2015, SGS, TUV, ROHS, CE, BSCI |
| Application | Parts and enclosures of instruments; custom sheet metal and tube fabrication components |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Instrument Manufacturing | Precision enclosures, sensor housings, control panel frames |
| Machinery & Equipment | Conveyor structures, robotic arm components, hydraulic system frames |
| Architectural & Facade | Curtain wall supports, decorative tube assemblies, structural connectors |
| Steel Structure Fabrication | Connection nodes, bracket assemblies, custom joint components |
What Dimensional Inaccuracy Costs on a Curtain Wall Frame Order
A 3mm cutting deviation forced a Dubai contractor to re-cut 2,000 tubes on-site, delaying the project two weeks.
When sourcing steel tubes for architectural facades or precision machinery, buyers often discover that standard saw cutting cannot hold tight tolerances. The mill’s old equipment leaves burrs, creates angular deviations, and produces inconsistent lengths that fail assembly on-site. Coordinating multiple suppliers for cutting, bending, welding, and surface treatment adds lead time, increases handling damage risk, and creates traceability gaps. [NEED_CITE: precision tube cutting requirements for architectural applications]
How Laser Cutting Matches Architectural and Machinery Tolerance Requirements

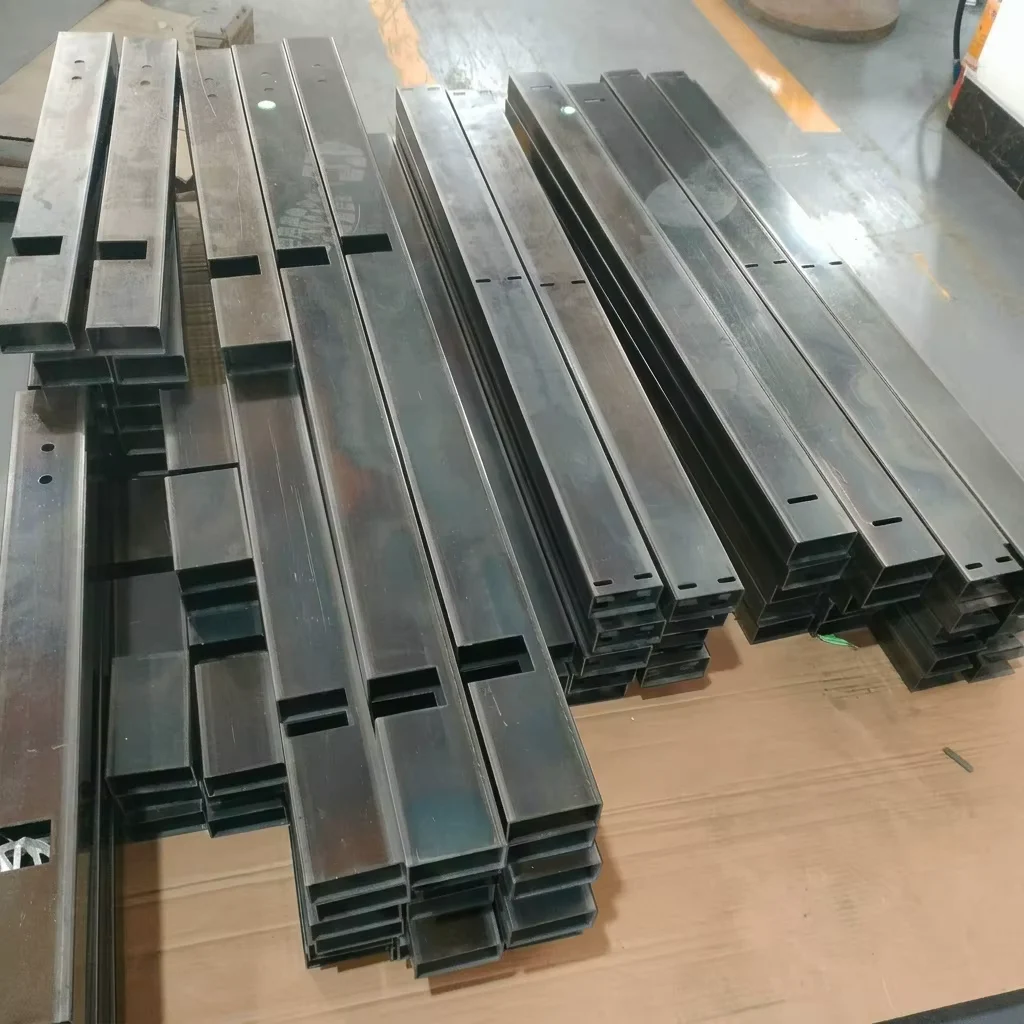

Our CNC fiber laser cutting system delivers ±0.2mm tolerance on round, square, and rectangular tubes in carbon steel, 304/316 stainless steel, galvanized steel, and aluminum alloys. This precision eliminates on-site rework for glass curtain wall frames, instrument enclosures, and machinery components where connection fit-up matters. The precision CNC fiber laser tube cutting service supplier capability includes integrated secondary processing—bending, riveting, drilling, welding—so finished components arrive ready for assembly.
Engineering Compliance and Material Certification for Structural Applications
Structural tube components for buildings and machinery must meet dimensional tolerances defined in EN 10219 for cold-formed hollow sections or ASTM A500 for welded structural tubing. [NEED_CITE: EN 10219 cold-formed hollow section dimensional tolerances] Material certification becomes critical when projects require CE marking for European markets or mill test certificates for North American specifications. Our in-house physical and chemical laboratory tests every batch for chemical composition and mechanical properties, with full documentation traceable by heat number. For corrosion-prone environments, we offer galvanized steel tubes with zinc coating protection or stainless steel 304/316 grades that resist atmospheric and chemical exposure without additional surface treatment.
Steel Grade Selection and Process Capability for Custom Fabrication
Carbon steel grades like Q235 and Q345 provide cost-effective solutions for general structural frames, while S235/S275/S355 European grades meet EN 10219 requirements for load-bearing applications. Stainless steel 304 offers corrosion resistance for food processing and marine environments, with 316 grade providing enhanced chloride resistance. The laser cutting process works across all these materials without heat-affected zone distortion that traditional plasma cutting creates. Surface treatment options—powder coating for architectural aesthetics, anodizing for aluminum components, sandblasting for weld preparation—integrate into the same production flow, eliminating multi-supplier coordination.
Hidden Costs of Sourcing from Multiple Suppliers
Ordering tubes from one supplier, cutting from another, and surface treatment from a third creates material traceability gaps, increases handling damage, and extends lead times. When dimensional accuracy fails at assembly, rework costs multiply—especially for custom-cut architectural tubes where replacement pieces must match existing installations. Missing CE certification or incomplete mill test certificates block customs clearance for EU projects, leaving containers stranded at port while documentation is resolved. [NEED_CITE: steel grade equivalence between EN and ASTM standards]
Why Project Procurement Teams Choose Our Laser Cutting Service
We operate three production lines covering 2,800+ specifications with wall thicknesses up to 40mm, so standard and non-standard sizes ship from stock or enter production within typical lead times. Our 41 invention patents include China’s first sharp-corner rectangular tube technology, filling gaps in domestic and international markets for architectural applications requiring true right-angle corners. Every precision laser cut order undergoes dimensional inspection, mechanical testing, and chemical analysis in our in-house laboratory before shipment, with full mill test certificates provided. Third-party inspection by SGS or BV arranges on request for projects requiring independent verification. Professional container loading with anti-damage measures protects tube surfaces and maintains dimensional accuracy during ocean transit. We export to 50+ countries with complete documentation packages including CE certificates, certificates of origin, and customs clearance support.
Documentation & Compliance
- Mill test certificate documenting carbon steel and stainless steel 304/316 chemical composition and mechanical properties per material standard
- CE certificate confirming compliance with EN 10210/EN 10219 for structural hollow sections exported to European markets
- ISO 9001:2015 quality management system certificate covering laser cutting, bending, welding, and surface treatment processes
- SGS or BV third-party inspection report available for projects requiring independent quality verification
- Material traceability by heat number linking each tube batch to original mill test certificate
- Complete customs documentation including packing list, bill of lading, and certificate of origin for international shipment
Packaging, Loading & Delivery
- Laser cut tubes bundled with steel strips and edge protectors to preserve ±0.2mm tolerance and prevent surface damage during transit
- Galvanized steel tubes packed with plastic wrap to protect zinc coating from moisture and mechanical abrasion
- Custom-length tubes cut to project specifications and marked with heat number, steel grade, and size for easy site identification
- Professional container loading optimized for round, square, and rectangular tube dimensions to maximize整柜 utilization and minimize movement
- Surface treatment completed before packing—powder coated, anodized, or plated components wrapped individually to prevent coating damage
- FOB, CIF, and DDP shipping terms available with door-to-door logistics coordination for project sites
Start Your Precision Tube Fabrication Inquiry
Submit your drawing files (DWG, DXF, STEP, or PDF), material specification, steel grade, quantity, and destination port to receive a detailed quotation within 12 hours. Our engineering team reviews dimensional requirements, confirms laser cutting feasibility, and provides mill test certificate samples for quality verification. For non-standard sizes or custom surface treatment requirements, we offer technical consultation to optimize material selection and production scheduling.
Frequently Asked Questions
Q: What materials and tube shapes can be laser cut?
A: Our precision CNC fiber laser tube cutting service covers round, square, and rectangular tubes in carbon steel, 304/316 stainless steel, cold-rolled SPCC, galvanized steel, aluminum 5052/6061, and copper/brass alloys.
Q: What is the cutting tolerance and how is quality inspected?
A: Laser cutting achieves ±0.2mm tolerance with 100% dimensional inspection before delivery. Our in-house laboratory performs chemical composition and mechanical property testing, with full mill test certificates provided.
Q: Can you provide secondary processing after laser cutting?
A: Yes, integrated services include tube bending, riveting, drilling, welding, forming, and complete assembly. Surface treatment options include powder coating, anodizing, plating, sandblasting, and silkscreen printing.
Q: What drawing formats do you accept for quotation?
A: We accept DWG, DXF, STEP, IGS, 3DS, STL, SKP, AI, PDF, and JPG formats for accurate quotation and production verification.
Q: What is the sample lead time and how is MOQ determined?
A: Sample production follows standard lead times based on complexity and material availability. MOQ varies by specification—contact us with your requirements for detailed scheduling.
Get Your Custom Laser Cut Tube Quotation
Send your specifications, drawings, and material requirements to receive pricing, mill test certificates, and production scheduling within 12 hours.
