Description
Direct Mill Supply for Laser-Cut Carbon Steel Plates — Every SPHC/SPHD/SPHE/SPHF plate is lab-tested for chemistry and hardness before leaving Jinan, with full mill test certificates provided per shipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Carbon Steel Plate (SPHC/SPHD/SPHE/SPHF) |
| Product Type | Steel Plate |
| Steel Grade | SPHC, SPHD, SPHE, SPHF |
| Standard | AISI, ASTM, BS, DIN, GB, JIS |
| Section Shape | Flat plate |
| Thickness | 0.3mm–80mm |
| Width | 1000mm / 1200mm / 1500mm |
| Length | 3m–6m (customizable up to 12m) |
| Technique | Hot Rolled / Cold Rolled |
| Surface Treatment | Coated |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Cutting, Punching, Laser Cutting |
| Application | Container Plate, Ship Plate |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Container Manufacturing | Floor frames, corner castings, side panel reinforcements |
| Shipbuilding | Deck plating, bulkhead stiffeners, hatch covers |
| Structural Fabrication | Base plates, gusset connections, bracket supports |
| Laser-Cut Machined Parts | Structural brackets, flange adapters, machine base components |
| General Engineering | Conveyor frames, equipment skids, platform grating supports |
Why Thickness Tolerance Decides Laser Cutting Yield on Carbon Steel Plate Orders
A ±1% tolerance on a 6mm plate means the difference between a clean laser pass and a cracked cut.
I have seen entire batches of carbon steel plate rejected on the cutting floor because the actual thickness drifted beyond what the laser parameters expected. When tolerances widen, the focal point shifts, kerf width changes, and edges crack — especially on SPHC and SPHD grades where ductility expectations are high. Sourcing a Carbon Steel Plate Laser Cutting Manufacturer who controls tolerance at the rolling stage, not just the finishing stage, prevents this waste. Inconsistent thickness also means weld prep becomes guesswork, and fit-up on structural assemblies fails inspection [NEED_CITE: laser cutting tolerance requirements for structural steel fabrication].
Matching Hot Rolled Grades to Fabrication Demands
SPHC through SPHF represent a progression in forming severity — from general-purpose pressing to deep-drawing applications. When your project involves laser-cut brackets that then undergo bending, selecting SPHD or SPHE ensures the microstructure survives both the thermal stress of cutting and the mechanical strain of forming. Our hot rolled plates in 0.3–80mm thickness are processed on lines that maintain uniform grain structure, and every plate destined for a Carbon Steel Plate Laser Cutting Manufacturer order is verified for consistent hardness across the coil or sheet.
Engineering Compliance and Certification Alignment
Structural plates for container and shipbuilding must meet classification society rules and international standards. Our carbon steel plates conform to JIS G3131 for SPHC/SPHD/SPHE/SPHF grades, and we supply equivalent documentation for ASTM, EN, and GB specifications when required. For EU-bound shipments, CE marking and EN 10210/10219 compliance documentation is available. Third-party inspection through SGS or BV can be arranged before loading, ensuring the mill test certificate matches the physical shipment — a step that prevents customs delays and site rejections [NEED_CITE: mill test certificate requirements for structural steel plate exports].
Understanding SPHC vs SPHD vs SPHE vs SPHF
These JIS-designated grades differ primarily in their guaranteed forming capability. SPHC is the baseline commercial quality for general forming. SPHD adds guaranteed deep-drawing suitability. SPHE extends that further for severe drawing operations. SPHF covers the most demanding forming conditions. The distinction matters when your laser-cut parts will undergo secondary bending or stamping — choosing the wrong grade means cracking at the bend line, even if the chemistry looks correct on paper. Our in-house laboratory tests each heat for chemistry and hardness before release, so the grade on the certificate matches the behavior on your press brake.
The Hidden Cost of Unverified Carbon Steel Plate
I once watched a facade contractor air-freight replacement plates from China because the original batch cracked under laser cutting — wrong hardness, no proper heat treatment, and a mill cert that looked perfect on paper. The real cost was not the replacement material. It was the delayed curtain wall installation, the idle crane rental, and the strained client relationship. Sourcing from a Carbon Steel Plate Laser Cutting Manufacturer who skips lab verification saves money on the invoice but risks everything downstream. Material traceability by heat number, third-party inspection, and verified certificates are not optional extras — they are the baseline for project-grade procurement [NEED_CITE: consequences of material non-conformance in structural steel projects].
Procurement Confidence Through Verified Capability
Every carbon steel plate we supply is processed through our in-house physical and chemical laboratory before shipment. We operate as a direct mill with no trading intermediaries, meaning your specification goes straight to the production line. Our facility covers 2,800+ specifications across tube and plate products, and we hold 41 invention patents including proprietary sharp-corner technology. For international buyers, we maintain ISO 9001:2015 certification, Lloyd’s CE marking, Singapore FPC, and verified status through SGS and BV. Custom lengths up to 12m, multiple width options, and professional container loading with anti-damage measures are standard — not special requests.
Documentation & Compliance
- Mill test certificate documenting SPHC/SPHD/SPHE/SPHF chemical composition and mechanical properties per JIS G3131
- CE certificate per EN 10210/EN 10219 for European market structural compliance
- ISO 9001:2015 quality management system certificate covering plate production and testing
- SGS or BV third-party inspection report verifying dimensions, surface quality, and coating thickness
- Full material traceability by heat number linking each plate to its original slab and test results
- Export customs documents including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

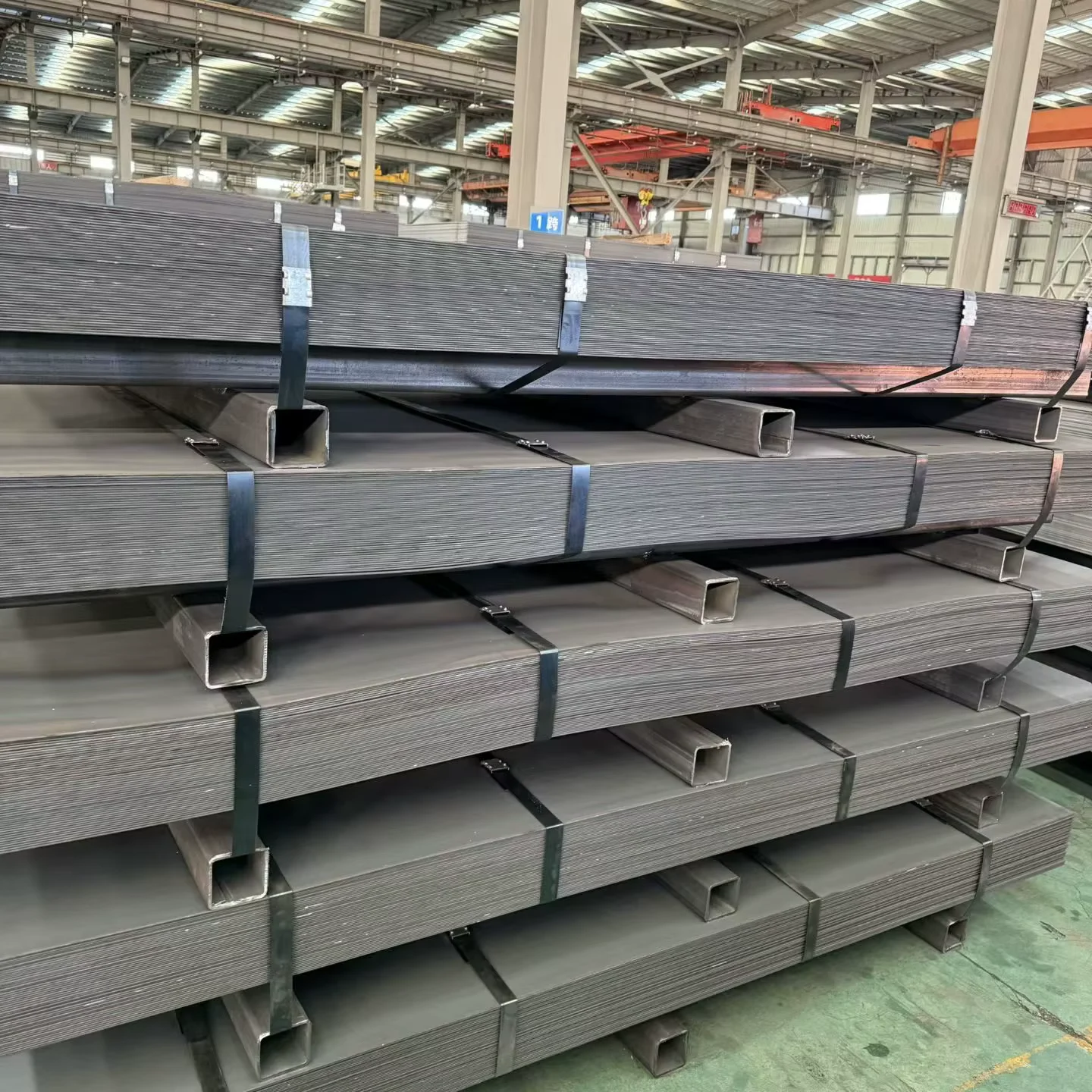

- Hot rolled carbon steel plates bundled with steel straps and edge protectors to prevent coating damage during ocean transit
- Coated surface plates wrapped in waterproof paper and plastic film to preserve finish quality through humidity exposure
- Container loading optimized for 1000mm/1200mm/1500mm widths to maximize payload within 20ft and 40ft units
- Custom cut-to-length plates up to 12m secured with timber dunnage to prevent shifting and edge deformation
- Heat number and grade identification marked on each plate for site traceability and inspection verification
- FOB, CIF, and DDP shipping terms available with full tracking from Jinan mill to destination port
Initiating Your Carbon Steel Plate Inquiry
Submit your required grade, thickness, width, length, quantity, and destination port to receive a detailed quotation with lead time and shipping terms. We provide mill test certificates and third-party inspection reports before shipment, and our team responds to technical inquiries within 12 hours. For laser-cut components, share your drawings and we will confirm processing feasibility and tolerance capability.
Frequently Asked Questions
Q: What is the difference between SPHC, SPHD, SPHE, and SPHF grades?
A: These JIS G3131 grades represent increasing levels of forming severity capability. SPHC is general-purpose, SPHD is for deep drawing, SPHE is for severe drawing, and SPHF covers the most demanding forming conditions. The choice depends on your secondary fabrication requirements after laser cutting.
Q: Can you provide laser cutting and custom shapes according to our drawings?
A: Yes. Our processing services include laser cutting, bending, welding, decoiling, cutting, and punching. Share your drawings with dimensions and tolerances, and we will confirm feasibility and provide a processing quotation alongside the material cost.
Q: How do you ensure thickness tolerance and dimensional accuracy?
A: Every plate is measured in our in-house laboratory before release. Our hot rolled and cold rolled lines maintain ±1% thickness tolerance, and we provide dimensional inspection reports with photos before shipment. Third-party verification through SGS or BV is available on request.
Q: What certifications are available for EU and international markets?
A: We hold ISO 9001:2015, Lloyd’s CE marking per EN 10210/EN 10219, Singapore FPC, and verified status through SGS and BV. Mill test certificates conform to EN 10204 standards, and we provide full export documentation for customs clearance in 50+ countries.
Q: What is the MOQ and typical lead time for custom-cut carbon steel plates?
A: The minimum order quantity is 1 Ton. Standard sizes ship from stock, while custom sizes and cut-to-length orders typically require 15–25 days for production. We will confirm exact lead time based on your specification and current mill schedule.
Request Your Carbon Steel Plate Quotation with Mill Test Certificates
Send your grade, dimensions, quantity, and destination to receive pricing and material documentation within 12 hours.
