Description

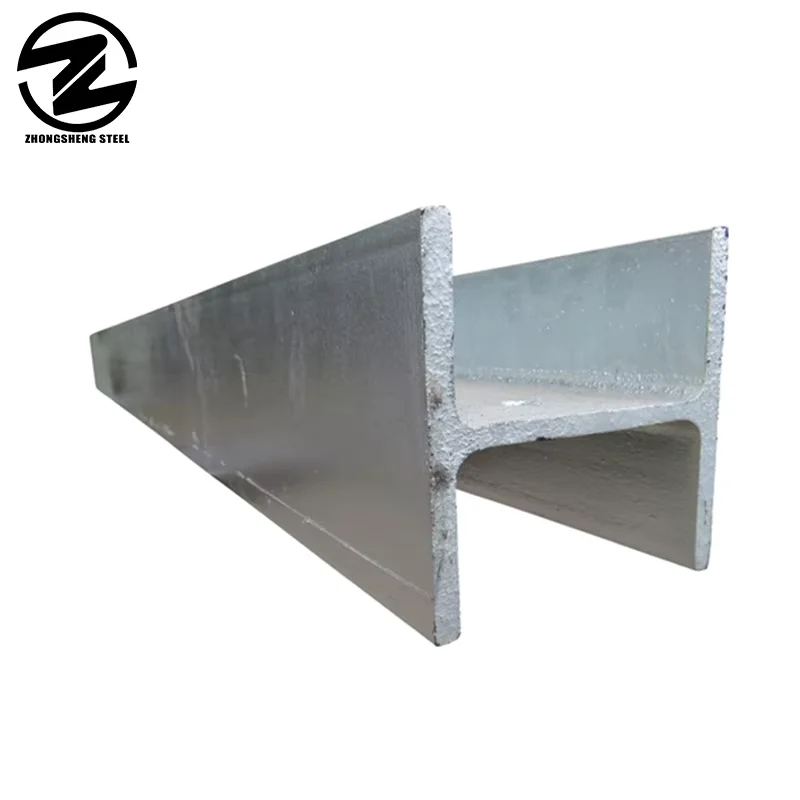

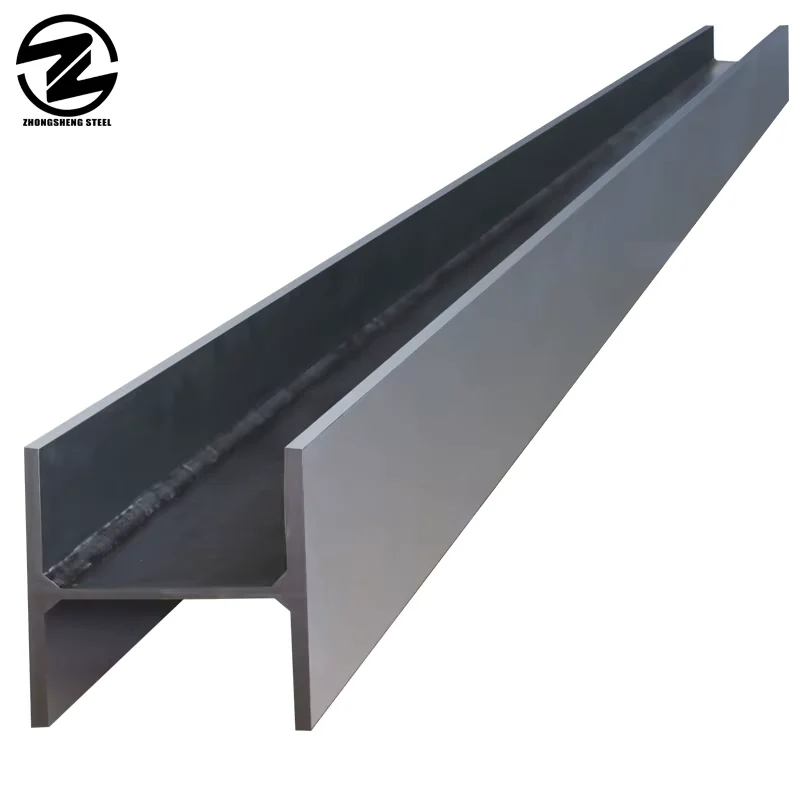

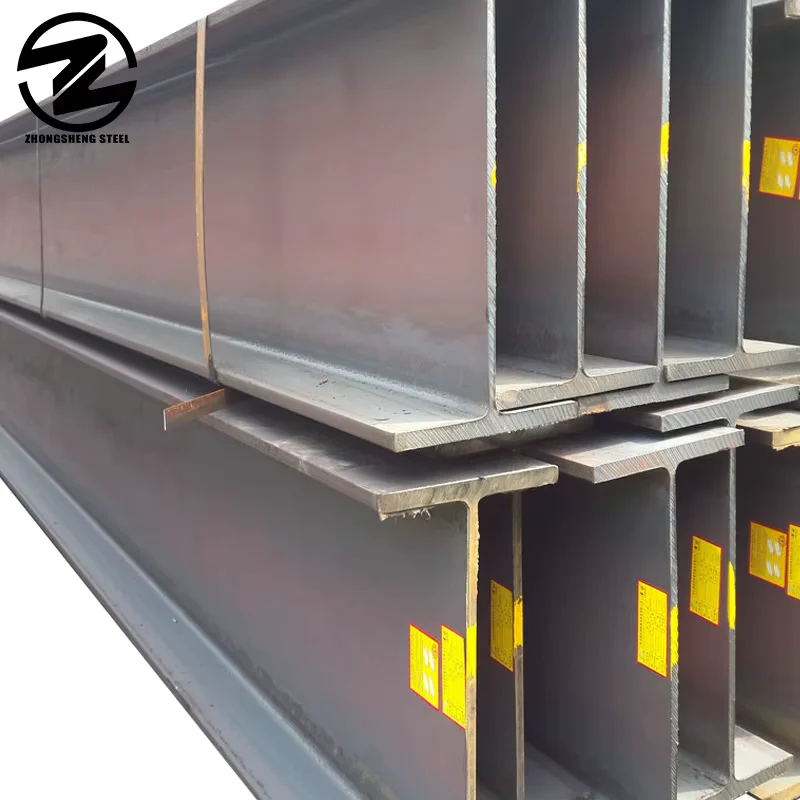

Direct Mill Supply for Wide Flange Beams — Hot-rolled ASTM A36 A992 hot rolled H-beam wide flange beam supplier covering 100 mm to 900 mm sections with in-house laboratory testing before shipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A36/A992/A572-50 Hot-Rolled H-Beam |
| Product Type | H-Beam / Wide Flange Beam |
| Steel Grade | Q235B, Q345B, ASTM A36, ASTM A992, ASTM A572-50, S235JR, S275JR, SM490 |
| Standard | ASTM A36, ASTM A992, ASTM A572-50, EN 10025, JIS G3101, GB/T 11263 |
| Section Shape | H-Beam / I-Beam (Wide Flange) |
| Web Width | 100 mm – 900 mm |
| Flange Thickness | 8 mm – 64 mm |
| Web Thickness | 4.5 mm – 36.5 mm |
| Length | 6 m – 12 m (custom upon request) |
| Technique | Hot Rolled |
| Surface Treatment | Mill Finish / Black / Galvanized |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting |
| Invoicing | By Actual Weight |
| Packing | Seaworthy |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Steel Structure Fabrication | Building frames, column-beam assemblies, portal frames for warehouses |
| Industrial Construction | Heavy machinery support frames, industrial platforms, mezzanine floors |
| Bridge & Infrastructure | Bridge girders, highway gantry supports, civil engineering substructures |
| Commercial Construction | High-rise structural cores, curtain wall support systems, roof trusses |
| Steel Trading & Distribution | Regional stockholding for ASTM A36 A992 hot rolled H-beam wide flange beam supply chains |
Where Grade Equivalence Errors Block Customs Clearance
Mixing ASTM, EN, and GB designations on shipping documents triggers inspection holds at destination ports.
When procurement teams source H-beams for projects spanning multiple regulatory zones, the same structural member may be specified as ASTM A992 in North American drawings, S275JR in European engineering notes, and Q345B in Chinese mill orders. Without verified equivalence documentation, customs authorities flag the shipment for material re-verification. I have seen entire container loads of wide flange beams held for weeks because the mill test certificate listed GB/T 11263 grades while the import license referenced ASTM A572-50. The cost is not just demurrage — it is the structural engineer’s re-approval timeline and the general contractor’s schedule pressure. [NEED_CITE: steel grade equivalence between EN and ASTM standards]
Matching Wide Flange Sections to Structural Load Paths
Hot-rolled H-beams distribute bending moments through their flanges while the web resists shear, making them the default choice for primary frame members in steel buildings and bridge substructures. The 100 mm to 900 mm web width range covers everything from secondary purlin supports to main portal frame rafters. For EPC contractors managing multi-discipline infrastructure projects, consolidating ASTM A36 A992 hot rolled H-beam wide flange beam procurement under a single mill source eliminates the risk of mixed-batch chemistry variations that compromise weld continuity at moment connections.
Structural Code Compliance and Surface Protection Selection
Engineering specifications for steel structures reference EN 1993 or AISC 360, both of which require documented material traceability back to heat numbers. For projects in coastal or industrial corrosion environments, the choice between mill finish, black, and hot-dip galvanized surface treatment directly affects maintenance intervals and life-cycle cost. Galvanized H-beams carry a zinc coating that sacrifices itself to protect the base metal, while mill finish sections rely on paint systems applied after erection. Third-party inspection through SGS or BV before shipment verifies dimensional compliance against the ±1% tolerance band specified in the order. [NEED_CITE: EN 10219 dimensional tolerance requirements for structural sections]
Understanding Hot-Rolled H-Beam Steel Grade Systems
The ASTM A36 A992 hot rolled H-beam wide flange beam product line spans three major international designation systems. ASTM A36 covers carbon steel with minimum yield strength suitable for general structural applications, while A992 is the standard grade for building frames in North America with tighter chemistry controls on manganese and carbon equivalent. A572-50 adds columbium-vanadium microalloying for higher strength-to-weight ratios in bridge and heavy construction. The EN system designates S235JR and S275JR by minimum yield strength in MPa with JR indicating room-temperature Charpy impact requirements. GB/T 11263 Q235B and Q345B follow Chinese national standards where the Q prefix denotes yield strength class. Hot-rolling at temperatures above the recrystallization point produces a mill scale surface that provides adequate corrosion resistance for indoor or painted applications, while outdoor exposure typically requires galvanizing or coating systems.
The Hidden Cost of Unverified Flange Thickness
Ordering H-beams by theoretical weight without specifying actual measurement protocols exposes projects to negative tolerance stacking. A flange thickness at the lower end of the tolerance band reduces the section modulus, which means the beam carries less moment than the design calculation assumed. When third-party inspectors at destination measure flange thickness below the minimum specified in EN 10025 or ASTM A6, the entire batch faces rejection — not just the sampled pieces. The rework cost includes cutting out installed members, replacing them, and re-welding connections that were already accepted. [NEED_CITE: ASTM A6 dimensional tolerance requirements for wide flange shapes]
Why SD XJY Pipe Consolidates Wide Flange Beam Supply
Our in-house physical and chemical laboratory tests every heat for yield strength, tensile strength, elongation, and chemical composition before releasing material for shipment. This eliminates the gap between mill test certificates issued at the rolling stage and actual product chemistry measured at the loading port. We cover 2,800+ specifications across our tube and section steel divisions, meaning your H-beam order can ship alongside square tubes, round pipes, and channel sections in consolidated container loads — reducing freight cost and simplifying customs documentation. Full international certifications including ISO 9001:2015, Lloyd’s CE marking for EN 10210/10219, and Singapore FPC ensure the ASTM A36 A992 hot rolled H-beam wide flange beam clears regulated markets without supplementary testing. Professional container loading with anti-damage measures prevents the bending and surface scoring that triggers rejection at destination.
Documentation & Compliance
- Mill test certificate documenting ASTM A992 chemical composition and mechanical properties per heat number
- CE certificate confirming compliance with EN 10025 for S235JR and S275JR grades exported to European markets
- ISO 9001:2015 quality management certificate covering the full hot-rolled H-beam production process
- SGS or BV third-party inspection report verifying dimensional tolerance and surface quality before container sealing
- Material traceability linking each beam to its heat number for structural engineering audit requirements
- Customs documentation including packing list, bill of lading, and certificate of origin for ASTM A36 A992 hot rolled H-beam wide flange beam shipments
Packaging, Loading & Delivery
- Hot-rolled H-beams bundled with high-tensile steel strips at intervals matching the 6 m to 12 m length range to prevent bundle separation during crane handling
- Mill finish surfaces coated with anti-rust oil before bundling to prevent scale adhesion during ocean transit to tropical ports
- Galvanized H-beams loaded with edge protectors and separated by timber battens to preserve zinc coating integrity at flange edges
- Container loading optimized by nesting shorter cut-to-length beams within full-length sections to maximize payload per 20-foot or 40-foot equipment
- Each bundle tagged with heat number, steel grade (ASTM A992 / S275JR / Q345B), and dimensional标识 for site identification
- FOB, CIF, and DDP shipping terms available with door-to-door tracking for ASTM A36 A992 hot rolled H-beam wide flange beam orders to 50+ countries
Requesting Quotations for Wide Flange Beam Projects
Submit your beam schedule with section dimensions, steel grade, surface treatment preference, total tonnage, and destination port to receive a detailed quotation including unit pricing, production lead time, and mill test certificate confirmation. For non-standard sizes outside the 100 mm to 900 mm web width range, we provide custom rolling feasibility assessment within typical production timelines.
Start Your Wide Flange Beam Procurement
Send your beam schedule with dimensions, grade, and quantity to receive pricing and mill test certificates.
Contact: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjypipe.com
Website: www.sdxjypipe.com
Frequently Asked Questions
Q: How do ASTM A36, A992, and A572-50 differ in structural application?
A: ASTM A36 is a general-purpose carbon steel grade for non-critical structural members. A992 is the standard grade for building frame beams and columns with controlled carbon equivalent for weldability. A572-50 incorporates microalloying elements for higher yield strength, making it suitable for bridge construction and heavy-load applications where weight reduction matters.
Q: Can you provide mill test certificates for multiple standards on the same order?
A: Yes. Our in-house laboratory tests each heat against the standard specified in your purchase order. If your project requires dual-certification (for example, material meeting both ASTM A992 and EN S275JR requirements), we can issue mill test certificates documenting compliance with both standards from the same heat, subject to chemistry and mechanical property overlap.
Q: What is the minimum order quantity for custom-length H-beams?
A: Standard sizes in ASTM A36 A992 hot rolled H-beam wide flange beam ship from stock with no minimum order restriction beyond container-load economics. Custom rolling for non-standard dimensions or specialized grades typically requires consultation on feasibility and volume thresholds.
Q: How do you prevent H-beam damage during container loading and ocean freight?
A: Beams are bundled with steel strips at calculated intervals, separated by timber battens to prevent metal-to-metal contact, and loaded with flanges oriented to resist bending moments during vessel motion. Galvanized sections receive additional edge protection. Our loading team documents each container with photographs before sealing.
Q: What surface treatment options are available for corrosion protection?
A: We supply mill finish (as-rolled with mill scale), black (pickled or blast-cleaned), and hot-dip galvanized H-beams. Mill finish suits indoor or painted applications. Galvanizing provides sacrificial zinc protection for outdoor, coastal, or industrial atmosphere exposure without ongoing maintenance.
