API 5L SSAW Steel Pipe 219-3048mm OD for Oil Gas Pipeline Supplier

Description

Direct Mill Supply for Large Diameter SSAW Pipes — API 5L GR B through X70 spiral welded pipes in 219–3048 mm OD, produced under ISO 9001:2015 with in-house physical and chemical testing.

Technical Specifications

Application Suitability

What Wall-Thickness Tolerance Costs on a Large Diameter Pipeline Order

A ±1% tolerance on a 3048 mm OD pipe means the difference between passing hydrostatic testing and failing field acceptance.

When sourcing Large Diameter SSAW Steel Pipe for pressure-rated transmission lines, buyers frequently encounter wall thickness that drifts beyond the lower limit — especially on the inner weld bead and the 6 o’clock position of the spiral seam. A pipe that measures 24.0 mm instead of the specified 25.4 mm at critical points will fail ultrasonic thickness mapping during pre-commissioning, triggering costly re-inspection or outright rejection. [NEED_CITE: API 5L dimensional tolerance requirements for spiral welded pipe] Beyond dimensional drift, inconsistent mill test certificates across heats create traceability gaps that block customs clearance in regulated markets. Ocean shipment of large diameter pipes without proper internal bracing leads to ovality deformation, making field beveling impossible without re-cutting.

Matching Large Diameter SSAW Steel Pipe to Pipeline and Structural Demands

Large Diameter SSAW Steel Pipe in the 219–3048 mm OD range serves two fundamentally different engineering environments: pressure containment for fluid transmission and structural load-bearing for piling and foundations. For oil and gas pipelines, the spiral submerged arc welding process produces a continuous helical seam that distributes hoop stress more evenly than longitudinal welds, making it suitable for operating pressures defined by API 5L design factors. For bridge piling and foundation caissons, the same diameter range provides the section modulus needed to resist bending moments during driving, while the hot rolled surface accepts protective coatings without additional blast preparation. Our production lines cover the full 219–3048 mm range in wall thicknesses up to 25.4 mm, allowing EPC contractors to source both transmission and structural pipes from a single mill with consistent chemistry and mechanical properties across heats.

Engineering Compliance and Certification Requirements for Spiral Welded Pipe

Large diameter SSAW pipes used in pressure-rated applications must comply with API 5L product specification level (PSL 1 or PSL 2), which governs chemical composition limits, tensile testing frequency, and hydrostatic test pressures. [NEED_CITE: API 5L PSL 2 requirements for spiral submerged arc welded pipe] For projects in the European market, CE marking under EN 10219 or EN 10210 is mandatory, and the mill test certificate must reference the correct harmonized standard — a mismatch here delays customs clearance by weeks. Steel grade selection directly affects both design pressure and sour service capability: API 5L X52 and above grades are specified for higher operating pressures, while sour service environments require additional HIC (hydrogen induced cracking) testing per NACE TM0284. End preparation — plain end for coupling connection or beveled end for field welding — must match the project’s welding procedure specification, and our mill provides beveling per API 5L or customer-drawn profiles.

Steel Grade Selection and SSAW Welding Process Fundamentals

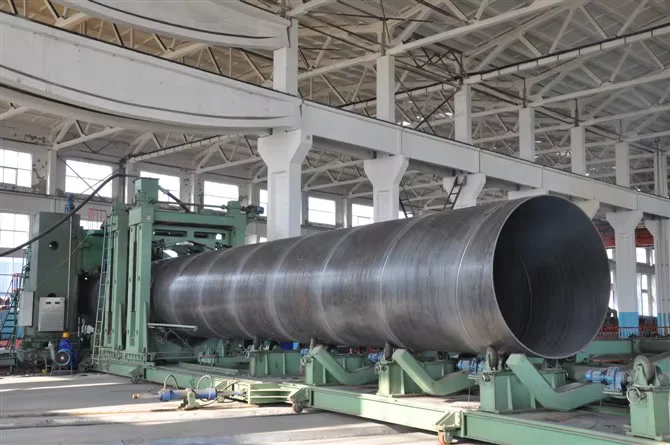

The API 5L grade system designates minimum yield strength in ksi (thousands of pounds per square inch): GR B indicates 42 ksi minimum yield, X42 indicates 42 ksi, X52 indicates 52 ksi, and X70 indicates 70 ksi. For large diameter SSAW pipes, higher grades like X60 and X70 allow thinner walls at the same design pressure, reducing material weight and welding cost — but they demand stricter control of carbon equivalent (CE) to prevent cold cracking in the heat-affected zone. The SSAW process itself forms the pipe by continuously feeding steel coil through a series of forming rolls that create a helical seam, which is then welded from both inside and outside using submerged arc welding. This spiral configuration means the weld seam intersects the pipe axis at an angle, distributing residual stress more favorably than a straight longitudinal seam — particularly important for diameters above 1000 mm where LSAW mills face plate width limitations. The hot rolled surface finish provided as standard removes mill scale and prepares the surface for field-applied coatings such as 3PE, FBE, or epoxy systems.

Hidden Costs of Incorrect Grade Specification and Tolerance Drift

Specifying API 5L GR B when the design engineer calculated for X52 creates a yield strength shortfall that may not surface until field hydrostatic testing — at which point the entire batch becomes non-repairable scrap. Conversely, over-specifying X70 for a low-pressure water main inflates material cost without engineering justification. [NEED_CITE: steel grade equivalence and substitution rules in pipeline engineering] Missing or incomplete mill test certificates — particularly absent heat numbers or unverified chemical composition — trigger rejection at destination port customs, regardless of whether the physical product meets specification. Negative tolerance stacking on wall thickness compounds across large diameter pipes: a 5% wall reduction on a 25.4 mm nominal wall yields a 24.1 mm actual wall, which may fall below the minimum allowed by API 5L Table E.1, voiding the pressure rating entirely.

Why Source Large Diameter SSAW Steel Pipe from Xin Jiyuan

Our mill operates dedicated SSAW production lines covering the full 219–3048 mm diameter range with wall thickness up to 25.4 mm, eliminating the need to split orders across multiple suppliers for different diameter segments. Every heat undergoes chemical composition analysis and mechanical testing in our in-house physical and chemical laboratory, with mill test certificates issued per EN 10204 3.1 format — traceable from coil to finished pipe by heat number. We hold ISO 9001:2015 certification and Lloyd’s Register CE marking for EN 10210/EN 10219, ensuring that Large Diameter SSAW Steel Pipe exported to regulated markets clears customs without documentation disputes. Third-party inspection by SGS or Bureau Veritas is arranged at our facility before shipment, providing independent verification of dimensions, weld quality, and coating thickness. For export orders, our loading team uses custom cradles and internal bracing to prevent ovality deformation during ocean transit — a critical measure for pipes above 1500 mm OD where unsupported spans cause permanent out-of-roundness. Custom length cutting, end beveling, and marking per customer specification are performed in-house, with typical production lead times for non-stock sizes.

Documentation & Compliance

• Mill test certificate documenting API 5L GR B through X70 chemical composition and mechanical properties per heat number, issued per EN 10204 3.1
• CE certificate covering EN 10210/EN 10219 for spiral welded hollow sections exported to European Union markets
• ISO 9001:2015 quality management system certificate for SSAW steel pipe manufacturing processes
• SGS or BV third-party inspection report verifying outer diameter, wall thickness, weld seam quality, and hydrostatic test results
• Material traceability documentation linking each pipe to coil heat number, welding parameters, and final inspection records
• Export customs documents including packing list, ocean bill of lading, and certificate of origin per destination country requirements

Packaging, Loading & Delivery

• Large diameter SSAW pipes bundled with steel strip ties and protected by rubber edge guards to prevent coating damage during handling and ocean transit
• Hot rolled surface pipes coated with anti-rust oil on both ID and OD to prevent corrosion during storage and shipping

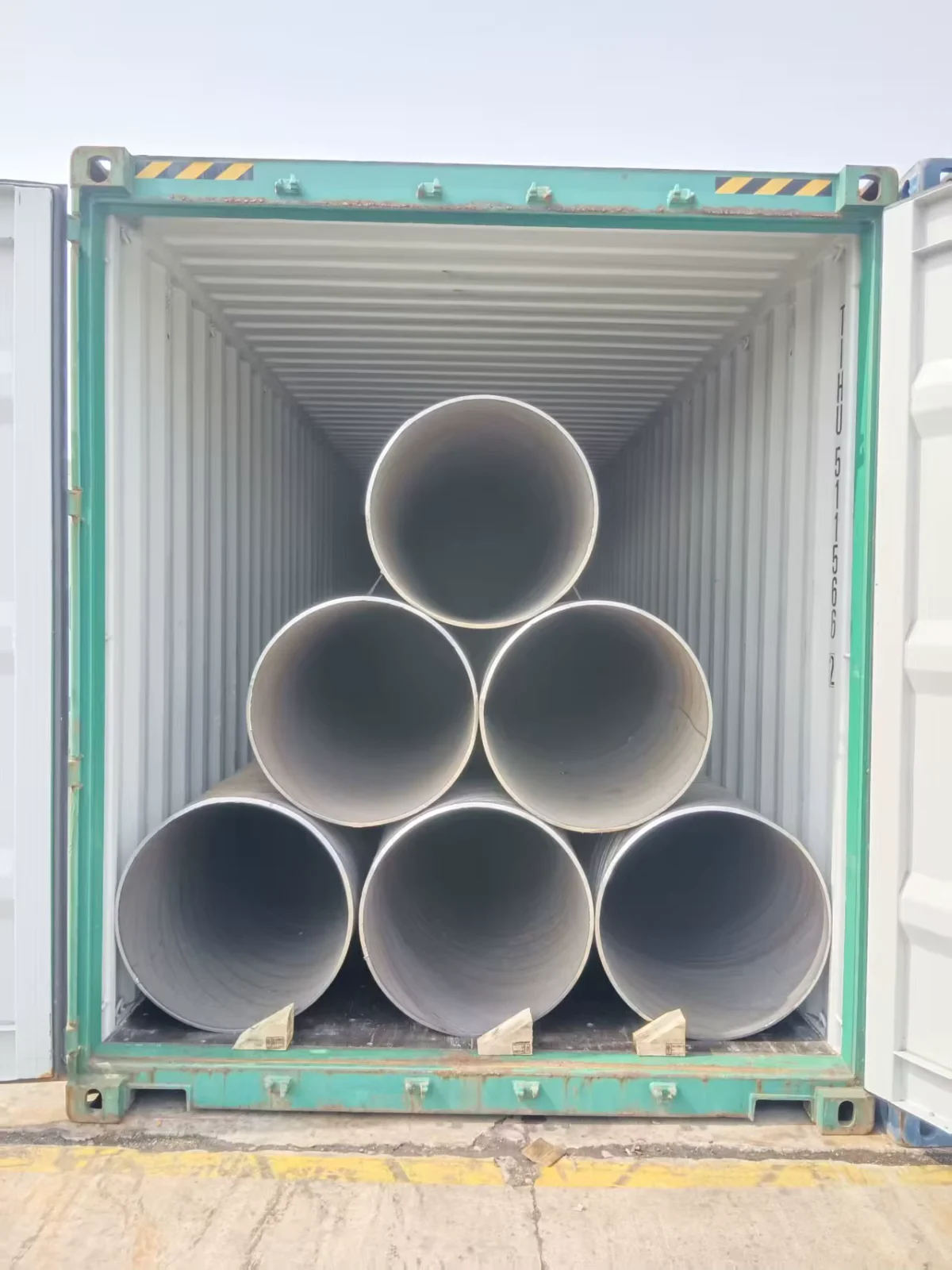

• Container loading optimized by diameter: pipes 219–600 mm OD loaded in standard 20ft or 40ft containers with wooden chocks; pipes above 600 mm OD shipped in bulk break or flat rack containers
• Custom length cutting available per customer request, with standard export lengths of 6m, 9m, or 12m to maximize container utilization
• Pipe identification marked with heat number, steel grade, OD × WT, and length at both ends and at 1m intervals using stenciled paint
• Shipping terms available as FOB, CIF, or DDP with door-to-door logistics coordination to project site or destination port

Requesting a Quotation for Large Diameter SSAW Steel Pipe

Submit your specification sheet including outer diameter, wall thickness, steel grade per API 5L or ASTM, total quantity in tons or meters, required end treatment, and destination port — our engineering team responds within 12 hours with unit pricing, mill test certificate format, and estimated production schedule. For non-standard diameters or wall thicknesses outside the 219–3048 mm / 5–25.4 mm range, we provide feasibility assessment and alternative grade recommendations. Third-party inspection arrangements and CE certification documentation are confirmed at the quotation stage to prevent clearance delays.

Frequently Asked Questions

Q: What is the difference between SSAW and LSAW steel pipes?

A: SSAW (Spiral Submerged Arc Welded) pipe is formed from steel coil into a helical seam, allowing production of large diameters from narrower coil widths. LSAW (Longitudinal Submerged Arc Welded) pipe uses plate pressed into a U-O-E or J-C-O-E shape with a straight longitudinal seam. SSAW is typically more cost-effective for diameters above 500 mm and offers better distribution of residual stress, while LSAW is preferred for very thick walls and certain offshore applications.

Q: Which API 5L grade is suitable for sour service (H2S) environments?

A: For sour service containing hydrogen sulfide, API 5L grades must meet additional requirements per NACE MR0175 / ISO 15156, including restricted hardness and HIC (hydrogen induced cracking) resistance testing. Grades such as X42, X52, and X60 are commonly specified for sour service pipelines, with chemical composition controlled to limit sulfur and phosphorus content.

Q: Can you provide third-party inspection (SGS/BV) before shipment?

A: Yes, we arrange SGS or Bureau Veritas third-party inspection at our facility before shipment. The inspection covers dimensional verification (OD, WT, length), visual and ultrasonic weld examination, hydrostatic testing witness, and mill test certificate review. Inspection reports are issued directly to the buyer.

Q: What is the standard packaging and loading method for large diameter pipes?

A: Pipes are bundled with steel strips and protected by rubber edge guards. For diameters 219–600 mm, pipes are loaded in standard containers with wooden chocks to prevent movement. For diameters above 600 mm, pipes are shipped in bulk break or flat rack containers. Internal bracing is used for pipes above 1500 mm OD to prevent ovality during transit.

Q: How do you handle coating requirements (3PE / FBE / epoxy) after SSAW production?

A: Our standard delivery condition is hot rolled surface, which is suitable for field-applied coatings. For factory-applied 3PE, FBE, or epoxy coatings, we coordinate with certified coating applicators. The coating specification including type, thickness, and surface preparation grade (Sa 2.5 typically) should be confirmed at the inquiry stage to ensure proper scheduling.

Get Your Large Diameter SSAW Steel Pipe Quote with Mill Test Certificate

Send your pipe specification — OD, WT, grade, quantity, and destination — to receive pricing, MTC format, and production schedule within 12 hours.
