Description

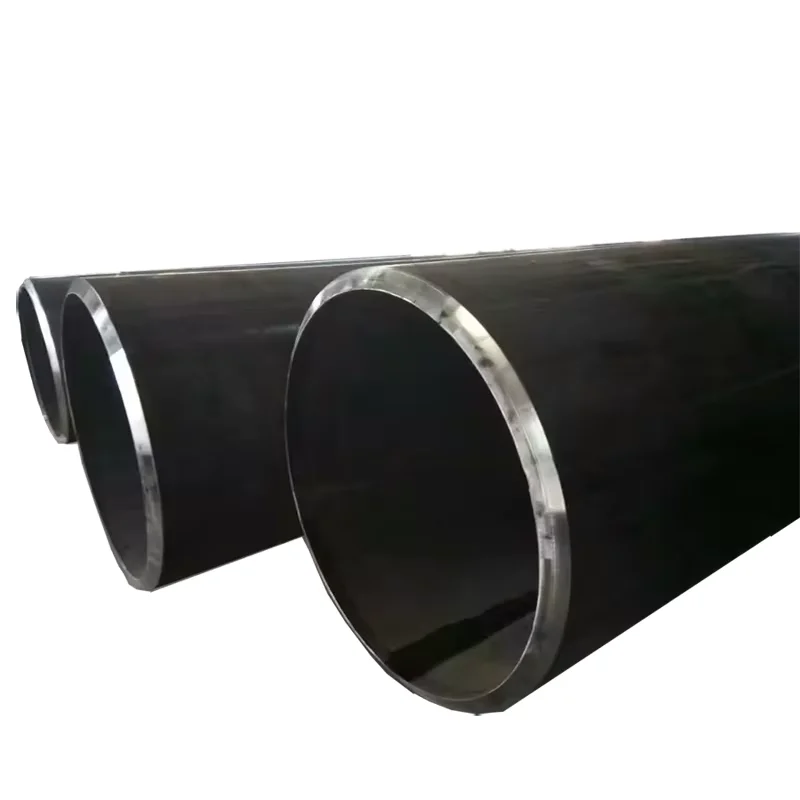

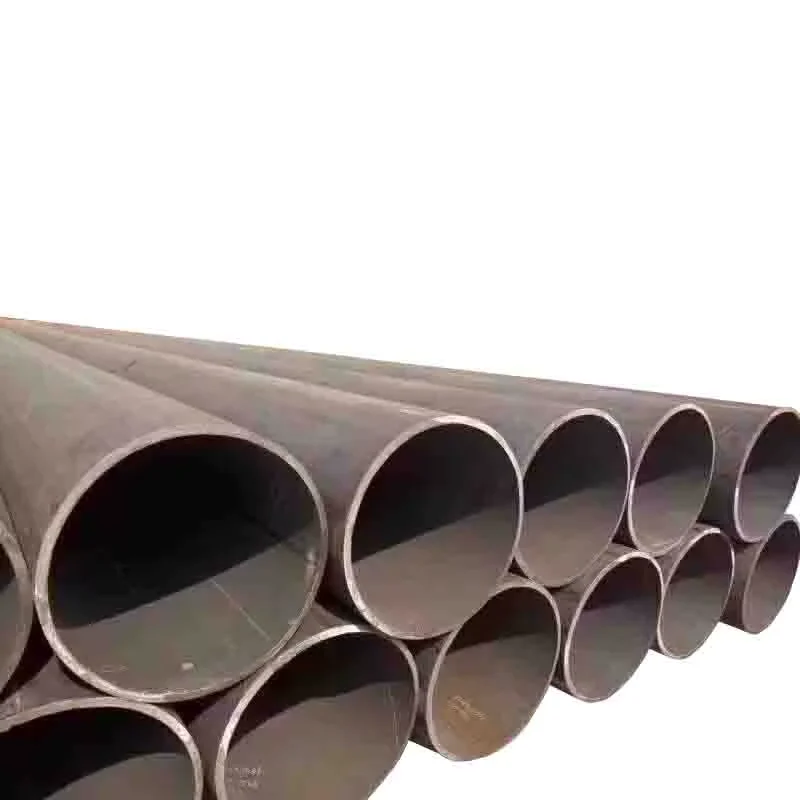

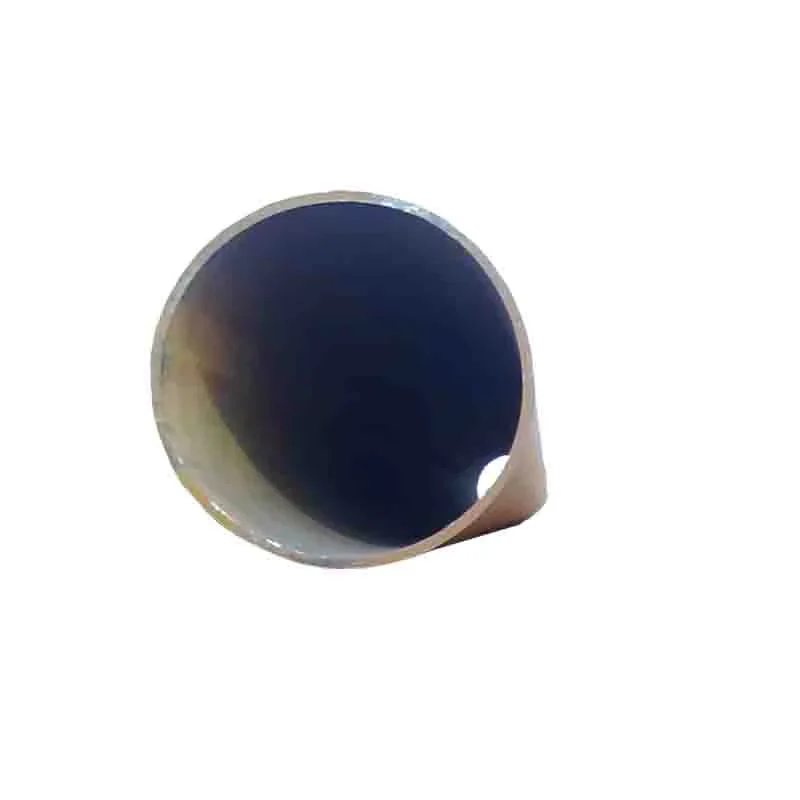

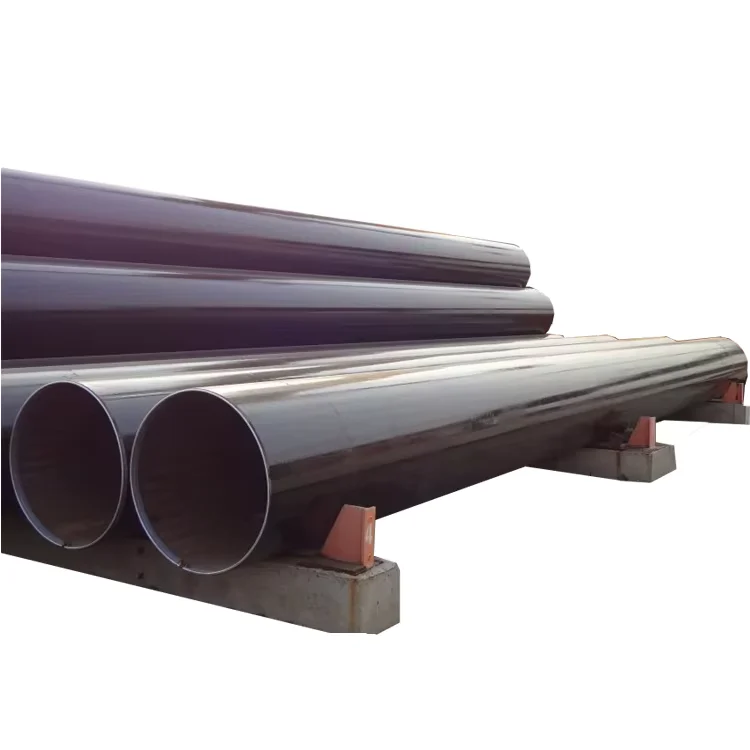

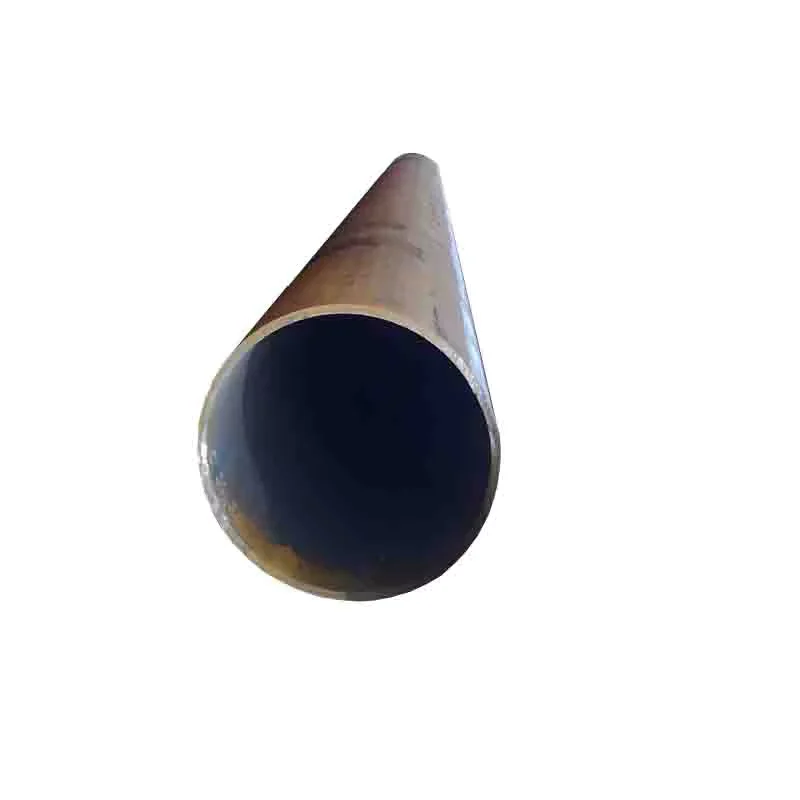

Factory-Direct API 5L X42 LSAW Pipe — Every API 5L X42 LSAW welded steel pipe rolls from our own mill with in-house chemical and mechanical testing, eliminating trader markups and documentation gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | API 5L X42 PSL1 LSAW Welded Steel Pipe |
| Product Type | LSAW Welded Steel Pipe / Longitudinal Submerged Arc Welded Pipe |
| Steel Grade | API 5L X42 (also available Gr.B–X70, Q235B, Q355B, S235, S355, SS400, STK400) |
| Standard | API 5L PSL1 / ASTM A53 / EN 10204 / JIS / DIN / GB/T 3091 |
| Section Shape | Round |
| Outer Diameter | 406.4 mm – 1524 mm |
| Wall Thickness | 8 mm – 50 mm |
| Length | 5.8 m / 6 m / 11.8 m / 12 m / Random Length |
| Technique | LSAW / Submerged Arc Welding |
| Surface Treatment | Black Painting / 3LPE Coating / Epoxy Coating / Varnish / Galvanized |
| Ends | Plain / Beveled |
| Tolerance | ±1% |
| Application | Fluid transport / Oil pipeline / Gas pipeline / Boiler tubes / Structure pipe / Pile pipe / Water transport |
| MOQ | 10 Tons |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Onshore and offshore transmission pipelines requiring API 5L X42 with 3LPE anti-corrosion coating |
| Municipal Infrastructure | Large-diameter water mains, drainage outfalls, and slurry transport lines |
| Piling & Foundation | Bridge piers, port jetties, and offshore platform support piles in marine environments |
| Industrial Plant | Process fluid lines, boiler feed systems, and cooling water circuits in refineries and power stations |
| Steel Structure Fabrication | Column casings, truss chords, and heavy-load structural frames for industrial buildings |
What Epoxy Coating Thickness Means When API 5L X42 LSAW Welded Steel Pipe Hits the Trench
Coating adhesion failure at the weld seam is the single most expensive defect on a buried pipeline.
On a Southeast Asian gas distribution project I visited, a batch of LSAW pipes arrived with epoxy coating that passed visual inspection but failed holiday detection at the longitudinal weld. The entire lot had to be stripped, re-blasted, and re-coated at the laydown yard — three weeks of delay on a critical-path schedule. The root cause was inconsistent surface preparation before coating, not the epoxy material itself. When you source API 5L X42 LSAW welded steel pipe with epoxy or 3LPE coating, the pre-treatment process matters as much as the coating specification. [NEED_CITE: surface preparation standards for fusion-bonded epoxy coating on steel pipe]
Matching Large-Diameter LSAW Pipe to High-Pressure Pipeline and Piling Demands
API 5L X42 LSAW welded steel pipe in the 406.4 mm to 1524 mm OD range covers the majority of transmission pipeline and heavy piling requirements. The submerged arc welding process produces full-penetration longitudinal welds that maintain structural continuity under internal pressure and external bending loads — critical for driven piles in marine soils and buried pipelines subject to ground settlement. Wall thickness up to 50 mm with ±1% tolerance ensures that design engineers can rely on consistent load-bearing capacity across every joint. For corrosive service environments, our epoxy and 3LPE coating lines apply multi-layer protection that meets DNV and NACE field joint compatibility standards.
Engineering Compliance and Certification for Regulated Pipeline Projects
Pipeline projects governed by ASME B31.4, B31.8, or equivalent national codes require full material traceability from heat number through final coating. API 5L PSL1 mandates minimum chemical composition limits and tensile testing, while PSL2 adds Charpy impact requirements for low-temperature service. For European market imports, EN 10204 3.1 or 3.2 certificates must accompany each shipment, and Lloyd’s CE marking under EN 10210 / EN 10219 confirms conformity with the Pressure Equipment Directive where applicable. [NEED_CITE: API 5L PSL1 vs PSL2 testing requirements comparison] Our in-house physical and chemical laboratory performs full-spectrum testing on every heat, and third-party inspection by SGS or BV is arranged before shipment to satisfy client-side QA protocols and customs documentation requirements.
Understanding API 5L X42 Steel Grade and LSAW Welding Process
API 5L X42 is a medium-strength pipeline grade with a specified minimum yield strength positioning it between Gr.B and X52 — suitable for moderate-pressure gas and water transmission where higher grades like X65 or X70 would be cost-inefficient. The “X42” designation indicates 42 ksi (approximately 290 MPa) minimum yield, and PSL1 (Product Specification Level 1) covers standard chemical and mechanical testing without mandatory impact testing. LSAW (Longitudinal Submerged Arc Welding) forms the pipe from rolled plate or coil, with the longitudinal seam welded from both inside and outside using submerged arc process — this produces a weld zone with mechanical properties matching or exceeding the parent metal, unlike ERW which relies on resistance heating and can leave a visible weld line. For large diameters above 406 mm and heavy walls above 20 mm, LSAW is the only practical manufacturing route; SSAW (spiral welded) serves different diameter-to-thickness ratios and carries different residual stress profiles.
Hidden Costs of Buying API 5L X42 LSAW Welded Steel Pipe Without Verified Documentation
Purchasing pipeline pipe from unverified sources creates cascading project risks. Material that fails to meet API 5L X42 chemical composition limits will not pass mill test certificate review at customs, causing shipment holds and demurrage charges. Wall thickness below the specified tolerance triggers rejection during client-side ultrasonic inspection, forcing costly replacement or engineering re-assessment. Missing or forged certificates expose the buyer to liability under engineering codes — a pipeline failure traced to substandard material can void insurance coverage entirely. [NEED_CITE: consequences of non-conforming pipeline material in ASME B31.8 projects] Coating defects discovered after burial require excavation and field repair at multiples of the original coating cost.
Why Procurement Teams Choose Our Mill for API 5L X42 LSAW Welded Steel Pipe
We operate three dedicated LSAW production lines covering over 2,800 specifications in round pipe, square and rectangular tube, and section steel — consolidating your entire structural and pipeline steel procurement under one roof eliminates the coordination overhead of managing multiple suppliers. Our in-house physical and chemical laboratory tests every heat for composition, tensile strength, and where required, impact toughness, generating mill test certificates that satisfy EN 10204 3.1 requirements without third-party delay. Full international certifications including ISO 9001:2015, Lloyd’s CE under EN 10210 / EN 10219, Singapore FPC, and SGS/BV verification ensure that your shipment clears customs in EU, Middle East, and Southeast Asian ports without documentation disputes. We hold 41 invention patents including proprietary sharp-corner rectangular tube technology, and our export experience across 50+ countries means our loading teams understand how to secure large-diameter pipe in containers to prevent ovality and coating damage during ocean transit. Custom non-standard sizes, beveled ends, and specific coating thickness requirements are accommodated with low MOQ flexibility.
Documentation & Compliance
- Mill test certificate documenting API 5L X42 chemical composition, yield strength, and tensile properties per API 5L PSL1, with heat number traceability
- CE certificate under EN 10210 / EN 10219 for pipeline and structural hollow sections exported to European Economic Area markets
- ISO 9001:2015 quality management system certificate covering the full production process from plate receiving to final coating inspection
- SGS or BV third-party inspection report verifying dimensional tolerance, coating thickness, and weld integrity prior to shipment
- Material traceability documentation linking each pipe to its heat number, coating batch, and inspection report
- Complete customs documentation including packing list, bill of lading, and certificate of origin formatted for destination port requirements
Packaging, Loading & Delivery
- API 5L X42 LSAW pipes bundled with high-tensile steel strips and protected by rubber edge guards to preserve epoxy and 3LPE coating integrity during handling and ocean transit
- Large-diameter pipes (OD above 900 mm) loaded individually with internal steel bracing to prevent ovality deformation in open-top containers or breakbulk vessels
- Beveled ends fitted with plastic protectors to prevent damage to坡口 preparation and coating at the weld preparation zone
- Black painted pipes receive anti-rust oil spray before bundling to prevent surface oxidation during extended storage or humid climate transit
- Heat number, steel grade API 5L X42, and pipe dimensions stenciled on each pipe end for site identification and traceability verification
- FOB, CIF, and DDP shipping terms available with professional container loading plans optimized for 40ft HC containers and breakbulk vessels
Getting Your API 5L X42 LSAW Welded Steel Pipe Quotation Started
Submit your required outer diameter, wall thickness, length, steel grade, surface treatment preference, and destination port — our technical team responds within 12 hours with a detailed quotation including unit pricing, production lead time, and shipping terms. For non-standard dimensions or specific coating thickness requirements, we provide custom manufacturing proposals with mill test certificate samples for your QA review. Third-party inspection by SGS or BV can be arranged at our facility before shipment to satisfy your project specification requirements.
Frequently Asked Questions
Q: What is the difference between API 5L PSL1 and PSL2 for X42 grade?
A: PSL1 covers standard chemical composition and tensile testing requirements, while PSL2 adds mandatory Charpy impact testing, stricter chemical limits on carbon equivalent, and additional non-destructive testing requirements. For moderate-pressure transmission pipelines in non-arctic environments, PSL1 is typically sufficient; PSL2 is specified for sour service or low-temperature applications.
Q: Can you supply API 5L X42 LSAW welded steel pipe with 3LPE coating to NACE or DNV standards?
A: Yes. Our 3LPE coating line applies fusion-bonded epoxy primer, copolymer adhesive, and polyethylene outer layer to meet DNV-RP-F106 and NACE RP0390 requirements for buried pipeline corrosion protection. Coating thickness and adhesion testing are documented in the mill test certificate.
Q: What mill test certificates are provided for EU customs clearance?
A: We provide EN 10204 3.1 certificates as standard, with EN 10204 3.2 available upon request with third-party witness testing. Lloyd’s CE certification under EN 10210 / EN 10219 is included for regulated market shipments.
Q: How are large-diameter LSAW pipes packed to prevent coating damage during shipping?
A: Pipes are bundled with steel strips and rubber edge protectors, with beveled ends capped. For OD above 900 mm, individual cradles and internal bracing prevent ovality. Epoxy and 3LPE coated pipes receive additional separation layers between bundles.
Q: What is the minimum order quantity for API 5L X42 LSAW welded steel pipe?
A: The standard MOQ is 10 tons. For trial orders or specific project requirements, we can discuss flexible quantities based on available stock sizes and production scheduling.
Get Your API 5L X42 Pipeline Pipe Quote with Full Mill Certification
Send your specifications — OD, wall thickness, length, coating requirement, and destination — to receive pricing and mill test certificate samples within 12 hours.
