Description
Direct Mill Supply for Large Diameter Pipeline Projects — Every DN1400 JCOE pipe is produced in-house and tested in our own physical and chemical laboratory before shipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A53 Gr.B JCOE LSAW Steel Pipe |
| Product Type | JCOE Welded Steel Pipe (LSAW) |
| Steel Grade | ASTM A53 Gr.B, X42, X52, X60, X70, S235, S355, SS400 |
| Standard | API 5L PSL1, ASTM A53, EN 10210 |
| Section Shape | Round |
| Outer Diameter | DN1400 (1421–1423 mm) |
| Wall Thickness | 8–50 mm |
| Length | 5.8 m / 6 m / 11.8 m / 12 m / Random Length |
| Technique | JCOE / LSAW / Submerged Arc Welding (SAW) |
| Surface Treatment | Black Painting / Galvanized / 3LPE Coating / FBE Coating |
| Ends | Bevel Ends |
| Tolerance | ±1% |
| Invoicing | By Actual Weight |
| Application | Fluid transport, drinking water pipeline, oil & gas pipeline, structure pipe, pile pipe |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Municipal Water Infrastructure | Drinking water transmission mains, raw water intake pipelines, sewage outfall lines |
| Oil & Gas EPC | Onshore gathering lines, gas distribution networks, crude oil trunk pipelines |
| Civil & Foundation Engineering | Bridge pile foundations, port wharf piling, retaining wall structural columns |
| Industrial Plant Piping | Cooling water circulation, process fluid transfer, fire water ring mains |
What Wall-Thickness Tolerance Costs on a JCOE LSAW Large Diameter Steel Pipe Order
A 0.3 mm negative tolerance deviation on a DN1400 pipe means the entire batch fails third-party inspection at destination.
On a municipal water project in Riyadh, we once shipped a batch of DN1400 JCOE pipes with 12.5 mm wall thickness. Upon arrival, the client’s SGS re-inspection found the negative tolerance exceeded 0.3 mm — the whole lot was rejected. That single shipment taught every member of our production team that large diameter LSAW pipes demand rigorous dimensional control at every JCOE forming pass. [NEED_CITE: dimensional tolerance requirements for large diameter LSAW steel pipes per API 5L]
When wall thickness drifts beyond ±1%, the consequences cascade: hydrostatic test pressure drops below design requirements, field welding bevel angles become inconsistent, and the client’s engineering consultant flags the entire lot. For a JCOE LSAW large diameter steel pipe supplier, controlling tolerance is not a quality bonus — it is the baseline for project acceptance.
How DN1400 JCOE Pipes Match Heavy-Duty Pipeline Engineering
Large diameter submerged arc welded pipes in the DN1400 range serve projects where flow volume and structural load cannot be compromised. The JCOE forming process plates the steel into a true circular profile before submerged arc welding seals the longitudinal seam — this produces uniform weld penetration across wall thicknesses up to 50 mm, which is essential for drinking water mains operating under continuous internal pressure and for pile pipes driven into dense soil strata. Our JCOE LSAW large diameter steel pipe production covers ASTM A53 Gr.B through API 5L X70, so engineers can specify the exact grade their hydraulic design requires without switching suppliers mid-project.
Engineering Compliance and Certification Requirements
Municipal water authorities in the EU require CE marking under EN 10210 for structural hollow sections used in load-bearing pipeline supports, while North American EPCs typically specify ASTM A53 or API 5L PSL1 for buried transmission lines. The JCOE LSAW large diameter steel pipe we produce meets both frameworks — our Lloyd’s CE certification covers EN 10210 and EN 10219, and our in-house laboratory issues mill test certificates conforming to EN 10204 3.1 format with heat-level chemical and mechanical data. [NEED_CITE: EN 10204 inspection document types for steel pipe mill test certificates] For buried pipelines in corrosive soil, we apply 3LPE or FBE coating at the mill, eliminating the need for the client to arrange separate coating contractors and reducing total project lead time.
Steel Grade Selection and JCOE Welding Process
ASTM A53 Gr.B is the default grade for general-purpose water and low-pressure gas pipelines, offering adequate yield strength for DN1400 applications at moderate operating pressures. When the project moves into high-pressure gas transmission or sour service environments, API 5L X52 through X70 grades provide progressively higher yield and tensile values — the X-series grades were developed specifically for pipeline integrity under sustained internal pressure and cyclic loading. The JCOE process itself matters: compared to SSAW (spiral welded), JCOE produces a single straight longitudinal seam, which simplifies ultrasonic weld inspection and reduces the probability of weld defects in heavy-wall sections. [NEED_CITE: JCOE versus SSAW welding process comparison for large diameter pipes] For wall thicknesses above 25 mm at DN1400 diameter, JCOE forming ensures consistent plate curvature before the submerged arc welding pass, whereas spiral forming at this scale introduces additional residual stress at the helical seam.
Hidden Costs of Procuring the Wrong Grade or Unverified Tolerance
Specifying ASTM A53 Gr.B when the hydraulic design actually requires API 5L X52 means the pipe may pass visual inspection but fail hydrostatic testing at the design pressure — forcing full replacement at a cost many times the original material savings. Similarly, accepting a mill test certificate that lacks heat-level traceability creates a compliance gap: EU customs authorities and project consultants routinely reject shipments without EN 10204 3.1 or 3.2 documentation, regardless of the physical quality of the pipe. [NEED_CITE: steel grade equivalence between API 5L and ASTM A53 standards] A JCOE LSAW large diameter steel pipe that arrives without proper end protectors or internal support bracing will show ovality deformation after ocean transit — another hidden cost that only surfaces at the job site, not at the loading port.
Why Project Teams Source JCOE LSAW Large Diameter Steel Pipe from SD XJY Pipe
We operate three dedicated JCOE and LSAW production lines covering over 2,800 specification combinations, so DN1400 at 50 mm wall thickness is within our standard production range — no special tooling delays. Our in-house physical and chemical laboratory performs dimensional, mechanical, and chemical testing on every heat before release, and we issue mill test certificates in EN 10204 3.1 format as standard. Full international certifications are in place: ISO 9001:2015, Lloyd’s CE under EN 10210 and EN 10219, Singapore FPC, and SGS/BV third-party verification is arranged on request. For export orders, our loading team uses custom steel cradles and internal bracing on every DN1400 pipe to prevent ovality during container or breakbulk shipment — a practice we developed after years of serving Middle East and Southeast Asian pipeline contractors. We also hold 41 invention patents, and our team participated in drafting China’s cold-formed steel industry standards in 2018.
Documentation & Compliance
- Mill test certificate documenting ASTM A53 Gr.B chemical composition and mechanical properties per heat number, issued in EN 10204 3.1 format
- CE certificate under EN 10210 for structural hollow sections, issued by Lloyd’s Register for EU market clearance
- ISO 9001:2015 quality management system certificate covering the full JCOE LSAW production process
- SGS or BV third-party inspection report available for pre-shipment dimensional and coating thickness verification
- Material traceability report linking each pipe to its heat number, plate batch, and welding pass record
- Export documentation including packing list, bill of lading, and certificate of origin for destination customs clearance
Packaging, Loading & Delivery
- DN1400 JCOE pipes bundled with high-tensile steel strips and separated by rubberized cradles to prevent surface damage to black painting or 3LPE coating during transit

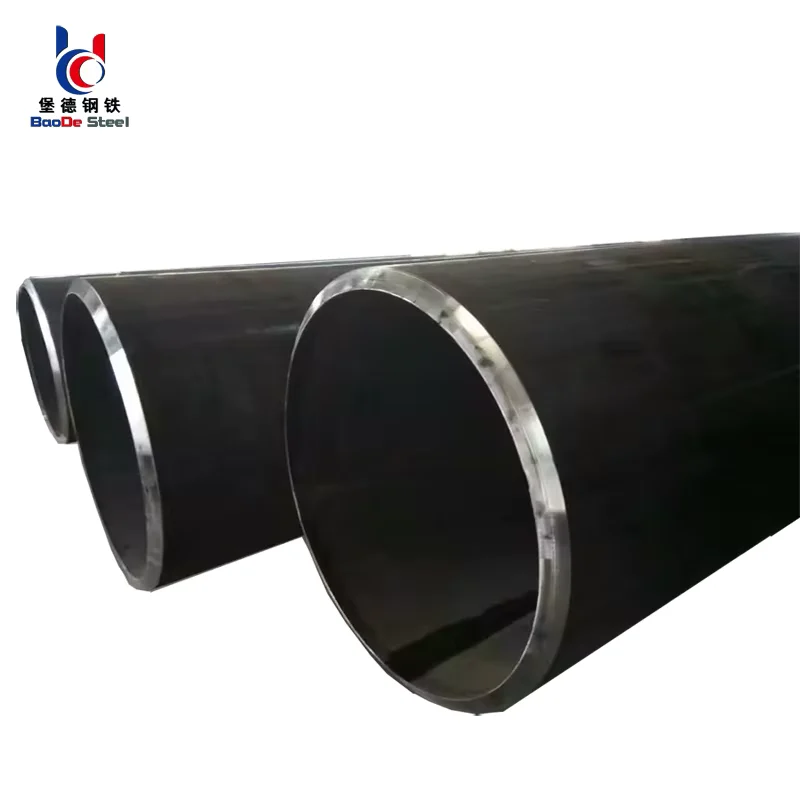

- Bevel ends fitted with HDPE protectors to preserve welding preparation geometry for field joint welding upon arrival

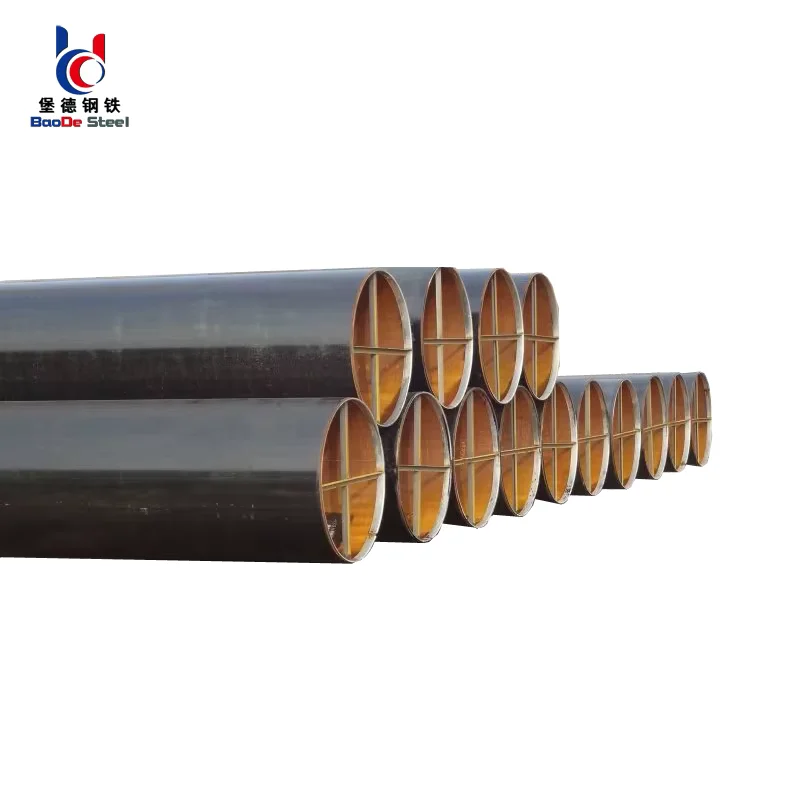

- Internal steel cross-bracing installed in every DN1400 pipe before container loading to prevent ovality deformation during ocean freight
- Random length and 12 m fixed length pipes loaded in dedicated breakbulk or open-top container configurations optimized for port-side crane handling
- Heat number and steel grade stenciled on each pipe outer surface for site identification and traceability during installation
- Shipping terms available as FOB, CIF, or DDP to major ports across the Middle East, Southeast Asia, Africa, and South America
Start Your DN1400 Pipeline Procurement with Verified Documentation
Submit your project specifications — including outer diameter, wall thickness, steel grade, surface coating requirement, quantity, and destination port — and our engineering team will respond within 12 hours with a detailed quotation, production lead time, and sample mill test certificate for your review. For non-standard dimensions or specific coating thickness requirements, we provide custom fabrication proposals directly from our production planning team.
Request a Quotation with Mill Test Certificate
Send your DN1400 JCOE pipe specifications to admin@sdxjypipe.com or contact us via WhatsApp at +86 188 5315 7756.
Frequently Asked Questions
Q: What is the difference between JCOE and SSAW for large diameter pipes like DN1400?
A: JCOE produces a single straight longitudinal seam through a step-by-step plate forming and submerged arc welding process, while SSAW creates a helical seam by continuously spiraling the plate. For DN1400 and above, JCOE offers simpler ultrasonic weld inspection and lower residual stress in heavy-wall sections, making it preferred for high-pressure pipeline and structural piling applications.
Q: Which surface coating is suitable for buried drinking water pipelines?
A: For buried water pipelines, 3LPE (three-layer polyethylene) coating provides the highest corrosion resistance and mechanical protection against soil abrasion. FBE (fusion-bonded epoxy) coating is also widely used for its excellent adhesion to steel and chemical resistance. Black painting is suitable for above-ground or temporary installations where corrosion exposure is limited.
Q: Can you provide API 5L X52 and X60 grades for DN1400 pipes?
A: Yes. Our JCOE LSAW large diameter steel pipe production covers API 5L PSL1 grades from X42 through X70, as well as ASTM A53 Gr.B, EN S235, S355, and SS400. We supply mill test certificates with full chemical and mechanical data per heat for all grades.
Q: How do you prevent ovality damage during ocean shipping for DN1400 pipes?
A: Every DN1400 pipe is fitted with internal steel cross-bracing before loading. Pipes are secured in custom steel cradles inside the container or on the vessel deck, and we provide loading photos and inspection reports before shipment for client confirmation.
Q: What third-party inspection services do you support before shipment?
A: We regularly arrange SGS, BV, and Lloyd’s Register third-party inspections covering dimensional verification, wall thickness ultrasonic testing, coating thickness measurement, and weld seam NDT. Inspection reports are issued before the container is sealed.
