Description

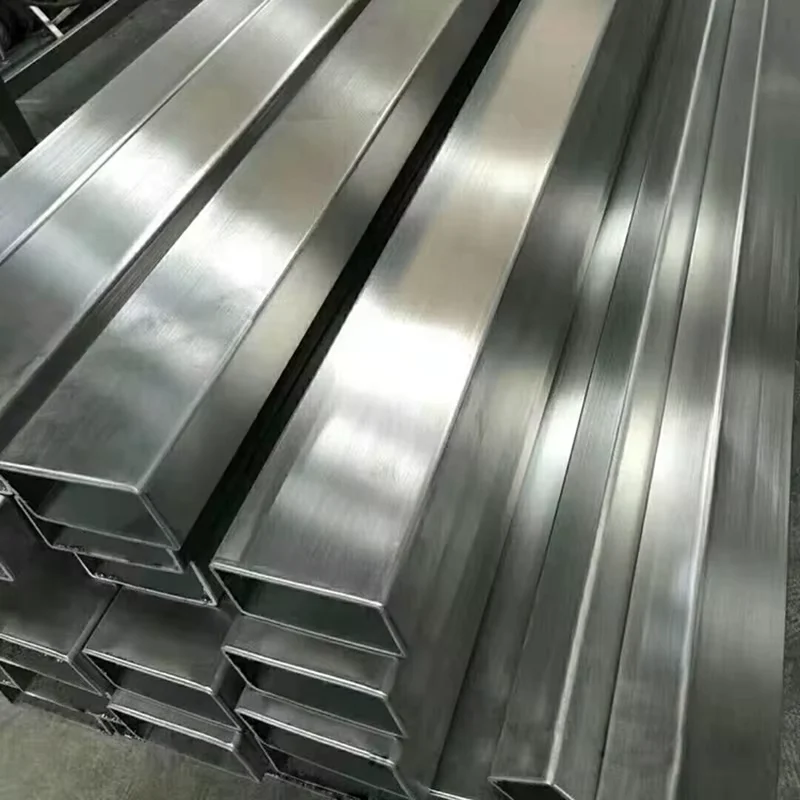

Direct Factory Supply — ERW welded stainless steel square and rectangular tubes produced in-house with full material traceability from coil to finished section.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | 304/201 Stainless Steel Square & Rectangular Tube |
| Product Type | Welded Square and Rectangular Steel Tube (Stainless Steel) |
| Steel Grade | 304, 201, 316 |
| Standard | ASTM, ISO 9001 |
| Section Shape | Square / Rectangular / Round |
| Size Range | Customizable outer diameter and side length |
| Wall Thickness | 0.3mm–5.0mm |
| Length | 1–12m or customized |
| Technique | ERW (Hot Rolled Based) |
| Surface Treatment | Galvanized, PVC Coated, Black, Color Painting |
| Tolerance | ±1% |
| Hardness | Full Hard |
| Application | Building structures, handrails, fences, furniture frames, engineering supports, exterior decoration, steel structures, scaffolding, machinery frames |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Building & Construction | Handrail systems, curtain wall framing, exterior decoration supports, scaffolding structures |
| General Fabrication | Furniture frames, fencing systems, engineering support brackets |
| Industrial & Infrastructure | Machinery frames, structural supports, conveyor frameworks |
How Corner Tolerance Affects Facade Assembly on Stainless Steel Tube Orders
Tight dimensional control on ERW welded stainless steel square and rectangular tubes determines whether facade frames fit together on site or require costly rework.
When sourcing a 304 201 stainless steel square rectangular tube manufacturer, buyers often discover that inconsistent corner radii and wall thickness variation cause misalignment during welding and bolted connections. A ±1% tolerance on a 50mm square tube means the difference between a clean miter joint and a visible gap that compromises both aesthetics and structural continuity [NEED_CITE: EN 10219 cold-formed hollow section dimensional tolerance requirements]. Mixed material deliveries — where 201 and 304 grades arrive without clear heat number identification — create corrosion risk in coastal or high-humidity environments, leading to premature surface degradation and warranty disputes.
Matching Stainless Steel Grades to Corrosive Environments and Structural Loads
The 304 201 stainless steel square rectangular tube manufacturer range covers three distinct grades for different service conditions. Grade 304 provides reliable corrosion resistance for exterior architectural applications and coastal handrail systems where chloride exposure is moderate. Grade 201 offers a cost-effective alternative for interior furniture frames and dry-environment fencing where aesthetic appearance matters but extreme corrosion resistance is not required. Grade 316 extends performance to marine-grade applications and chemical processing support structures. The ERW welding process with hot rolled base material ensures consistent weld seam integrity across wall thicknesses from 0.3mm to 5.0mm, while the ±1% dimensional tolerance supports precision cutting and welding at fabrication shops.
Engineering Compliance and Surface Treatment Selection for Project Specifications
Structural applications require compliance with ASTM standards and ISO 9001 quality management systems. For projects targeting EU markets, CE certification under EN 10219 cold-formed hollow section standards becomes essential for customs clearance and engineer approval [NEED_CITE: CE marking requirements for structural hollow sections in European construction]. Surface treatment selection — galvanized (Z10–Z29 coating), PVC coated, black finish, or color painting — directly affects both corrosion performance and project aesthetics. Galvanized finishes suit outdoor scaffolding and engineering supports, while PVC coating and color painting serve architectural facades where visual consistency matters. Custom lengths up to 12m reduce on-site welding joints and accelerate installation timelines.
Understanding ERW Welding Process and Stainless Steel Grade Selection
ERW (Electric Resistance Welding) with hot rolled base material produces stainless steel square and rectangular tubes with uniform weld seams and consistent mechanical properties across the full cross-section. Unlike seamless manufacturing, ERW offers tighter dimensional tolerances and more economical pricing for structural and decorative applications where extreme internal pressure is not a factor. The full hard condition delivers higher yield strength for load-bearing frames, while the 0.3mm–5.0mm wall thickness range covers both light-gauge decorative tubing and heavier structural sections. Steel grade selection between 304, 201, and 316 should account for the service environment: 304 for general architectural and exterior use, 201 for interior and cost-sensitive projects, and 316 for marine or chemical exposure [NEED_CITE: stainless steel grade selection guidelines for architectural applications].
Hidden Costs of Incorrect Grade Selection and Missing Documentation
Ordering 201 grade when 304 is specified for a coastal handrail project leads to premature rust staining, client rejection, and full replacement costs — often exceeding the original material savings. Missing mill test certificates or incorrect heat number traceability blocks project inspections and delays payment milestones. Tubes arriving with surface scratches or corner dents from improper container loading require sorting, rework, or outright rejection at destination. Without third-party inspection reports from SGS or BV, customs authorities in regulated markets may hold shipments for additional testing, incurring demurrage and storage fees [NEED_CITE: third-party inspection requirements for steel imports in regulated markets].
Why Source Stainless Steel Tubes from SD XJY Pipe
SD XJY Pipe operates three dedicated production lines covering 2,800+ specifications, allowing single-source procurement for mixed-size orders that would otherwise require splitting across multiple suppliers. Our in-house physical and chemical laboratory tests every batch for dimensional accuracy, mechanical properties, and chemical composition, with full mill test certificates issued per heat number. International certifications including ISO 9001:2015, Lloyd’s CE (EN 10219/10210), and Singapore FPC support customs clearance across 50+ export markets. Custom non-standard sizes, cutting, and professional container loading with anti-damage measures reduce transit risk — a lesson learned from early export experience where improper timber separation caused corner dents on a full container of stainless rectangular tubes. The 41 invention patents include China’s original sharp-corner rectangular tube technology, delivering superior aesthetics for architectural facade applications.
Documentation & Compliance
- Mill test certificate documenting 304/201/316 chemical composition and mechanical properties per ASTM standards, issued per heat number
- CE certificate (EN 10219/EN 10210) for structural hollow sections targeting European Union markets
- ISO 9001:2015 quality management system certificate covering full production and testing processes
- SGS or BV third-party inspection report available upon request for pre-shipment quality verification
- Material traceability documentation linking each tube bundle to specific heat numbers and test results
- Complete customs documents including packing list, bill of lading, and certificate of origin for import clearance
Packaging, Loading & Delivery

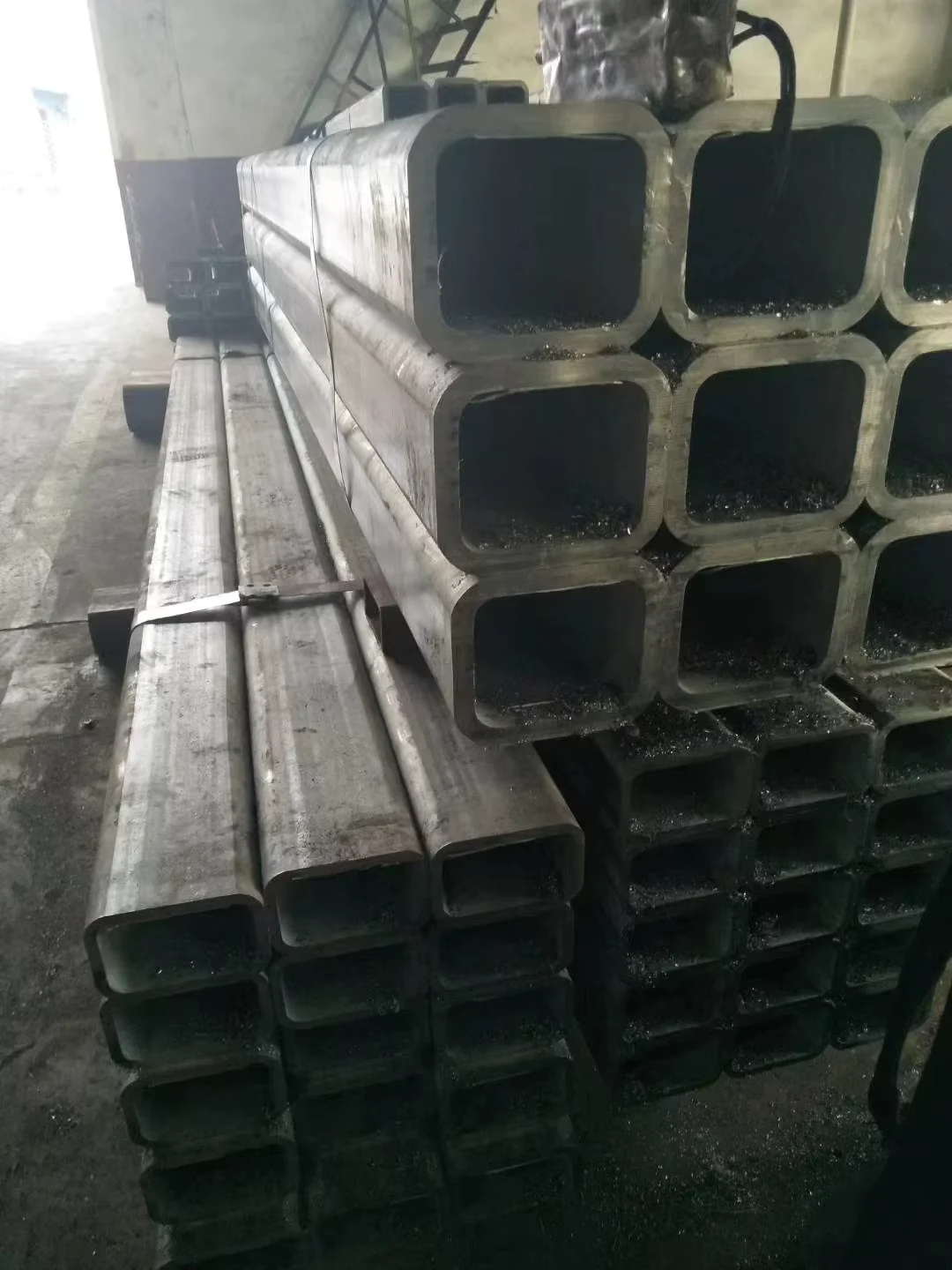

- Stainless steel tubes bundled with steel strips and edge protectors to preserve surface finish and prevent corner damage during ocean transit
- Galvanized variants (Z10–Z29 coating) packed with moisture barriers to maintain zinc coating integrity in humid shipping conditions
- Custom lengths up to 12m loaded in dedicated containers with timber separation to prevent contact scratches between tubes
- Heat number and steel grade (304/201/316) marked on each bundle for on-site identification and traceability
- Professional container loading with anti-damage measures developed from years of export experience to stainless steel facade contractors
- FOB/CIF/DDP shipping terms available with full export documentation and tracking until arrival at destination port
Request Quotation with Material Certification for Your Project
Submit your required steel grade (304/201/316), section dimensions, wall thickness, length, surface treatment, and quantity to receive a detailed quotation within 12 hours. We provide mill test certificates, third-party inspection options, and custom non-standard size proposals for projects requiring precise specifications. Confirm your required certifications (CE, ASTM, ISO) and destination port to ensure full documentation support for customs clearance.
Get Your Stainless Steel Tube Quote with Full Certification
Send your specifications to admin@sdxjypipe.com or contact via WhatsApp at +86 188 5315 7756 for pricing, mill test certificates, and delivery schedules.
Frequently Asked Questions
Q: What is the difference between 304, 201, and 316 stainless steel for square tubes?
A: Grade 304 offers reliable corrosion resistance for exterior architectural applications and coastal environments. Grade 201 provides a cost-effective option for interior furniture frames and dry-environment fencing. Grade 316 delivers superior performance for marine-grade applications and chemical processing support structures where chloride exposure is significant.
Q: Can you produce non-standard sizes and what is the MOQ for custom orders?
A: We produce custom non-standard sizes across 2,800+ specifications with wall thicknesses from 0.3mm to 5.0mm and lengths up to 12m. The minimum order quantity is 1 Ton for both standard and custom sizes. Custom orders typically require 15–25 days production time depending on specifications.
Q: How do you ensure corner quality and dimensional tolerance on ERW welded tubes?
A: Our ERW welding process with hot rolled base material maintains ±1% dimensional tolerance across all wall thicknesses. In-house physical and chemical laboratories perform dimensional testing on every batch. Our 41 invention patents include proprietary sharp-corner rectangular tube technology that delivers clean 90-degree corners for architectural applications.
Q: What surface treatment options are available and how do they affect corrosion resistance?
A: Available treatments include galvanized coating (Z10–Z29), PVC coating, black finish, and color painting. Galvanized finishes suit outdoor scaffolding and engineering supports. PVC coating and color painting serve architectural facades where visual consistency and additional corrosion protection are required.
Q: What certifications and documents are provided for EU and international market clearance?
A: We hold ISO 9001:2015, Lloyd’s CE certification (EN 10219/EN 10210), and Singapore FPC. Third-party inspection reports from SGS or BV are available upon request. Complete customs documentation including mill test certificates, packing lists, bills of lading, and certificates of origin support import clearance across 50+ countries.
