Description
Direct Factory Supply, No Middlemen — Hot-dip galvanized square steel tubes produced in-house with full mill test certificates and Lloyd’s CE certification for EU compliance.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | S235 / S275 / SS400 Galvanized Square Steel Tube |
| Product Type | Galvanized Square Steel Tube |
| Steel Grade | 20#, S235, S275, SS400 |
| Standard | JIS, ASTM A53, API |
| Section Shape | Square |
| Size Range | Customized |
| Length | 6 m / 12 m (customizable) |
| Technique | Hot-dip Galvanizing |
| Surface Treatment | Hot-dip Galvanized |
| Tolerance | ±1% |
| Ends | Plain / Beveled / Threaded / Grooved |
| Application | Hydraulic systems / Fluid transport / Machine parts / Structural frames |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Structural frames for warehouses, equipment supports, scaffold bracing |
| Machinery Manufacturing | Machine bases, conveyor structures, hydraulic cylinder housings |
| Fluid & Hydraulic Systems | Low-pressure fluid transport lines, cooling system piping, pneumatic manifolds |
| Steel Fabrication | Welded assemblies, bracket frames, post-and-beam connections |
Zinc Coating Consistency Determines Long-Term Corrosion Performance
Uneven galvanizing leaves weak spots where rust begins within months of installation.
Sourcing galvanized square tubes with uniform zinc thickness is harder than it looks. Many suppliers dip tubes too quickly or skip pre-treatment steps, resulting in coating that flakes or corrodes prematurely — especially at cut edges and corners. [NEED_CITE: hot-dip galvanizing coating thickness standards for structural steel] When specifications call for S235 or S275 grades in outdoor or humid environments, inconsistent coating means premature failure and costly replacement. We’ve seen entire facade support frames rejected at site inspection because zinc measurements fell below minimum thresholds on random samples.
Matching Galvanized Square Tubes to Structural and Fluid Applications
Galvanized square steel tubes in S235 and S275 grades serve dual roles — structural support in exposed environments and corrosion-resistant piping for non-critical fluid systems. The hot-dip process bonds zinc metallurgically to the steel surface, providing cathodic protection even when the coating is scratched. For machine frames and hydraulic system supports, the ±1% dimensional tolerance ensures predictable fit-up during welding and bolting. Our production covers custom lengths up to 12 m with plain, beveled, threaded, or grooved ends, eliminating on-site cutting for most installation scenarios.
Engineering Compliance and Certification Requirements
Structural applications demand documentation that matches the steel grade and production standard. S235 and S275 conform to EN 10219 for cold-formed welded structural hollow sections, while SS400 follows JIS G3466 for general structural use. [NEED_CITE: EN 10219 cold-formed hollow section dimensional and tolerances] For EU projects, Lloyd’s CE certification under EN 10210/EN 10219 is non-negotiable for customs clearance. The hot-dip galvanizing process must meet coating weight and adhesion requirements — thin or poorly bonded coatings fail salt spray tests and get rejected by third-party inspectors. End treatments (beveled for welding, threaded for mechanical joints) must be specified before galvanizing to avoid rework after dipping.
Steel Grade Selection and Hot-Dip Galvanizing Process
S235 offers lower yield strength but excellent weldability and formability — ideal for light structural frames and non-load-bearing supports. S275 provides higher strength for moderately loaded structures like equipment bases and mezzanine frames. SS400, the Japanese equivalent, delivers similar performance to S275 with slightly different chemistry controls. 20# carbon steel serves fluid transport applications where internal corrosion resistance matters less than external protection. Hot-dip galvanizing immerses fabricated tubes in molten zinc at approximately 450°C, creating a metallurgical bond with multiple zinc-iron alloy layers topped by pure zinc. This process provides 50+ years of corrosion protection in rural atmospheres and 20+ years in industrial coastal environments. [NEED_CITE: hot-dip galvanizing corrosion protection lifespan data] The ±1% tolerance ensures square sections maintain geometric accuracy after the thermal cycling of galvanizing.
Hidden Costs of Incorrect Grade or Poor Coating
Ordering S235 when S275 is specified means lower load capacity — structures may deflect beyond limits or require additional bracing. Conversely, specifying S275 when S235 suffices wastes budget on unnecessary strength. Thin or patchy galvanizing leads to rust staining within months, triggering warranty claims and replacement costs that dwarf the initial savings. Missing or incorrect mill test certificates block customs clearance in regulated markets, causing demurrage charges and project delays. [NEED_CITE: steel grade equivalence between EN and ASTM standards] Non-compliant end treatments (threaded after galvanizing) expose bare steel at connection points, creating localized corrosion that spreads under paint or sealant.
Why Source Galvanized Square Tubes from SD XJY Pipe
We operate three production lines covering 2,800+ specifications, so your custom sizes don’t require minimum order compromises. Our in-house physical and chemical laboratory tests every heat for composition and mechanical properties before release — no blind reliance on upstream mill certificates. The hot-dip galvanizing line delivers uniform coating with documented thickness measurements. Lloyd’s CE certification under EN 10210/EN 10219 and ISO 9001:2015 compliance ensure smooth customs clearance for EU and regulated markets. We arrange SGS or BV third-party inspection on request, providing independent verification before container loading. Professional loading plans with edge protectors and bracing prevent zinc coating damage during ocean transit — a lesson learned from early export mistakes.
Documentation & Compliance
- Mill test certificate documenting S235, S275, or SS400 chemical composition and mechanical properties per EN 10219 or JIS G3466
- Lloyd’s CE certificate (EN 10210/EN 10219) for EU market structural hollow section compliance
- ISO 9001:2015 quality management system certificate covering production and testing processes
- SGS or BV third-party inspection report verifying dimensions, coating thickness, and surface quality
- Material traceability by heat number linking each tube to its original mill test certificate
- Export documentation including packing list, bill of lading, and certificate of origin for customs clearance
Packaging, Loading & Delivery

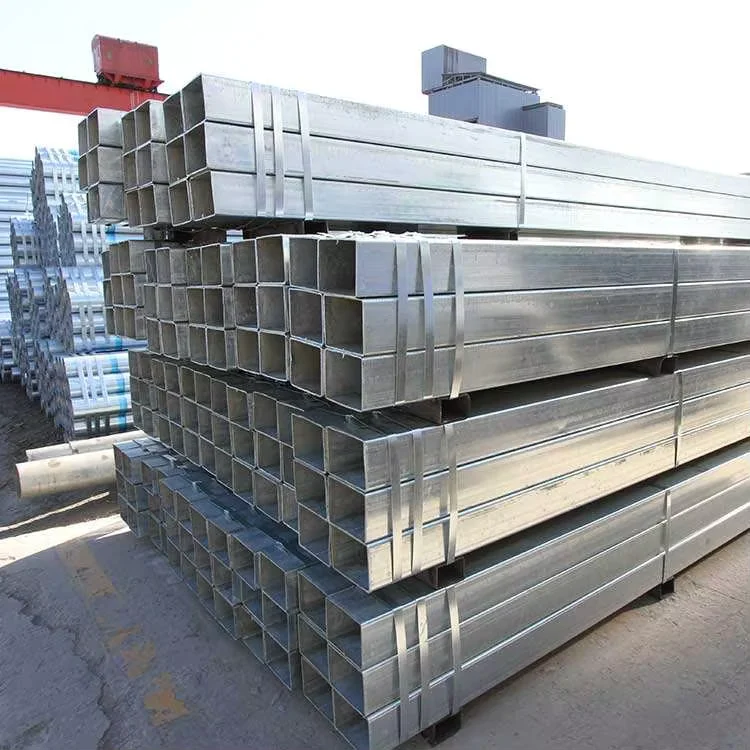

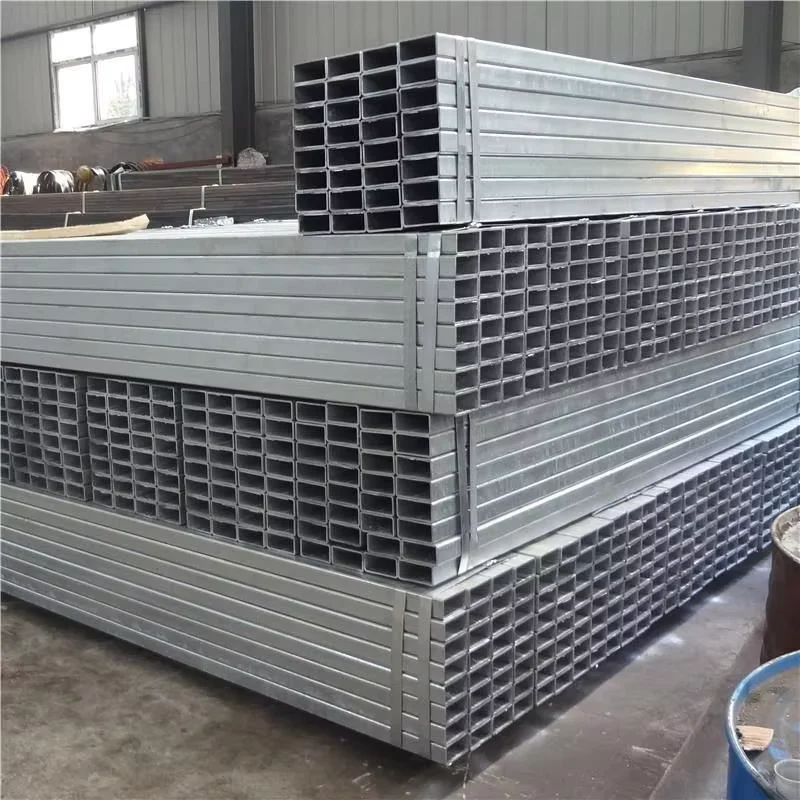

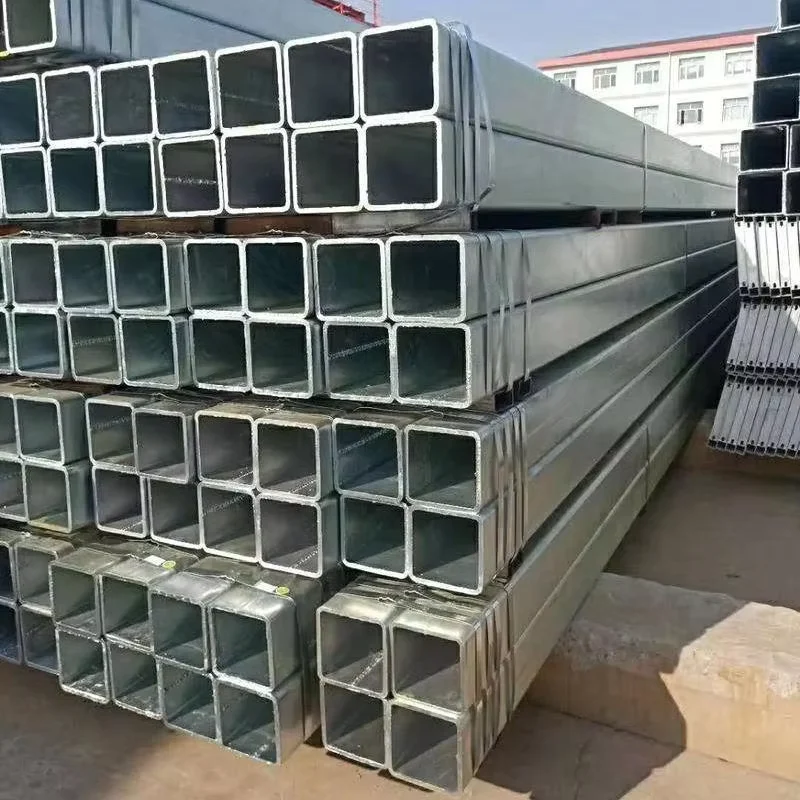

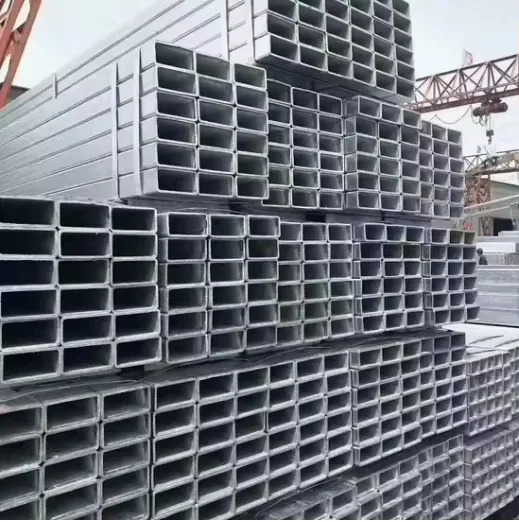

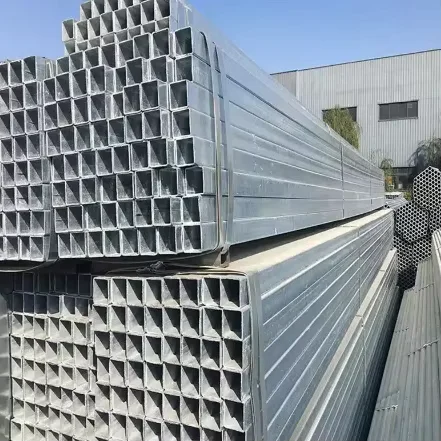

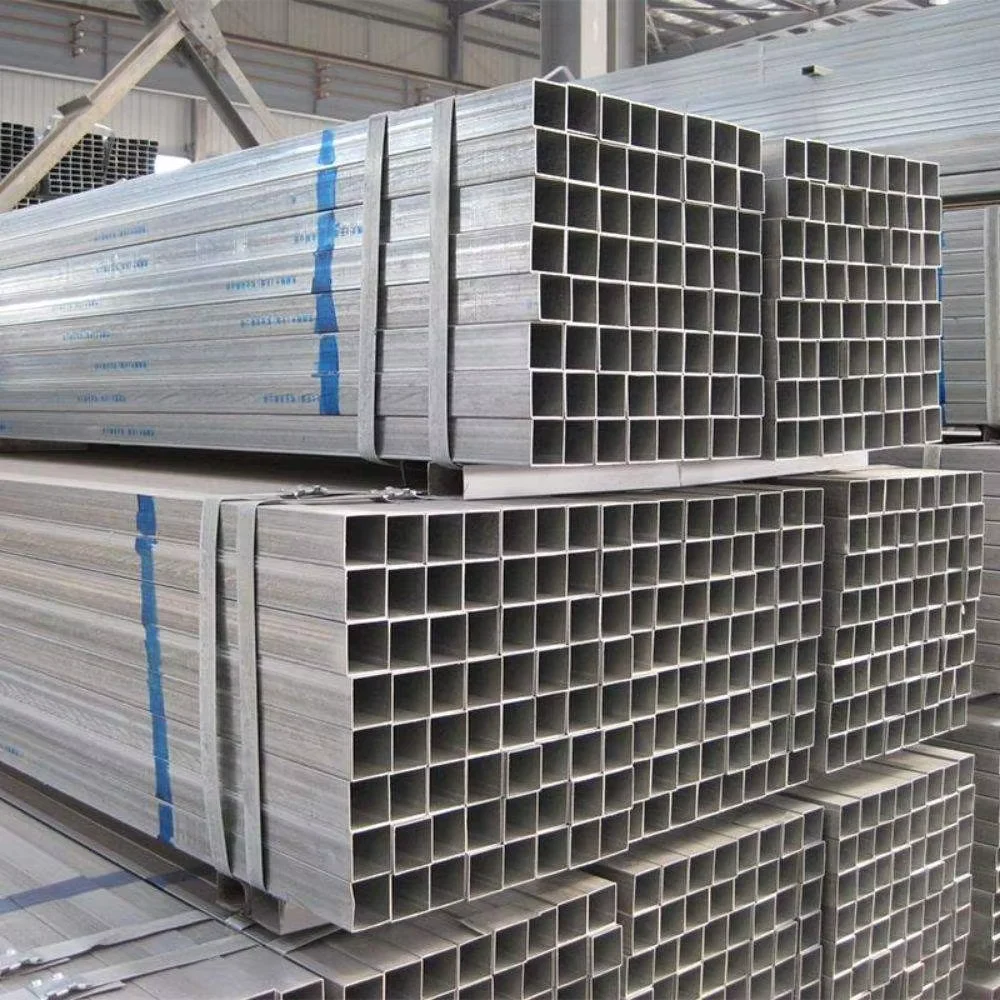

- Galvanized square tubes bundled with steel strips and edge protectors to preserve zinc coating during handling and ocean transit
- Hot-dip galvanized surface protected by plastic end caps and moisture barriers to prevent white rust formation in humid containers
- Custom 6 m and 12 m lengths optimized for 20ft and 40ft container loading, maximizing payload while preventing shifting
- End treatments (plain, beveled, threaded, grooved) specified before galvanizing to avoid post-dip rework and bare steel exposure
- Heat number and steel grade marked on each tube for site identification and traceability verification
- FOB, CIF, or DDP shipping terms with professional container loading plans reviewed before door closure
Request Quotation with Mill Test Certificates
Submit your specification sheet — steel grade (S235, S275, SS400, or 20#), dimensions, length, end treatment, and quantity — to receive a detailed quotation within 12 hours. We provide mill test certificates, coating thickness reports, and CE documentation upfront so you can verify compliance before placing orders. Custom sizes and non-standard lengths are available with low MOQ, and we confirm container loading plans before shipment to prevent transit damage.
Frequently Asked Questions
Q: What is the difference between S235, S275, and SS400 steel grades?
A: S235 offers lower yield strength with excellent weldability for light structures. S275 provides higher strength for moderately loaded frames. SS400 is the Japanese equivalent to S275 with similar mechanical properties but different chemistry controls per JIS standards.
Q: Can you provide third-party inspection (SGS/BV) before shipment?
A: Yes, we arrange SGS or BV inspection on request. The inspector verifies dimensions, coating thickness, surface quality, and reviews mill test certificates before container loading.
Q: What is the zinc coating thickness for hot-dip galvanized tubes?
A: Hot-dip galvanizing typically produces coating thickness of 45-85 microns depending on steel chemistry and immersion time. We provide coating thickness measurements in the mill test certificate for each shipment.
Q: Do you offer custom sizes with low MOQ?
A: Yes, our 2,800+ specification range covers custom dimensions with MOQ of 1 Ton. Non-standard sizes enter production with typical lead times of 15-25 days.
Q: How do you ensure loading quality to prevent damage during transit?
A: Every galvanized tube shipment uses edge protectors, proper bracing, and moisture barriers. I personally review the loading plan before the container door closes to prevent zinc coating damage from shifting or contact during ocean transit.
Get Your Galvanized Square Steel Tube Quote Today
Send your specifications — grade, size, length, quantity, and destination — to receive pricing and mill test certificates within 12 hours.
