Description
Full-Spectrum Structural Tube Sourcing — From Q235B to Q345B sharp-corner profiles up to 40mm wall thickness, all verified against exact architectural drawings before rolling.
Technical Specifications
| Parameter | Value |
|---|---|

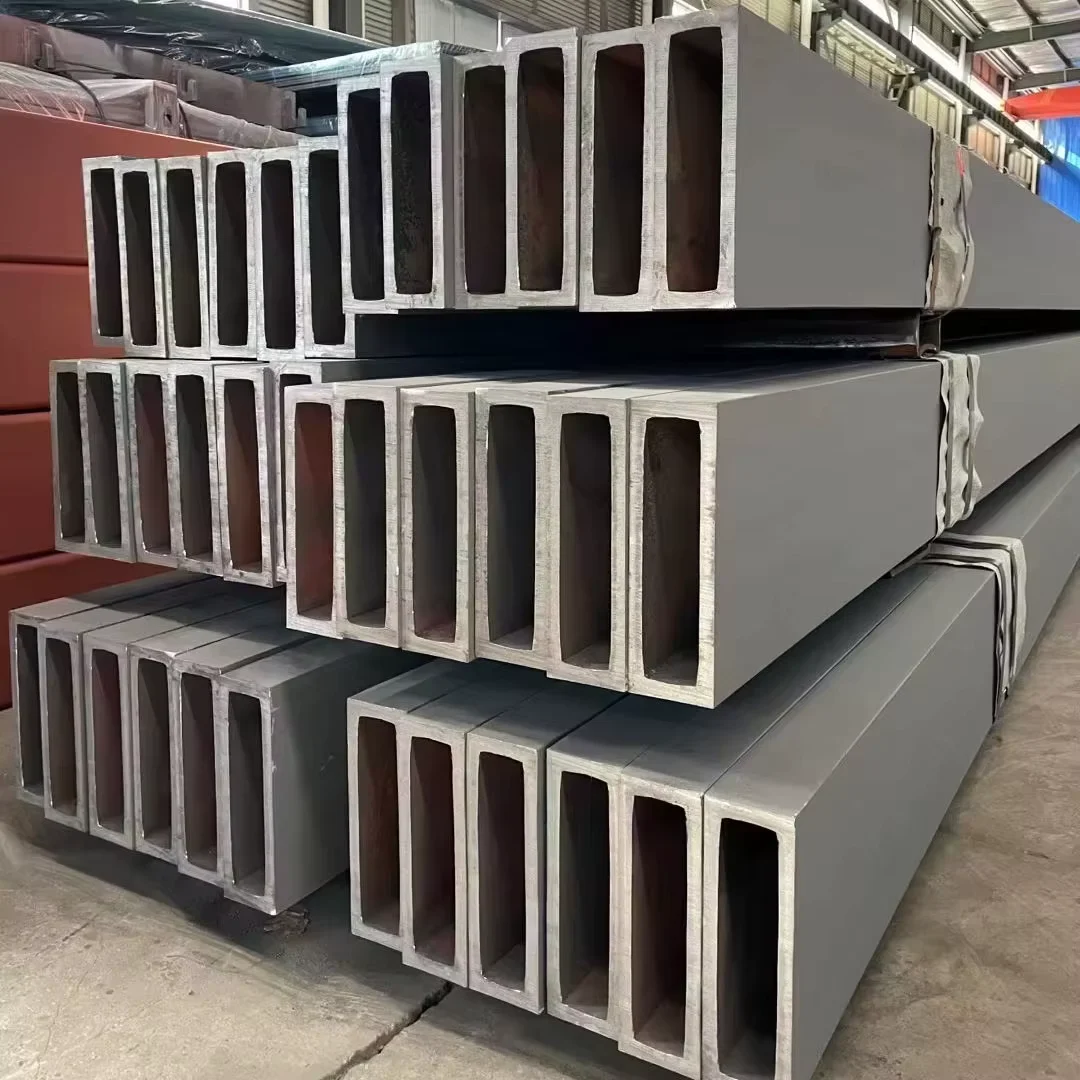

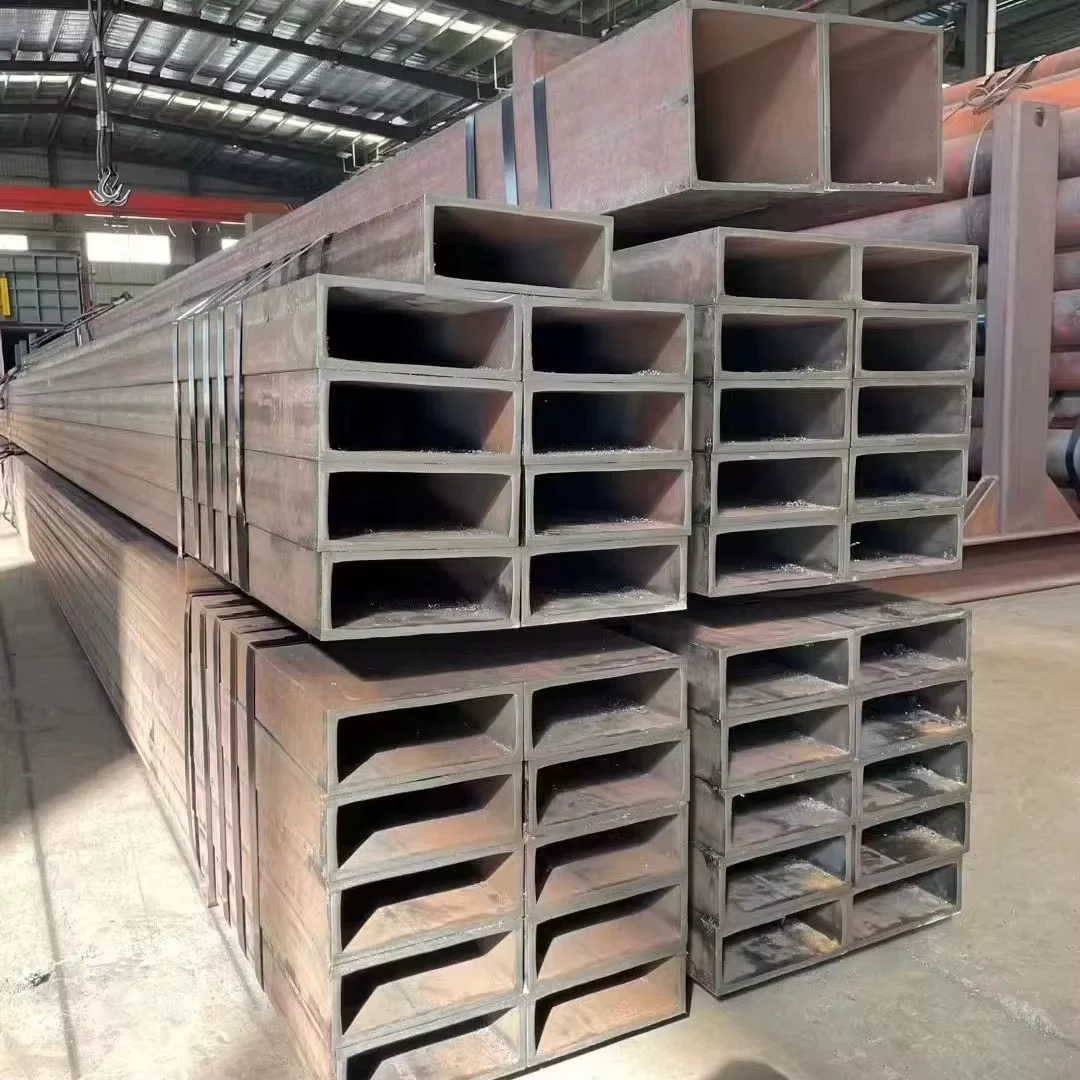

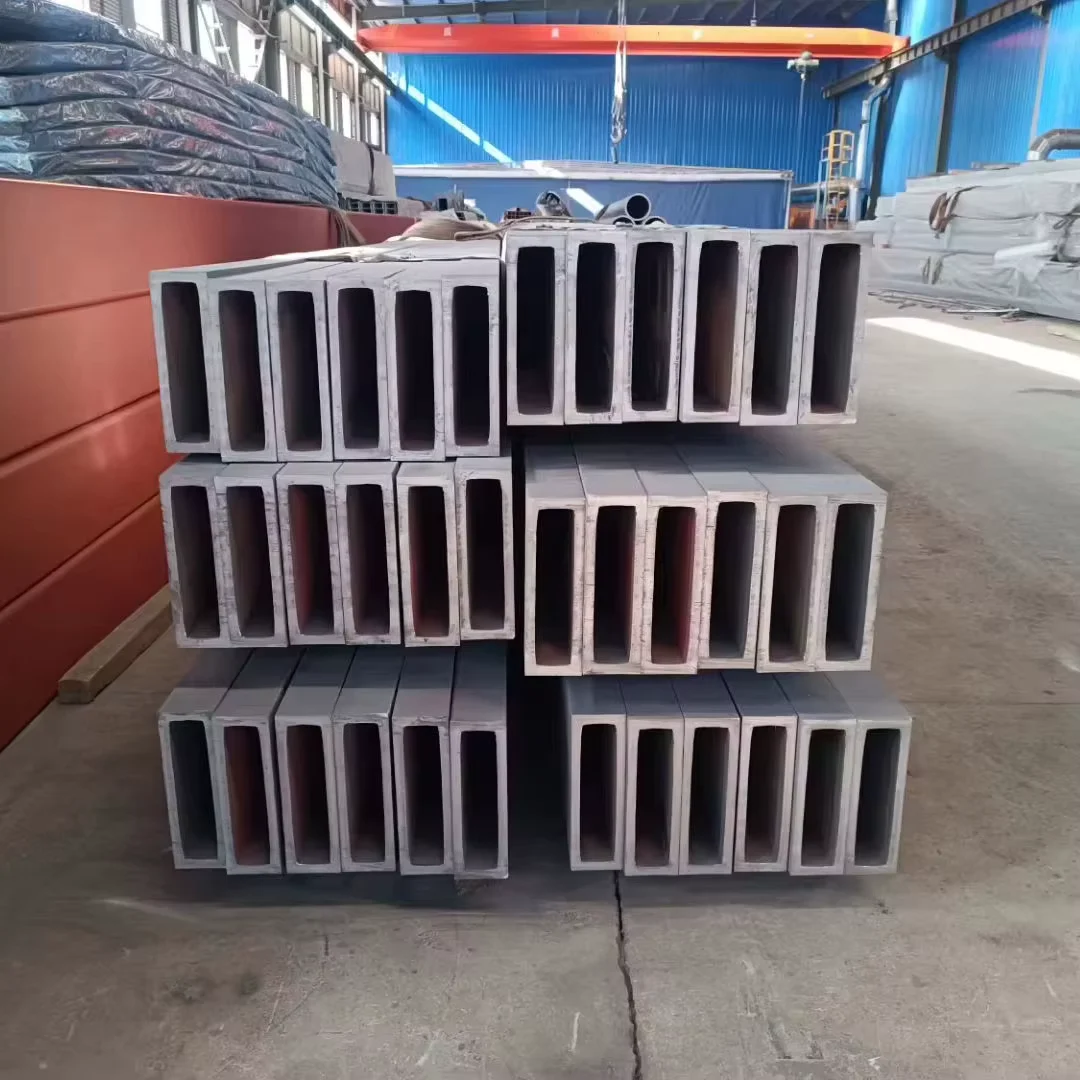

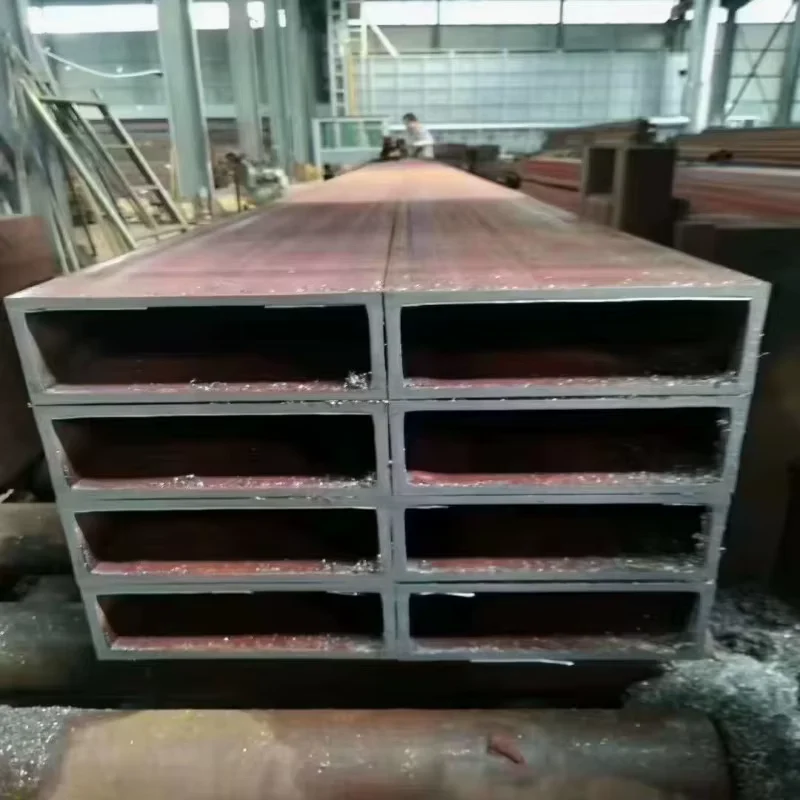

| Designation | Q235B/Q345B Sharp-Corner Rectangular Steel Tube |
| Product Type | Sharp-Corner Rectangular Steel Tube (Patented) |
| Steel Grade | Q235B, Q345B (Customizable to Q195–Q690, ASTM A500, EN 10219 S235JR–S355J2) |
| Standard | GB/T 6728, EN 10219, EN 10210, ASTM A500, JIS G3466 |
| Section Shape | Rectangular (Sharp-Corner / Right-Angle) |
| Size Range | 500×1000 mm (Model reference); 2,800+ custom specifications available |
| Wall Thickness | Up to 40 mm |
| Length | 5.8 m / 6 m / 12 m (Customizable 5–15 m) |
| Technique | ERW (Electric Resistance Welded) / Cold-Formed |
| Surface Treatment | Hot Rolled / Oiled / Non-Oiled (Galvanized available) |
| Tolerance | ±1% (Dimensional) |
| Processing Service | Cutting, Welding, Bending, Punching, Decoiling |
| Application | Steel structures, Glass curtain walls, Architectural facades, Machinery |
| MOQ | Negotiated based on specifications |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Architectural Facades | Glass curtain wall framing, right-angle structural supports for building exteriors |
| High-Rise Construction | Load-bearing building frames, heavy-duty steel structure columns |
| Industrial Machinery | Precision equipment bases, conveyor support structures requiring flat mating surfaces |
Why Rounded Corners Fail on Architectural Curtain Wall Frames
Standard ERW tubes naturally form rounded corners (R≥2t), which prevents glass panels from sitting flush and forces costly on-site rework.
I started on the rolling floor in Foshan, learning how steel behaves under pressure. Years later, a facade contractor in Dubai ordered a container of rectangular tubes for a curtain wall. When his crew fitted the frames on site, the corners were rounded, not sharp. The glass panels wouldn’t sit flush. The whole batch got rejected, and we ate the cost of air-freighting replacements. In custom architectural steel, “close enough” means “start over.” Sourcing a true Sharp-Corner Rectangular Steel Tube Manufacturer who verifies every right-angle spec against the drawing before a single piece leaves the mill is the only way to avoid this hidden cost. [NEED_CITE: dimensional tolerance requirements for architectural hollow sections]
Matching True Right-Angle Profiles to High-End Facade Engineering
When designing glass curtain walls, the structural frame must provide a perfectly flat mating surface. Our patented sharp-corner technology ensures true 90° edges, allowing architectural panels to align flush without secondary grinding. As a dedicated Sharp-Corner Rectangular Steel Tube Manufacturer, we map the exact outer dimensions and wall thickness to your structural calculations, ensuring the tubes handle both the aesthetic demands of modern facades and the load-bearing requirements of high-rise construction.
Handling Multi-Standard Equivalence for Global Site Inspections
Procurement teams often face grade confusion when a project specifies Q345B but requires EN 10219 S355JR or ASTM A500 Gr.C for local customs and site inspections. Material mismatches can halt construction and trigger rejection at the port. We provide full chemical and mechanical equivalence across GB, EN, ASTM, and JIS standards, backed by Lloyd’s CE certification for EU markets. Every batch undergoes dimensional and material testing in our in-house physical and chemical laboratories to guarantee compliance with EN 10210 and EN 10219 cold-formed hollow section requirements. [NEED_CITE: steel grade equivalence between EN and ASTM standards]
The Metallurgy Behind Heavy-Wall Sharp-Corner Forming
Achieving a true right-angle corner on a heavy-wall tube requires precise control over the cold-forming process. While standard rectangular tubes yield a natural radius due to material stretch, our patented forming dies force the steel into a sharp 90-degree corner without compromising the corner’s mechanical integrity. For grades like Q235B and Q345B, this means maintaining the core yield strength at the corner bend. The ERW and cold-formed technique allows us to push wall thicknesses up to 40mm, delivering heavy structural capacity that seamless or SSAW alternatives cannot match in rectangular profiles. The ±1% dimensional tolerance ensures that theoretical weights align with actual load-bearing calculations.
The Hidden Toll of Tolerance Drift and Loading Damage
Ordering tubes without strict dimensional controls often leads to negative tolerance drift, where the actual wall thickness falls below the design minimum, compromising structural safety. Furthermore, improper container loading of heavy 40mm wall tubes can cause bending or surface scoring, leading to rejection upon arrival. A reliable Sharp-Corner Rectangular Steel Tube Manufacturer must enforce strict mill test protocols and utilize professional anti-damage loading measures. Failing to verify these factors results in failed engineering inspections, delayed project handovers, and severe budget overruns. [NEED_CITE: structural hollow section loading and transport guidelines]
Factory-Direct Production with Patented Corner Technology
As the original inventor of sharp-corner rectangular tubes in China, we hold 41 proprietary patents for this forming technology. Our three dedicated production lines cover over 2,800 specifications, eliminating the need to source from multiple traders. Every order is supported by our in-house laboratory, ensuring that the Q235B or Q345B chemistry matches the mill test certificate perfectly. We hold full international certifications, including ISO 9001:2015, Lloyd’s CE, and SGS/BV verification, allowing our products to clear customs in over 50 countries without documentation delays. From custom non-standard sizes to professional container loading, we control the entire process from the rolling floor to the destination port.
Documentation & Compliance
- Mill test certificate documenting Q235B and Q345B chemical composition and yield strength per GB/T 6728 and EN 10219
- Lloyd’s CE certificate confirming compliance with EN 10210 and EN 10219 for EU market customs clearance
- ISO 9001:2015 quality management certificate covering the cold-forming and welding processes
- SGS or BV third-party inspection report verifying dimensional tolerance and sharp-corner accuracy before shipment
- Full material traceability linked to specific heat numbers for structural auditing
- Complete customs documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

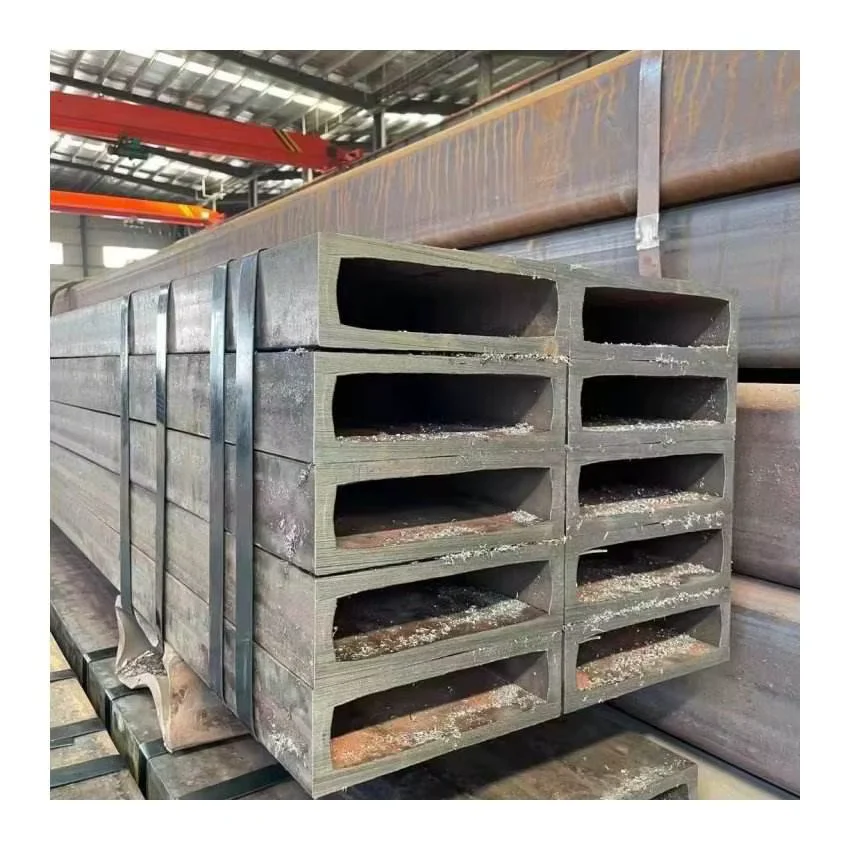

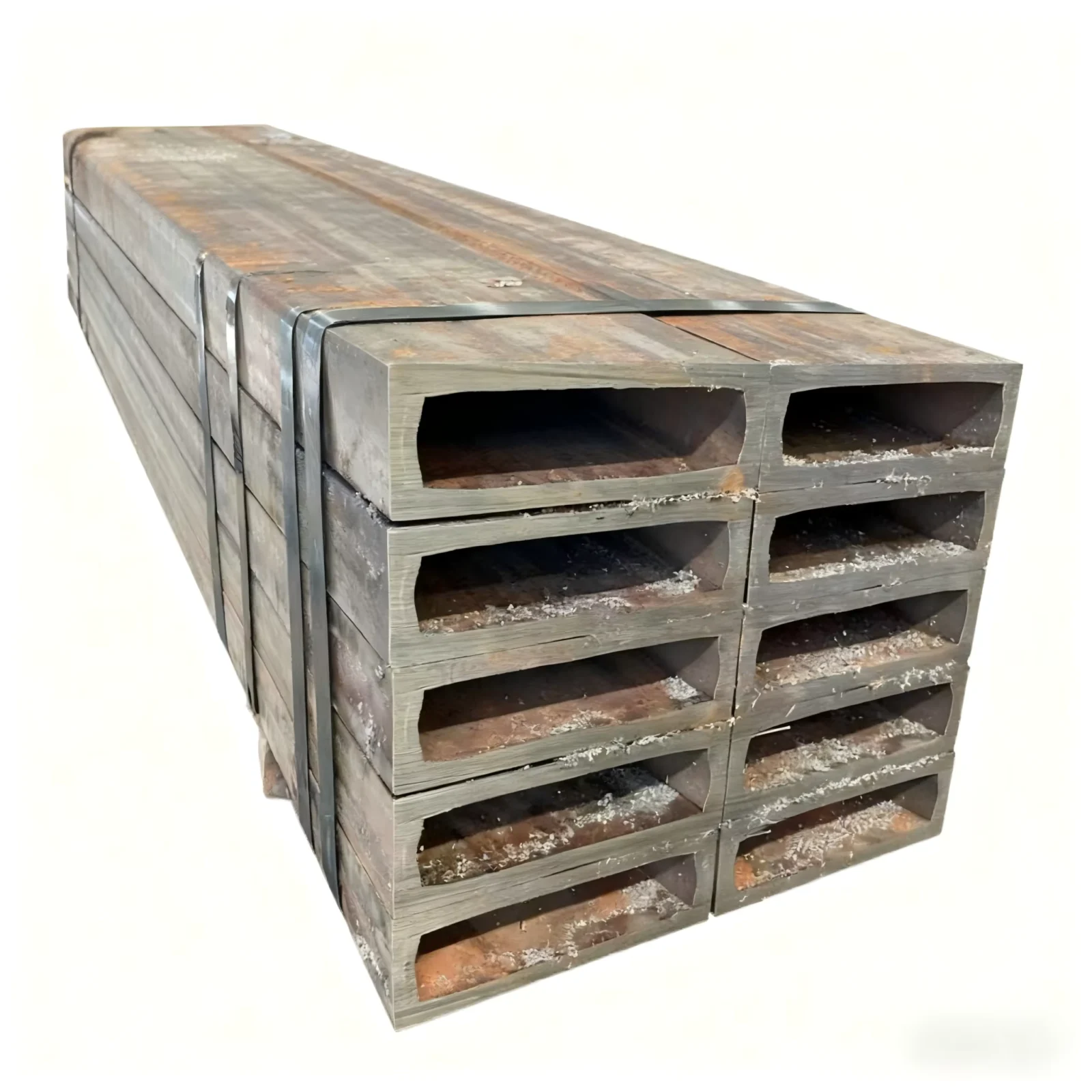

- Heavy-wall sharp-corner tubes bundled with high-tensile steel strips and edge protectors to prevent corner deformation during transit
- Hot rolled and oiled surfaces treated with anti-rust measures to preserve the mill finish during ocean freight
- Custom container loading plans optimized for 5.8m, 6m, and 12m lengths to maximize payload and prevent shifting
- Precise cutting and deburring services applied to tube ends to ensure safe handling and ready-to-weld conditions on site
- Clear heat number and steel grade stenciling on every bundle for immediate identification during site inspection
- Flexible shipping terms including FOB, CIF, and DDP to simplify delivery to global construction sites
Initiating Your Structural Tube Procurement
To receive an accurate quotation and preliminary mill test certificates, submit your exact outer dimensions, wall thickness, steel grade, and total tonnage. Our engineering team will review your drawings to confirm the sharp-corner feasibility and provide a detailed production timeline. We will also confirm the required international certifications and loading specifications to ensure smooth customs clearance at your destination port.
Frequently Asked Questions
Q: What is the difference between sharp-corner rectangular tubes and standard rectangular tubes?
A: Standard rectangular tubes naturally form rounded corners (R≥2t) during the forming process, while our patented sharp-corner technology produces true 90-degree right angles, which is critical for the flush fitting of glass curtain walls and architectural facades.
Q: Can you provide equivalent steel grades across EN, ASTM, and GB standards?
A: Yes, we supply full chemical and mechanical equivalence. For example, Q345B can be matched to EN 10219 S355JR or ASTM A500 Gr.C, and we provide the corresponding mill test certificates to satisfy local engineering inspections.
Q: What is the minimum order quantity for custom non-standard sizes?
A: The MOQ is negotiated based on the specific dimensions and wall thickness required. As a direct manufacturer with 2,800+ specifications in our database, we offer flexible MOQs for custom non-standard sizes compared to traditional mills.
Q: Do you provide CE certification for EU market imports?
A: Yes, we hold Lloyd’s CE certification for EN 10210 and EN 10219 standards, ensuring our sharp-corner tubes meet all regulatory requirements for structural use in the European Union.
Q: How do you ensure tubes are not damaged during container loading and shipping?
A: We use professional container loading techniques with anti-damage measures, including edge protectors for the sharp corners and secure steel strip bundling, preventing bending and surface scoring during ocean transit.
Request Your Custom Sharp-Corner Tube Quote
Send your structural drawings and specifications to our engineering team to receive a detailed quotation, production lead time, and sample mill test certificates.
