Description
Full-Range Plate Procurement, Single Source — Q235 and Q345 hot rolled plates from 3.5mm to 11.75mm processed and shipped from our Jinan facility with complete mill documentation.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q345 Hot Rolled Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | Q235, Q345 |
| Standard | ASTM |
| Technique | Hot Rolled |
| Thickness Range | 3.5mm–11.75mm |
| Hardness | Full Hard |
| Surface Treatment | Non-oiled |
| Processing Service | Custom cutting, stamping, bending |
| Application | Automotive, Solar Energy, Metal Products, Household Appliances |
| Delivery Time | 8–14 days |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Solar Energy | Mounting rail fabrication, panel support brackets, ground screw base plates |
| Automotive | Chassis cross-members, body reinforcement brackets, trailer floor plates |
| Metal Products | Storage rack uprights, industrial shelving frames, enclosure panels |
| Household Appliances | Washing machine base frames, water heater mounting brackets, compressor housings |
Thickness Tolerance Is Where Your Plate Budget Actually Bleeds
Negative tolerance beyond acceptable limits turns a competitive price per ton into a structural shortfall on site.
I have stood on rebar-strewn slabs in Riyadh watching a contractor reject an entire container of plates because the measured thickness fell below the project spec. The mill had shipped within commercial tolerance, but the structural engineer’s drawing called for a minimum gauge. The plates were rerolled, the delay cost more than the original material saving. When sourcing a Q235 Q345 hot rolled steel plate custom cutting supplier, thickness consistency across every piece matters more than the quoted price per metric ton. Buyers across the Gulf and Southeast Asia repeatedly face this gap between commercial practice and engineering requirement [NEED_CITE: hot rolled steel plate thickness tolerance standards per ASTM A6].
Matching Plate Gauge to Structural and Fabrication Demands
A Q235 Q345 hot rolled steel plate custom cutting supplier must hold plates that perform under the specific loads and forming conditions your project demands. At 3.5mm, Q235 plates serve well for light-gauge brackets and appliance housings where deep drawing is not required and formability at room temperature is sufficient. Moving to 8mm–11.75mm in Q345, the higher strength grade supports solar mounting rails and automotive chassis members that must resist bending under sustained load. Our in-house laboratory tests each heat for chemical composition and mechanical behavior, so the plates arriving at your fabrication shop match the grade you specified — not a commercial substitute.
Engineering Compliance and Certification for Cross-Border Delivery
Plates shipped to EU-regulated projects require documented conformity with EN-equivalent grades, while North American buyers reference ASTM designations. Q235 maps broadly to S235JR and ASTM A36; Q345 aligns with S355JR and ASTM A572 Grade 50, though exact equivalence depends on the specific chemical and mechanical requirements of the receiving standard [NEED_CITE: steel grade equivalence mapping between GB Q-series and EN S-series]. Our mill test certificates list the actual test results per heat number, not generic compliance statements. For projects requiring third-party verification, SGS or BV inspection is arranged before container sealing. This documentation chain prevents customs holds and site rejections that I have seen stall projects from Dubai to Jakarta.
Understanding Q235 and Q345 Through Hot Rolling Metallurgy
Q235 is a mild carbon structural steel with relatively low yield strength, chosen for applications where weldability and formability take priority over load-bearing capacity. Q345, the successor to the older 16Mn designation, introduces manganese as the primary alloying element, raising yield strength while maintaining adequate ductility for cutting and bending operations. Both grades are produced through hot rolling — the steel slab is reheated above recrystallization temperature and passed through reduction stands, producing a plate with a mill scale surface and full hard condition. The non-oiled surface treatment means the plates arrive without protective film, suitable for applications where subsequent painting, galvanizing, or powder coating will be applied. Custom cutting to your drawing dimensions eliminates secondary shearing at your workshop, reducing scrap and handling time.
The Hidden Cost of Unverified Plate Sourcing
Ordering plates without mill test certificates or from traders who cannot trace heat numbers creates risk that surfaces only during structural inspection or customs clearance. Grade substitution — receiving Q195 labeled as Q235 — compromises load capacity without visible indication. Thickness variance beyond tolerance limits forces rework or rejection after the container has already crossed the ocean. Missing or incorrectly referenced certification documents block import clearance in regulated markets, adding demurrage charges and project delays [NEED_CITE: consequences of non-compliant steel plate documentation in international construction projects]. A Q235 Q345 hot rolled steel plate custom cutting supplier with in-house testing and traceable documentation eliminates these hidden costs before they materialize.
Procurement Confidence Built on Verifiable Capability
Every plate we supply undergoes dimensional, chemical, and mechanical testing in our own physical and chemical laboratory before release. We hold ISO 9001:2015 certification for production quality management, and our export documentation package meets the requirements of customs authorities across 50+ destination countries. Custom cutting, stamping, and bending are performed to client drawings, with processed pieces inspected before packing. Our professional loading team secures plates with anti-damage measures inside containers, preventing edge deformation and surface scratches during ocean transit. For buyers who need plates in multiple grades and thicknesses for a single project, consolidating the order through one facility simplifies quality control and reduces shipping cost per unit.
Documentation & Compliance
- Mill test certificate documenting Q235 and Q345 chemical composition and mechanical properties per heat number
- ISO 9001:2015 quality management certificate covering hot rolled plate production and processing
- SGS or BV third-party inspection report available upon request prior to shipment
- Material traceability from slab heat number through cutting and forming to final packed bundle
- Full customs documentation package including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

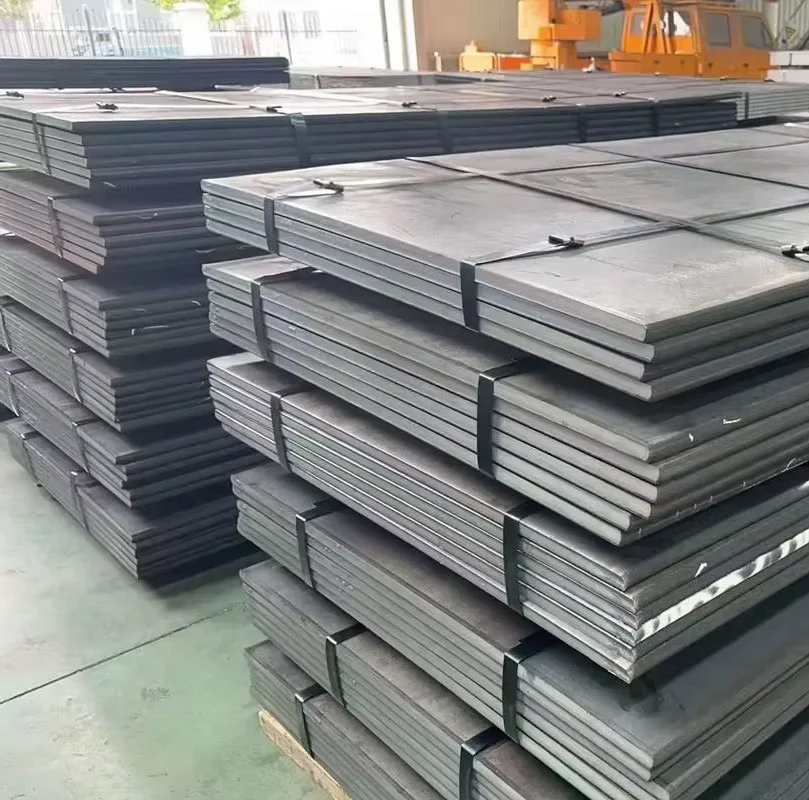

- Hot rolled Q235 and Q345 plates bundled with steel straps and edge protectors to prevent corner damage during transit
- Non-oiled surface plates packed with interleaving separators to avoid surface scratching in humid ocean containers
- Custom-cut pieces grouped by drawing number and tagged with heat traceability labels for on-site identification
- Container loading optimized for 3.5mm–11.75mm thickness range to maximize weight utilization per shipment
- FOB, CIF, and DDP shipping terms available with typical delivery within 8–14 days from order confirmation
Start Your Plate Procurement With Verified Specifications
Submit your plate dimensions, steel grade preference, quantity, and destination port to receive a detailed quotation with processing options and mill test certificate samples. Our team confirms cutting drawings, certification requirements, and loading plans before production begins.
Request Your Q235/Q345 Plate Quotation Today
Send your specifications to admin@sdxjypipe.com or reach us via WhatsApp at +86 188 5315 7756 for pricing, processing options, and certification details.
Frequently Asked Questions
Q: What is the difference between Q235 and Q345 for plate applications?
A: Q235 is a mild carbon structural steel suited for light fabrication, brackets, and appliance components where weldability and formability are primary concerns. Q345 offers higher yield strength through manganese alloying, making it appropriate for structural members, solar mounting systems, and automotive chassis parts that must resist bending under load.
Q: Can you cut plates to custom dimensions and perform secondary processing?
A: Yes. We provide custom cutting, stamping, and bending services based on client drawings. Processed pieces are inspected before packing and tagged with heat numbers for full traceability at your fabrication site.
Q: What certifications and test documents are provided with each shipment?
A: Each shipment includes a mill test certificate listing chemical composition and mechanical test results per heat number. ISO 9001:2015 certification covers our production system. Third-party inspection by SGS or BV can be arranged before shipment upon request.
Q: How do Q235 and Q345 correspond to international standards like ASTM and EN?
A: Q235 broadly corresponds to EN S235JR and ASTM A36, while Q345 aligns with EN S355JR and ASTM A572 Grade 50. Exact equivalence depends on the specific chemical and mechanical requirements of your project specification. Our mill test certificates provide actual test data so your engineer can verify compliance.
Q: What is the typical delivery time for custom-cut plates?
A: Standard-size plates in Q235 and Q345 are available from stock. Custom-cut orders are processed and shipped within 8–14 days depending on complexity and quantity.
