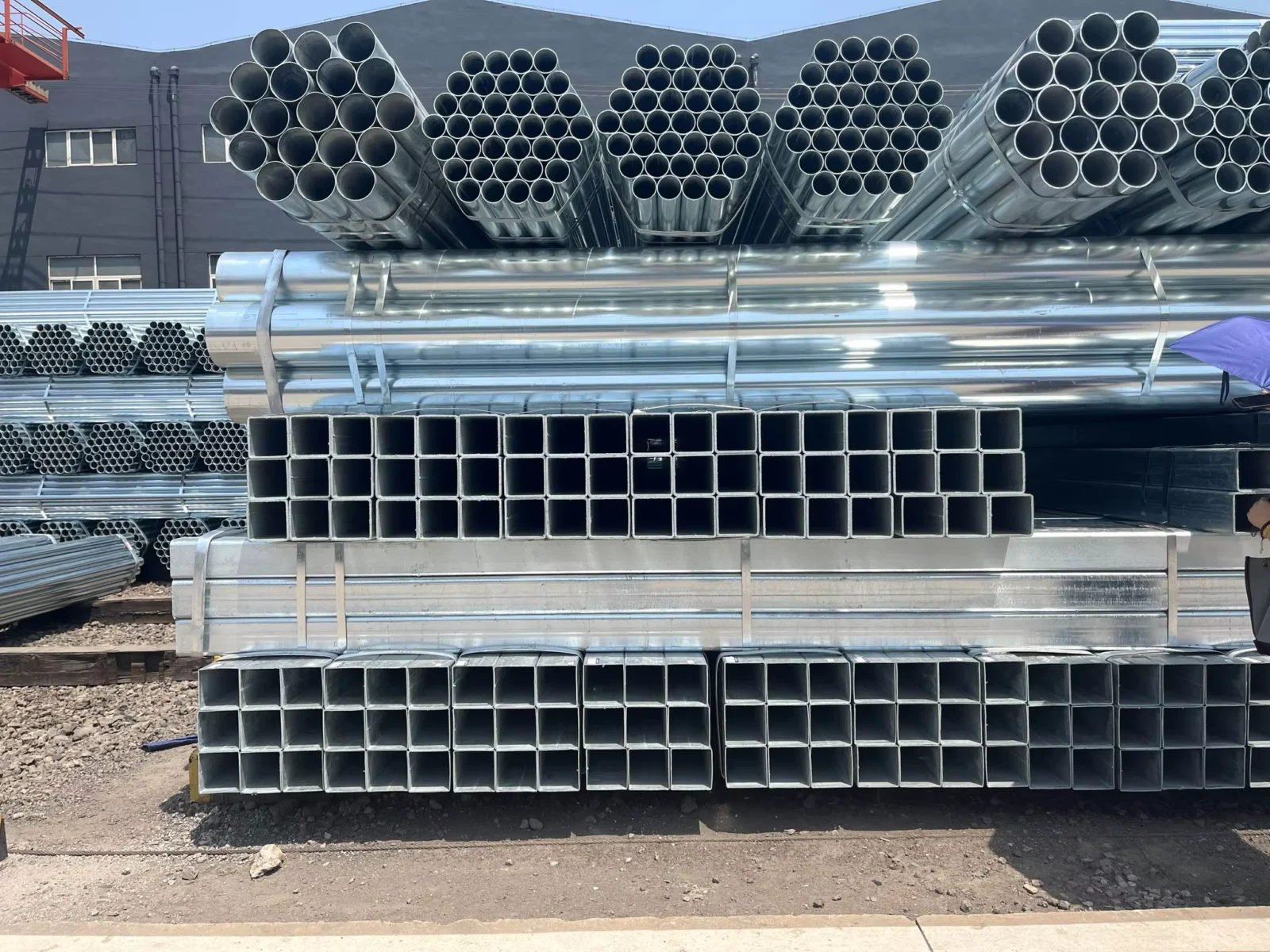

Factory-Direct Galvanized Tube Supply — Every Q235 Hot Galvanized Square Steel Tube ships with in-house lab test reports and full CE documentation, eliminating middleman markups and certification gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 Galvanized Square Steel Tube |
| Product Type | Galvanized Square Steel Tube |
| Steel Grade | Q195, Q235, Q345, SS400, ASTM A53 Grade B, ASTM A500 Grade A/B/C, S355JR, STK400, ST42.2 |
| Standard | ASTM A53, ASTM A500, ASTM A36, BS 1387, EN 10255, ISO 65, ANSI C80, DIN 2440, JIS G3444, GB/T 3091, GB/T 13793 |
| Section Shape | Square (Rectangular also available) |
| Size Range | 21.3 mm – 660 mm (1/2″ – 26″) |
| Wall Thickness | Up to 40 mm |
| Length | 5.8 m / 6 m / 11 m or custom |
| Technique | ERW (Welded) |
| Surface Treatment | Hot-Dip Galvanized / Pre-Galvanized (Zinc Coated 40–600 g/m²) |
| Tolerance | ±1% |
| Pipe Ends | Plain / Beveled / Threaded / Grooved |
| Processing Service | Cutting, Bending, Punching, Welding, Decoiling |
| Application | Construction frames, steel structures, fluid transport, hydraulic & precision machinery, power & boiler, petrochemical, scaffolding, mechanical support |
| MOQ | 1 Ton |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Building frames, curtain wall supports, bridge handrails, scaffolding systems |
| Steel Structure Fabrication | Column sections, truss members, purlin bracing, portal frame components |
| Mechanical & Industrial Equipment | Conveyor structures, hydraulic cylinder housings, machinery base frames |
| Petrochemical & Power | Pipe racks, cable tray supports, boiler structural bracing, fluid transport lines |
| Agricultural & Commercial | Greenhouse framing, warehouse mezzanines, solar panel mounting structures |
Zinc Coating Consistency Decides Whether a Q235 Hot Galvanized Square Steel Tube Survives Its First Inspection
A 48μm zinc layer on a 65μm spec means the entire container sits in port for weeks.
Buyers sourcing galvanized square tubes for outdoor construction and mechanical support structures frequently encounter inconsistent coating thickness — the mill test certificate says one thing, but the actual product tells another. When third-party inspectors pull random samples at the loading port, a single failed reading triggers full-batch re-testing, re-galvanizing, or outright rejection. Beyond coating, missing CE marks or incorrect EN standard references block EU customs clearance entirely, while improper container loading causes bending and surface scratches that only become visible when the steel reaches the job site. [NEED_CITE: hot-dip galvanizing coating thickness requirements per ASTM A123]
Matching Structural Load Requirements and Corrosion Environments
When engineers specify Q235 Hot Galvanized Square Steel Tube for outdoor scaffolding or coastal construction frames, the zinc coating weight directly determines service life in corrosive atmospheres. Hot-dip galvanizing at 275–600 g/m² provides decades of protection in industrial and marine environments, while pre-galvanized options at 40–120 g/m² suit indoor or temporary structures. The square cross-section delivers predictable load-bearing behavior in compression and bending, with flat surfaces enabling direct bolted or welded connections to gusset plates and bracket systems without additional fabrication. Our in-house laboratory verifies both dimensional accuracy and coating adhesion before any shipment leaves the facility.
Engineering Compliance and Certification Pathways
Structural hollow sections used in load-bearing frames must conform to recognized dimensional and mechanical standards — EN 10219 governs cold-formed welded structural hollow sections in Europe, while ASTM A500 covers cold-formed welded and seamless carbon steel structural tubing in North America. [NEED_CITE: EN 10219 cold-formed hollow section dimensional tolerances] For projects requiring CE marking under the Construction Products Regulation, the Q235 Hot Galvanized Square Steel Tube must carry Lloyd’s CE certification referencing EN 10210 or EN 10219, along with a Declaration of Performance. Steel grade equivalence across systems — Q235 mapping to S235JR or ASTM A500 Grade B — requires documented chemical and mechanical comparison to satisfy both the fabricator and the receiving inspector.
Steel Grade Selection and Galvanizing Process Fundamentals
Q235 remains the baseline carbon structural grade in Chinese standards, offering adequate yield strength for general construction frames and scaffolding where extreme loading is not a factor. When projects demand higher load capacity, Q345 or S355JR provide increased yield points without changing the tube geometry, allowing engineers to reduce wall thickness and weight while maintaining structural integrity. The ERW welding process produces a longitudinal seam that, after hot-dip galvanizing, receives full zinc coverage including the weld zone — though proper internal venting and draining during the galvanizing bath must be designed into the tube to prevent bare spots or zinc buildup inside. [NEED_CITE: steel grade equivalence between GB, EN, and ASTM standards] Pre-galvanized tubes, formed from already-coated strip steel, offer a thinner but more uniform zinc layer at lower cost, suitable for environments where heavy corrosion is not expected.
Hidden Costs of Specifying the Wrong Coating or Grade
Ordering pre-galvanized tubes when the project environment demands hot-dip protection leads to premature rust breakthrough, warranty claims, and costly field replacement — often after the structure is already erected and connected. Specifying Q235 when the structural calculation requires Q345 or S355JR creates a safety margin deficit that only surfaces during load testing or, worse, under actual service conditions. Missing or incomplete mill test certificates force re-testing at the destination port, adding weeks of delay and third-party inspection fees that far exceed the original price difference between compliant and non-compliant material. [NEED_CITE: consequences of non-conforming steel in structural applications]
Procurement Confidence Through Verified Manufacturing Capability
Every Q235 Hot Galvanized Square Steel Tube we produce passes through our in-house physical and chemical laboratory, where coating thickness, adhesion, dimensional accuracy, and chemical composition are verified against the purchase specification before the material is cleared for shipment. Our facility holds Lloyd’s CE certification for EN 10210 and EN 10219, ISO 9001:2015 registration, and Singapore FPC approval — documentation that travels with the steel through EU, Middle East, and Southeast Asian customs without question. With over 2,800 specification combinations in our production system, non-standard sizes and custom lengths are manufactured to order rather than sourced from uncertain third-party stock. Professional container loading with edge protectors, anti-damage padding, and weight distribution planning ensures the galvanized surface arrives at the job site without the scratches and dents that plague poorly packed shipments.
Documentation & Compliance
- Mill test certificate documenting Q235 chemical composition and yield strength per GB/T 3091 or EN 10219, including zinc coating weight verification
- Lloyd’s CE certificate referencing EN 10210 or EN 10219 for hot-dip galvanized structural hollow sections destined for EU markets
- ISO 9001:2015 quality management certificate covering the full production and inspection process
- SGS or BV third-party inspection report confirming dimensional tolerance, coating thickness, and surface quality before container sealing
- Heat number traceability linking each bundle to its original steel coil and galvanizing bath records
- Complete customs documentation including packing list, bill of lading, and certificate of origin for the destination country
Packaging, Loading & Delivery
- Hot-dip galvanized square tubes bundled with steel strips and edge protectors to preserve the zinc coating during ocean transit and handling
- Pre-galvanized tubes wrapped in waterproof paper and secured on wooden pallets for container loading in 5.8 m or 6 m lengths
- Container load optimization calculated per size range — 20ft containers for smaller sections (21.3–114.3 mm), 40ft for larger diameters up to 660 mm
- Custom cutting to project-specific lengths available, reducing on-site waste and secondary cutting labor at the construction location
- Each bundle marked with heat number, steel grade (Q235/Q345/S355JR), size, and length for immediate site identification
- Shipping terms FOB, CIF, or DDP with professional loading supervision and container sealing photos provided before vessel departure
Securing Your Q235 Hot Galvanized Square Steel Tube Order
Submit your complete specification — outer dimension, wall thickness, steel grade, zinc coating requirement, total tonnage, and destination port — to receive a detailed quotation with unit pricing, production lead time, and applicable certification documentation. For non-standard sizes or custom lengths outside our standard range, our engineering team will confirm feasibility and tooling requirements within one working day. Third-party inspection by SGS or BV can be arranged at the loading port to verify coating thickness and dimensional compliance before the container is sealed.
Frequently Asked Questions
Q: What is the difference between hot-dip galvanized and pre-galvanized square tubes?
A: Hot-dip galvanizing immerses the finished tube in molten zinc, producing a coating of 275–600 g/m² with full coverage including the weld zone, suitable for outdoor and corrosive environments. Pre-galvanized tubes are formed from strip steel already coated at 40–120 g/m², offering a thinner but more uniform layer at lower cost for indoor or temporary applications.
Q: Can Q235 be used as a substitute for ASTM A500 Grade B or S235JR?
A: Q235 is chemically and mechanically comparable to S235JR and ASTM A500 Grade B in most general structural applications, but formal grade equivalence requires documented comparison of chemical composition and mechanical properties. We provide mill test certificates showing the actual values for each heat, allowing your engineer to verify compliance with the specified standard.
Q: What is the minimum order quantity for custom sizes?
A: Our minimum order quantity is 1 Ton for both standard and custom sizes. Non-standard dimensions outside our 2,800+ specification range can be produced to order with typical production lead times confirmed upon receipt of your complete inquiry.
Q: What certifications are provided for EU market imports?
A: We supply Lloyd’s CE certification referencing EN 10210 or EN 10219, ISO 9001:2015 quality certificate, mill test certificates per EN 10204 3.1, and complete customs documentation. Third-party inspection by SGS or BV is available upon request before shipment.
Q: How do you prevent damage to the galvanized coating during shipping?
A: Galvanized tubes are bundled with edge protectors, separated by rubber or wooden spacers, and loaded into containers with weight distribution planning to prevent movement during transit. Loading supervision photos are provided before container sealing to confirm the packing method.
Request Your Q235 Hot Galvanized Square Steel Tube Quotation
Send your specifications — size, wall thickness, steel grade, coating requirement, quantity, and destination — to receive pricing, lead time, and certification details within 12 hours.
