Description

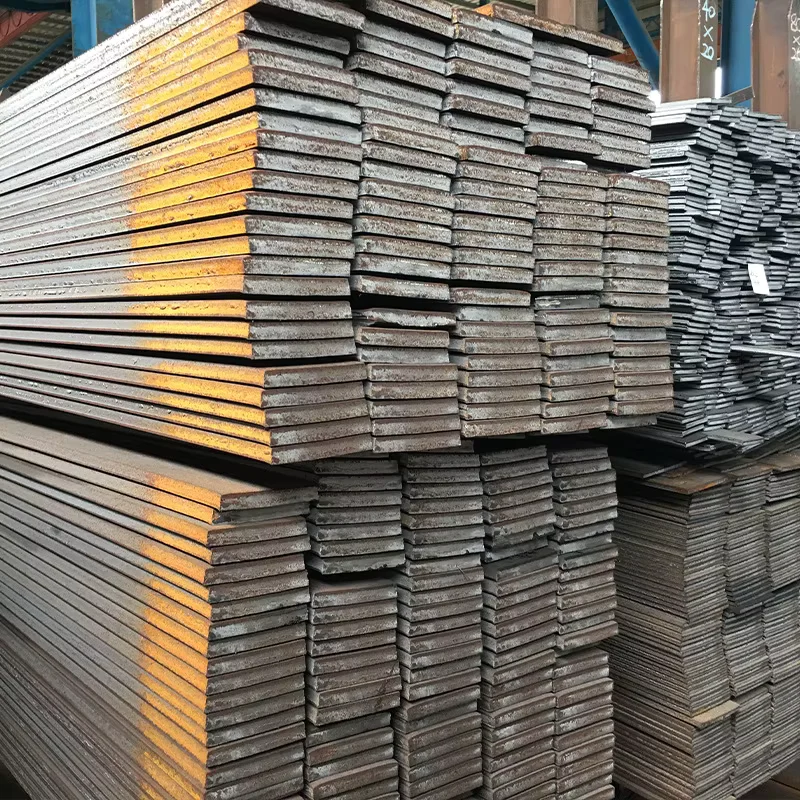

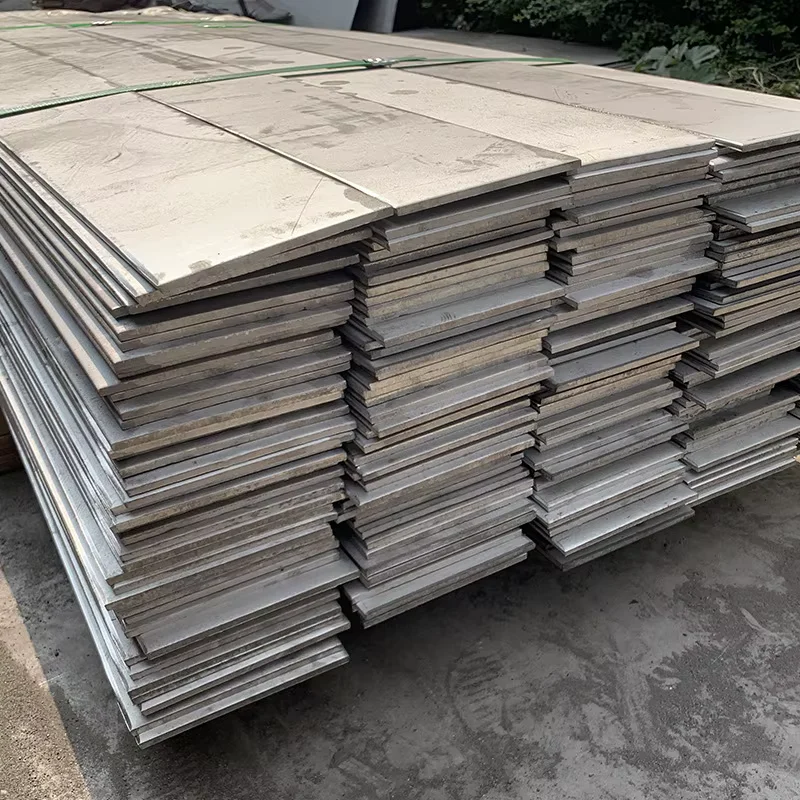

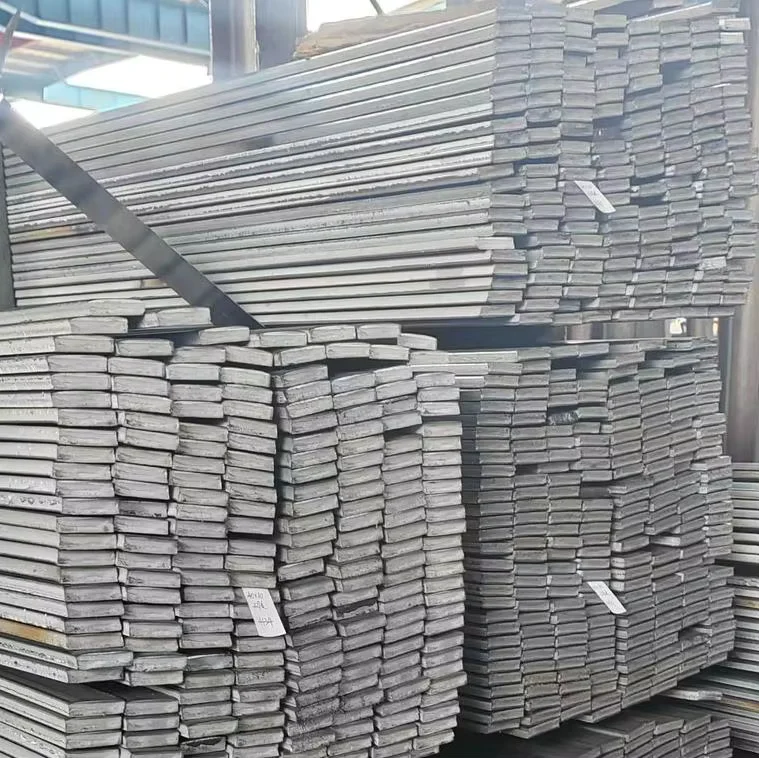

Factory-Direct Q235 Galvanized Angle Bar — Hot rolled flat steel and L shaped angles produced in-house with full processing and ±1% dimensional tolerance.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235 Galvanized Flat Steel / L Shaped Steel Angle |
| Product Type | Galvanized Flat Steel Bar & L Shaped Steel Angle |
| Steel Grade | Q235 |
| Standard | ASTM |
| Section Shape | Flat Bar / L Shaped Angle |
| Length | 5–12 m (16.40–39.37 ft) |
| Technique | Hot Rolled |
| Surface Treatment | Galvanized |
| Tolerance | ±1% |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting |
| Alloy Or Not | Non-Alloy |
| Application | Construction Structures / Building Frames / Factory Construction |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Building Construction | Structural frames, column bracing, purlin supports for factory buildings |
| Infrastructure | Walkway handrails, equipment platforms, cable tray supports |
| Steel Fabrication | Connection gussets, base plates, bracket assemblies for welded frames |
What Cutting Tolerance Costs on a Galvanized Angle Bar Order
A few millimeters off on bolt-hole alignment means entire batches get rejected at the destination site.
Construction contractors sourcing Q235 galvanized flat steel bar angle bar supplier products routinely face specification gaps when standard lengths do not match project drawings. Inconsistent zinc coating thickness leads to premature corrosion on exposed structural members. Fragmented procurement across multiple suppliers for cutting, punching, and galvanizing adds lead time and increases the risk of dimensional mismatch between components delivered to the same project. [NEED_CITE: dimensional tolerance requirements for hot rolled steel angles in structural applications]
Matching Structural Frames and Factory Construction Requirements
Q235 hot rolled galvanized flat steel bars and L shaped angles are produced to ±1% tolerance across 5–12 m lengths, which directly addresses the alignment requirements of building frames and factory structural supports. The galvanized coating provides corrosion resistance for outdoor exposure without additional painting, while the full processing capability — bending, welding, punching, and cutting — allows contractors to receive components ready for assembly rather than performing secondary work on site. As a Q235 galvanized flat steel bar angle bar supplier with in-house processing lines, we deliver cut-to-length angles with punched hole patterns matching project drawings, reducing field labor and rework.
Engineering Compliance and Surface Protection
Hot rolled Q235 non-alloy steel meets ASTM standard requirements for general structural use, with yield behavior suitable for building frames, equipment platforms, and bracing members where extreme load capacity is not the primary design driver. The galvanized surface treatment provides sacrificial zinc protection against atmospheric corrosion, extending service life in outdoor and semi-exposed construction environments without recurring maintenance costs. Dimensional tolerance of ±1% ensures that pre-punched connection holes align with bolt patterns on site, avoiding the structural compromise of re-drilling or forcing misaligned joints. For projects requiring third-party verification, SGS or BV inspection can be arranged before shipment to confirm coating thickness, dimensional accuracy, and material traceability. [NEED_CITE: hot dip galvanizing coating thickness standards for structural steel]
Q235 Grade and Hot Rolled Galvanized Process Explained
Q235 is a Chinese standard non-alloy carbon steel grade widely used in construction structures, with mechanical properties comparable to ASTM A36 and EN S235JR in general structural applications. The hot rolled technique produces flat bars and L shaped angles with consistent grain structure and mechanical properties throughout the cross-section, making them suitable for welding and bending without cracking. Galvanizing after hot rolling provides a metallurgically bonded zinc coating that resists chipping during transport and handling, unlike paint systems that can be damaged at edges and cut ends. The ±1% tolerance on dimensions ensures that theoretical weight calculations match actual delivered weight, preventing disputes over quantity and cost on large project orders. Non-alloy composition means Q235 angles can be welded using standard procedures without pre-heating requirements, reducing fabrication complexity on site.
Hidden Costs of Incorrect Grade or Tolerance Selection
Specifying the wrong steel grade or accepting excessive negative tolerance can lead to structural members failing engineering inspection at destination, requiring replacement shipments that delay project timelines by weeks. Missing or incomplete mill test certificates block customs clearance in regulated markets, leaving containers stranded at port while documentation is resolved. Coating thickness below specification accelerates corrosion on exposed structural members, creating safety liabilities and maintenance costs that far exceed the initial price difference between qualified and non-qualified suppliers. [NEED_CITE: consequences of non-compliant steel materials in construction projects]
Why Source Q235 Galvanized Angles from SD XJY Pipe
We operate three production lines covering 2,800+ specifications, allowing single-source procurement of flat bars, angles, and complementary section steel including H-beams, channels, and square tubes for complete project supply. Our in-house physical and chemical laboratory performs dimensional measurement, coating thickness testing, and chemical composition analysis on every batch before dispatch, with mill test certificates issued per heat number. Full international certifications including ISO 9001:2015, Lloyd’s CE, Singapore FPC, and SGS/BV verification support customs clearance across 50+ export markets. Custom cutting lengths, punching patterns, and bending to project drawings are processed in-house, eliminating the need to coordinate multiple subcontractors. Professional container loading with anti-damage measures prevents bending and zinc coating abrasion during ocean transit, addressing the loading damage issues that cause destination rejection.
Documentation & Compliance
- Mill test certificate documenting Q235 chemical composition and mechanical properties per heat number for each shipment
- ISO 9001:2015 quality management certificate confirming production process control for hot rolled and galvanized products
- SGS or BV third-party inspection report verifying galvanized coating thickness, dimensional tolerance, and surface quality before shipment
- Material traceability documentation linking each bundle to heat number, production date, and test results
- Customs clearance documents including packing list, bill of lading, and certificate of origin formatted for destination country requirements
Packaging, Loading & Delivery

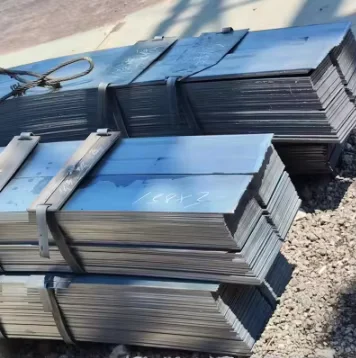

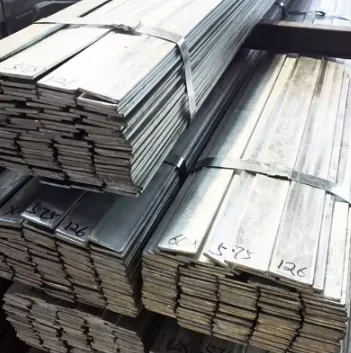

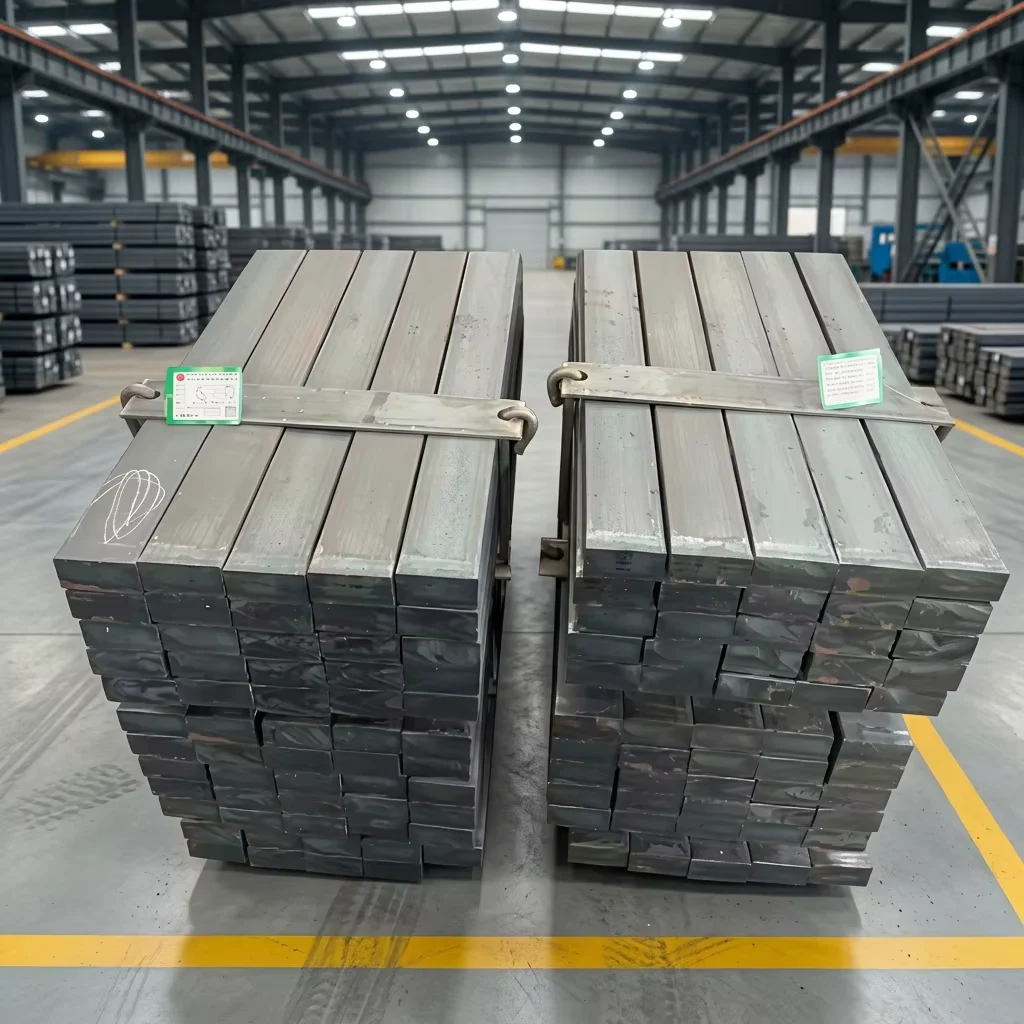

- Q235 galvanized flat bars and L shaped angles bundled with steel strips and edge protectors to preserve zinc coating during ocean transit
- Cut-to-length pieces segregated and labeled by project drawing number to prevent mixing at destination site
- Container loading optimized for 5–12 m lengths with anti-bending supports to prevent deformation of galvanized angles during transport
- Heat number and steel grade marked on each bundle for traceability and inspection verification at project site
- FOB, CIF, and DDP shipping terms available with professional loading supervision and tracking until arrival
Getting Your Q235 Galvanized Angle Quote
Submit product specifications including flat bar or angle dimensions, steel grade Q235, galvanized coating requirement, cutting lengths, punching patterns, and destination port to receive a detailed quotation with unit price, lead time, and shipping terms. Mill test certificates and third-party inspection options are confirmed at quotation stage. Custom processing including bending, welding, and decoiling is quoted based on drawing requirements.
Request Q235 Galvanized Flat Steel Bar Angle Bar Supplier Quote
Send your specifications, quantities, and destination to receive pricing with mill test certificates within 12 hours.
