Description
Direct Mill Supply for ASTM Galvanized Tubes — Every Dx51D to G550 coil is hot-dip galvanized on our own ERW line, then cold-formed into square and rectangular sections under in-house dimensional control before shipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM Galvanized Square and Rectangular Steel Tube |
| Product Type | Galvanized Square and Rectangular Steel Tube |
| Steel Grade | Dx51D, Dx52D, Dx53D, G550, S350 |
| Standard | ASTM |
| Section Shape | Square / Rectangular |
| Size Range | Square and rectangular sections per ASTM standard profiles |
| Wall Thickness | 1.0–5.0 mm |
| Length | 6 m / 12 m (customizable) |
| Technique | Hot Rolled Based / ERW |
| Surface Treatment | Galvanized (Z30–Z40), Slightly Oiled |
| Spangle Type | Zero Spangle |
| Hardness | Hard |
| Skin Pass | Yes |
| Tolerance | ±1% |
| Ends | Plain |
| Processing Services | Welding, Punching, Cutting, Bending, Decoiling |
| Application | Making Pipes, Cutting Sheets, Making Small Tools, Making Fences, Steel Structures, Construction Frames, Machinery, Scaffolding |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Steel Structures | Building frames, column bracing, roof trusses, mezzanine supports |
| Fencing & Scaffolding | Perimeter fencing posts, scaffolding ledger tubes, guardrail uprights |
| Machinery Manufacturing | Conveyor frames, equipment bases, small tool housings, machine guards |
| Infrastructure | Highway sound barriers, sign gantry supports, utility pole bases |
What Zero-Spangle Galvanizing Means for Field Welding and Paint Adhesion
Zero spangle finish eliminates surface irregularities that cause inconsistent weld penetration and paint film defects.
When procurement teams order ASTM galvanized square and rectangular tubes for architectural or structural work, the visible spangle pattern on regular galvanized stock creates a textured zinc surface. That texture interferes with MIG and TIG welding arc stability, and it causes orange-peel effects in powder-coated or painted finishes. Zero spangle galvanizing produces a uniform, smooth zinc layer — critical when these tubes end up in curtain wall sub-frames or exposed machinery enclosures where surface appearance matters. The Z30–Z40 coating weight balances corrosion resistance with formability, and the slight oil passivation prevents white rust during ocean transit [NEED_CITE: zinc coating weight selection for galvanized structural tubes].
How Wall Thickness Tolerance Protects Structural Frame Alignment
On a 2,800-specification production range covering wall thicknesses up to 40mm, holding ±1% tolerance on 1.0–5.0mm galvanized square and rectangular sections means every cut piece lands within the same dimensional envelope. For scaffolding systems and steel structure frames, even 0.3mm of excess negative tolerance on a 2mm wall can shift bolt-hole alignment across a 12-meter run. Our ERW-based forming process, combined with skin pass treatment, locks the profile geometry before galvanizing — so the zinc coat does not mask underlying dimensional drift. This ASTM Galvanized Square and Rectangular Steel Tube supplier controls every stage from coil to bundle under one roof.
Engineering Compliance and Certification Pathways
ASTM-grade galvanized tubes shipped to North America require full dimensional conformance and coating weight documentation. For EU-bound projects, the same physical product may need re-certification under EN 10219 if the end-use falls under structural Eurocode scope [NEED_CITE: EN 10219 cold-formed structural hollow section requirements]. Steel grade equivalence between ASTM A653 (Dx51D, G550) and EN 10346 (S250GD, S550GD) must be verified before customs submission — a mismatch in grade designation alone can trigger inspection holds at destination ports. Our in-house physical and chemical laboratory tests every heat for composition and coating adhesion, and third-party inspection through SGS or BV is arranged before container sealing.
Steel Grade Selection: Dx51D Through G550
The Dx51D to Dx53D series follows the ASTM A653 commercial and forming quality classification — Dx51D suits general roll-forming and light structural use, while Dx53D offers deeper drawing capability for complex bent profiles. G550 sits at the high-strength end with a minimum yield of 550 MPa (per ASTM A653 designation), appropriate for purlins, secondary framing, and scaffolding components where weight-to-strength ratio matters. S350 bridges the gap between commercial quality and high-strength structural use. Selecting the wrong grade — say, specifying Dx51D where G550 is structurally required — does not show up until load testing or inspection, at which point replacement costs multiply [NEED_CITE: steel grade equivalence between ASTM A653 and EN 10346 standards].
Hidden Costs of Tolerance and Certification Gaps
Ordering ASTM galvanized square and rectangular tubes from suppliers who cannot guarantee ±1% wall tolerance leads to three failure modes: theoretical weight does not match actual weight (triggering quantity disputes), bolt-hole patterns drift on long-run assemblies (causing field rework), and third-party inspectors flag dimensional non-conformance at destination. Similarly, missing or incorrectly referenced CE marks and mill test certificates block EU customs clearance entirely — the cargo sits at port until documentation is corrected, generating demurrage charges that exceed the original tube cost [NEED_CITE: customs documentation requirements for structural steel imports].
Why Procurement Teams Consolidate with Us
Our Jinan facility operates three dedicated production lines covering 2,800+ specifications, meaning your Dx51D galvanized square tubes and G550 rectangular sections ship from the same mill with unified documentation. Every ASTM Galvanized Square and Rectangular Steel Tube order is tested in our own physical and chemical laboratory — chemical composition, tensile properties, coating weight, and dimensional checks are completed before any bundle leaves the yard. We hold ISO 9001:2015, Lloyd’s CE certification under EN 10210/10219, and Singapore FPC, so the same production line can supply projects requiring ASTM, EN, or AS standards. Custom lengths beyond standard 6m and 12m are cut to drawing, and our export loading team uses purpose-built cradles and edge protectors to prevent zinc coating damage during container stuffing.
Documentation & Compliance
- Mill test certificate documenting Dx51D/G550 chemical composition, yield strength, and zinc coating weight per ASTM A653
- CE certificate covering EN 10219 cold-formed structural hollow sections for EU-bound shipments
- ISO 9001:2015 quality management certificate applicable to all galvanized tube production
- SGS or BV third-party inspection report verifying dimensional tolerance, coating thickness, and surface quality
- Full material traceability by heat number from galvanized coil input to finished tube bundle
- Export customs documents including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

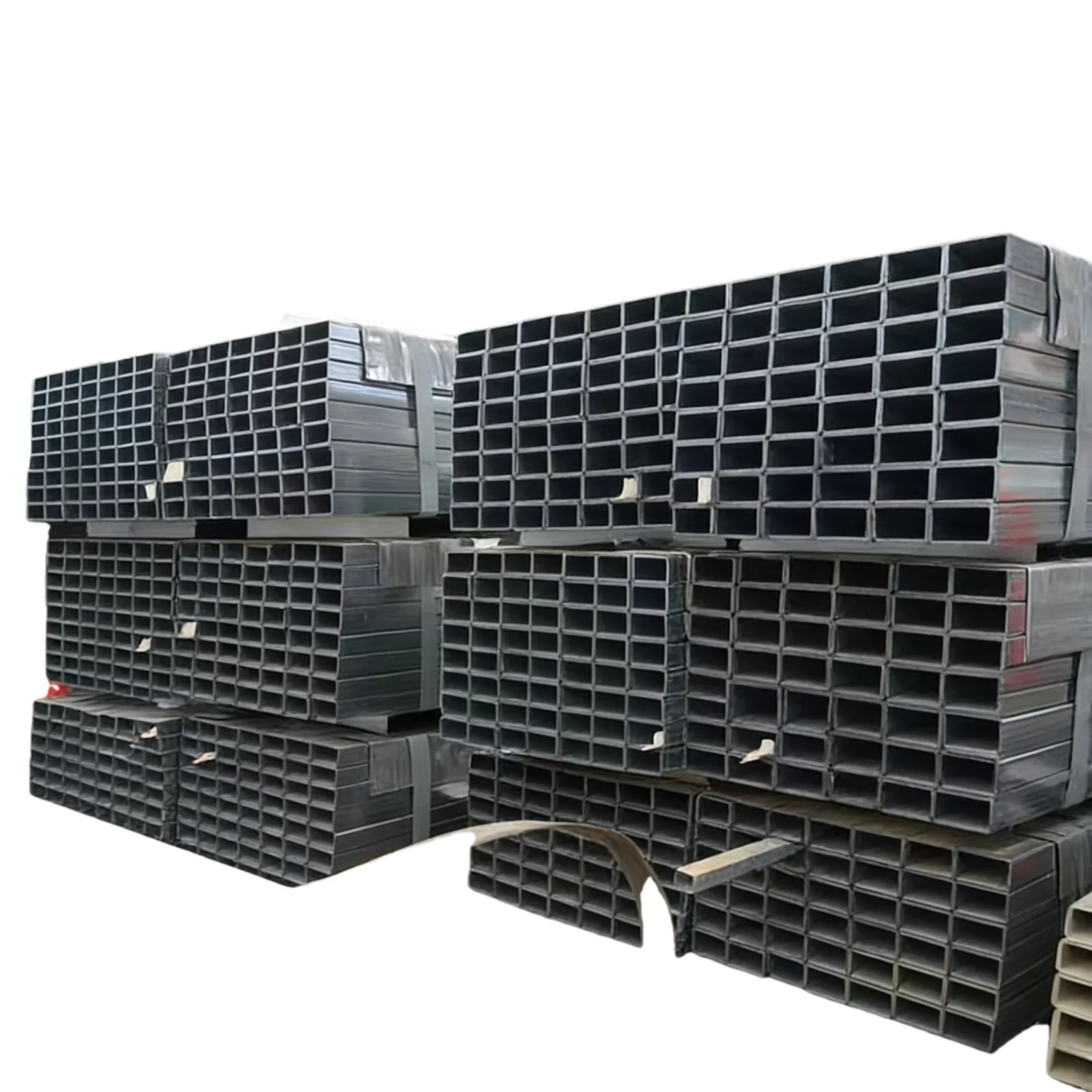

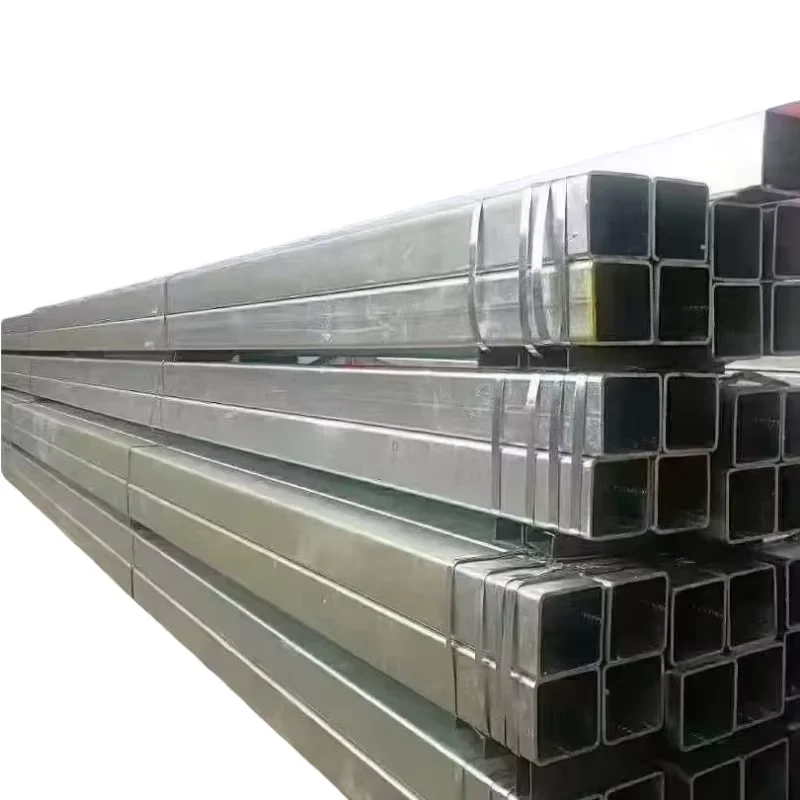

- Galvanized square and rectangular tubes bundled with steel strips and rubber edge protectors to preserve the zero spangle zinc coating during handling and ocean transit
- Slight oil passivation applied after galvanizing to prevent white rust formation on Z30–Z40 coated surfaces during extended container shipping
- Custom length cutting to project-specific dimensions (6m, 12m, or non-standard) reduces on-site waste and welding joints for steel structure frames
- Container loading optimized for 1.0–5.0mm wall thickness profiles with anti-bending support to maintain ±1% dimensional tolerance at destination
- Heat number and steel grade markings stenciled on each bundle for site traceability and inspection verification
- FOB, CIF, and DDP shipping terms available with professional tube loading plans for 20ft and 40ft containers
Ready to Move from Inquiry to Mill Test Certificate
Submit your specification sheet — section dimensions, wall thickness, steel grade (Dx51D through G550), coating weight, quantity, and destination port — and receive a detailed quotation with unit pricing, production lead time, and shipping terms within 12 hours. Sample sections and mill test certificates are available for quality confirmation before contract signing, and third-party inspection can be scheduled at any production stage.
Get Your ASTM Galvanized Tube Quote with Full Mill Certification
Send your drawing or specification list to receive pricing, coating weight options, and delivery schedule for Dx51D–G550 galvanized square and rectangular tubes.
Contact: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjypipe.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between Dx51D, Dx52D, and Dx53D steel grades for galvanized tubes?
A: These grades follow ASTM A653 classification for commercial and forming quality. Dx51D is standard commercial quality for general roll-forming and light structural use. Dx52D offers improved formability for moderate bending. Dx53D provides deep drawing capability for complex bent profiles where cracking risk exists at tight radii.
Q: Can you produce non-standard sizes outside the 1.0–5.0mm wall thickness range?
A: Our production lines cover 2,800+ specifications with wall thicknesses up to 40mm for square and rectangular sections. Non-standard dimensions, custom lengths, and special profiles are available — submit your drawing for feasibility review and quotation.
Q: What zinc coating weight options are available beyond Z30–Z40?
A: Standard production covers Z30–Z40 coating weight suitable for indoor and mild outdoor environments. For higher corrosion resistance requirements — such as coastal or industrial atmosphere exposure — heavier zinc coatings or duplex coating systems can be discussed based on project specifications.
Q: Do you provide third-party inspection before shipment?
A: Yes. SGS and BV third-party inspection services are available for dimensional verification, coating thickness measurement, surface quality assessment, and documentation review. Inspection is arranged at our facility before container loading and sealing.
Q: What is the typical production lead time for custom-length galvanized tubes?
A: Standard sizes in Dx51D–G550 grades ship from existing stock. Custom lengths, non-standard dimensions, or special processing (cutting, punching, bending) enter the production queue with typical lead times confirmed at quotation stage based on order volume and specification complexity.
