Description
Factory-direct steel plate processing — Custom laser cutting from GB, EN, ASTM, and JIS grade plates with in-house physical and chemical testing before dispatch.
Technical Specifications + Markdown Table
| Parameter | Value |
|---|---|
| Designation | Custom Laser Cut Steel Plate |
| Product Type | Machined Steel Product (Steel Plate Laser Cutting Service) |
| Steel Grade | Customers’ Requirement (Customizable per GB/EN/ASTM/JIS standards) |
| Technique | Laser Cutting |
| Surface Treatment | As per customer requirement |
| Size | Customized Size |
| Tolerance | High-accuracy laser cutting precision |
| Application | Mechanical components / Steel structure fabrication / Architectural facades / Industrial assemblies / Custom metal parts |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Architectural Facades | Curtain wall framing plates, facade connection brackets, decorative steel panels |

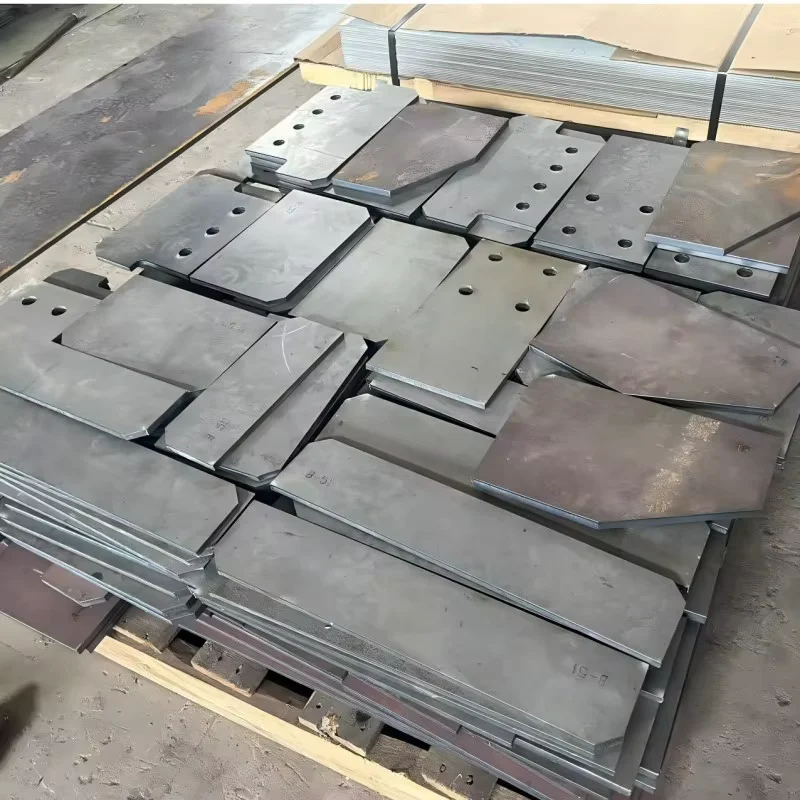

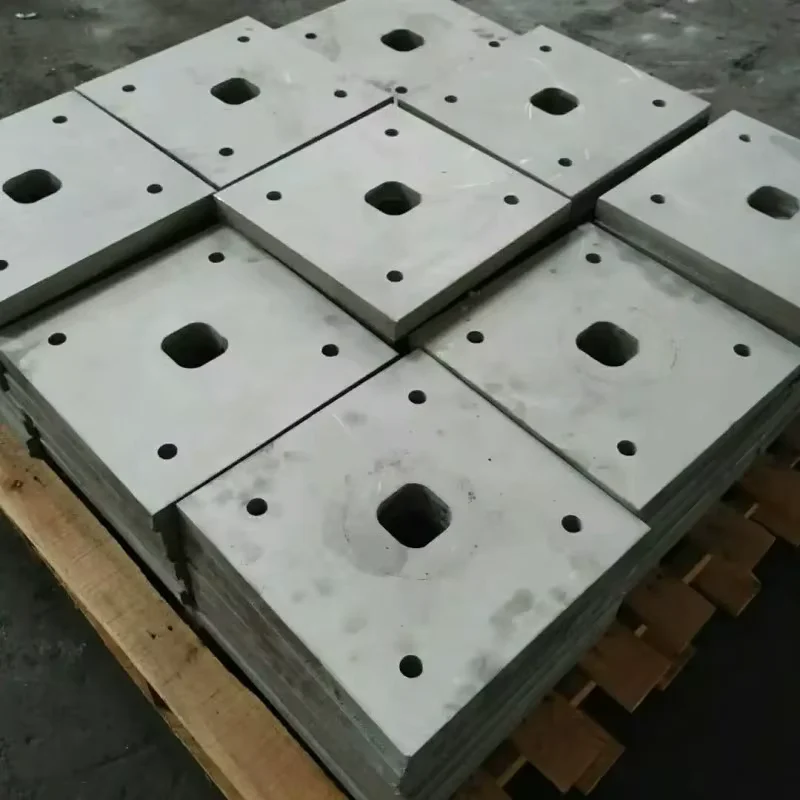

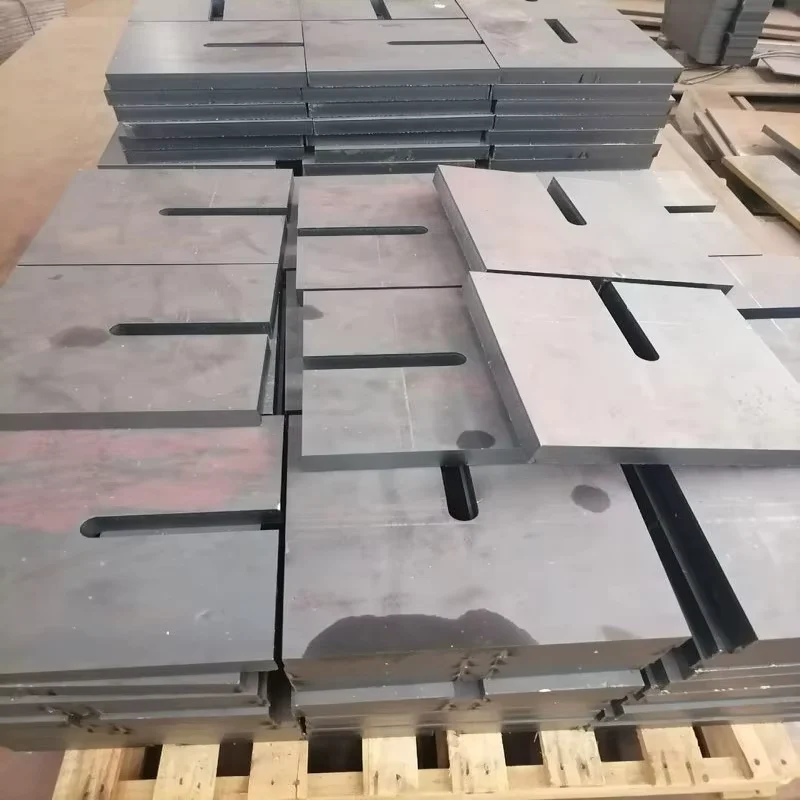

| Steel Structure Fabrication | Column base plates, gusset plates, beam end connectors |

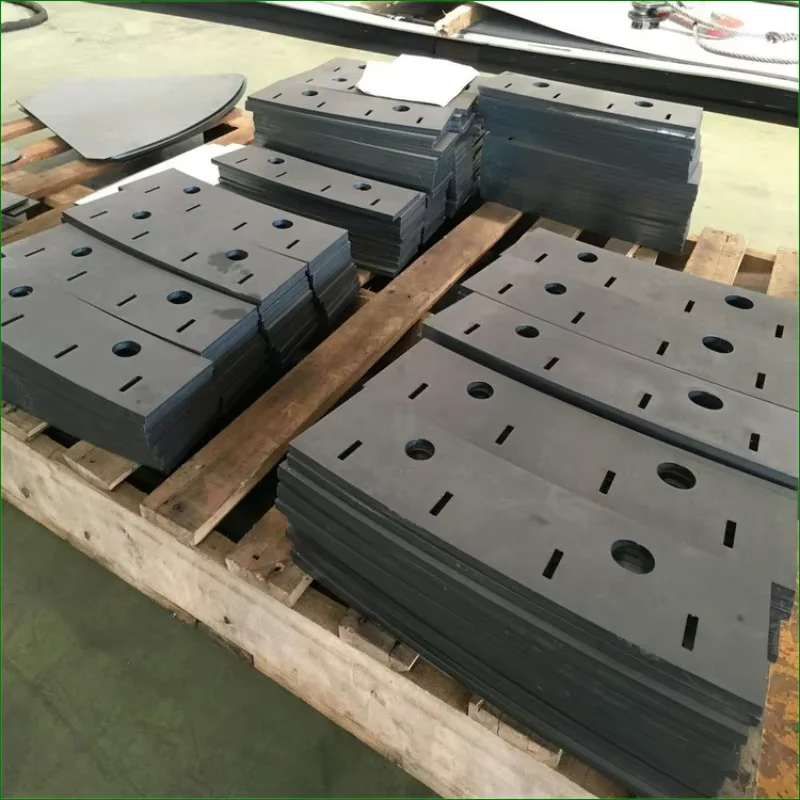

| Machinery Manufacturing | Equipment mounting plates, conveyor frame components, hydraulic brackets |
| Industrial Assemblies | Platform grating supports, tank fabrication parts, structural inserts |
Where Laser Cutting Precision Determines Facade Alignment
Exact dimensional tolerance eliminates on-site rework for architectural steel connections.
When curtain wall contractors receive facade plates with even 1-2mm deviation, the entire glass panel alignment shifts. Standard flame cutting leaves heat-affected zones and dimensional drift that forces fabricators to re-machine on location — adding days to project timelines. Our custom steel plate laser cutting service delivers clean edges with tight tolerance, ensuring bolt-hole patterns match engineering drawings without field adjustment. [NEED_CITE: dimensional tolerance requirements for structural steel fabrication]
Matching Engineering Drawings for Curtain Wall Systems
Architectural steel facades demand plates where every corner meets 90-degree precision and hole patterns align within sub-millimeter tolerance. Our custom steel plate laser cutting service processes plates to exact CAD specifications, whether you need Q355B base plates for column connections or S355JR gussets for bracing nodes. The laser beam’s narrow kerf preserves material integrity at edges, critical when these plates transfer structural loads in high-rise frames. We handle non-standard thicknesses and irregular geometries that conventional punching cannot achieve.
Structural Compliance and Certification Pathways
Engineering projects require documented material traceability from mill to installation. Plates cut for EU markets must carry CE marking per EN 10219 cold-formed hollow section standards, while North American projects reference ASTM A500 or A53 specifications. [NEED_CITE: steel grade equivalence between EN and ASTM standards] Our in-house laboratory verifies chemical composition and mechanical properties before cutting begins, ensuring the final plates meet both the specified grade and dimensional tolerance. Third-party inspection through SGS or BV confirms compliance for regulated markets.
Steel Grade Selection for Load-Bearing Applications
The choice between Q235, Q355, S275, or S355 grades directly affects structural capacity and connection design. Higher yield strength grades allow thinner plates for equivalent load transfer, reducing overall weight while maintaining safety factors. Laser cutting preserves the base metal’s mechanical properties at cut edges, unlike thermal processes that alter microstructure. For corrosion-prone environments, surface treatment selection — whether hot-dip galvanizing, shop primer, or bare mill finish — determines long-term durability without compromising cutting precision.
Hidden Costs of Tolerance Drift in Fabrication
Plates that arrive with oversized holes or misaligned corners force fabricators into costly rework cycles. A single base plate with 3mm hole deviation can delay an entire column erection sequence, triggering crane rescheduling and crew idle time. Material certificates that don’t match delivered chemistry create inspection holds at customs, especially for EU markets requiring EN 10210 compliance documentation. [NEED_CITE: structural steel fabrication tolerance standards] Choosing a supplier with verified mill test certificates and third-party inspection capability prevents these downstream losses.
Why SD XJY Pipe for Laser Cut Plates
We operate three production lines covering over 2,800 specifications, allowing us to source plates in any grade from Q195 to Q690, S235JR to S355J2, or ASTM A500 variants. Our in-house physical and chemical laboratory tests every heat before cutting, providing mill test certificates that document actual composition and mechanical results. Full international certifications — ISO 9001:2015, Lloyd’s CE per EN 10210/10219, Singapore FPC — ensure smooth customs clearance across 50+ export destinations. Custom non-standard sizes and thicknesses are available with low minimum order quantities. Professional container loading with anti-damage measures prevents edge deformation during ocean transit.
Documentation & Compliance
- Mill test certificate documenting chemical composition and mechanical properties per specified steel grade standard
- CE certificate confirming compliance with EN 10210/EN 10219 for European market projects
- ISO 9001:2015 quality management system certificate covering laser cutting processes
- SGS or BV third-party inspection report verifying dimensional accuracy and material conformity
- Material traceability by heat number linking each plate to original mill test data
- Customs documents including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Laser cut plates bundled with edge protectors to preserve surface finish and prevent corner damage during transit
- Surface treatment preserved through protective wrapping — galvanized plates receive additional moisture barriers, painted surfaces get interleaving paper
- Container loading optimized for plate dimensions, with anti-shift bracing preventing movement during ocean freight
- Custom cutting to exact project lengths eliminates on-site welding and reduces material waste
- Heat number and steel grade marked on each plate for site identification and inspection traceability
- FOB, CIF, or DDP shipping terms available with door-to-door logistics coordination
Initiating Your Laser Cutting Project
Submit your engineering drawings specifying plate dimensions, steel grade, surface treatment, and quantity to receive a detailed quotation within 12 hours. We provide mill test certificates and third-party inspection options before production begins, ensuring material compliance for your project specifications. Custom sizes enter production with typical lead times of 15-25 days, while standard stock plates ship immediately.
Frequently Asked Questions
Q: What steel grades are available for custom laser cutting?
A: We process plates in any grade per GB, EN, ASTM, or JIS standards, including Q195-Q690, S235JR-S355J2, ASTM A500 Gr.A/B/C/D, and JIS G3466 STKR400/490. Stainless steel and alloy grades are also available upon request.
Q: How do you ensure cutting accuracy and dimensional tolerance?
A: High-accuracy laser cutting technology delivers precise dimensions with clean edges. Our in-house laboratory performs dimensional verification before shipment, and third-party inspection through SGS or BV is available for critical projects.
Q: Can you provide third-party inspection and material certificates?
A: Yes, we provide mill test certificates documenting chemical composition and mechanical properties. Third-party inspection reports from SGS or BV are arranged upon request to verify compliance with your project specifications.
Q: What is the typical lead time for custom laser cutting orders?
A: Standard sizes ship from stock immediately. Custom sizes and non-standard dimensions enter production with typical lead times of 15-25 days depending on complexity and quantity.
Q: Do you offer professional container loading for export orders?
A: Yes, we provide professional container loading with anti-damage measures including edge protectors, anti-shift bracing, and surface protection to prevent deformation during ocean transit.
Start Your Custom Steel Plate Laser Cutting Project
Send your specifications including dimensions, steel grade, surface treatment, and quantity to receive a quotation with mill test certificate options. Contact us at admin@sdxjypipe.com or WhatsApp +86 188 5315 7756 to discuss your project requirements.
