Description

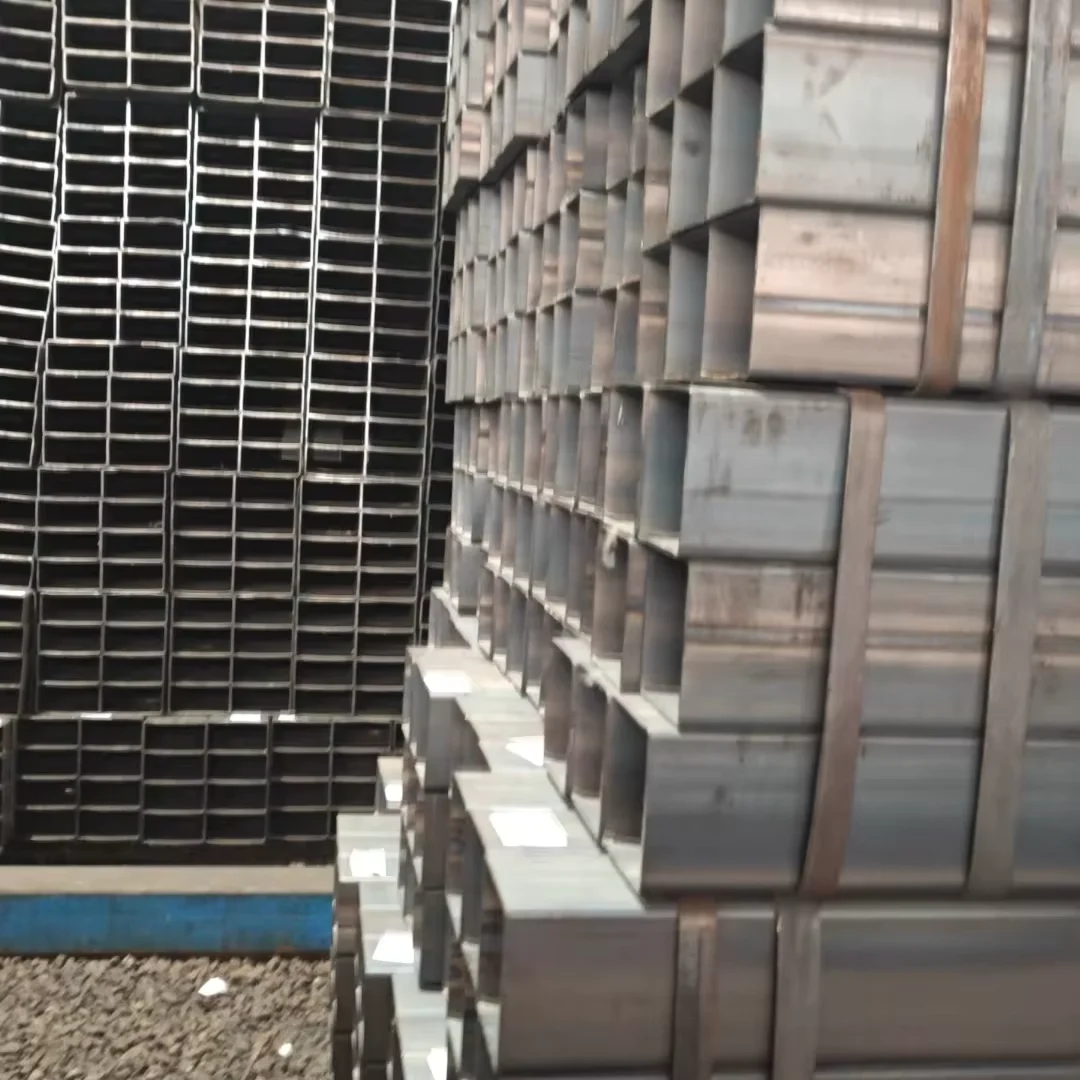

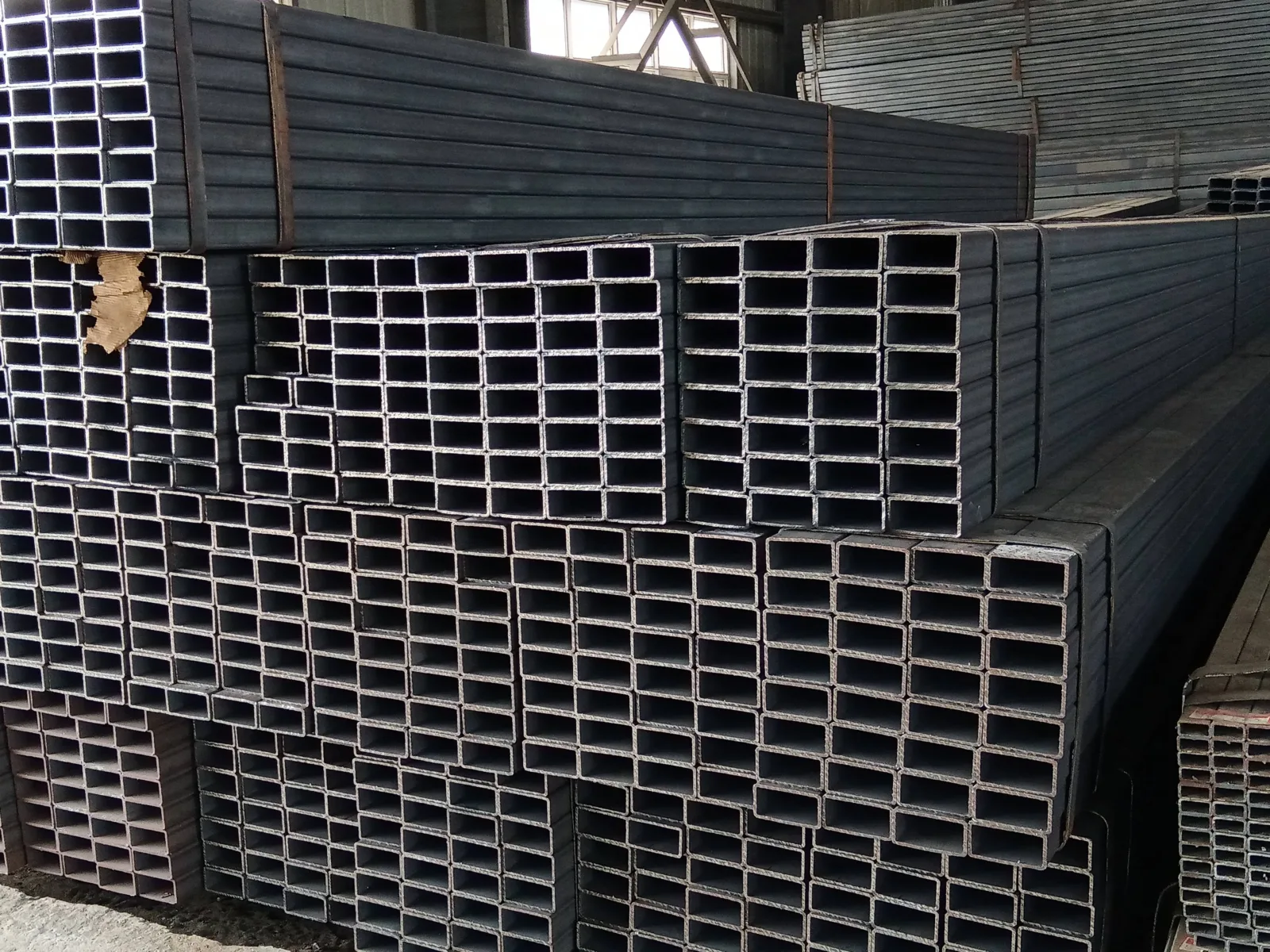

Factory-Direct SPA-H Corten Steel Square Tubes — Hot-rolled ERW square hollow sections produced in-house with full JIS G3125 compliance and mill test certificates for every heat.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | SPA-H Corten Steel Square Tube |
| Product Type | Square Steel Tube |
| Steel Grade | SPA-H, Q195, Q235, Q345, S235JR, S275JR, S355JR |
| Standard | JIS G3125, ASTM |
| Section Shape | Square |
| Technique | ERW |
| Surface Treatment | Hot Rolled / Black |
| Length | 6m / 6.4m / 12m |
| Tolerance | ±1% |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Oiled or Non-oiled | Non-oiled |
| MOQ | 1 Ton |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Architectural Facades | Outdoor curtain wall framing, rust-patina cladding structures, landscape sculpture supports |
| Container Manufacturing | Shipping container top side rails, corner castings, corrugated panel frames |
| Infrastructure & Bridges | Railway rolling stock underframes, bridge handrail posts, highway sound barrier columns |
| Petrochemical Plants | Pipe rack supports, outdoor conveyor structures, ventilation duct frameworks |
What Specification Gaps Cost on a Weathering Steel Facade Order
Missing JIS G3125 documentation and inconsistent corner quality turn a straightforward supply order into a customs rejection or on-site rejection.
Procurement teams sourcing JIS G3125 SPA-H corten steel square tube supplier options frequently discover that domestic mill stocks run short on non-standard wall thicknesses or lack proper chemical composition reports for the Cu-P-Cr-Ni alloy system. Without a valid mill test certificate referencing JIS G3125, EU and Middle-East customs brokers hold the shipment at port [NEED_CITE: JIS G3125 high atmospheric corrosion resistance steel requirements]. Meanwhile, standard rectangular tubes with rounded corners (R≥2t) arrive on architectural facade jobs where the design calls for true sharp-corner profiles — forcing contractors to either reject the lot or pay for costly re-fabrication at destination.
How SPA-H Alloy Composition Serves Outdoor Structural Applications
SPA-H belongs to the Cu-P-Cr-Ni weathering steel family defined by JIS G3125. When exposed to wet-dry atmospheric cycles, these alloying elements trigger formation of a dense, self-healing rust patina that bonds to the steel substrate — eliminating the need for painting or coating in most outdoor structural applications. The atmospheric corrosion resistance of SPA-H is 2–8× superior to ordinary carbon steel, making it a practical choice for facade framing, container components, and bridge elements where maintenance access is limited. For projects requiring cross-standard substitution, equivalent grades such as Q195, Q235, Q345, and S235JR–S355JR are available from the same production line, allowing procurement teams to consolidate orders under one JIS G3125 SPA-H corten steel square tube supplier contract.
Engineering Compliance and Certification Pathways
Structural hollow sections used in load-bearing frames must comply with dimensional and mechanical requirements set by standards such as EN 10219 for cold-formed welded structural hollow sections or ASTM A500 for North American projects [NEED_CITE: EN 10219 cold-formed hollow section dimensional tolerances]. SPA-H square tubes produced via ERW process maintain ±1% dimensional tolerance across 6m–12m lengths, ensuring consistent fit-up during on-site welding and bolting. For EU market entry, CE certification per EN 10210/EN 10219 and Factory Production Control (FPC) audits are mandatory — documents that must accompany every shipment to avoid port holds. The hot-rolled black surface finish arrives non-oiled and ready for natural weathering patina development, or can be pre-rusted to accelerate the aesthetic rust layer before installation.
Understanding the ERW Process and Grade Selection
ERW (Electric Resistance Welding) forms square tubes from hot-rolled coil by cold-bending the strip into shape and fusing the seam through electrical resistance — producing a continuous weld with minimal heat-affected zone. This process suits structural applications where internal pressure is not a factor, offering cost efficiency over seamless alternatives while maintaining tight dimensional control. The SPA-H grade’s low carbon content (≤0.12%) and balanced Cu-P-Cr-Ni chemistry ensure good weldability without pre-heating, while the phosphorus range (0.07–0.15%) contributes to the protective patina formation. For projects spanning multiple standards, the availability of Q195–Q345 and S235JR–S355JR grades from a single JIS G3125 SPA-H corten steel square tube supplier simplifies material reconciliation across design specifications.
The Hidden Price of Unverified Weathering Steel
Ordering SPA-H tubes without verified chemical composition reports risks receiving material that fails to develop the protective patina — leaving the structure vulnerable to accelerated corrosion in coastal or industrial atmospheres [NEED_CITE: atmospheric corrosion resistance of weathering steel in marine environments]. Missing CE marks or incorrect standard references on mill certificates trigger customs rejection in regulated markets, adding weeks of delay and storage fees. Tubes produced with excessive negative tolerance reduce actual wall thickness below design specifications, compromising structural load capacity and failing third-party inspection at destination. These issues surface only after the container reaches the job site, where replacement costs multiply through demurrage, re-order lead times, and project schedule penalties.
Why Procurement Teams Consolidate with Our Production Line

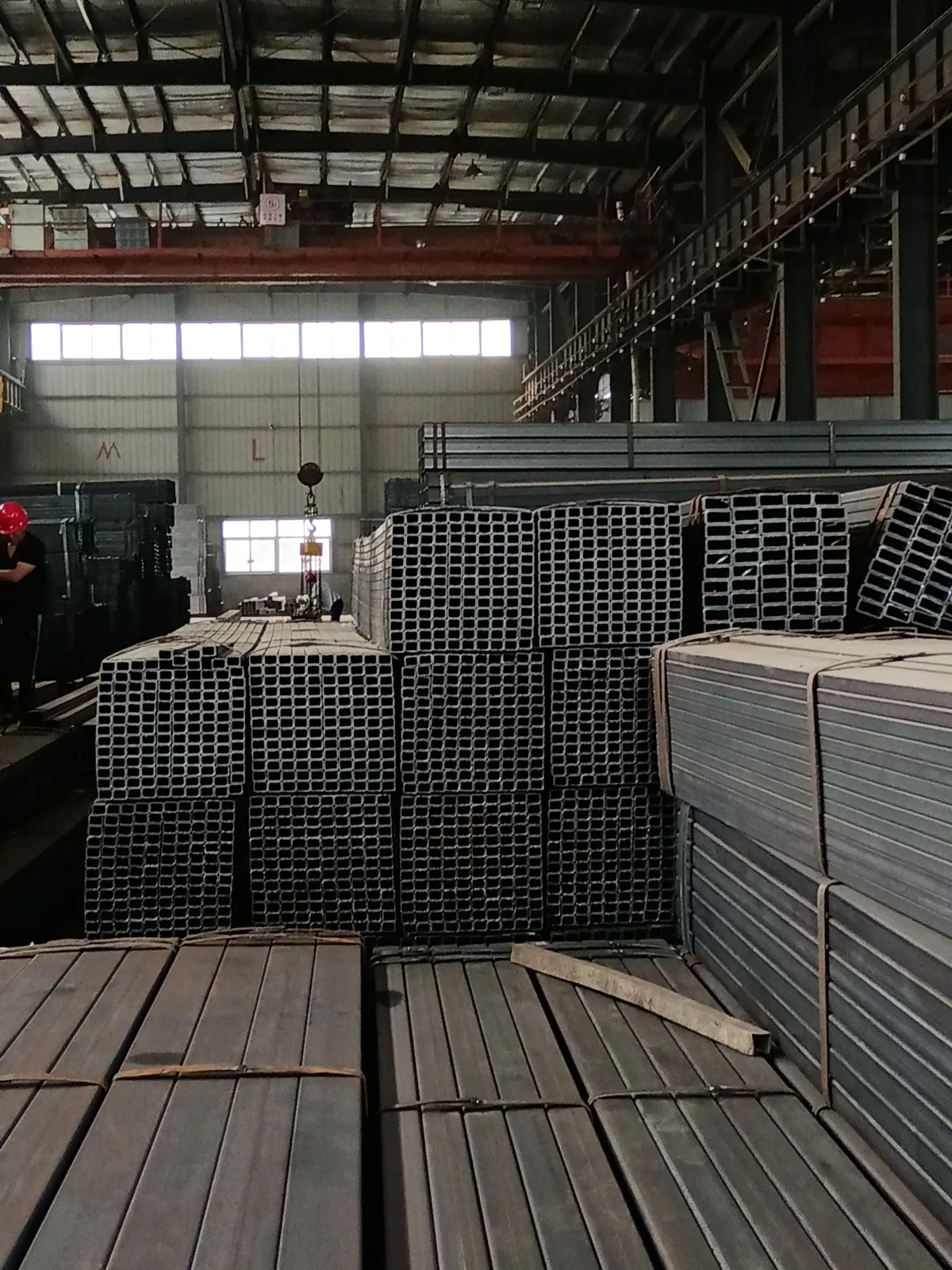

Our facility operates three dedicated ERW production lines covering over 2,800 square and rectangular tube specifications with wall thicknesses reaching 40mm — eliminating the specification gaps that force buyers to split orders across multiple suppliers. Every heat undergoes chemical and mechanical testing in our in-house physical and chemical laboratory before release, with mill test certificates generated directly from production data rather than third-party re-testing. We hold 41 invention patents including China’s first sharp-corner rectangular tube technology, filling the market gap for architectural applications requiring true right-angle profiles. Full international certifications — ISO 9001:2015, Lloyd’s CE (EN 10210/10219), Singapore FPC, and SGS/BV verification — clear customs in EU, North America, and regulated Middle-East markets. Custom non-standard sizes, cutting, marking, and professional container loading with anti-damage measures are standard for every export order, not premium add-ons.
Documentation & Compliance
- Mill test certificate documenting SPA-H chemical composition (Cu, P, Cr, Ni content) and mechanical properties per JIS G3125 for each heat number
- CE certificate per EN 10210/EN 10219 for structural hollow sections entering EU and UK markets
- ISO 9001:2015 quality management system certificate covering the full production and inspection process
- SGS or BV third-party inspection report confirming dimensional tolerance, surface quality, and weld integrity before shipment
- Material traceability report linking each tube bundle to its heat number, chemical analysis, and mechanical test results
- Complete customs documentation including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery

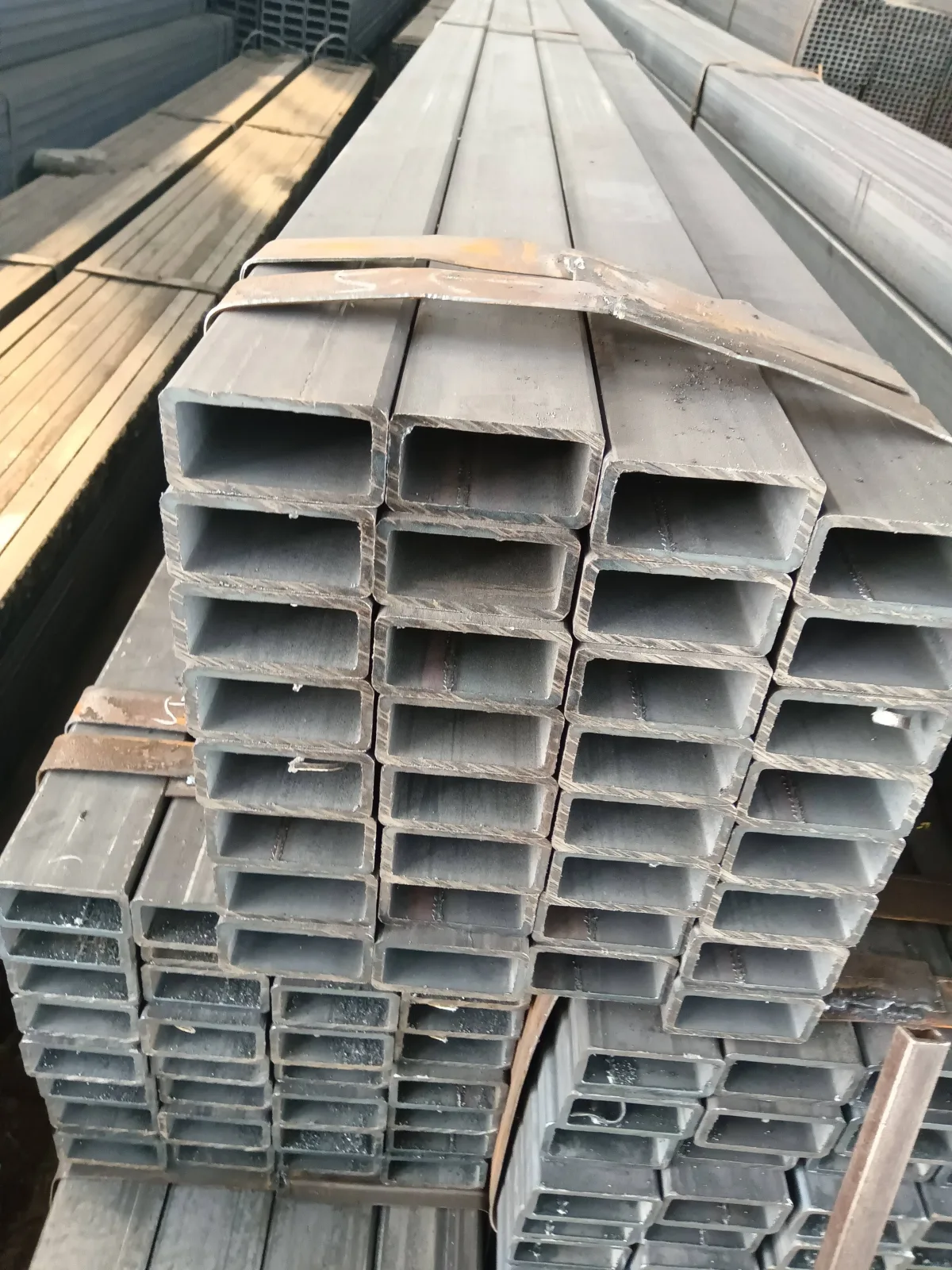

- Hot-rolled black SPA-H square tubes bundled with high-tensile steel strips and edge protectors to prevent corner damage during ocean transit
- Non-oiled surface finish preserved through layered separation with timber spacers, avoiding contact corrosion between stacked tubes
- 6m and 12m lengths optimized for 20ft and 40ft container loading with weight distribution calculated to maximize payload without exceeding port handling limits
- Heat number and JIS G3125 SPA-H grade stenciled on each bundle tag for on-site identification and inspection traceability
- FOB, CIF, and DDP shipping terms available with professional container loading plans that prevent tube bending and surface abrasion
- Custom cutting to project-specific lengths available before shipment, reducing on-site waste and handling for facade contractors
How to Initiate Your SPA-H Square Tube Inquiry
Submit your required dimensions, steel grade, surface treatment preference, quantity, and destination port to receive a detailed quotation within 12 hours — including unit pricing, production lead time, and applicable shipping terms. For non-standard specifications or cross-standard grade substitution requests, our technical team provides custom sizing options with low MOQ flexibility. Mill test certificates, third-party inspection arrangements, and certification documentation are confirmed before contract signing to ensure smooth customs clearance at destination.
Frequently Asked Questions
Q: What is the difference between SPA-H and domestic Chinese weathering steel grades like 09CuPCrNi-A?
A: SPA-H follows the JIS G3125 standard with specific Cu-P-Cr-Ni composition ranges optimized for atmospheric corrosion resistance. While 09CuPCrNi-A shares similar alloying principles, the chemical composition limits and mechanical property requirements differ between standards. Our mill test certificates clearly document the actual chemical analysis for each heat, allowing your engineering team to verify compliance with project specifications.
Q: Can SPA-H square tubes be delivered with pre-rusted surface finish?
A: Yes. We offer three surface treatment options: mill scale black (as-rolled), pre-rusted (accelerated patina development before shipment), and painted finishes. Pre-rusted SPA-H tubes arrive at your site with the characteristic weathering steel aesthetic already developing, reducing on-site weathering time for architectural facade projects.
Q: What certifications are required for importing SPA-H square tubes into the EU?
A: EU market entry requires CE marking per EN 10210 (seamless) or EN 10219 (welded) structural hollow section standards, along with Factory Production Control certification. We hold Lloyd’s CE certification for both standards and provide complete documentation including mill test certificates, declaration of performance, and FPC audit reports for customs clearance.
Q: What is the minimum order quantity for custom non-standard SPA-H square tube sizes?
A: Standard specifications ship from stock with 1 Ton MOQ. Custom non-standard dimensions enter production with typical lead times of 15–25 days depending on specification complexity. Our 2,800+ specification coverage includes wall thicknesses up to 40mm, reducing the need for custom tooling in most cases.
Q: How do you prevent damage to SPA-H square tubes during container loading and ocean transit?
A: Each bundle receives edge protectors on all four corners, timber spacers between layers to prevent contact corrosion on the non-oiled black surface, and steel strip bundling secured to container tie-down points. Our loading plans calculate weight distribution to prevent tube bending during vessel motion, and we provide loading photos before container sealing for your records.
Get Your SPA-H Corten Steel Square Tube Quote with Full Mill Documentation
Submit your project specifications — dimensions, steel grade, quantity, and destination port — to receive pricing, production lead time, and mill test certificate samples within 12 hours.
