Description
One-Stop Structural Tube Procurement — covering 2,800+ specifications in hot dip galvanized square and rectangular hollow sections, from 0.8 mm to 20 mm wall thickness, shipped with full ASTM A500 and EN 10219 documentation to 50+ countries.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A500 Gr.B Hot Dip Galvanized Square Steel Tube |
| Product Type | Galvanized Square / Rectangular Steel Tube (Hollow Section) |
| Steel Grade | Q195, Q215, Q235, Q345, ASTM A500 Gr.A/B, S235, S355 |
| Standard | ASTM A500, ASTM A213, DIN EN 10217-1, EN 10219 / EN 10210 |
| Section Shape | Square / Rectangular |
| Size Range | Customized (as per customer request) |
| Wall Thickness | 0.8 mm – 20 mm |
| Length | 500 mm / 1000 mm / 4000 mm / 5800 mm / 11800 mm, or customized |
| Technique | Cold Rolled Based / Welded |
| Surface Treatment | Hot-dip Galvanized / Pre-galvanized / Bare / Oiled / Black Original |
| Tolerance | ±1% |
| Ends | Plain Ends / Beveled Ends |
| Application | Structure pipe, steel fence, steel post, steel construction, warehouse construction, building construction, fencing |
| MOQ | 10 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Building | Building frames, warehouse portal frames, column supports, roof truss members |
| Architectural Facade | Glass curtain wall framing, exterior cladding supports, sharp-corner decorative structures |
| Infrastructure & Fencing | Highway fencing posts, boundary fencing, guardrail supports, signage gantries |
| Steel Structure Fabrication | Beam-to-column connections, bracing members, base plate columns |
| Industrial & Machinery | Equipment frames, conveyor supports, platform structures |
What Zinc Coating Thickness Decides on a Galvanized Square Tube Order
Hot-dip galvanized coating below 65 μm fails third-party inspection on most structural fencing projects in tropical and coastal environments.
Procurement teams ordering ASTM A500 Gr.B hot dip galvanized square steel tube for outdoor structural use often discover the zinc layer is too thin only after the container arrives at site. A coating measured at 35 μm instead of the required 65 μm means the tubes begin corroding within months, forcing full re-galvanization at destination — a process that delays the project schedule and multiplies costs. [NEED_CITE: hot dip galvanizing coating thickness requirements per ASTM A123] The problem compounds when wall thickness tolerance exceeds ±1%, because thin-wall tubes lose structural capacity faster under corrosion. Sourcing from a supplier who tests every batch in-house before shipment eliminates this risk entirely.
How Wall Thickness and Zinc Coating Match Structural Fencing Environments
When specifying ASTM A500 Gr.B hot dip galvanized square steel tube for fencing and structural posts, the wall thickness must align with both the load-bearing requirement and the corrosion environment. In coastal or high-humidity zones, hot-dip galvanizing provides a zinc layer that sacrificially protects the base steel — but only if the coating meets minimum thickness standards. Wall thickness from 0.8 mm suits lightweight boundary fencing, while 3.0 mm to 20 mm covers heavy-duty highway guardrail posts and structural columns. The ±1% tolerance ensures dimensional consistency across long runs of fencing, preventing alignment issues during installation. Our in-house laboratory verifies both zinc coating weight and wall thickness on every production lot before release.
Meeting Engineering Codes and Import Compliance for Galvanized Hollow Sections
Structural hollow sections used in building frames and fencing must comply with the engineering code governing the destination market. ASTM A500 Gr.B is the default specification for North American structural and fencing applications, while EN 10219 governs cold-formed welded hollow sections in European markets. [NEED_CITE: EN 10219 cold-formed structural hollow section dimensional and technical requirements] The CE mark under EN 10210 / EN 10219 is mandatory for structural steel entering the EU — missing or incorrectly referenced certification blocks customs clearance entirely. Steel grade equivalence between ASTM A500 Gr.B and EN S355JR must be documented on the mill test certificate to avoid material rejection at site inspection. Custom cut-to-length service reduces on-site welding and secondary processing, which is critical for large-scale fencing and warehouse projects where field labor costs dominate.
Steel Grade Selection and Galvanizing Process for Structural Tubes
ASTM A500 Gr.B is a carbon steel grade widely specified for structural hollow sections in North American construction and fencing. Its chemical composition and mechanical properties make it compatible with hot-dip galvanizing, where the steel reacts with molten zinc to form a metallurgical bond. For projects requiring higher strength, Q345 or S355 grades offer increased yield capacity while maintaining galvanizing compatibility. The cold-rolled welded manufacturing process produces consistent dimensional accuracy across square and rectangular profiles, which is essential for architectural facade applications where sharp-corner joints must fit precisely. Hot-dip galvanizing differs from pre-galvanizing in coating thickness and longevity — hot-dip produces a thicker zinc-iron alloy layer that withstands abrasion during transport and installation, making it the preferred choice for structural fencing and exposed building frames.
Hidden Costs of Procuring Galvanized Square Tubes Without Verified Certification
Ordering ASTM A500 Gr.B hot dip galvanized square steel tube from an unverified supplier introduces risks that surface only at destination. Tubes with zinc coating below specification fail third-party inspection and require re-galvanization or replacement — costs that far exceed the original price difference. Missing or falsified mill test certificates trigger customs holds in regulated markets, particularly the EU where CE documentation under EN 10219 is non-negotiable. [NEED_CITE: structural steel certification requirements for EU import under Construction Products Regulation] Negative tolerance abuse — where actual wall thickness falls below the ordered specification — reduces load-bearing capacity and creates structural safety liability. These hidden costs are invisible at the quotation stage but become catastrophic during project handover and final inspection.
Why Project Procurement Teams Source Galvanized Square Tubes from SD XJY Pipe
SD XJY Pipe operates three dedicated production lines covering 2,800+ specifications of square, rectangular, and round steel tubes with wall thickness up to 20 mm. As the original inventor of sharp-corner rectangular steel tube technology in China, holding 41 invention patents, we deliver right-angle profiles that eliminate the rounded-corner gaps typical of standard rectangular tubes — a critical advantage for glass curtain wall framing and architectural facades. Every production batch passes through our in-house physical and chemical laboratory, where zinc coating thickness, wall dimensions, and chemical composition are verified before shipment. Full international certifications include ISO 9001:2015, Lloyd’s CE under EN 10210 and EN 10219, Singapore FPC, and SGS/BV third-party inspection. We serve as designated supplier for major state-owned enterprises and listed companies, with export experience to 50+ countries across the EU, North America, Middle East, and Southeast Asia. Custom non-standard sizes, cut-to-length, and professional container loading with anti-damage measures are standard on every order.
Documentation & Compliance
- Mill test certificate documenting ASTM A500 Gr.B chemical composition and mechanical properties per heat number
- CE certificate under EN 10210 / EN 10219 for structural hollow sections entering European markets
- ISO 9001:2015 quality management system certificate covering production and inspection processes
- SGS or BV third-party inspection report verifying zinc coating thickness and dimensional tolerance
- Material traceability by heat number linking each bundle to its production and test records
- Complete customs documentation including packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery

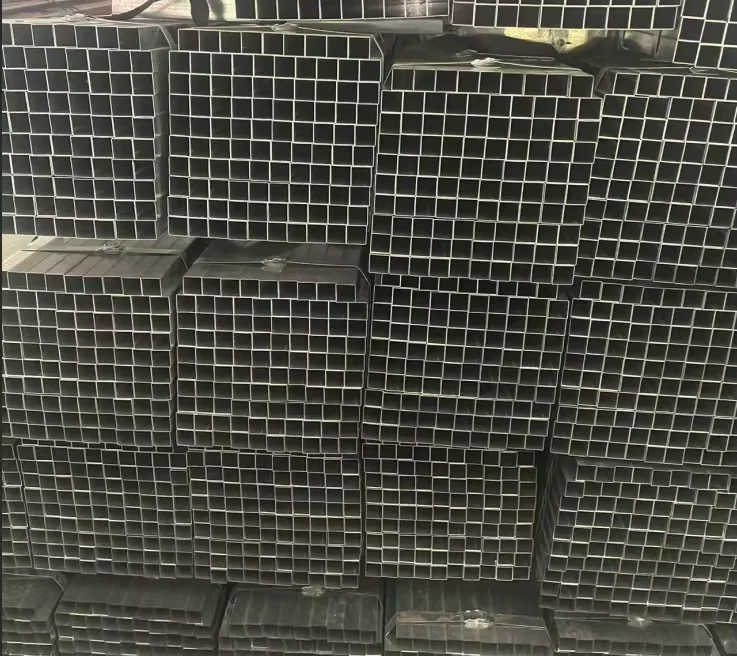

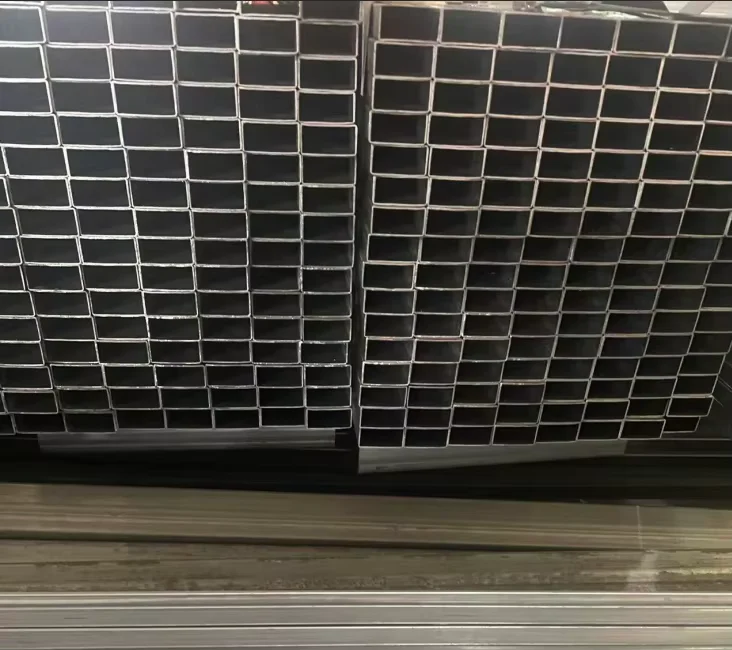

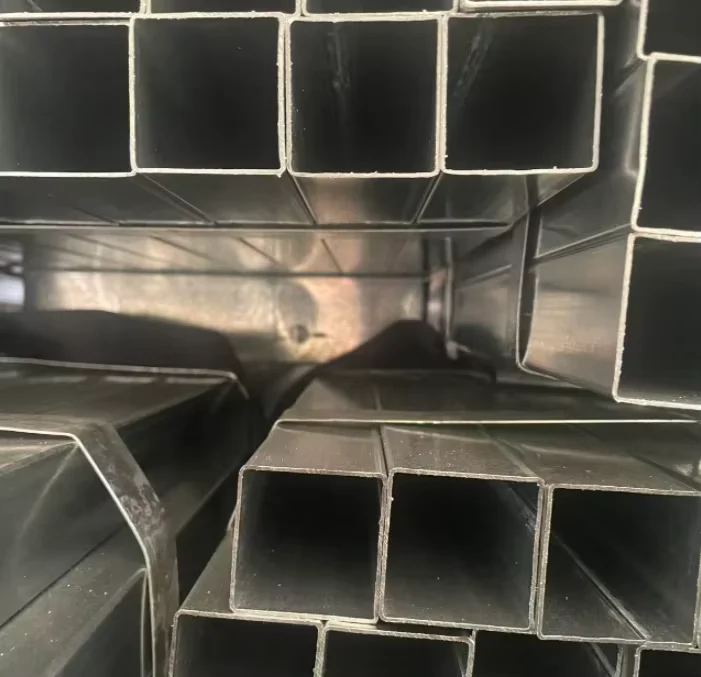

- Hot dip galvanized square and rectangular tubes bundled with steel strips and edge protectors to preserve the zinc coating during ocean transit
- Surface protection maintained through anti-rust treatment and moisture barriers for ASTM A500 Gr.B tubes in pre-galvanized or bare condition
- Container loading optimized for 5800 mm and 11800 mm lengths with professional anti-damage measures preventing bending and surface scratches
- Cut-to-length service available for 500 mm to 11800 mm, reducing on-site cutting waste for fencing and structural projects
- Heat number and steel grade marking on each tube for site identification and traceability
- Shipping terms FOB / CIF / DDP with full tracking from Shandong port to destination
Start Your ASTM A500 Gr.B Galvanized Tube Inquiry
Submit your required dimensions, steel grade, surface treatment, quantity, and destination port to receive a detailed quotation with unit pricing, lead time, and shipping terms within 12 hours. Request mill test certificates and third-party inspection reports before placing your order to verify compliance with ASTM A500 Gr.B and EN 10219 standards.
Get Your Quotation and Mill Test Certificate Today
Send your specifications to receive pricing, certification documents, and delivery schedule for ASTM A500 Gr.B hot dip galvanized square steel tube.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxjypipe.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjypipe.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between hot dip galvanized and pre-galvanized square tubes for structural use?
A: Hot dip galvanizing immerses the finished ASTM A500 Gr.B square tube in molten zinc, producing a thicker zinc-iron alloy coating that provides superior corrosion resistance and abrasion protection. Pre-galvanized tubes are made from pre-coated steel coil, resulting in a thinner zinc layer. For outdoor structural fencing and building frames exposed to weather, hot dip galvanizing is the recommended choice.
Q: Can you provide ASTM A500 Gr.B and EN S355JR grade equivalence documentation?
A: Yes. Our mill test certificates document the chemical composition and mechanical properties of each heat number. We provide cross-reference documentation showing equivalence between ASTM A500 Gr.B, EN S355JR, and GB Q345B grades to support customs clearance and engineering approval in different markets.
Q: What is the minimum order quantity for custom-size galvanized square tubes?
A: The standard MOQ is 10 tons. For custom non-standard sizes or cut-to-length requirements, we accommodate lower quantities depending on the specification. Custom sizes typically require 15–25 days production lead time, while standard sizes ship from stock.
Q: Do your galvanized square tubes carry CE certification for EU import?
A: Yes. All structural hollow sections carry CE certification under EN 10210 and EN 10219, issued by Lloyd’s Register. The CE documentation accompanies every shipment to EU destinations and supports customs clearance without delay. Third-party inspection by SGS or BV is available upon request.
Q: How do you prevent damage to the galvanized coating during container loading?
A: We use professional loading procedures with edge protectors, steel strip bundling, and anti-damage measures specifically designed for galvanized square and rectangular tubes. This prevents zinc coating scratches, bending, and surface damage during ocean transit, ensuring the tubes arrive at destination in full compliance with coating thickness requirements.
