Description

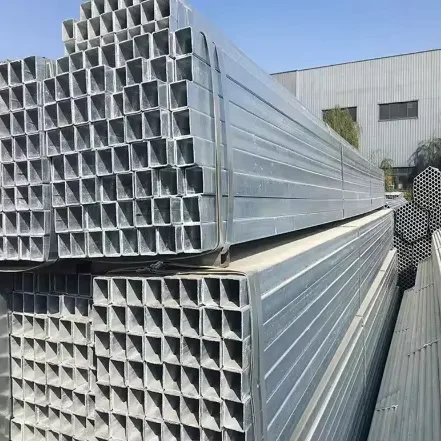

Factory-Direct Galvanized SHS — In-house lab verifies zinc coating thickness on every batch before dispatch.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square Steel Tube |
| Product Type | Galvanized Square Steel Tube |
| Steel Grade | A53 Grade B, A500 Grade A/B/C, STK400, SS400, ST42.2, S355JR |
| Standard | ASTM A53, ASTM A500, ASTM A36, ASTM A795, BS1387, EN10255, ISO65, ANSI C80, DIN2440, JIS G3444, GB/T3091, GB/T13793 |
| Section Shape | Square |
| Size Range | 21.3mm–660mm (1/2″–26″) |
| Wall Thickness | 6mm |
| Length | 5.8m / 6m / 11m or customized |
| Technique | Hot-dip Galvanizing |
| Surface Treatment | Galvanized |
| Tolerance | ±1% |
| Ends | Plain ends, Beveled ends, Threaded ends, Grooved ends |
| Processing Service | Punching, Cutting, Bending |
| Application | Oil/gas/water fluid transportation, Construction, Hydraulic precision machinery parts, Power, Boiler, Petrochemical, Building industry |
| MOQ | 1 Ton |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Municipal Infrastructure | Water transmission mains, gas distribution networks, stormwater drainage columns |
| Construction & Building | Structural frames, scaffolding uprights, curtain wall support mullions |
| Industrial Machinery | Hydraulic cylinder housings, conveyor support structures, machine base frames |
| Power & Petrochemical | Cable protection conduits, pipe rack supports, boiler feed lines |
Coating Thickness Variance Is the Silent Budget Killer on Galvanized Square Steel Tube Orders
A 23-micron gap between quoted and actual zinc thickness triggers full-batch rejection at destination port.
Trading companies rarely control galvanizing parameters. They quote 65μm minimum but accept mill output at 42μm because the purchase order lacks an independent inspection clause. By the time a third-party surveyor measures coating at the discharge port, the container has already cleared the origin terminal. The entire shipment returns for re-galvanizing, adding weeks to the project schedule and doubling freight costs. On a municipal water main project in Southeast Asia, this exact scenario delayed pipeline commissioning by two months — not because the steel failed, but because nobody verified the zinc before loading. [NEED_CITE: hot-dip galvanizing coating thickness standards ASTM A123]
Matching Galvanized Square Steel Tube to Corrosive and Structural Demands
Hot-dip galvanizing deposits a metallurgically bonded zinc-iron alloy layer that outperforms electroplated or pre-galvanized coatings in buried and splash-zone conditions. For municipal water and gas networks where pipes face constant moisture and soil acidity, the Galvanized Square Steel Tube in A53 Grade B or S355JR provides both the corrosion barrier and the structural rigidity that round pipe cannot match in framed assemblies. The square profile allows direct bolted or welded connections to flat plates without gusset adapters, reducing joint count on scaffolding and curtain wall sub-frames.
Engineering Compliance and Certification Pathways
Structural hollow sections used in load-bearing frames must conform to dimensional and mechanical requirements defined in EN 10219 for cold-formed welded sections or ASTM A500 for cold-formed structural tubing. When the Galvanized Square Steel Tube ships to European markets, the CE mark under EN 10210/EN 10219 is not optional — customs authorities in Germany, Netherlands, and Australia require it for structural steel clearance. [NEED_CITE: EN 10219 cold-formed structural hollow section compliance] Steel grade equivalence also matters: S355JR under EN 10219 maps to A500 Grade C under ASTM, but the carbon equivalent and impact test temperature differ. Specifying the wrong grade risks weld cracking in cold climates. Our in-house laboratory tests every heat for chemical composition and mechanical properties before galvanizing, ensuring the base metal meets the standard before the zinc ever touches it.
Steel Grade Selection and Hot-Dip Process Fundamentals
A500 Grade B and Grade C represent the most commonly specified structural grades for galvanized square hollow sections in North American projects, with Grade C offering higher minimum yield strength for heavier frame loads. S355JR serves the equivalent role in European and Australian specifications, while STK400 and SS400 cover general structural applications under JIS standards. The hot-dip galvanizing process immerses the fabricated square tube in molten zinc at approximately 450°C, forming a series of zinc-iron alloy layers bonded to the steel substrate. This metallurgical bond means the coating cannot peel or flake during bending or punching operations — a critical advantage over spray-applied or electroplated alternatives when the Galvanized Square Steel Tube requires on-site modification. Wall thickness tolerance of ±1% ensures that theoretical weight calculations match actual delivered weight, preventing cost overruns on tonnage-based contracts.
Hidden Costs of Unverified Galvanized Procurement
Purchasing Galvanized Square Steel Tube from intermediaries who cannot provide heat-level mill test certificates creates downstream liability. If the zinc coating fails adhesion testing per ASTM A123 or falls below the specified 65μm minimum, the receiving engineer has grounds to reject the entire lot. [NEED_CITE: ASTM A123 zinc coating adhesion and thickness testing] Certification gaps compound the problem: without CE documentation referencing EN 10219, structural steel cannot be legally installed in EU-regulated construction projects. The cost of re-galvanizing, re-shipping, and project delay typically exceeds the original price difference between a verified factory source and a trading company quote.
Procurement Assurance from a Verified Manufacturer
Every Galvanized Square Steel Tube leaving our facility passes through an in-house physical and chemical laboratory that measures zinc coating thickness, adhesion, base metal chemistry, and dimensional accuracy before the material reaches the loading bay. We hold 41 invention patents including China’s original sharp-corner rectangular tube technology, and our 3 production lines cover 2,800+ specifications with wall thickness up to 40mm. Full international certifications — ISO 9001:2015, Lloyd’s CE under EN 10210/EN 10219, Singapore FPC, and SGS/BV verification — accompany every export shipment. Custom non-standard sizes are available with low MOQ, and our professional container loading team uses anti-damage measures to prevent bending and coating abrasion during ocean transit. We export to 50+ countries and serve as a designated supplier for major state-owned enterprises and listed companies.
Documentation & Compliance
- Mill Test Certificate documenting A53 Grade B / A500 Grade C chemical composition and yield strength per ASTM A500
- CE certificate confirming EN 10219 compliance for S355JR galvanized structural hollow sections
- ISO 9001:2015 quality management certificate covering hot-dip galvanizing and dimensional inspection
- SGS or BV third-party inspection report verifying zinc coating thickness and surface quality before shipment
- Heat number traceability linking each Galvanized Square Steel Tube bundle to its original steelmaking and galvanizing batch
- Export customs documents including packing list, bill of lading, and certificate of origin for destination clearance
Packaging, Loading & Delivery

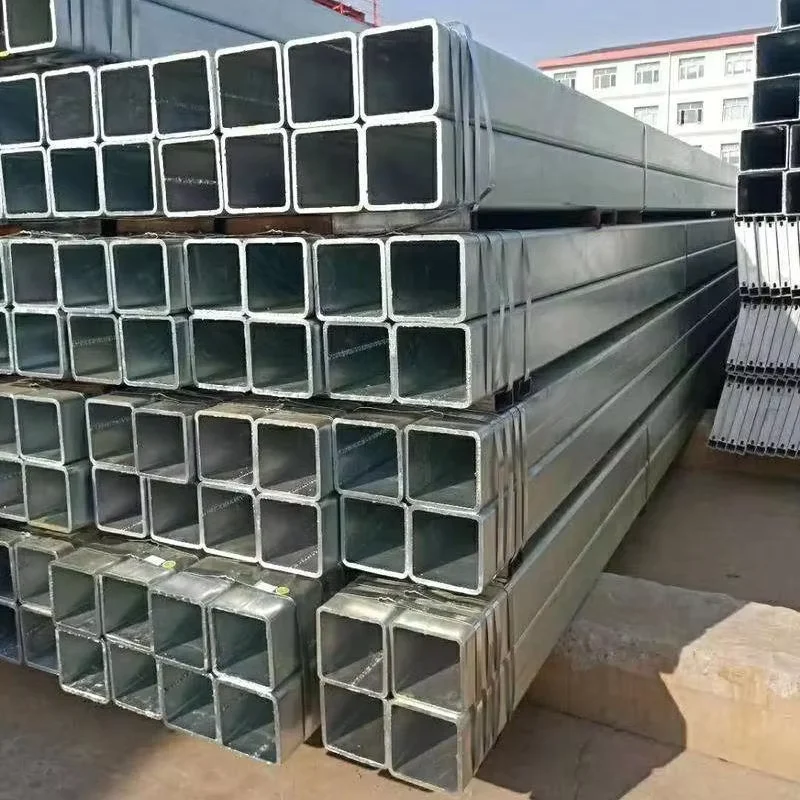

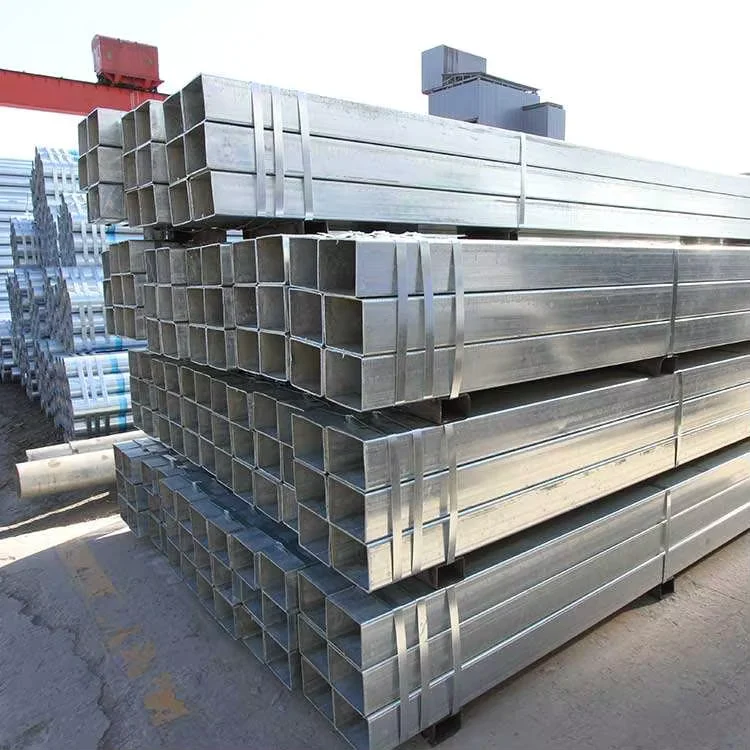

- Galvanized Square Steel Tube bundles secured with nylon-padded steel strips to prevent zinc coating abrasion during handling and ocean transit
- Edge protectors and rubber separators inserted between stacked tubes to preserve the hot-dip galvanized surface on 5.8m and 6m lengths
- Container loading optimized for 11m and 5.8m lengths in 20ft and 40ft open-top or flat-rack containers to maximize payload without exceeding weight limits
- Custom cutting to project-specific lengths available before galvanizing, reducing on-site waste and welding joints on scaffolding and structural frames
- Heat number and steel grade stenciled on each tube end for site identification and MTC cross-referencing
- FOB, CIF, and DDP shipping terms available with professional lashing and anti-rust measures for the galvanized surface
Requesting a Project-Specific Quotation
Submit your Galvanized Square Steel Tube specification including side length, wall thickness, steel grade, total tonnage, and destination port to receive a detailed quotation with unit pricing, production lead time, and applicable mill test certificates. Non-standard dimensions and custom end treatments — threaded, grooved, or beveled — can be confirmed within the same inquiry cycle. Certification requirements for your target market, including CE/EN documentation for European projects or ASTM compliance for North American contracts, will be confirmed before contract execution.
Frequently Asked Questions
Q: What is the difference between hot-dip galvanizing and pre-galvanizing for square steel tubes?
A: Hot-dip galvanizing immerses the finished tube in molten zinc, creating a metallurgically bonded coating that covers all surfaces including corners and weld seams. Pre-galvanizing coats the steel strip before forming, leaving the weld seam and cut edges with reduced zinc protection. For outdoor and buried applications, hot-dip galvanizing provides superior long-term corrosion resistance.
Q: Can you supply Galvanized Square Steel Tube in non-standard dimensions?
A: Yes. Our production lines cover 2,800+ specifications, and we accept custom orders for non-standard side lengths, wall thicknesses, and cut-to-length requirements. Minimum order quantity is 1 Ton, and custom sizes typically require a production lead time rather than dispatch from stock.
Q: How do you verify zinc coating thickness before shipment?
A: Every batch undergoes coating thickness measurement using magnetic induction gauges in our in-house laboratory. Results are documented in the Mill Test Certificate and can be independently verified by SGS or BV third-party inspection before container sealing.
Q: What steel grade equivalents should I specify for international projects?
A: ASTM A500 Grade B/C is the standard specification for North American structural projects, while EN 10219 S235JR/S355JR applies to European and Australian markets. JIS G3444 STK400 serves Japanese-specification projects. We can confirm grade equivalence and provide cross-reference documentation upon request.
Q: How do you prevent coating damage during container loading?
A: Galvanized tubes are bundled with nylon-padded steel strips, separated by rubber spacers, and secured with edge protectors. Our loading team follows a documented procedure to prevent contact abrasion and bending during transit.
Secure Your Galvanized Square Steel Tube Supply with Verified Coating and Certification
Send your specification sheet to receive a detailed quotation, Mill Test Certificate sample, and confirmed delivery schedule for your next project.
