Description
Factory-direct galvanized tube supply — Cold-rolled based production with Z81–Z120 zinc coating applied in-house, shipped with full mill test certificates for Q195–Q345 and ASTM A53/A106/A36 grades.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square and Rectangular Steel Tube |
| Product Type | Galvanized Square and Rectangular Steel Tube |
| Steel Grade | Q195, Q235, Q345, 10#, 20#, 45#, A106, A53, A36 |
| Standard | ASTM, CE, RoHS, BIS, SASO, SABS, JIS, ISO9001 |
| Section Shape | Square / Rectangular |
| Wall Thickness | 1.2–15.7 mm |
| Length | 6m / 6.4m / 12m |
| Technique | Cold Rolled Based |
| Surface Treatment | Galvanized (Z81–Z120 coating) |
| Tolerance | ±1% |
| Spangle Type | Zero Spangle |
| Hardness | Mid Hard |
| Special Pipe | Thick Wall Pipe |
| Application | Making pipes, cutting sheets, making small tools, making corrugated sheets, making containers, making fences |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Building frames, structural supports, bridge handrails, scaffolding systems |
| Architectural Facades | Glass curtain wall framing, decorative exterior steelwork, sharp-corner profile cladding |
| Manufacturing & Industrial | Container manufacturing, conveyor structures, machinery frames, equipment enclosures |
| Agriculture & Fencing | Perimeter fencing posts, greenhouse frameworks, livestock pen structures |
Where Galvanized Coating Thickness Decides Site Acceptance
A 35μm zinc reading against a 60μm spec means the entire container fails SGS at destination.
I have seen facade contractors in Jakarta lose three weeks and significant rework costs because the galvanized coating on rectangular hollow sections tested below the project-specified minimum. The mill test certificate looked correct on paper, but the production line had not delivered what the document claimed. When you source a Galvanized Square and Rectangular Steel Tube Supplier for structural or architectural work, the gap between certificate values and actual coating uniformity creates real financial exposure — particularly on projects requiring CE compliance or third-party inspection before shipment [NEED_CITE: EN 10219 cold-formed hollow section dimensional and coating requirements].
Matching Structural Frames and Facade Systems to Coating Performance
Galvanized square and rectangular steel tubes with Z81–Z120 coating and zero spangle finish serve projects where both corrosion resistance and surface appearance matter. The cold-rolled based technique delivers tight dimensional control across the 1.2–15.7mm wall thickness range, making these tubes suitable for load-bearing frames in buildings and for the precise joint connections required in glass curtain wall systems. As a Galvanized Square and Rectangular Steel Tube Supplier, we produce patented sharp-corner rectangular profiles that eliminate the rounded corners typical of standard welded tubes — a detail that matters when facade contractors need clean 90-degree edges for aesthetic steel framing.
Engineering Compliance Across ASTM, EN, and GB Standards
Structural projects often specify conflicting standards depending on the design engineer’s origin. A Galvanized Square and Rectangular Steel Tube Supplier serving international markets must hold CE certification under EN 10210/EN 10219 for European customs clearance, while simultaneously meeting ASTM A53 and A106 requirements for North American and Middle Eastern projects [NEED_CITE: steel grade equivalence mapping between ASTM A500 and EN 10219]. The Q195–Q345 grade range covers light to heavy structural use, with wall thickness up to 15.7mm supporting thick-wall applications where standard commercial tubes fall short. Tolerance held at ±1% ensures that theoretical weight calculations align with actual delivered weight — a critical factor when projects bill by tonnage.
Understanding Cold-Rolled Galvanized Tube Production
Cold-rolled based forming produces square and rectangular tubes with superior surface finish and tighter dimensional accuracy compared to hot-rolled alternatives. The base tube undergoes precision forming before galvanizing, which means the zinc coating adheres to a smooth, consistent substrate. Zero spangle galvanizing eliminates the visible crystalline pattern found in standard galvanized products, producing a uniform matte finish preferred for exposed architectural applications. The Z81–Z120 coating range provides flexibility: Z81 suits indoor or sheltered environments where basic corrosion protection suffices, while Z120 targets outdoor structural exposure in moderate corrosive conditions [NEED_CITE: galvanized coating weight selection for different atmospheric corrosivity categories]. Steel grades Q195 through Q345 follow the Chinese GB system where the number indicates approximate yield strength in MPa, while A36, A53, and A106 represent ASTM equivalents for carbon steel pipe and structural applications.
The Hidden Cost of Coating and Grade Mismatches
Ordering galvanized tubes without verifying actual coating thickness against project specifications leads to rejection at destination ports, particularly on jobs requiring SGS or BV inspection. Material certification gaps — such as missing heat number traceability or incorrect grade stamping — trigger customs holds in regulated markets. Negative tolerance abuse compounds the problem: tubes delivered at the lower edge of acceptable wall variation reduce structural load capacity while the buyer pays for theoretical weight. A Galvanized Square and Rectangular Steel Tube Supplier providing in-house chemical and mechanical testing eliminates the risk of receiving material that passes visual inspection but fails laboratory analysis [NEED_CITE: consequences of substandard galvanized coating on structural steel service life].
Why Project Teams Source from SD XJY Pipe
We hold 41 invention patents including China’s first sharp-corner rectangular tube technology, covering 2,800+ specifications that eliminate the need to source from multiple suppliers. Our in-house physical and chemical laboratory produces mill test certificates documenting actual heat-by-heat composition and mechanical results, not template values. Full CE certification under EN 10210/EN 10219, ISO 9001:2015 registration, and Singapore FPC approval support customs clearance across 50+ export destinations. Custom non-standard sizes and lengths are produced with low minimum order requirements, and professional container loading with anti-damage measures prevents the bending and zinc coating scratches that cause destination rejection.
Documentation & Compliance
- Mill test certificate documenting Q195–Q345 chemical composition and mechanical properties per ASTM and GB standards for each heat number
- CE certificate confirming compliance with EN 10210 and EN 10219 for galvanized structural hollow sections entering European markets
- ISO 9001:2015 quality management system certificate covering cold-rolled tube forming and galvanizing processes
- SGS or BV third-party inspection report verifying zinc coating thickness Z81–Z120 and dimensional tolerance ±1% before shipment
- Material traceability documentation linking each bundle to heat number, steel grade, and production date
- Export customs documents including packing list, bill of lading, and certificate of origin for destination clearance
Packaging, Loading & Delivery

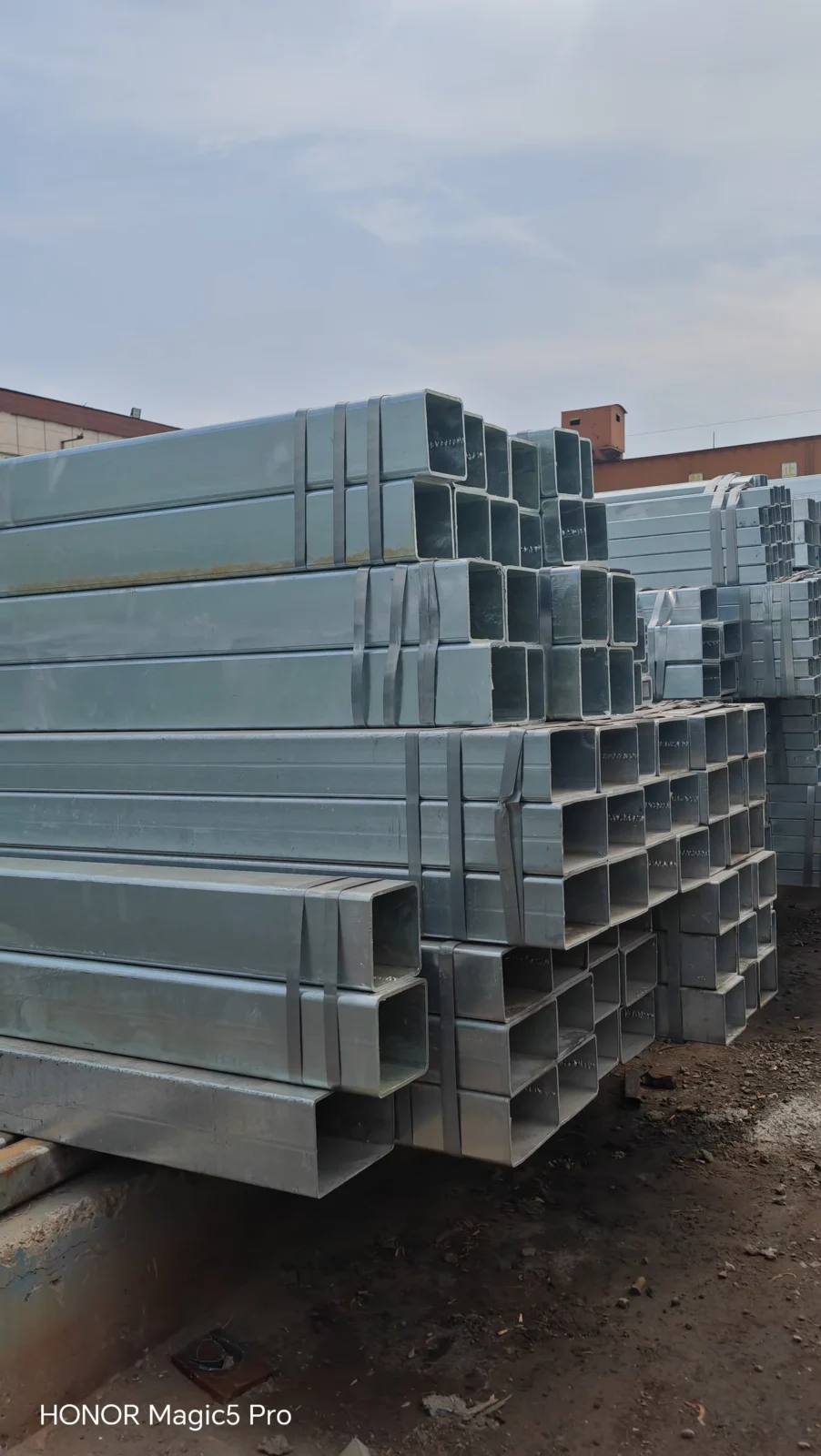

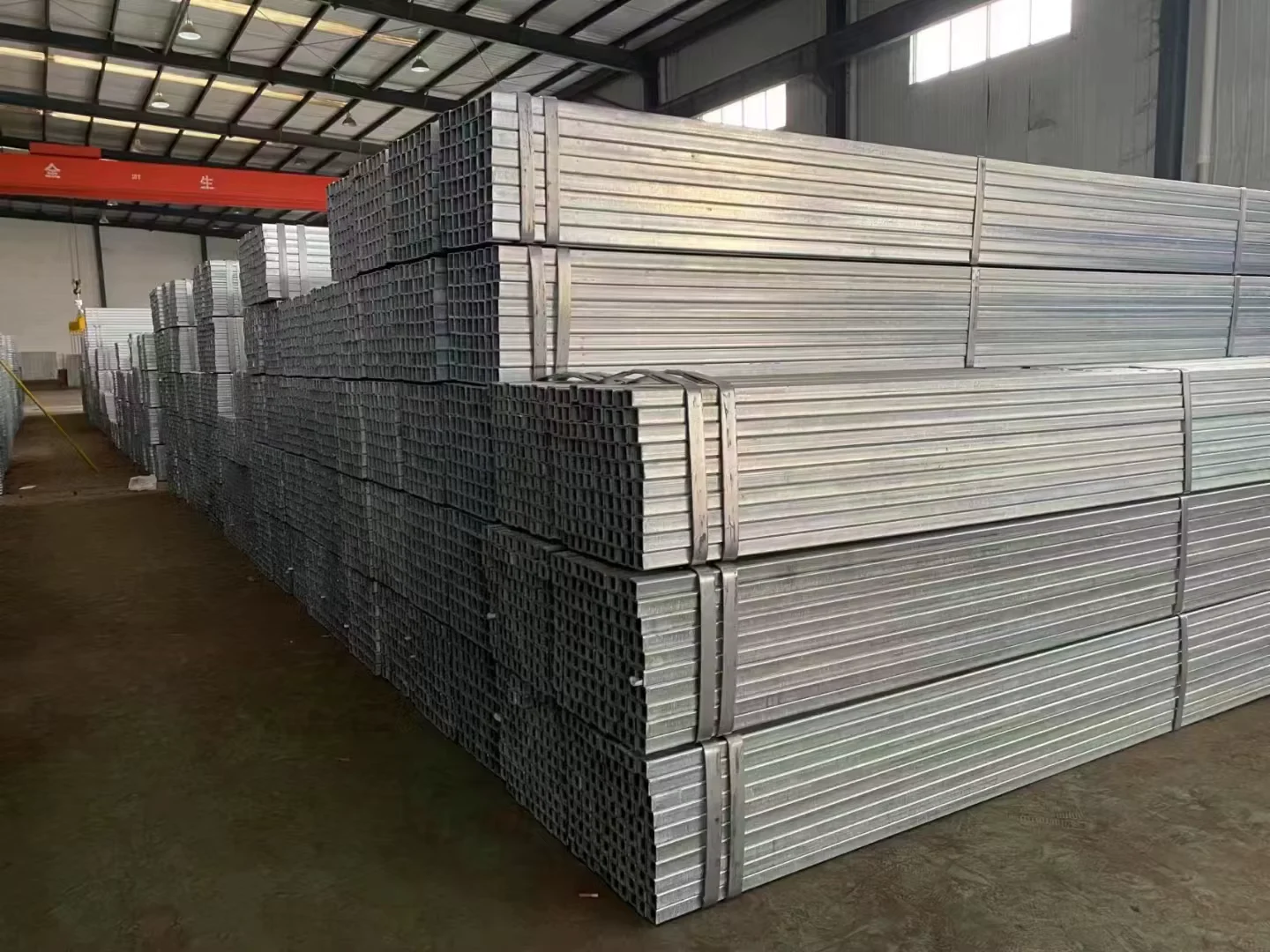

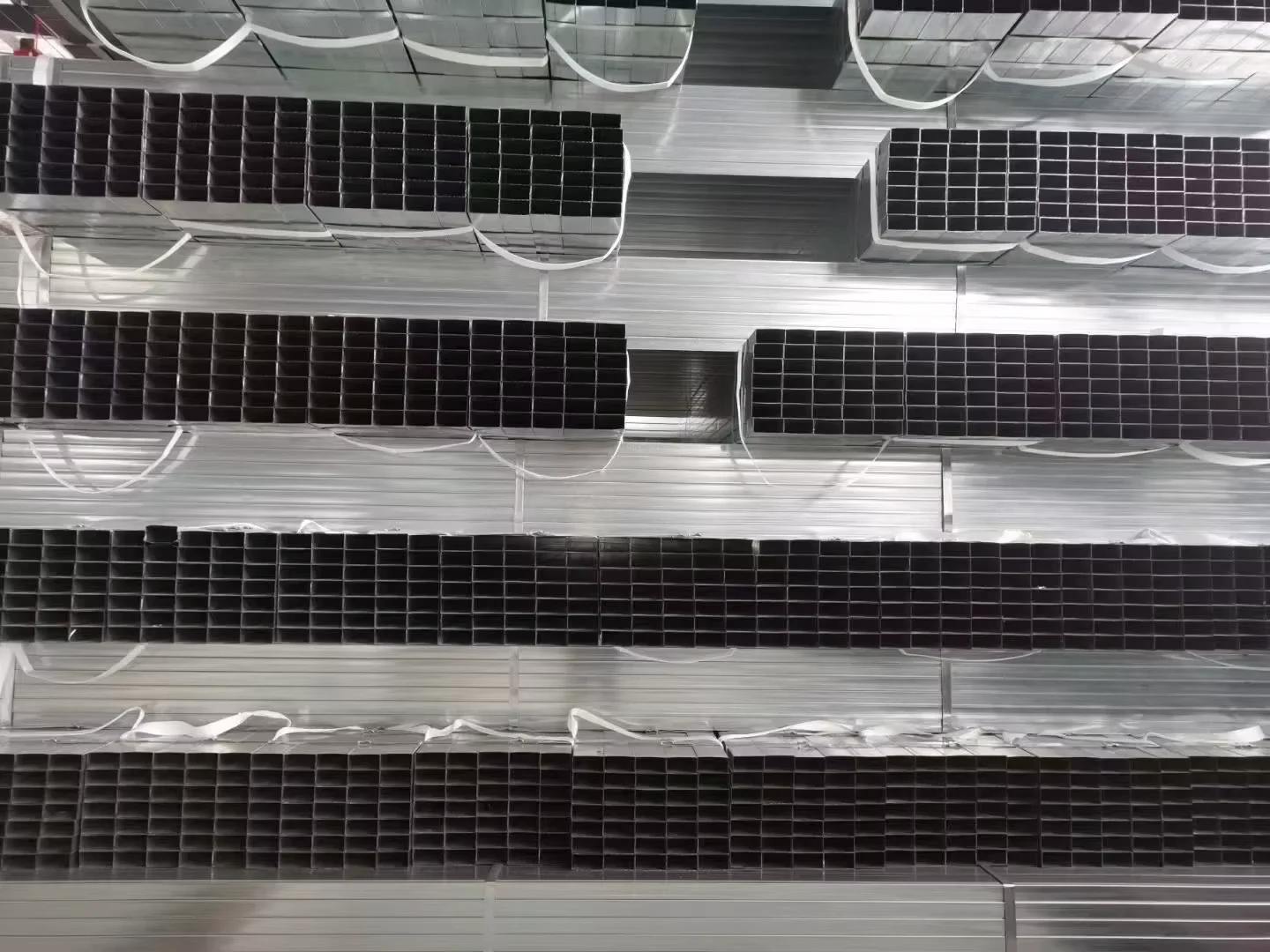

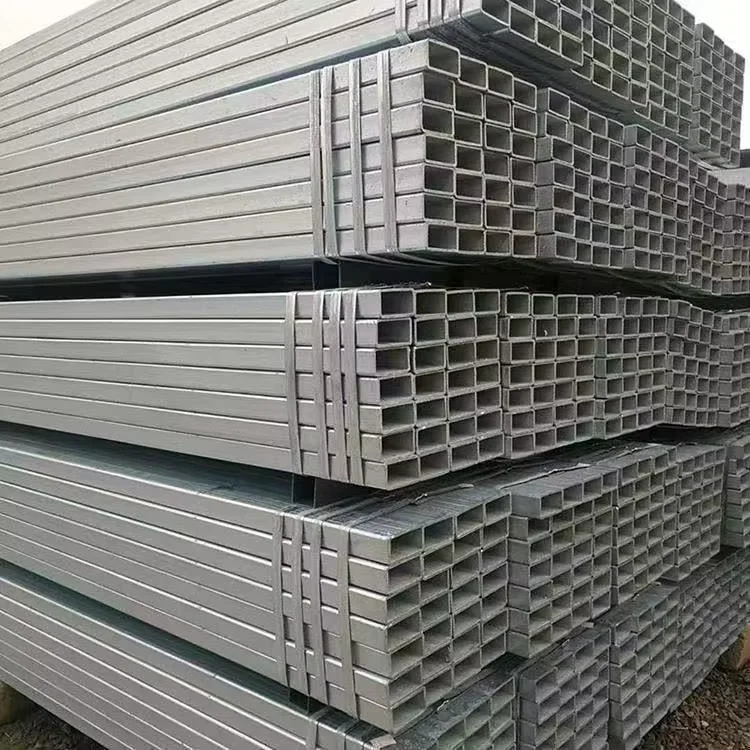

- Galvanized tubes bundled with steel strips and edge protectors to preserve the Z81–Z120 zinc coating and zero spangle finish during ocean transit
- 6m, 6.4m, and 12m lengths optimized for 20-foot and 40-foot container loading with anti-shift bracing to prevent wall thickness damage
- Custom cut-to-length service available for Q195–Q345 and ASTM grades, reducing on-site waste and secondary cutting costs
- Heat number and steel grade stenciled on each tube end for site identification and traceability verification
- FOB, CIF, and DDP shipping terms with professional container loading plans maximizing payload for thick-wall galvanized sections
- Seaworthy packaging with waterproof wrapping available for projects requiring extended port storage before final delivery
Requesting Specifications and Pricing for Your Project
Submit your required dimensions, steel grade preference, coating weight, quantity, and destination port to receive a detailed quotation with unit pricing, production lead time, and shipping terms. We provide mill test certificates and third-party inspection coordination before shipment, ensuring your galvanized tubes meet project specifications and customs requirements.
Get Your Galvanized Tube Quote with Mill Test Certificate
Send your specification sheet including section size, wall thickness, length, steel grade, and coating requirement to receive pricing and certification documentation within 12 hours.
Contact: admin@sdxjypipe.com | WhatsApp: +86 188 5315 7756 | Website: www.sdxjypipe.com
Frequently Asked Questions
Q: Can you provide galvanized tubes with coating thickness above Z120 for high-corrosion environments?
A: Our standard galvanizing range covers Z81–Z120 coating weight suitable for most structural and architectural applications. For projects requiring heavier zinc coating or duplex coating systems, we evaluate requirements case by case based on destination environment and project specifications.
Q: Do your galvanized square and rectangular tubes carry CE certification for European import?
A: Yes, our galvanized structural hollow sections carry CE certification under EN 10210 and EN 10219 standards, with full documentation supporting customs clearance across EU member states. We also hold Singapore FPC approval and ISO 9001:2015 registration.
Q: What is the minimum order quantity for custom non-standard sizes?
A: We produce custom non-standard sizes with low minimum order requirements, leveraging our 3 production lines covering 2,800+ specifications. Specific MOQ depends on section dimensions and wall thickness — submit your requirements for exact quantities.
Q: How do you ensure the galvanized coating meets the specified Z81–Z120 range?
A: Our in-house physical and chemical laboratory tests coating weight on production samples before shipment. Third-party inspection through SGS or BV is available for projects requiring independent verification of coating thickness and dimensional accuracy.
Q: Can you supply ASTM A53 and A106 grades in galvanized finish?
A: Yes, we supply galvanized square and rectangular tubes in ASTM A53, A106, and A36 grades alongside Chinese standard grades Q195, Q235, and Q345. Mill test certificates document compliance with the specified standard for each shipment.
