Description

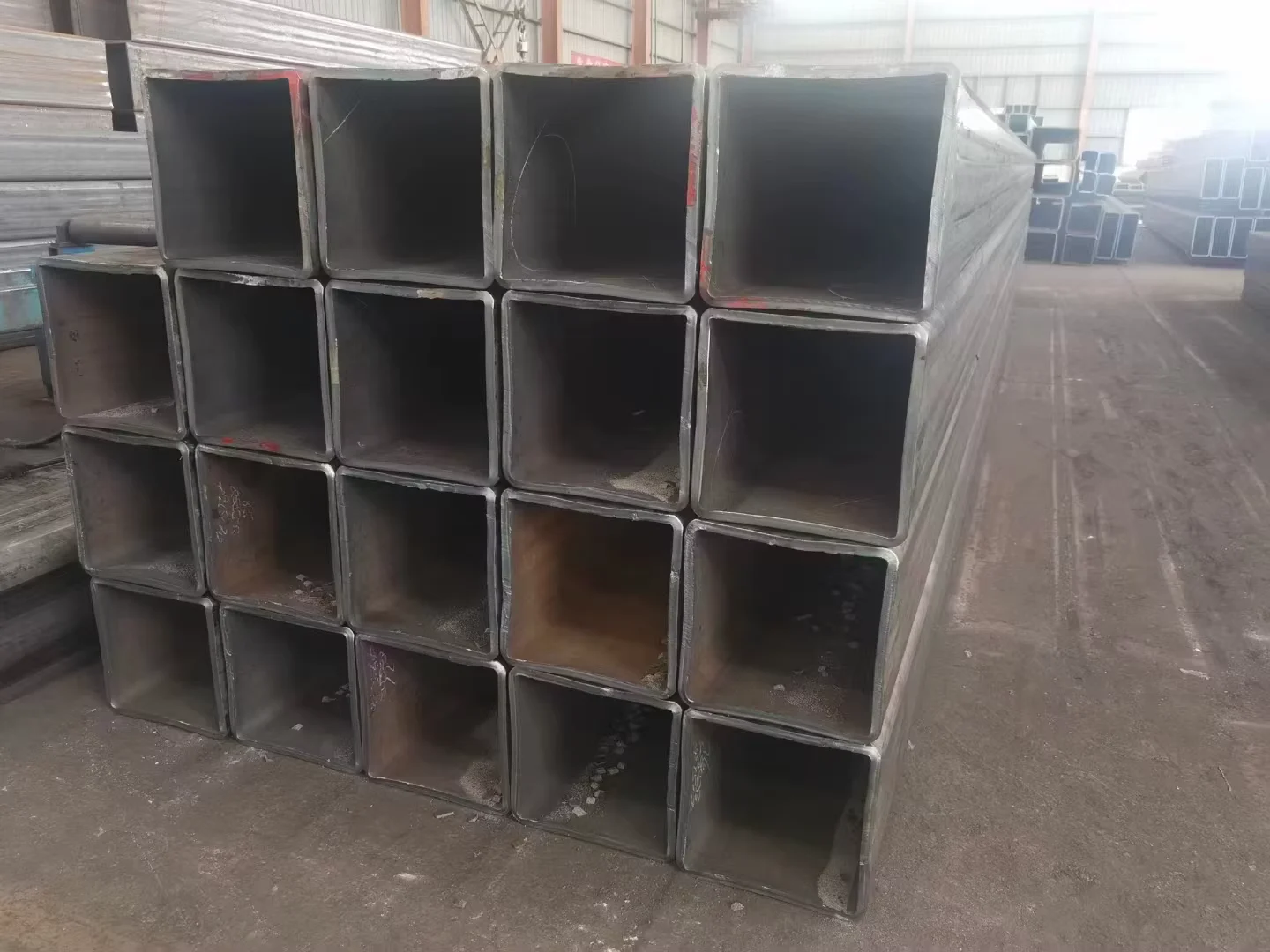

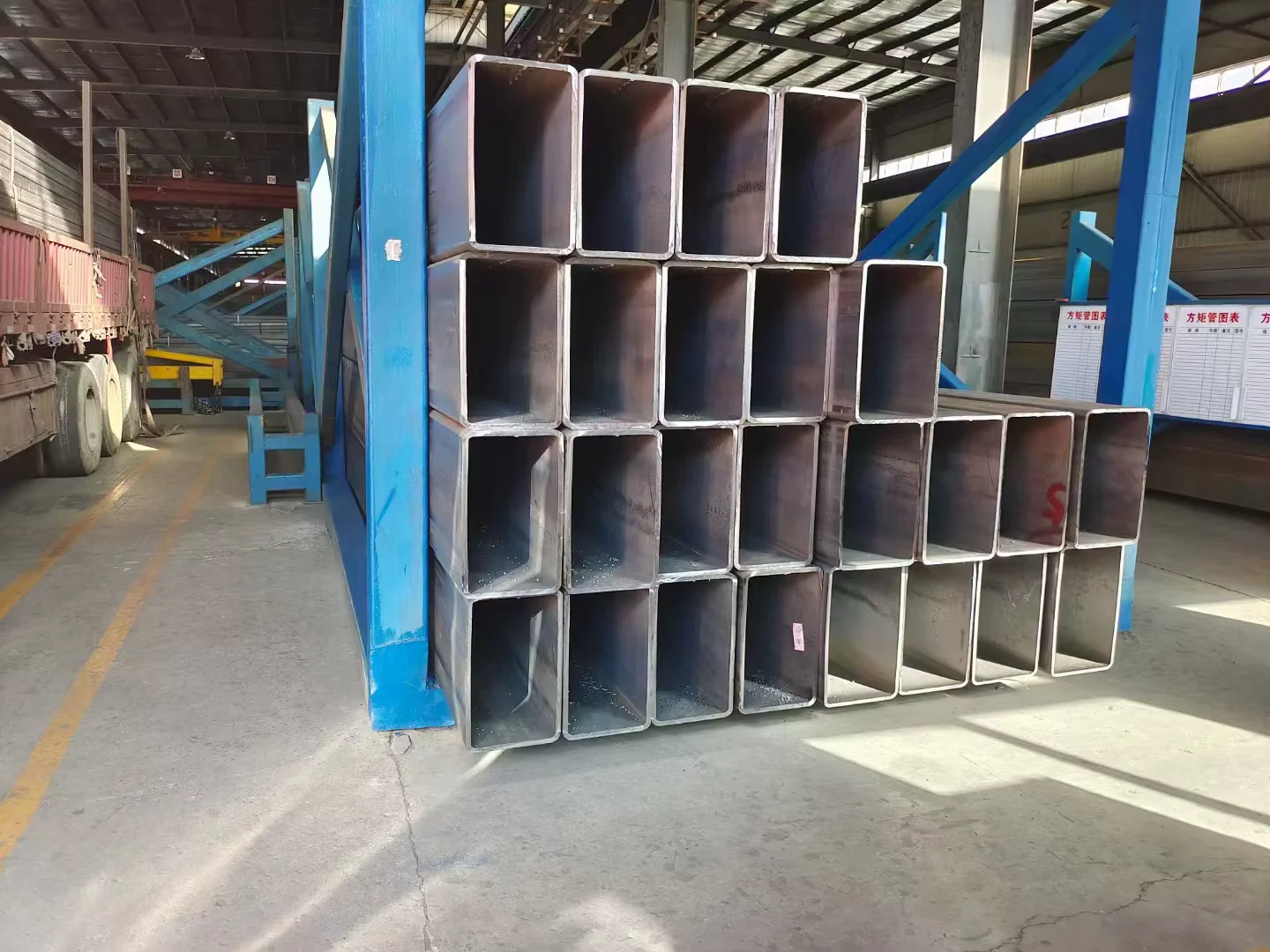

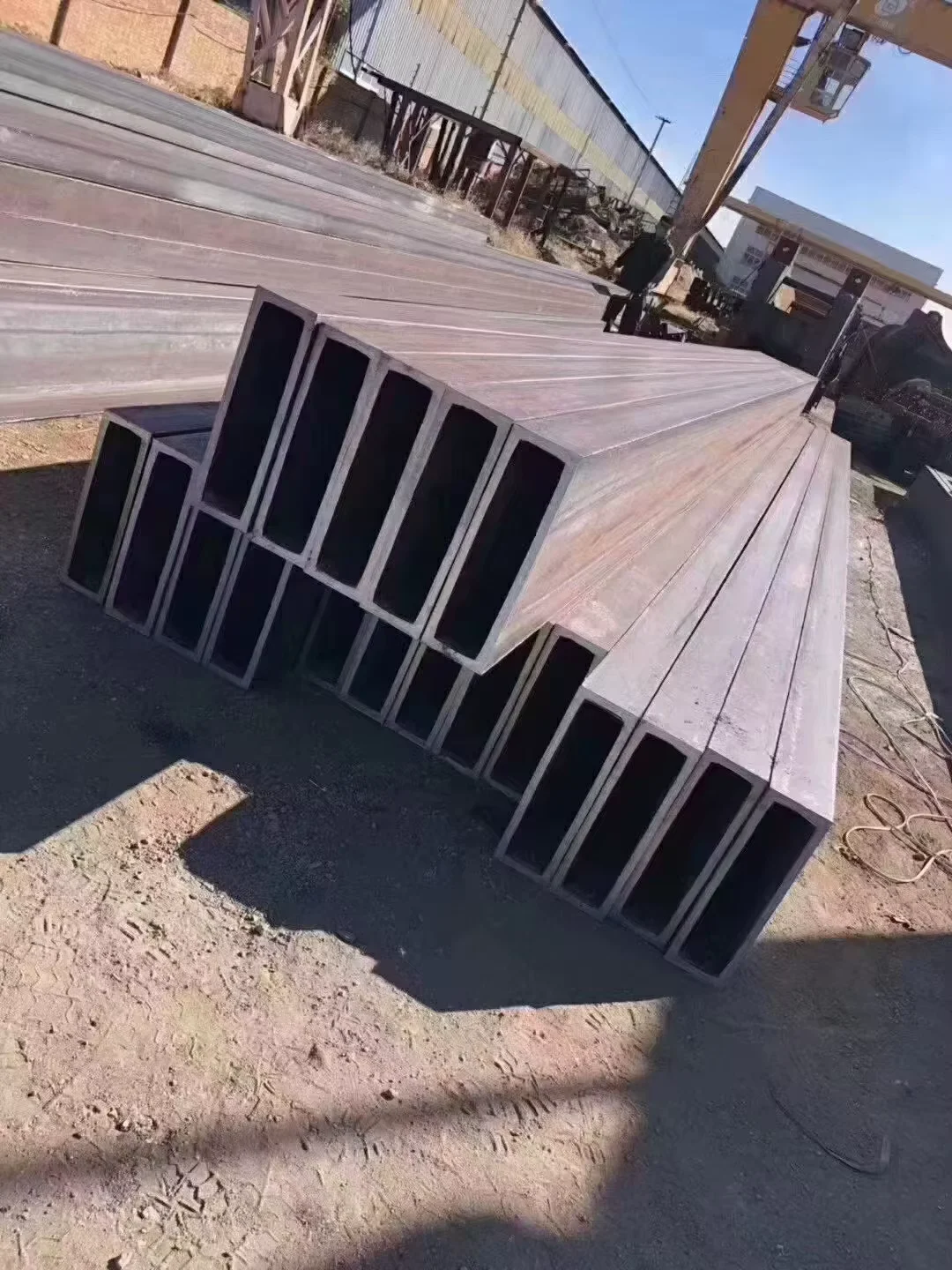

Factory-Direct Sharp Corner Square Steel Tube — 41 patented sharp-corner technologies eliminate rounded corners for architectural precision.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q195-Q460 Sharp Corner Square Steel Tube |
| Product Type | Sharp Corner Square Steel Tube |
| Steel Grade | Q195, Q235, Q235B, Q345, Q345B, Q460, SS330, SS400, SS540 |
| Standard | ISO 9001, ASTM (referenced) |
| Section Shape | Square |
| Size Range | 100×100 mm (custom sizes available) |
| Wall Thickness | 0.5–200 mm |
| Length | 12 m (custom cutting available) |
| Technique | Hot Rolled |
| Surface Treatment | Hot Rolled / Oiled / Non-Oiled |
| Tolerance | ±1% |
| Ends | Plain Ends |
| Application | Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, Steel Structures, Construction Frames, Machinery |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Architectural Construction | Glass curtain wall framing, facade support structures, exposed steel columns |
| Steel Structure Engineering | Building frames, bridge components, industrial warehouse skeletons |
| Machinery Manufacturing | Hydraulic cylinder barrels, equipment bases, conveyor support frames |
| Infrastructure Projects | Sound barrier posts, lighting pole foundations, signage structures |
Where Sharp-Corner Geometry Decides Facade Alignment Accuracy
Standard rectangular tubes leave visible gaps at welded joints—true 90-degree corners eliminate this problem entirely.
Most cold-formed rectangular tubes arrive with corner radii of R≥2t, creating uneven surfaces when welded into curtain wall frames. Facade contractors spend hours grinding and filling these gaps before painting. The sharp corner square steel tube solves this at the mill level. Our patented forming process achieves true right-angle corners without cracking the outer surface, even at wall thicknesses exceeding 20mm. This means clean weld joints, flush connections, and no cosmetic rework on exposed architectural elements [NEED_CITE: sharp-corner rectangular tube forming technology advantages].
When you specify Q345B or Q460 grades for heavy structural frames, corner quality becomes critical. Rounded corners concentrate stress at connection points and create misalignment in bolted joints. The sharp-corner geometry distributes load evenly across the full corner profile, matching design calculations to actual field performance.
Matching Structural Load Requirements for Curtain Wall Systems
The sharp corner square steel tube in Q235B and Q345B grades delivers the compressive strength needed for multi-story glass facade frames. The ±1% dimensional tolerance ensures that 100×100 mm sections maintain consistent geometry across 12-meter lengths, preventing cumulative alignment errors in tall building skins. Hot rolled surface treatment provides adequate corrosion resistance for indoor applications, while oiled finishes protect during ocean transit to coastal project sites. Our in-house laboratory tests every heat for chemical composition and mechanical properties before release, so your structural engineer receives verified mill test certificates matching the specified grade [NEED_CITE: structural hollow section dimensional tolerance standards].
Engineering Compliance and Certification Pathways
For EU projects, the sharp corner square steel tube meets EN 10210 requirements when produced to equivalent S-series grades. Lloyd’s CE certification covers EN 10210/10219 standards, clearing customs without additional testing. North American buyers specify ASTM A500 equivalence, and we provide documentation showing grade correspondence between Q345B and ASTM Gr.C. Singapore FPC certification supports Southeast Asian infrastructure tenders. The hot rolled technique produces consistent corner geometry that passes ultrasonic thickness testing at weld zones, critical for projects requiring third-party inspection by SGS or BV.
Understanding Steel Grade Selection and Hot Rolled Process Benefits
Q195 serves light-duty applications where formability matters more than strength—scaffolding, temporary structures, non-loadbearing frames. Q235 and Q235B represent the workhorse grades for general construction, offering reliable weldability and moderate strength. Q345 and Q345B step up to medium-heavy structural work, suitable for building frames carrying significant vertical loads. Q460 enters high-strength territory for long-span structures and heavy machinery bases where weight reduction matters. The Japanese SS series (SS330, SS400, SS540) provides alternative specifications for projects following JIS standards, with SS400 roughly equivalent to Q235B in yield strength range.

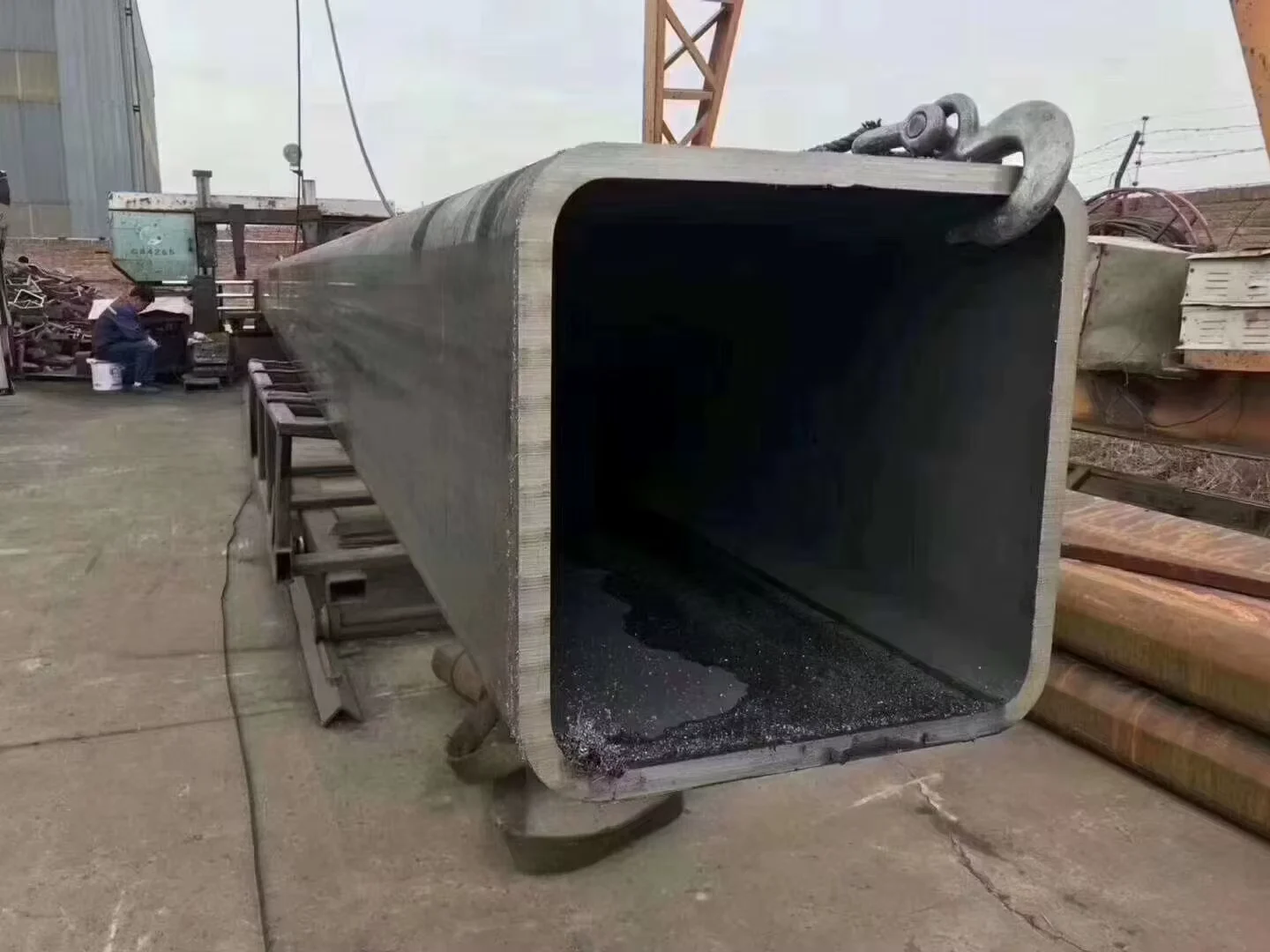

Hot rolled processing shapes the square profile at elevated temperatures, allowing thicker walls up to 200mm without the corner cracking common in cold-formed methods. This temperature-controlled forming preserves the steel’s ductility while achieving sharp 90-degree corners. The ±1% tolerance reflects hot rolled dimensional capability—sufficient for structural frames where minor variations don’t affect load paths, but precise enough for architectural applications requiring clean sightlines.
Hidden Costs of Compromising on Corner Quality and Grade Verification
Rounded corners from standard cold-formed tubes create three cost traps. First, facade contractors charge premium rates for grinding and filling corner gaps before painting exposed steel. Second, misaligned corners in bolted connections force field modifications, delaying project schedules. Third, unverified steel grades risk structural failure under load, triggering insurance claims and legal liability. A sharp corner square steel tube with proper mill test certificates eliminates these risks at the source. The ±1% tolerance ensures predictable weight calculations, preventing disputes over theoretical versus actual tonnage at project handover [NEED_CITE: steel grade equivalence between GB and international standards].
Why Project Procurement Teams Choose Our Mill Direct
We invented China’s first sharp-corner rectangular tube technology and hold 41 patents covering the forming process. Our three production lines cover 2,800+ specifications, so you source standard and non-standard sizes from one mill rather than coordinating multiple suppliers. The in-house physical and chemical laboratory tests every heat before shipment, providing mill test certificates with actual test values rather than generic certificates. Lloyd’s CE certification under EN 10210/10219 clears EU customs without retesting. We offer custom cutting to your exact lengths, reducing on-site waste and handling costs. Professional container loading with anti-damage measures prevents bending and surface scratches during ocean transit to your project site.
Documentation & Compliance
- Mill test certificate documenting Q345B chemical composition and yield strength per hot rolled production standards
- CE certificate (EN 10210/10219) for sharp corner square steel tube exported to European Union markets
- ISO 9001 quality management certificate covering entire production process from raw material to finished tube
- SGS or BV third-party inspection report available for projects requiring independent quality verification
- Material traceability by heat number linking each tube to specific chemical composition test results
- Customs documents including packing list, bill of lading, and certificate of origin for import clearance
Packaging, Loading & Delivery

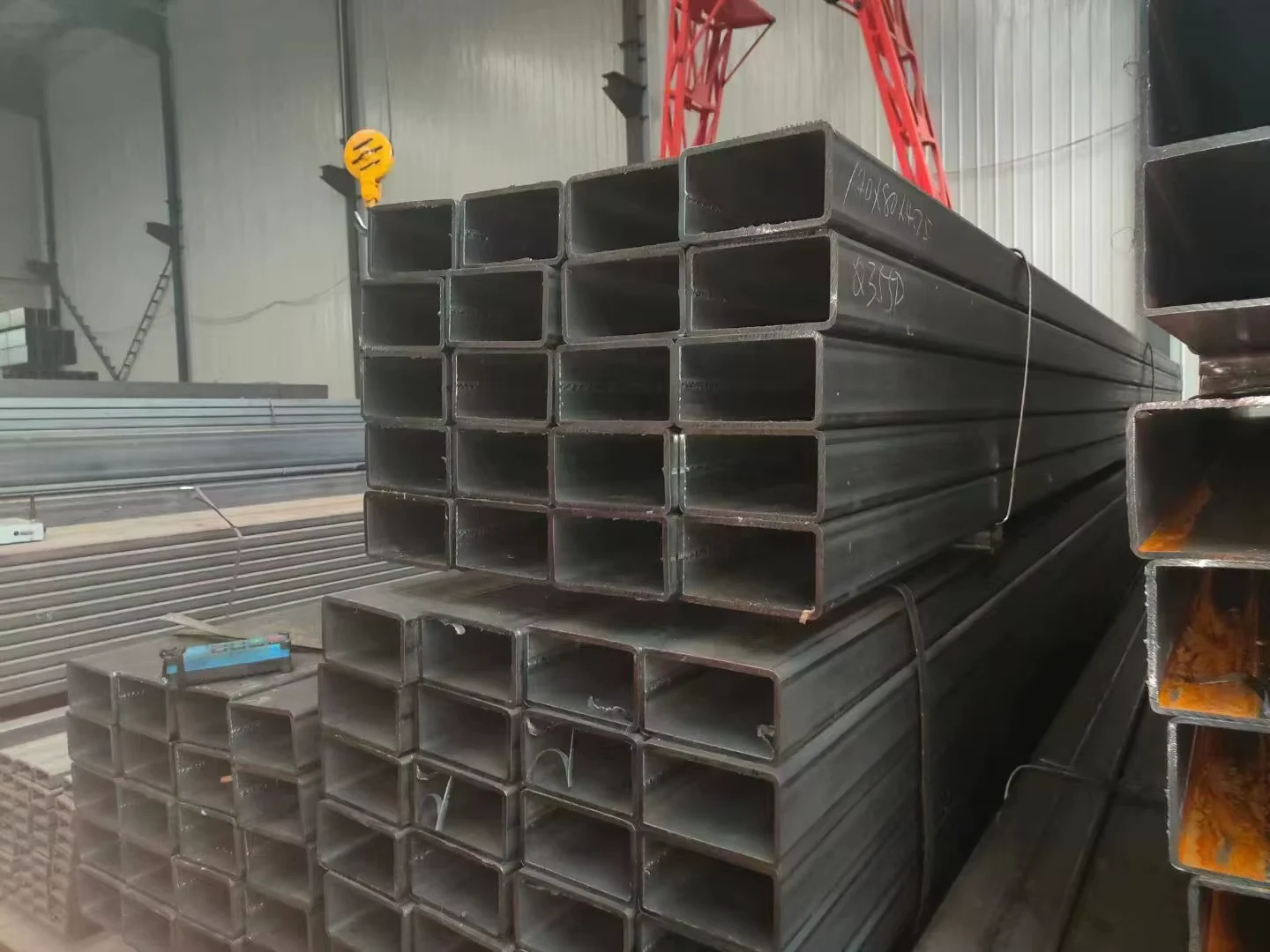

- Sharp corner square steel tubes bundled with high-tensile steel strips, separated by rubber pads to prevent surface damage during transit
- Hot rolled surfaces coated with anti-rust oil before bundling, protecting Q235B and Q345B grades during ocean shipping to humid climates
- 12-meter standard lengths loaded vertically in 20ft and 40ft containers, maximizing payload while preventing bending damage
- Custom cutting service available for 100×100 mm sections, reducing on-site cutting waste and handling labor at project locations
- Each bundle tagged with heat number, steel grade (Q345B/Q460), dimensions, and length for easy identification at construction sites
- FOB, CIF, and DDP shipping terms available, with professional loading plans optimizing container space for mixed-size orders
Streamlining Your Procurement from Inquiry to Delivery
Submit your sharp corner square steel tube specifications including dimensions, wall thickness, steel grade, quantity, and destination port. We respond within 12 hours with detailed pricing, mill test certificate samples, and production lead times. For non-standard sizes or custom cutting requirements, our engineering team provides technical solutions within 24 hours. Confirm your order with a 30% deposit, and we schedule production with regular progress updates and pre-shipment inspection photos.
Get Your Sharp Corner Square Steel Tube Quote Today
Send your specifications to receive pricing, mill test certificates, and delivery schedules for your next project.
Contact: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxjypipe.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjypipe.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What steel grades are available for sharp corner square steel tube?
A: We produce sharp corner square steel tube in Q195, Q235, Q235B, Q345, Q345B, Q460, SS330, SS400, and SS540 grades. Each grade comes with mill test certificates showing actual chemical composition and mechanical properties from our in-house laboratory.
Q: Can you produce non-standard sizes beyond 100×100 mm?
A: Yes, our 2,800+ specification range covers custom sizes beyond standard dimensions. We offer wall thicknesses from 0.5mm to 200mm and can produce non-standard side lengths with custom cutting services to your exact project requirements.
Q: Do your sharp corner square steel tubes have CE certification for EU projects?
A: Yes, we hold Lloyd’s CE certification under EN 10210 and EN 10219 standards. This certification clears EU customs without additional testing and meets European structural steel requirements for building and infrastructure projects.
Q: What surface treatment options are available?
A: We offer hot rolled finish (as-produced), oiled surface for corrosion protection during transit, and non-oiled finish for applications requiring immediate painting or galvanizing. The surface treatment choice depends on your project timeline and environmental conditions.
Q: How do you ensure corner quality on sharp corner square steel tube?
A: Our patented hot rolled forming process achieves true 90-degree corners without surface cracking, even at thick wall sections. Each production batch undergoes dimensional inspection and ultrasonic testing at corner zones to verify geometry meets ±1% tolerance requirements.
