Description

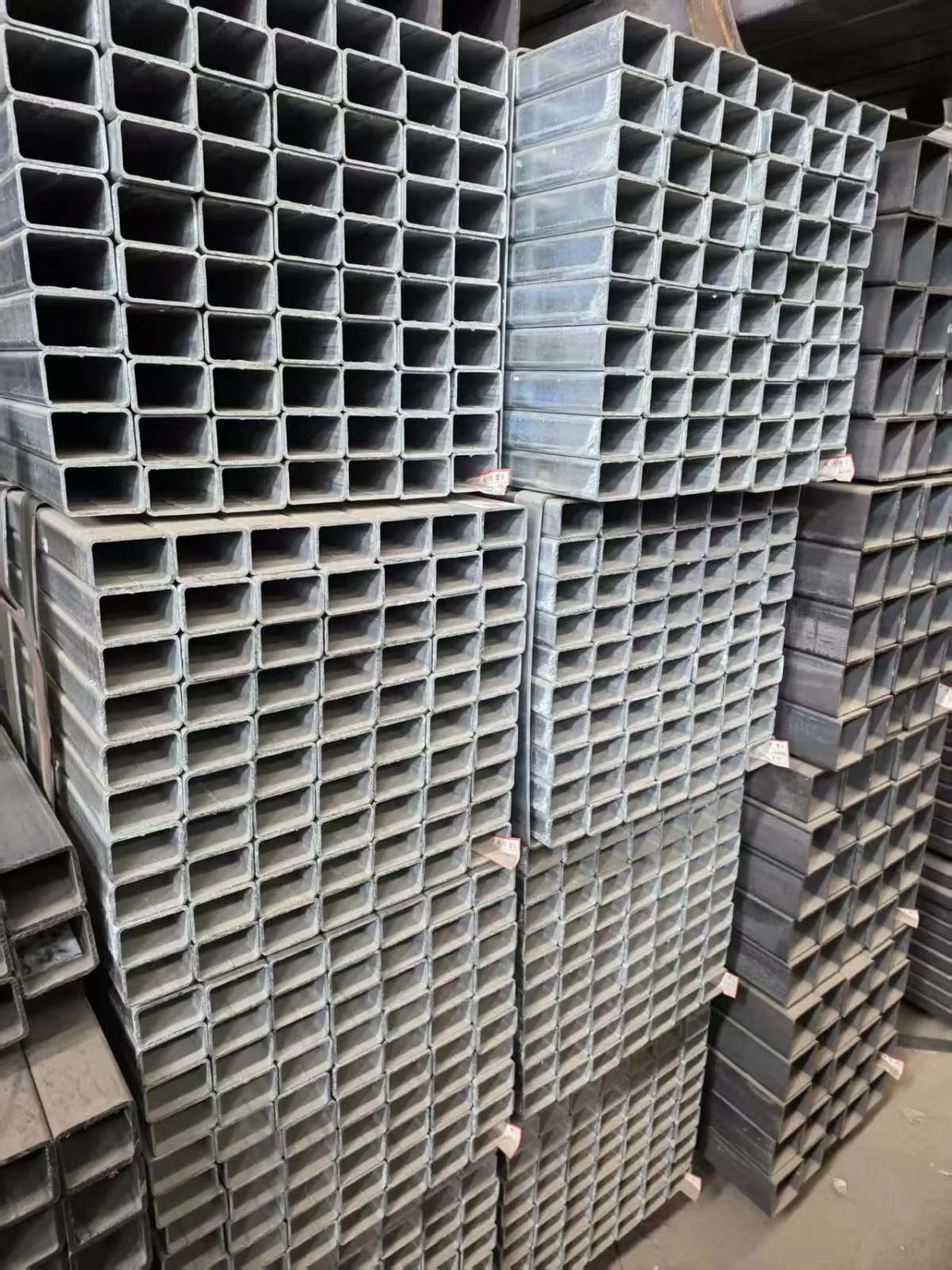

Factory-direct ASTM galvanized square and rectangular steel tubes — every Dx51D and G550 bundle leaves our in-house lab with verified Z30–Z40 coating thickness before container sealing.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Galvanized Square and Rectangular Steel Tube |
| Product Type | Galvanized Square and Rectangular Steel Tube |
| Steel Grade | Dx51D, Dx52D, Dx53D, G550, S350 |
| Standard | ASTM |
| Section Shape | Square / Rectangular |
| Wall Thickness | 1.0–5.0 mm |
| Length | 6 m / 12 m (customizable) |
| Technique | Hot Rolled Based |
| Surface Treatment | Galvanized (Z30–Z40), Slightly Oiled |
| Spangle Type | Zero Spangle |
| Hardness | Hard |
| Skin Pass | Yes |
| Tolerance | ±1% |
| Ends | Plain Ends |
| Application | Making Pipes, Cutting Sheets, Making Small Tools, Making Fences, Steel Structures, Construction Frames, Scaffolding |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Architecture | Building frames, scaffolding systems, glass curtain wall supports |
| Industrial Fabrication | Machinery frames, small tool manufacturing, conveyor structures |
| Infrastructure & Fencing | Perimeter fencing, highway guardrail posts, utility pole bases |
| Steel Structure Engineering | Portal frames, purlin systems, bracing members |
What Coating Uniformity Costs When ASTM Certification Decides Customs Clearance
Uneven zinc coating or missing mill certificates block EU and North American port acceptance — not the steel itself.
I have watched entire container loads of galvanized tubes get rejected at destination because the coating thickness varied from 35 to 55 microns across the same batch, while the contract specified Z40 minimum. The supplier had skipped in-house lab verification and relied on the galvanizer’s口头 assurance. With our ASTM-certified Galvanized Square and Rectangular Steel Tube, every production run goes through our physical and chemical laboratory for coating weight confirmation before release. [NEED_CITE: ASTM A123 zinc coating thickness testing requirements] Zero spangle finish eliminates the visual inconsistency that facade contractors reject during site inspection, and the ±1% dimensional tolerance ensures frame connections fit without on-site reaming.
Matching Zero-Spangle Galvanized Tubes to Facade and Structural Applications
The zero spangle surface on our Dx51D and G550 Galvanized Square and Rectangular Steel Tube provides uniform matte appearance that accepts paint systems without additional surface preparation. For glass curtain wall framing, the patented sharp-corner rectangular profile eliminates the rounded R-radius that creates visible gaps at mullion connections. Skin pass treatment on the 1.0–5.0 mm wall range maintains flat surface geometry critical for bolted end-plate connections in steel structure engineering.
Engineering Compliance: ASTM Certification and Dimensional Tolerance
Structural frames designed to ASTM A500 Grade B/C require verified yield strength documentation that matches the mill test certificate to heat numbers on each tube. Our Galvanized Square and Rectangular Steel Tube conforms to ASTM standards with full chemical composition and mechanical property reporting per heat. For projects entering EU markets, we provide Lloyd’s CE certification referencing EN 10210/10219 alongside the ASTM documentation, preventing customs delays caused by missing conformity declarations. [NEED_CITE: EN 10219 cold-formed structural hollow section dimensional tolerances] The ±1% tolerance on 6 m and 12 m lengths ensures that site cutting and welding operations maintain structural geometry without cumulative stack-up errors.
Steel Grade Selection: Dx51D Through G550 for Forming and Load-Bearing
Dx51D and Dx52D grades offer commercial forming quality for fencing posts and light structural frames where deep drawing is not required. Dx53D provides improved formability for complex bending operations in scaffolding coupler manufacturing. G550 delivers higher yield strength for load-bearing portal frames and bracing members where deflection limits govern section selection. S350 bridges the gap between commercial quality and structural grades, suitable for machinery frames requiring moderate strength with good weldability. The hot rolled base material beneath the Z30–Z40 zinc coating maintains consistent mechanical properties across the 1.0–5.0 mm thickness range.
Hidden Costs of Unverified Coating and Negative Tolerance
Ordering galvanized tubes without third-party inspection or in-house lab verification exposes projects to coating thickness claims that cannot be validated at destination. Negative tolerance beyond ±1% reduces actual section modulus, forcing engineers to overspecify or accept structural safety margins below design intent. Missing heat number traceability on mill test certificates creates rejection risk during ASTM compliance audits. [NEED_CITE: ASTM A500 structural tube testing and certification requirements] Our Galvanized Square and Rectangular Steel Tube ships with complete documentation linking every bundle to its production heat, coating weight test results, and dimensional inspection records.
Why Project Procurement Teams Specify SD XJY Pipe
Forty-one invention patents include China’s original sharp-corner rectangular tube technology, eliminating the rounded corners that compromise architectural aesthetics and connection fit-up. Our in-house physical and chemical laboratory performs coating thickness testing, dimensional verification, and mechanical property confirmation before shipment — not as an afterthought. The 2,800+ specification range covers non-standard sizes that most mills cannot produce, reducing the need to source from multiple suppliers. Full international certifications — ISO 9001:2015, Lloyd’s CE, Singapore FPC, SGS/BV verification — ensure market access across 50+ countries. Professional container loading with anti-damage measures protects the zero spangle galvanized surface during ocean transit, preventing the edge dents and zinc flaking that trigger site rejection.
Documentation & Compliance
- Mill test certificate documenting Dx51D, Dx52D, Dx53D, G550, and S350 chemical composition and mechanical properties per ASTM standards
- CE certificate referencing EN 10210/10219 for projects entering European Union markets alongside ASTM compliance
- ISO 9001:2015 quality management system certificate covering production and testing processes
- SGS or BV third-party inspection report verifying Z30–Z40 coating thickness and dimensional tolerance
- Material traceability by heat number linking each bundle to production records and test results
- Customs documents including packing list, bill of lading, and certificate of origin for import clearance
Packaging, Loading & Delivery

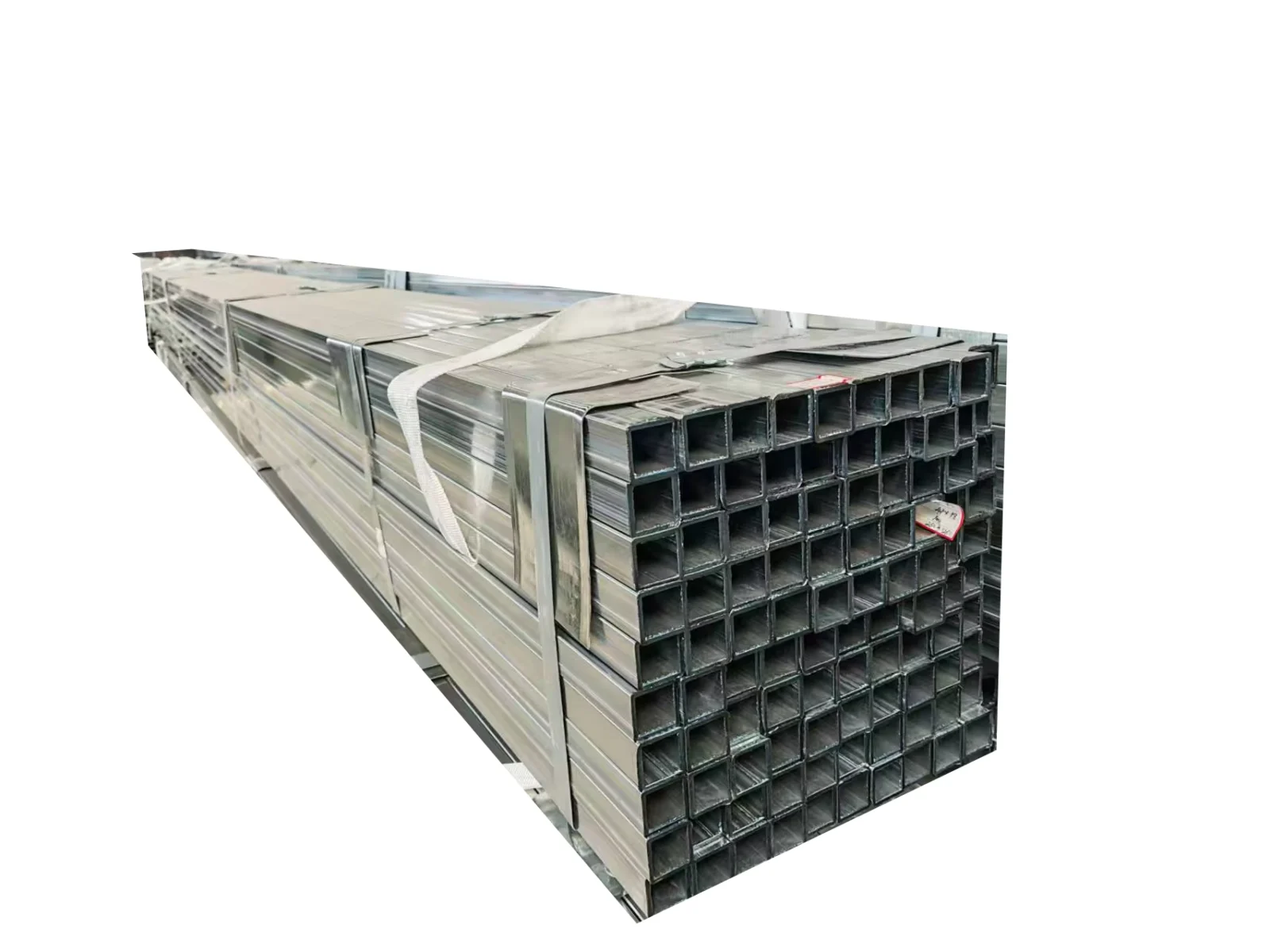

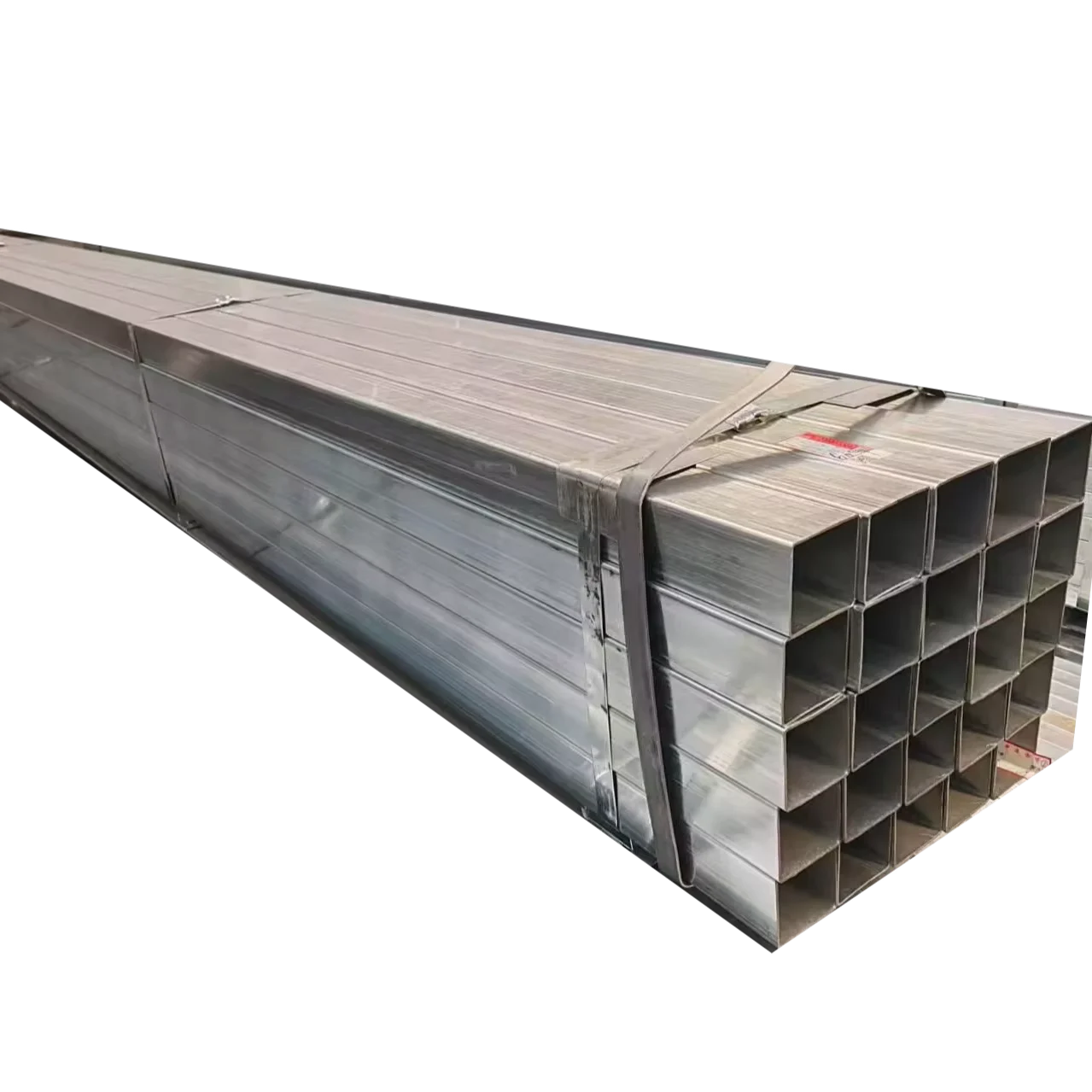

- Galvanized Square and Rectangular Steel Tube bundled with steel strips and edge protectors to preserve zero spangle zinc coating during ocean transit
- Slight oiling applied after galvanization provides additional corrosion protection for the Z30–Z40 coating during storage and transport
- 6 m and 12 m lengths optimized for 20-foot and 40-foot container loading with anti-roll chocks preventing bundle shift
- Heat number and steel grade markings stenciled on each bundle end for site identification and traceability
- Custom cutting to project-specific lengths available before galvanization to maintain coating integrity at cut ends
- FOB, CIF, and DDP shipping terms with professional tube loading plans maximizing container utilization for 1.0–5.0 mm wall thickness sections
Submit Specifications for ASTM-Certified Quotation and Mill Test Review
Provide your required steel grade (Dx51D, G550, S350), section dimensions, wall thickness, length, and destination port to receive detailed pricing with coating weight confirmation and dimensional tolerance guarantees. We respond within 12 hours with quotation including unit price, lead time, and shipping terms, followed by sample availability and third-party inspection arrangement if required.
Request Galvanized Square and Rectangular Steel Tube Pricing with Full ASTM Documentation
Submit your specifications to admin@sdxjypipe.com or contact via WhatsApp at +86 188 5315 7756 for quotation and mill test certificate review.
Frequently Asked Questions
Q: What is the difference between Dx51D, Dx52D, and Dx53D grades for galvanized square and rectangular tubes?
A: Dx51D provides commercial forming quality suitable for fencing and light structural applications. Dx52D offers improved formability for moderate bending operations. Dx53D delivers the highest formability in this series for complex shaping in scaffolding components. All three grades receive Z30–Z40 galvanization with zero spangle finish.
Q: Can you provide ASTM and CE certification for the same galvanized tube order?
A: Yes. Our Galvanized Square and Rectangular Steel Tube can be produced to ASTM standards with mill test certificates, while we simultaneously provide Lloyd’s CE certification referencing EN 10210/10219 for projects requiring European market compliance. Both certifications ship with complete documentation.
Q: What is the minimum order quantity for non-standard sizes beyond your 2,800+ specification range?
A: Custom non-standard sizes outside our standard 1.0–5.0 mm wall thickness range require production runs with typical lead times of 15–25 days. Minimum order quantities depend on section dimensions and steel grade. Contact us with your specific requirements for detailed MOQ and pricing.
Q: How do you ensure the galvanized coating meets Z30–Z40 requirements?
A: Every production batch undergoes coating thickness testing in our in-house physical and chemical laboratory before shipment. We use magnetic induction gauges per ASTM standards to verify Z30–Z40 zinc coating weight across multiple points on each tube. Third-party inspection by SGS or BV is available for additional verification.
Q: Do you provide professional container loading for 6 m and 12 m galvanized tubes?
A: Yes. Our loading team uses anti-roll chocks, edge protectors, and interlocking bundle arrangements to prevent shifting and edge damage during ocean transit. We provide loading plans and photos before container sealing to ensure the zero spangle galvanized surface arrives undamaged at destination.
