Description
Factory-Direct Hot Rolled Seamless Tubes — SD XJY Pipe operates three in-house production lines covering 2,800+ specifications with wall thickness up to 40mm, eliminating broker markups on every order.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235/Q345/S235JR/S275JR/S355JR Seamless Square and Rectangular Steel Tube |
| Product Type | Seamless Square and Rectangular Hollow Section |
| Steel Grade | Q195, Q235, Q345, S235JR, S275JR, S355JR |
| Standard | ASTM |
| Section Shape | Square / Rectangular |
| Technique | Hot Rolled Seamless |
| Surface Treatment | Black (as customers’ requirement) |
| Tolerance | ±1% |
| Processing Service | Welding, Punching, Cutting, Bending, Decoiling |
| Size | Customized Size |
| Delivery Time | Within 7 days (standard sizes from stock) |
| Application | Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, Oil Pipe, Chemical Fertilizer Pipe, Steel Structures, Construction Frames, Machinery |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas | Hydraulic pipelines, gas transmission lines, drill pipe casings |
| Power & Energy | Boiler tubes, chemical fertilizer plant piping, pressure vessels |
| Construction & Infrastructure | Steel structure frames, building columns, bridge support members |
| Machinery Manufacturing | Hydraulic cylinder barrels, heavy equipment chassis, conveyor structures |
What Wall-Thickness Tolerance Costs on a Structural Frame Order
A ±1% tolerance on a hot rolled seamless square or rectangular tube is the difference between a frame that passes inspection and one that gets rejected at the port.
When procurement teams source a Hot Rolled Seamless Square Rectangular Steel Tube Supplier without verifying tolerance claims against actual caliper readings, the consequences cascade. A mill certificate printed in Jinan means nothing if the wall thickness at the weld zone or corner falls outside the acceptable band — and seamless tubes are no exception, since hot-rolled mandrel processes can still produce eccentricity if the pierce point drifts [NEED_CITE: ASTM A500 dimensional tolerance requirements for seamless hollow sections]. Buyers who skip third-party verification frequently discover negative tolerance stacking only when SGS or BV inspectors measure at destination, turning a routine delivery into a customs hold or outright rejection.
Matching Hollow Sections to Structural and Pressure Applications
Hot rolled seamless square and rectangular hollow sections carry load differently than their welded counterparts. The absence of a longitudinal weld seam means stress distributes evenly across the entire cross-section, making these tubes the default choice for hydraulic cylinders, boiler circuits, and high-pressure gas lines where ERW weld integrity becomes a liability. When a project specifies Q345 or S355JR grades, the engineer is signaling that the frame must resist both static loading and dynamic fatigue — and seamless manufacturing delivers the grain-flow continuity that welded alternatives cannot match. Our production lines run 2,800+ specifications precisely because structural engineers rarely find what they need in catalog sizes; a curtain wall contractor in Rotterdam needs a different aspect ratio than a pipeline fabricator in Dubai.
Engineering Compliance Across EN, ASTM, and GB Frameworks
Structural hollow sections used in load-bearing frames must conform to the dimensional and material requirements of the governing code — EN 1993 for European projects, AISC 360 for North American builds, and GB 50017 for domestic Chinese structures [NEED_CITE: steel grade equivalence between EN 10210 and ASTM A500 standards]. A Q345 tube shipped to the EU without a CE mark referencing EN 10210 will not clear customs, regardless of whether the chemistry matches S355JR on paper. Similarly, ASTM A500 Grade C procurement in the US requires documented yield strength and elongation values traceable to heat number — not a generic mill declaration. The hot rolled seamless process naturally produces tighter dimensional consistency than cold-formed alternatives, but compliance still demands certified test reports, not verbal assurances.
Steel Grade Selection and Hot Rolled Seamless Manufacturing Logic
The Q-series (Q195, Q235, Q345) follows the Chinese GB/T 700 and GB/T 1591 designation system, where the number indicates minimum yield strength in MPa. Q345, now redesignated as Q355 under the updated GB/T 1591-2018, remains widely specified in legacy projects across Southeast Asia and Africa. The S-series (S235JR, S275JR, S355JR) follows EN 10025, with the “JR” suffix denoting room-temperature impact testing at 27J — a critical distinction for structures in seismic or cold-climate zones. Hot rolled seamless manufacturing heats the billet above recrystallization temperature before piercing and elongating, producing a uniform microstructure without the weld-line weakness inherent in ERW or SSAW processes. The black surface finish, typical of as-rolled delivery, provides a clean base for downstream painting, galvanizing, or 3PE coating depending on the service environment. Wall thickness tolerance of ±1% ensures that theoretical weight calculations match actual delivered mass — a factor that directly affects structural load calculations and shipping cost accuracy.
Hidden Costs of Unverified Tube Procurement
Procuring a Hot Rolled Seamless Square Rectangular Steel Tube Supplier based solely on quoted price per ton invites three categories of hidden cost. First, material substitution: a supplier delivering Q235 chemistry against an S355JR order creates a structural liability that only surfaces during third-party inspection or, worse, under load. Second, tolerance drift: wall thickness below the specified minimum triggers rejection under EN 10219 or ASTM A500, forcing re-order and project delay [NEED_CITE: consequences of negative tolerance in structural steel procurement]. Third, documentation gaps: missing heat numbers, absent impact test data, or certificates referencing superseded standard editions block customs clearance in regulated markets. The cost of a rejected container — demurrage, re-shipment, replacement production — dwarfs any per-ton savings from an unverified source.
Why SD XJY Pipe Earns Repeat Orders from 50+ Countries
SD XJY Pipe operates as the steel pipe and section steel division of Shandong Xin Jiyuan Special Steel Tube Co., Ltd — the original inventor of sharp-corner rectangular tubes in China, holding 41 patents for that proprietary technology. Three dedicated production lines cover 2,800+ specifications with wall thickness reaching 40mm, meaning procurement teams source both standard and non-standard hollow sections from a single mill without broker intervention. Every batch undergoes dimensional, mechanical, and chemical testing in our in-house physical and chemical laboratory before release. Full international certifications — ISO 9001:2015, Lloyd’s CE (EN 10210/10219), Singapore FPC, and SGS/BV verification — ensure that documentation matches the material leaving the warehouse. Custom non-standard sizes, cutting, marking, and professional container loading for export orders are handled in-house, eliminating the coordination failures that occur when fabrication and logistics are outsourced to separate vendors.
Documentation & Compliance
- Mill Test Certificate documenting Q235/Q345/S355JR chemical composition and mechanical properties per ASTM standards, traceable to individual heat number
- CE certificate confirming EN 10210/EN 10219 compliance for seamless square and rectangular hollow sections destined for European Union markets
- ISO 9001:2015 quality management certificate covering the full production process from billet heating to final dimensional inspection

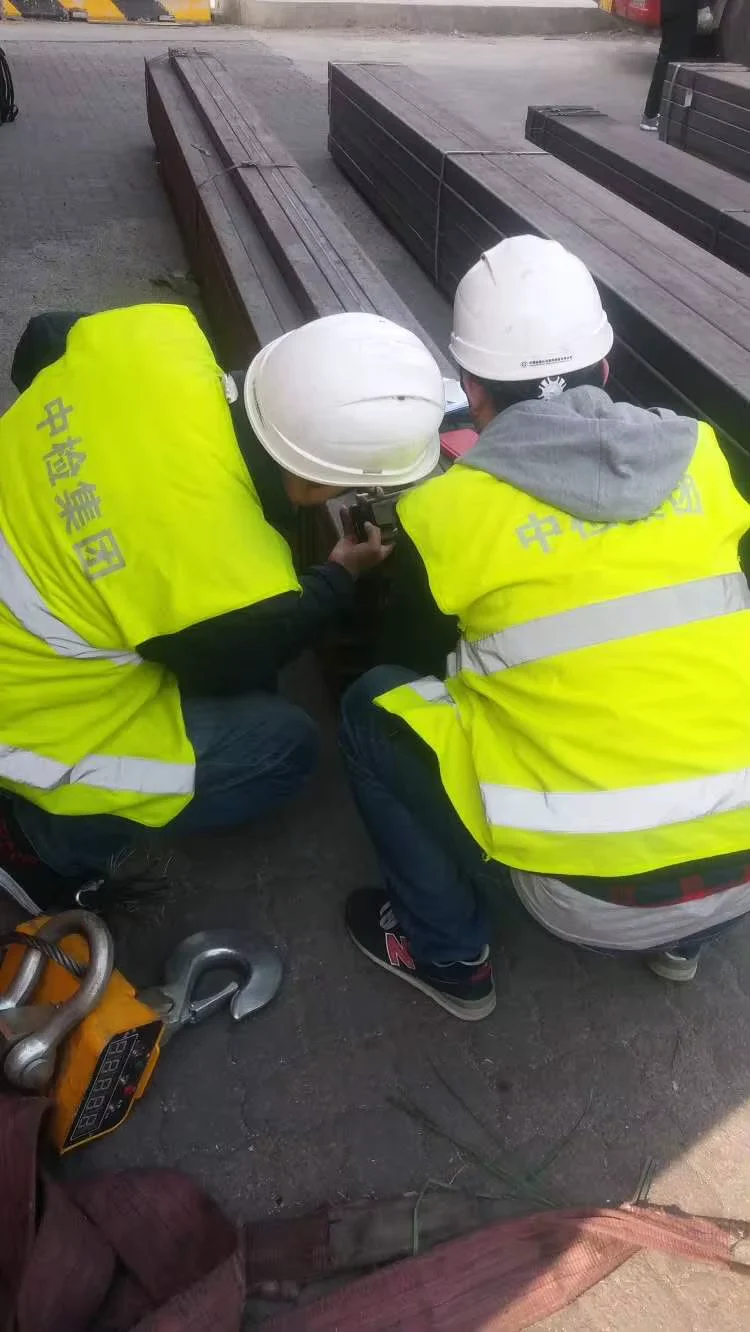

- SGS or BV third-party inspection report available upon request, verifying wall thickness tolerance, surface condition, and marking accuracy before container sealing
- Material traceability documentation linking each tube to its heat number, chemical analysis, and tensile test results
- Complete customs documentation including packing list, bill of lading, and certificate of origin formatted for destination-country requirements
Packaging, Loading & Delivery

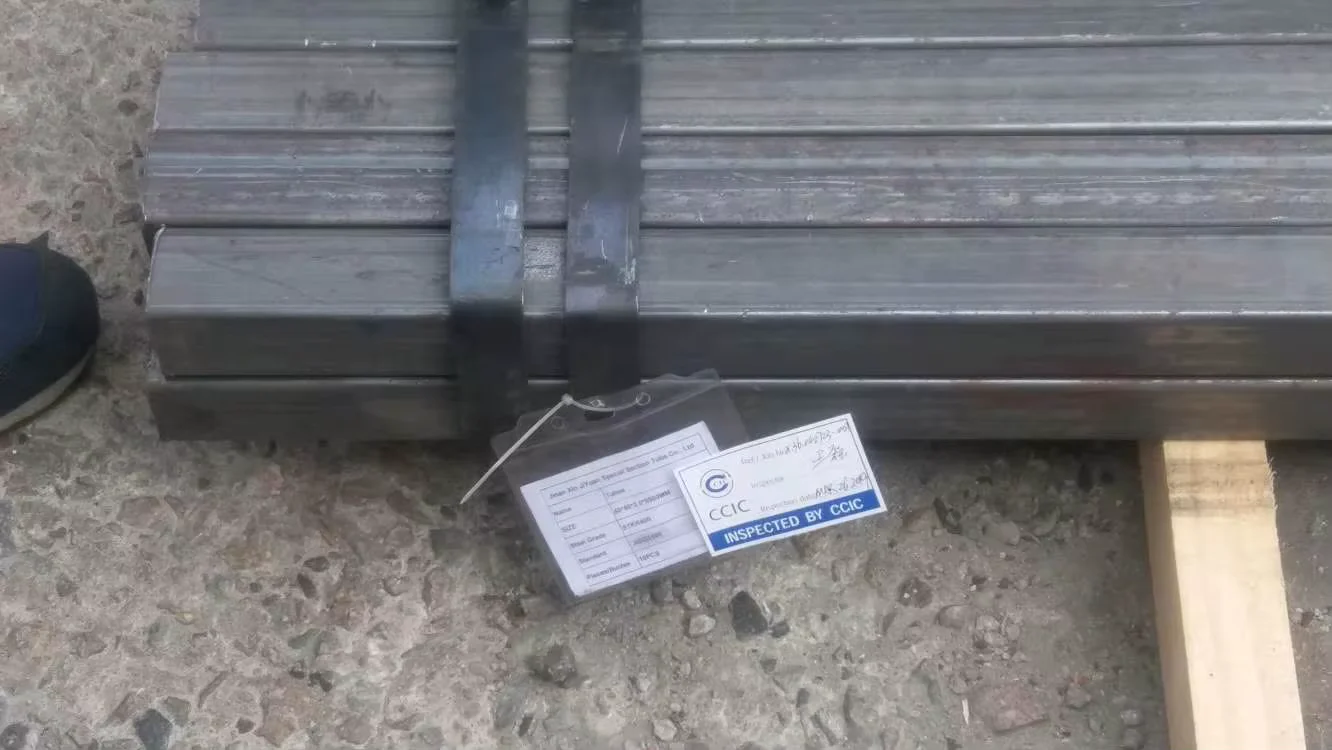

- Hot rolled seamless square and rectangular tubes bundled with high-tensile steel strips, separated by timber dunnage to prevent surface scratching during ocean transit
- Black finish tubes coated with anti-rust oil at the mill to preserve surface condition during storage and shipping, with edge protectors applied to prevent coating damage at corners
- Container loading optimized by our logistics team based on tube dimensions and wall thickness, maximizing payload per 20ft or 40ft container while maintaining weight distribution within port handling limits
- Custom cut-to-length service available before shipment, with each piece marked with heat number, steel grade, and size for immediate identification at the construction site or fabrication yard
- Professional export packaging designed for 6–12 meter lengths, with steel end caps on large-diameter seamless tubes to prevent moisture ingress and debris accumulation during transit
- Delivery terms available as FOB, CIF, or DDP, with full tracking and documentation support from Jinan warehouse to destination port or project site
Securing Your Quote and Mill Test Certificate
Submit your specification sheet — including section shape, dimensions, steel grade, quantity, and destination port — to receive a detailed quotation with unit pricing, production lead time, and shipping terms within 12 hours. For non-standard sizes or custom cut-to-length requirements, our engineering team provides fabrication drawings and tolerance confirmations before production begins. All orders include Mill Test Certificate and can be arranged for SGS/BV third-party inspection prior to shipment.
Request Your Hot Rolled Seamless Square Rectangular Steel Tube Quotation
Send your specifications to receive pricing, Mill Test Certificate samples, and production lead time confirmation within 12 hours.
Company: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Website: www.sdxjypipe.com
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjypipe.com
Address: No.11889, Jingshi West Road, Lulian Group, Jinan City, Shandong Province, China
Frequently Asked Questions
Q: What is the difference between hot rolled seamless and ERW welded square tubes?
A: Hot rolled seamless tubes are produced by piercing a heated billet and elongating it through a mandrel, creating a hollow section with no weld seam. This results in uniform grain structure and consistent strength across the entire cross-section. ERW tubes are formed by rolling steel strip and welding the seam longitudinally. Seamless tubes are preferred for high-pressure applications, hydraulic systems, and structural uses where weld integrity is a concern.
Q: How do you ensure dimensional accuracy and tolerance control for custom sizes?

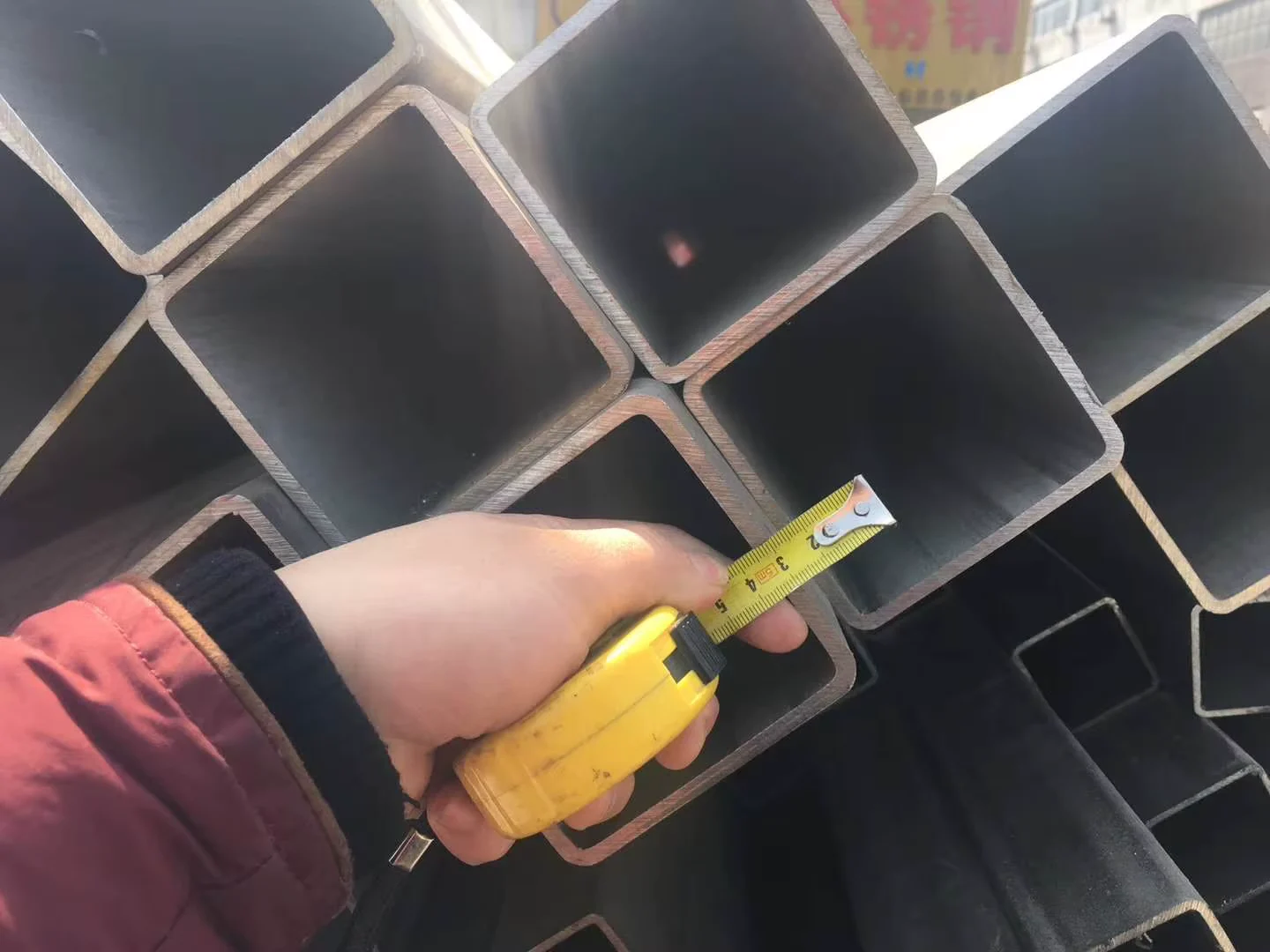

A: Our in-house physical and chemical laboratory performs dimensional inspection on every production batch, verifying outer dimensions, wall thickness, and straightness against the specified tolerance. For hot rolled seamless square and rectangular tubes, we maintain ±1% tolerance on wall thickness. Third-party inspection through SGS or BV is available before shipment to provide independent verification for regulated markets.
Q: Can you provide material certificates and third-party inspection for EU/US imports?
A: Yes. All shipments include Mill Test Certificate documenting chemical composition and mechanical properties traceable to heat number. We hold CE certification under EN 10210/EN 10219 for European market compliance, ISO 9001:2015 for quality management, and Singapore FPC certification. SGS and BV third-party inspection reports are arranged upon request prior to container sealing.
Q: What steel grade equivalents exist between GB, ASTM, and EN standards?
A: Steel grade equivalence requires careful comparison of chemical composition and mechanical properties. Q235 approximately corresponds to S235JR and ASTM A36; Q345 (now Q355 under GB/T 1591-2018) aligns with S355JR and ASTM A572 Grade 50 [NEED_CITE: steel grade equivalence between EN and ASTM standards]. We provide detailed equivalence tables and technical guidance to ensure correct material selection for your project specifications.
Q: What is the typical lead time for customized non-standard specifications?
A: Standard sizes ship from stock within 7 days. Custom non-standard sizes enter production upon receipt of deposit, with typical production lead times of 15–25 days depending on specification complexity and order quantity. We confirm exact delivery schedules during the quotation stage based on current production capacity.
