Description
Factory-Direct JCOE Pipes — In-house JCOE forming lines produce large diameter welded pipes up to 4000 mm OD without outsourcing to trading intermediaries.
Technical Specifications
| Parameter | Value |
|---|---|

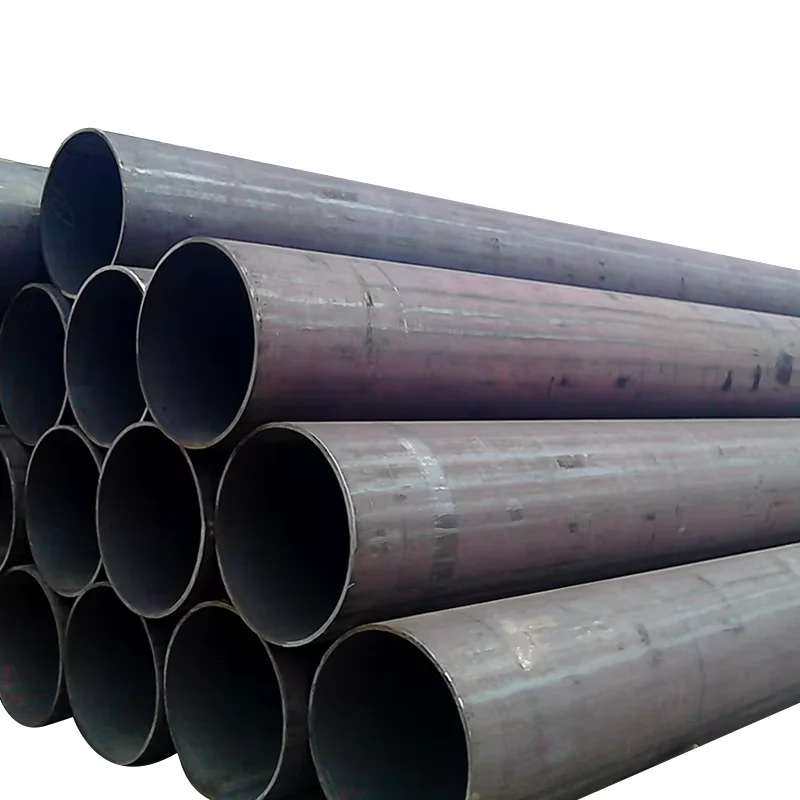

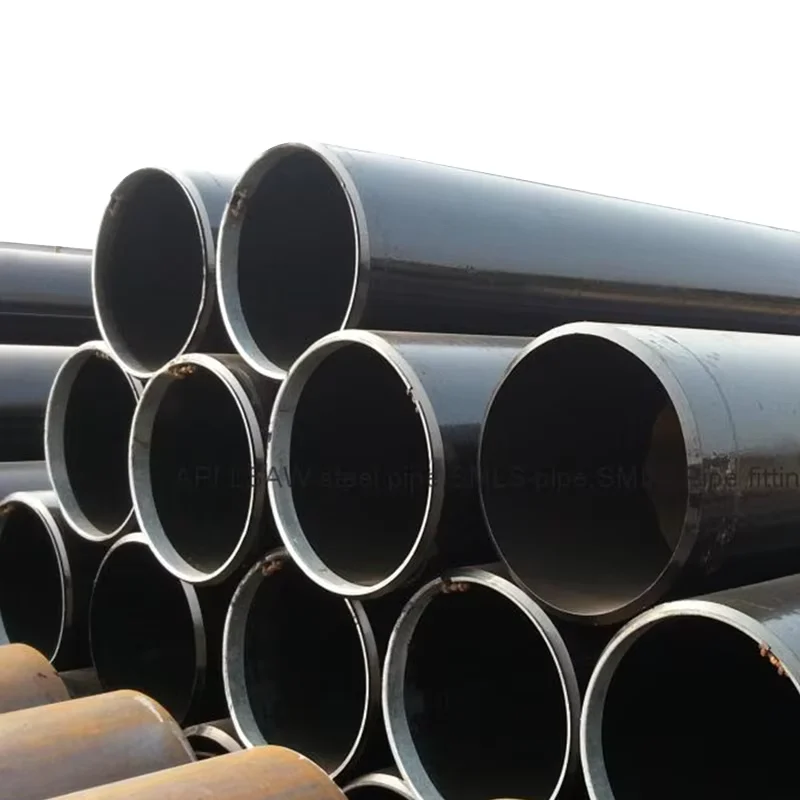

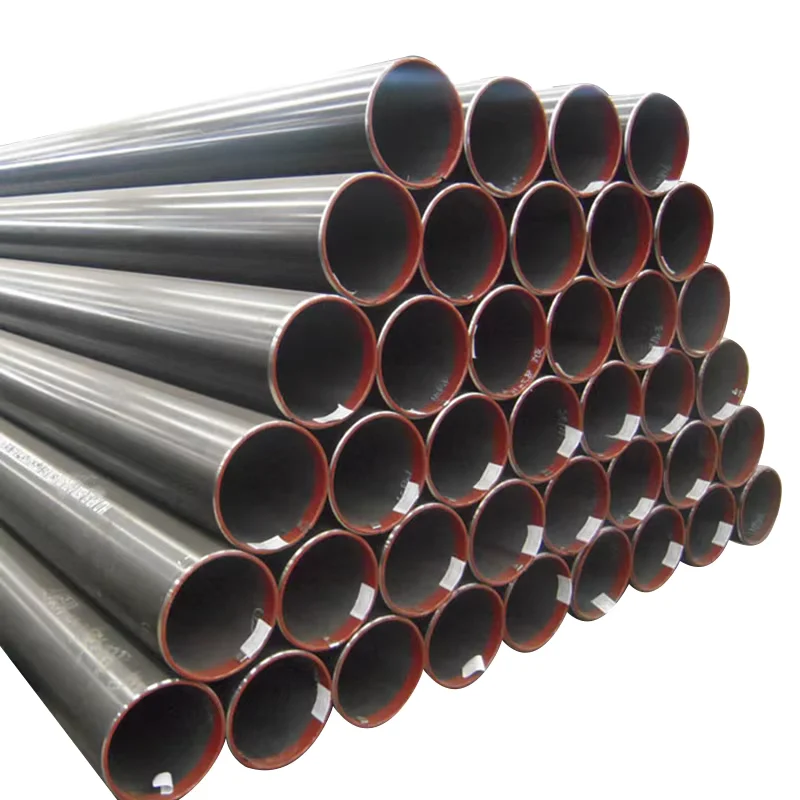

| Designation | Q355B/Q235B Large Diameter LSAW Steel Pipe |
| Product Type | JCOE Steel Pipe / LSAW Welded Steel Pipe |
| Steel Grade | Q235B, Q355B, L245/B, L290/X42, L555/X80, GR.A–GR.E, GR.1–GR.3, C250, C350, C350L0, C450, C450L0, P195, P235, P265, S235, S275, S355, S420, S460, SKK41, SKK50, SKY400, SKY490 |
| Standard | API 5L, ASTM A139, ASTM A252, AS1163, AS1554, AS3678, EN 10217, EN 10219, JIS A5525, JIS A5530, KS F4602, GB/T 9711, GB/T 3091, SY/T 5037, SY/T 5040 |
| Section Shape | Round |
| Outer Diameter | 355.6–4000 mm (JCOE range: 355.6–1626 mm) |
| Wall Thickness | 8–50 mm |
| Length | Up to 12 m |
| Technique | JCOE (LSAW) |
| Surface Treatment | Black painting, oiled, galvanized, bare |
| Ends | Beveled, plain |
| Invoicing | By theoretical weight |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Piling & Foundation | Driven piles, bored pile casings, bridge pier columns |
| Oil & Gas Transmission | Long-distance hydrocarbon pipelines, gathering lines, metering stations |
| Water Infrastructure | Raw water intake mains, desalination outfalls, fire-water rings |
| Steel Structure | Portal frames, truss chords, heavy industrial columns |
| Power Generation | Cooling water circuits, boiler feed lines, penstocks |
Where CE Certification Decides Customs Clearance for Large Diameter LSAW JCOE Steel Pipe
Missing EN 10217 paperwork stops a 40-foot container at Rotterdam more often than dimensional non-conformance.
Procurement teams ordering large diameter welded pipes for EU-regulated projects frequently discover — after the vessel has sailed — that the mill test certificate references EN 10219 instead of EN 10217, or that the CE mark was self-declared without Lloyd’s involvement. The cargo sits in bond, demurrage accrues, and the project crane schedule slips. [NEED_CITE: EN 10217 vs EN 10219 scope distinction for welded hollow sections]
A second recurring issue is grade equivalence confusion: Q355B is routinely specified on Chinese drawings, yet European structural engineers expect S355JR or S355J2 per EN 10025. Without a documented equivalence table signed by the mill, the receiving inspector rejects the batch regardless of actual chemistry. [NEED_CITE: steel grade equivalence mapping between GB/T 1591 and EN 10025]
Matching Wall Thickness and Diameter to Piling and Pipeline Loads
JCOE forming produces large diameter LSAW JCOE steel pipe with wall thickness up to 50 mm, which covers both driven pile casings requiring impact resistance and high-pressure transmission lines demanding thick-wall integrity. The stepped forming process — J-C-O-E — distributes deformation across four stages rather than forcing the plate through a single pass, reducing residual stress at the weld seam and keeping ovality within tolerance even at 1626 mm OD. For piling contractors, this means the pipe survives hammer strikes without seam splitting; for pipeline EPCs, it means the weld bead passes automatic ultrasonic inspection on the first pass.
Structural Code Compliance and Surface Protection Selection
Engineering codes such as EN 1993 and AISC 360 require traceable mechanical properties for load-bearing hollow sections, which is why every batch ships with heat-number-linked mill test certificates covering chemical composition and tensile results. [NEED_CITE: EN 1993-1-1 requirements for structural hollow section verification] For offshore or chemically aggressive environments, the choice between black painting, oiled, galvanized, or bare finish directly affects corrosion allowance calculations — galvanized coating adds sacrificial zinc protection for atmospheric exposure, while oiled or bare surfaces assume external coating will be applied post-installation. Beveled ends arrive ready for butt-welding on-site, eliminating field machining delays, and 12 m standard lengths reduce the number of field welds in a typical pipeline spread.
Understanding JCOE Forming and Grade Coverage Across Standards
The JCOE process begins with plate edge pre-bending (J step), followed by progressive C-shaped forming, O-rounding, and E-expanding — each stage addresses a different dimensional accuracy challenge, resulting in tighter OD and roundness tolerance than SSAW for diameters below 1626 mm. Steel grade coverage spans API 5L line pipe grades (L245/B through L555/X80) for pressurized hydrocarbon service, EN structural grades (S235 through S460) for building frames, and Australian grades (C250, C350, C450) for infrastructure projects in Oceania. Q-series grades (Q235B, Q355B) dominate domestic Chinese structural work and remain cost-effective for non-regulated export markets where project specifications permit GB/T equivalents. Surface treatment selection — black painted for indoor structural use, oiled for temporary transit protection, galvanized for outdoor exposure — is matched to the installation environment rather than applied as a blanket default.
Hidden Costs When Grade Documentation or Wall Tolerance Fails
Procuring large diameter welded pipe based on price alone often surfaces hidden costs during installation: material arriving without proper EN 10217 or API 5L PSL2 certification fails third-party inspector sign-off, forcing either re-melting or costly grade substitution mid-project. [NEED_CITE: API 5L PSL2 additional testing requirements for pipeline service] Wall thickness below the specified minimum — whether from negative tolerance overuse or mill under-run — reduces pressure rating and may trigger design recalculation by the project engineer, delaying commissioning. Pipes with ovality beyond tolerance create fit-up problems at field weld stations, increasing welder time and consumable waste per joint.
Why Engineering Procurement Teams Source from Xin Jiyuan
Our JCOE production lines operate in-house with dedicated forming, welding, and expanding stations, eliminating the markup and lead-time uncertainty of broker-sourced pipe. Every heat undergoes chemical and mechanical testing in our own physical and chemical laboratory before release, and results are documented on mill test certificates traceable by heat number. The facility holds ISO 9001:2015, Lloyd’s CE certification covering EN 10210 and EN 10219, Singapore FPC, and accepts SGS or BV third-party inspection at buyer’s request. We maintain stock of common Q235B and Q355B sizes while producing non-standard wall thickness and length combinations to order, reducing the need to split purchases across multiple mills. Professional container loading with internal bracing prevents ovality damage during ocean transit — a lesson learned the hard way after an early 820 mm order arrived in Dubai with deformed pipe mouths.
Documentation & Compliance
- Mill test certificate documenting Q355B chemical composition and mechanical properties per GB/T 1591, linked to heat number
- CE certificate issued by Lloyd’s Register confirming compliance with EN 10217 for welded steel pipes intended for pressure and structural use
- ISO 9001:2015 quality management system certificate covering JCOE forming, welding, and final inspection processes
- SGS or BV third-party inspection report available upon request, covering dimensional checks, weld seam ultrasonic testing, and coating thickness verification
- Material traceability report linking each pipe to its heat number, plate batch, and production date for audit compliance
- Export documentation package including packing list, bill of lading, and certificate of origin for customs clearance at destination port
Packaging, Loading & Delivery
- Large diameter Q355B and Q235B pipes bundled with steel strip ties and edge protectors to prevent coating damage during crane handling and ocean transit
- Oiled or black-painted surfaces wrapped with waterproof cloth at pipe ends to block moisture ingress during container shipping
- 12 m standard lengths loaded with internal井字架 bracing in 40-foot open-top or flat-rack containers to prevent ovality deformation at pipe mouths
- Custom cut-to-length service available for project-specific requirements, with cut ends deburred and re-protected before dispatch
- Heat number and steel grade stenciled on each pipe end for on-site traceability and inspector verification
- FOB, CIF, and DDP shipping terms available with door-to-door logistics coordination for project sites in EU, Middle East, Southeast Asia, and Oceania
Submit Specifications for JCOE Pipe Quotation and Mill Test Review
Provide outer diameter, wall thickness, steel grade, quantity, and destination port to receive a detailed quotation with unit pricing, production lead time, and sample mill test certificate for your review. Non-standard sizes and custom length requirements are evaluated within 12 hours of inquiry submission.
Request Your Large Diameter LSAW JCOE Steel Pipe Quotation
Send your specification sheet to admin@sdxjypipe.com or contact us via WhatsApp at +86 188 5315 7756 to begin the inquiry process.
Frequently Asked Questions
Q: What is the difference between JCOE and SSAW large diameter pipes?
A: JCOE uses a plate forming process with four distinct stages (J-C-O-E) producing tighter dimensional tolerance and straighter weld seams for diameters up to 1626 mm, while SSAW uses coil spiral welding for larger diameters above 1626 mm where plate width becomes limiting. JCOE is preferred for pressure pipelines and structural applications requiring precise roundness; SSAW is more economical for water transmission and piling at very large diameters.
Q: Can you supply JCOE pipes with API 5L PSL2 and CE EN 10217 certification for EU markets?
A: Yes, our JCOE production line holds both API 5L PSL1/PSL2 certification and Lloyd’s CE marking for EN 10217 and EN 10219 standards. We provide full mill test certificates with chemical composition and mechanical properties documented per the applicable standard, and third-party inspection via SGS or BV is available before shipment.
Q: What steel grades are available for high-pressure oil and gas pipelines?
A: API 5L grades from L245/B through L555/X80 are available for pressurized hydrocarbon service, with PSL1 or PSL2 quality levels depending on project requirements. These grades cover sour service and low-temperature applications when specified with appropriate impact testing requirements.
Q: How do you ensure weld quality and dimensional tolerance for large diameter pipes?
A: Every JCOE pipe undergoes automatic ultrasonic testing of the longitudinal weld seam, followed by hydrostatic pressure testing at levels specified by the applicable standard. Dimensional checks cover outer diameter, wall thickness, ovality, and straightness, with results documented on the mill test certificate. Our in-house laboratory performs chemical analysis and mechanical testing including tensile, bend, and impact tests per heat number.
Q: What surface treatment options are available for offshore or corrosion-prone environments?
A: We offer black painting for indoor structural applications, oiling for temporary transit protection, hot-dip galvanizing for atmospheric corrosion resistance, and bare finish for projects where external coating will be applied post-installation. For offshore environments, galvanized or bare pipes with site-applied 3PE coating are common solutions.
