Description

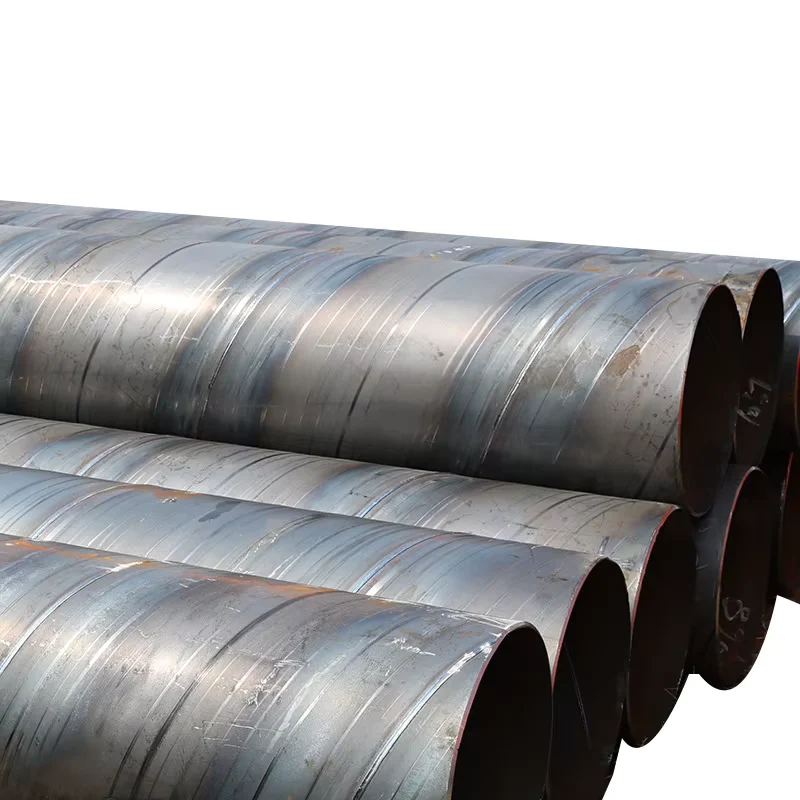

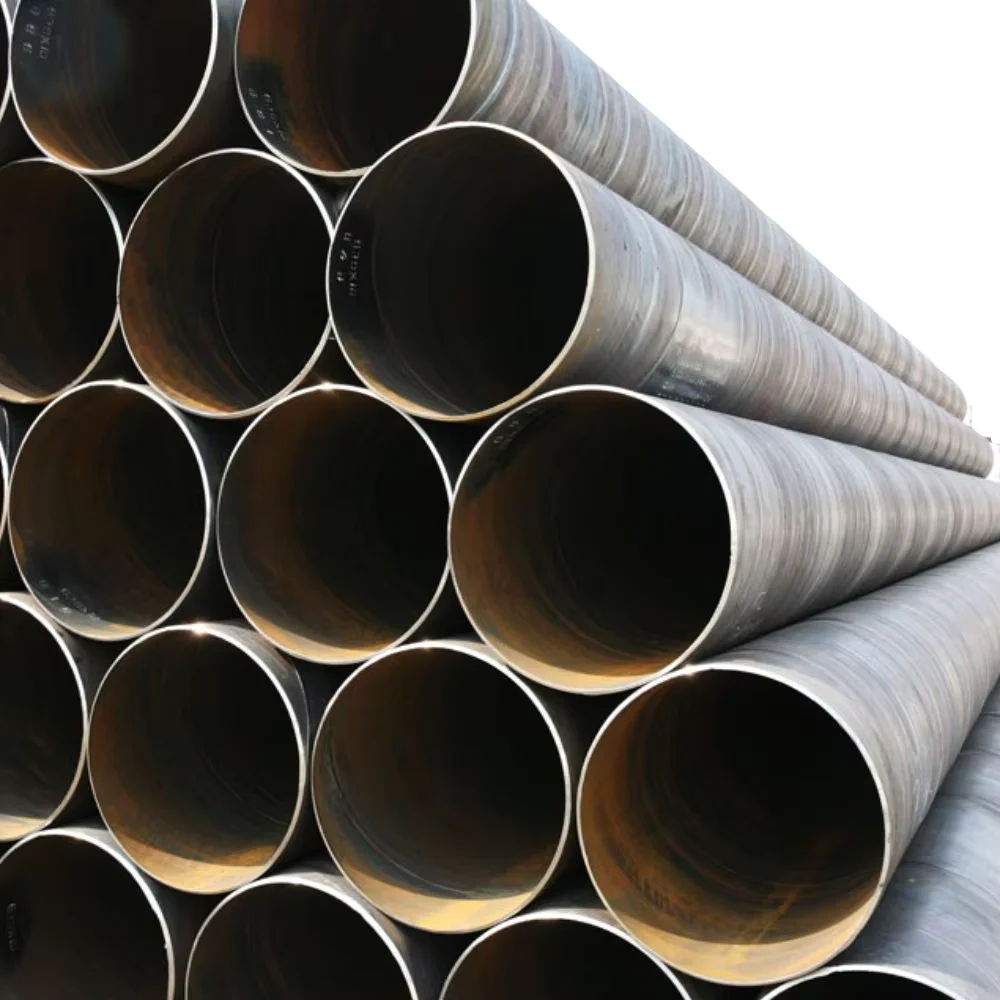

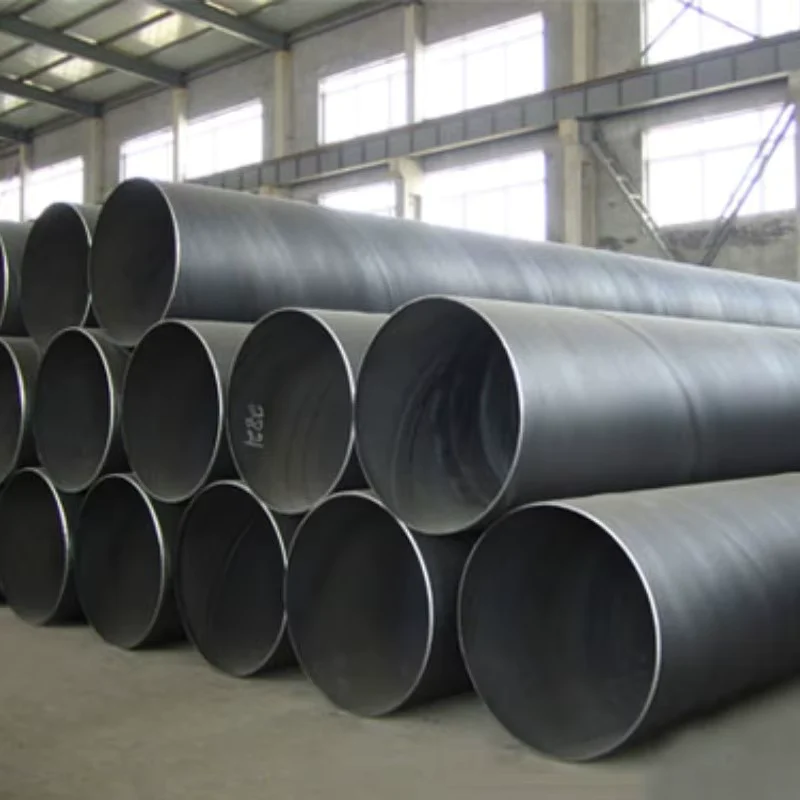

Direct Mill Supply for Large-Diameter Spiral Pipes — Every Q235B SSAW spiral welded steel pipe rolls through our in-house physical and chemical laboratory before shipment, eliminating middleman markups and certificate gaps.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B SSAW Spiral Welded Steel Pipe |
| Product Type | SSAW Welded Steel Pipe (Spiral Submerged Arc Welded Pipe) |
| Steel Grade | Q235, Q235B, Q345, S275, S275JR, A53, ST37 |
| Standard | GB |
| Section Shape | Round |
| Outer Diameter | 273–3000 mm |
| Wall Thickness | 6–20 mm |
| Length | 5.8–12 m (or as required) |
| Technique | SSAW (Spiral Submerged Arc Welded) |
| Surface Treatment | Painting / Oiled / Non-oiled / FBE / 2PE / 3PE / 3PP |
| Tolerance | ±1% |
| Ends | Plain end / Beveled end / Threaded and coupled / PVC covered and capped |
| Invoicing | By Actual Weight |
| Application | Piling project / Heat-supply project / Water & gas drainage / Oil & natural gas pipeline / Chemical industry / Electric power engineering circulating pipe |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Piling & Foundation | Bridge piling, offshore platform foundations, deep soil stabilization columns |
| Oil & Gas Transmission | Buried trunk pipelines, gas distribution networks, FBE/3PE coated transmission lines |
| Municipal Infrastructure | Heat-supply networks, urban water drainage, sewage outfall pipelines |
| Chemical & Power | Chemical plant circulating pipes, power station cooling water systems, industrial fluid conveyance |
Where Negative Tolerance Turns a Pipeline Order into a Dispute
Actual weight invoicing combined with ±1% tolerance means buyers must verify wall thickness before signing the mill test certificate.
When I handled a batch of SSAW pipes bound for a Jakarta piling site years ago, the third-party inspector flagged wall thickness deviation beyond acceptable negative tolerance. The client rejected the entire lot — theoretical weight looked fine on paper, but the scale told a different story. That incident reshaped how I approach every SSAW spiral welded steel pipe order: tolerance is not a footnote, it is the contract. Buyers sourcing large-diameter spiral pipes for piling, oil & gas, or heat-supply projects frequently encounter inconsistent wall measurements, missing coating documentation, and mill certificates that do not match the heat number on the pipe. [NEED_CITE: EN 10219 dimensional tolerance requirements for welded hollow sections]
Matching OD 273–3000mm Spiral Pipes to Heavy-Duty Engineering Demands
Large-diameter SSAW spiral welded steel pipe in Q235B and Q345 grades serves piling and pipeline applications where structural bearing capacity and corrosion resistance define service life. The spiral submerged arc welding process produces a continuous helical seam, distributing stress more evenly across the pipe body compared to longitudinal weld configurations. For buried oil and gas pipelines, external coating selection — FBE for single-layer adhesion, 3PE for mechanical protection in rocky soil — directly determines how long the pipe survives before first maintenance intervention. Our production lines cover the full OD 273–3000mm range with wall thickness from 6mm to 20mm, meaning project engineers can source both small-bore distribution pipes and large-diameter trunk lines from a single mill certificate batch.
Engineering Compliance and Certification Requirements Across Markets
Piling projects in Southeast Asia and Middle East infrastructure programs typically require compliance with GB standards for domestic supply chains, while European buyers demand EN 10219 or EN 10210 certification for structural hollow sections. The Q235B grade corresponds roughly to S235JR in the EN system and A53 Grade B under ASTM, but equivalence is not automatic — chemical composition limits and mechanical testing methods differ between standards. [NEED_CITE: steel grade equivalence mapping between GB, EN, and ASTM systems] Surface treatment specification matters equally: 3PE coating with epoxy primer meets the corrosion protection requirements for buried gas pipelines, while plain end pipes with site-applied wrapping suit temporary dewatering applications. End finish selection — beveled for field welding, threaded and coupled for mechanical joint systems, PVC capped for threaded protection during transit — must align with the installation method specified in the engineering drawing. Third-party inspection by SGS or BV before shipment provides the documentary evidence that customs authorities and project owners require for clearance and final acceptance.
Understanding Steel Grade Selection and SSAW Process Characteristics
The Q-series grades (Q235, Q235B, Q345) follow the Chinese GB standard system where the number indicates minimum yield strength in MPa. Q235B serves general structural and low-pressure fluid conveyance, while Q345 offers higher yield strength for load-bearing piling and heavier wall applications. The S-series (S275, S275JR) and ASTM A53 represent equivalent performance tiers in European and American specification systems respectively. SSAW technology excels in producing large-diameter pipes — the spiral forming process allows a single mill setup to produce multiple OD sizes within the 273–3000mm range by adjusting the forming angle, unlike LSAW which requires dedicated die sets for each diameter. This flexibility makes SSAW spiral welded steel pipe economically viable for projects requiring mixed-diameter schedules. Wall thickness tolerance of ±1% applies across the 6–20mm range, but buyers should note that negative tolerance accumulation over long pipe lengths affects total weight calculations — invoicing by actual weight rather than theoretical weight protects both parties from tolerance disputes. [NEED_CITE: SSAW versus LSAW manufacturing process comparison for large-diameter pipes]
Hidden Costs of Procuring Without Verified Mill Documentation
Pipes with wall thickness below specified tolerance fail ultrasonic testing at the construction site, triggering rejection and project delay. Missing or mismatched mill test certificates — where the heat number on the pipe does not correspond to the certificate — block customs clearance in regulated markets and void project insurance coverage. Coating thickness below specification accelerates corrosion in buried pipelines, leading to premature failure and expensive excavation repairs. Structural calculations based on assumed wall thickness become invalid when actual measurements deviate, creating liability exposure for engineers and contractors. [NEED_CITE: consequences of dimensional non-compliance in structural steel pipe procurement]
Why Project Procurement Teams Specify Our SSAW Production
Every Q235B SSAW spiral welded steel pipe leaving our facility passes through the in-house physical and chemical laboratory for dimensional verification, mechanical testing, and chemical composition analysis before the mill test certificate issues. We maintain ISO 9001:2015 certification and hold Lloyd’s CE marking for EN 10210/EN 10219 compliance, enabling direct shipment to European and regulated markets without third-party re-certification. The production facility covers the full OD 273–3000mm diameter range with wall thickness up to 20mm, allowing project engineers to consolidate multiple pipe schedules into a single purchase order rather than splitting across specialized mills. Third-party inspection by SGS or BV arranges on request, with full photographic documentation provided before container sealing. Professional loading procedures prevent surface damage to coated pipes during ocean transit, and complete export documentation — including packing list, bill of lading, and certificate of origin — supports smooth customs clearance at destination ports.
Documentation & Compliance
- Mill test certificate documenting Q235B chemical composition (carbon, manganese, silicon, sulfur, phosphorus limits) and mechanical properties per GB standard
- CE certificate covering EN 10210/EN 10219 for structural hollow sections destined for European Union markets
- ISO 9001:2015 quality management system certificate covering the full SSAW production process from coil input to finished pipe
- SGS or BV third-party inspection report verifying wall thickness, coating adhesion, and hydrostatic test results before shipment
- Material traceability documentation linking each pipe to its heat number for full chemical and mechanical test traceability
- Customs clearance documents including commercial invoice, packing list, bill of lading, and certificate of origin
Packaging, Loading & Delivery
- Q235B SSAW pipes bundled with steel strip ties and edge protectors to prevent coating damage during ocean freight
- FBE and 3PE coated pipes wrapped with protective film to preserve surface integrity during transit and storage
- Large-diameter pipes (OD above 1000mm) loaded individually with wooden cradle supports to prevent ovalization
- Pipe ends capped with PVC or steel protectors to prevent thread damage and moisture ingress during shipment
- Heat number and steel grade marked on each pipe with stenciled identification for site traceability
- FOB, CIF, and DDP shipping terms available with professional container loading optimization for mixed-diameter orders
Submitting Your Inquiry for Accurate Quotation
Project procurement teams should specify outer diameter, wall thickness, steel grade, surface treatment requirement, total quantity, and destination port to receive a detailed quotation including unit price, production lead time, and shipping terms. We respond within 12 hours with pricing based on actual weight, along with available mill test certificate samples and coating specification sheets. For non-standard dimensions or custom length requirements outside the 5.8–12m range, our technical team provides feasibility assessment and production scheduling within 24 hours.
Request Your SSAW Spiral Pipe Quotation with Full Mill Documentation
Submit your project specifications — OD, wall thickness, steel grade, coating type, and quantity — to receive pricing and mill test certificate samples within 12 hours.
Contact: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Tel: +86 531 8573 6315
Mobile/WhatsApp/WeChat: +86 188 5315 7756
Email: admin@sdxjypipe.com
Website: www.sdxjypipe.com
Frequently Asked Questions
Q: What is the difference between SSAW, LSAW, and ERW for large-diameter pipe projects?
A: SSAW (Spiral Submerged Arc Welded) pipe uses continuous spiral forming and welding, making it suitable for large diameters from 273mm to 3000mm with flexible production setup. LSAW (Longitudinal Submerged Arc Welded) uses straight seam welding and typically covers diameters from 400mm to 1500mm with higher precision for critical applications. ERW (Electric Resistance Welded) suits smaller diameters below 600mm with faster production speeds. For piling and large-diameter pipeline projects, SSAW offers the best balance of diameter range and cost efficiency.
Q: How does Q235B compare to S275JR and A53 in terms of grade equivalence?
A: Q235B (GB standard) provides similar yield strength to S275JR (EN standard) and A53 Grade B (ASTM standard), all serving general structural and low-pressure fluid applications. However, chemical composition limits and testing methods differ between standards. For projects requiring specific standard compliance, we provide mill test certificates showing test results against the specified standard, and third-party inspection verifies conformance before shipment.
Q: Which coating type should I specify for buried oil and gas pipelines?
A: FBE (Fusion Bonded Epoxy) provides excellent adhesion and corrosion resistance for moderate soil conditions. 2PE (two-layer polyethylene) adds mechanical protection over the epoxy layer. 3PE (three-layer polyethylene) combines epoxy primer, adhesive copolymer, and polyethylene outer layer for maximum protection in aggressive soil environments or rocky backfill conditions. 3PP (polypropylene) suits high-temperature service conditions. The selection depends on soil corrosivity, installation conditions, and design service life.
Q: How do you handle wall thickness tolerance and weight invoicing for SSAW pipes?
A: Our SSAW spiral welded steel pipe maintains ±1% wall thickness tolerance across the 6–20mm range. Invoicing is based on actual weight measured at the mill, not theoretical weight calculated from nominal dimensions. This approach prevents disputes caused by negative tolerance accumulation. Each pipe receives ultrasonic thickness testing, and results appear on the mill test certificate with heat number traceability.
Q: What end finish options are available and how do I specify them?
A: Plain end suits field welding applications where beveling occurs on-site. Beveled end (typically 30–35 degrees with root face) prepares the pipe for immediate butt welding. Threaded and coupled ends enable mechanical joint assembly without field welding. PVC covered and capped ends protect threaded connections during transit and storage. Specify the end finish in your inquiry along with diameter and wall thickness for accurate quotation.
