Description
Factory-Direct Supply with Mill Certificates — Every Q235B SS400 Cold Rolled Galvanized Steel Plate ships with in-house lab test reports and optional SGS/BV third-party inspection before container sealing.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B / SS400 Cold Rolled Galvanized Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | Q235B, SS400, A36 |
| Standard | GB, ASTM, DIN |
| Section Shape | Flat Plate |
| Size Range | 1.4mm × 1250mm × 2500mm, 1.45mm × 1250mm × 2500mm |
| Thickness | 1.4mm, 1.45mm |
| Width | 1250mm |
| Length | 2500mm |
| Technique | Cold Rolled |
| Surface Treatment | Galvanized |
| Tolerance | ±1% |
| Planeness | Flat |
| Processing Service | Bending, Cutting, Decoiling, Punching, Welding |
| Material Science | Carbon Steel |
| Application | Building Construction, Shipbuilding, Boiler, Container, Pipe Manufacturing |
| MOQ | 1 Ton |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Building Construction | Roof cladding panels, facade support brackets, interior partition framing |
| Shipbuilding | Corrosion-resistant inner lining plates, deck hatch covers, cabin wall panels |
| Container Manufacturing | Side wall sheets, roof panels, floor cross-member covers |
| Pipe Manufacturing | Raw material for spirally welded and longitudinally welded tube production |
| Boiler & Pressure Vessel | Outer casing sheets, insulation support wraps |
Dimensional Tolerance on Thin-Gauge Plates Determines Fabrication Fit-Up
A ±1% tolerance on a 1.4mm plate means ±0.014mm — tight enough to matter in automated punch lines and robotic welding cells.
When fabrication shops receive thin-gauge Cold Rolled Galvanized Steel Plate Q235B SS400 Supplier stock with thickness deviation beyond ±1%, punch dies misalign, bending radii shift, and weld gap consistency breaks down. On a container production line running 2500mm sheets through high-speed press brakes, even 0.02mm of extra variance per sheet compounds into rejected assemblies by the end of a shift. We have seen buyers receive plates labeled 1.4mm that measured 1.32mm at the edges — technically within some mills’ commercial tolerance, but unusable for precision container panel stamping. [NEED_CITE: cold rolled sheet thickness tolerance standards for precision fabrication]
Matching Thin-Gauge Galvanized Plates to Corrosive and Structural Environments
Cold rolled galvanized plates in Q235B and SS400 grades serve applications where formability and atmospheric corrosion resistance must coexist. The cold rolling process produces a smooth, uniform surface that accepts galvanizing evenly — critical when plates will be exposed in shipbuilding cabins or container side walls where salt spray accelerates localized corrosion. The 1.4–1.45mm thickness range targets non-load-bearing cladding and lining roles where weight savings matter but structural rigidity comes from the assembled frame rather than the plate itself. As a Cold Rolled Galvanized Steel Plate Q235B SS400 Supplier, we supply these plates with full processing services — cutting to 2500mm lengths, bending to project-specific radii, and punching hole patterns — so fabrication shops receive ready-to-assemble components rather than raw coils.
Engineering Compliance and Grade Equivalence Across Procurement Markets
Projects specifying GB Q235B often need to demonstrate equivalence to ASTM A36 or JIS SS400 for international inspection bodies. The chemical composition and mechanical behavior of these three grades overlap significantly in the carbon structural category, but documentation must explicitly state the equivalence mapping — customs authorities in the EU and Middle East routinely hold shipments lacking clear grade cross-reference tables. [NEED_CITE: steel grade equivalence between GB Q235B ASTM A36 and JIS SS400] For shipbuilding applications, classification society rules may require additional impact testing at sub-zero temperatures, which our in-house physical laboratory can perform and certify. The cold rolled technique ensures consistent planeness across the 1250mm width, meeting flatness requirements for container panel assembly where warpage beyond 3mm per meter causes visible surface defects after painting.
Understanding Cold Rolled Galvanized Plate Metallurgy and Surface Behavior
Cold rolling reduces the steel slab to final thickness at room temperature, increasing yield strength through strain hardening while producing a smooth surface finish ideal for galvanizing adhesion. The subsequent hot-dip galvanizing process bonds a zinc layer to both faces, providing sacrificial corrosion protection that outperforms paint-only systems in marine and industrial atmospheres. Q235B and SS400 both sit in the mild carbon steel category — weldable without preheat, formable at standard press brake radii, and compatible with common shop primers. The A36 grade, common in North American procurement, shares overlapping chemistry with Q235B, making the Cold Rolled Galvanized Steel Plate Q235B SS400 Supplier offering suitable for projects spanning multiple standard systems. Thickness tolerance of ±1% on 1.4mm material reflects the precision achievable in modern cold rolling mills — a specification that matters when downstream processes include automated decoiling and flying cut-off systems that cannot accommodate gauge variation.
Hidden Costs of Sourcing Thin-Gauge Plates Without Verified Coating and Tolerance
Procuring galvanized plates without third-party coating verification risks receiving material with zinc layers below specification — leading to premature corrosion failure in container or shipbuilding applications where salt exposure is constant. Thickness deviation beyond ±1% forces fabrication shops to adjust punch clearances and bending parameters per sheet, adding labor hours and increasing scrap rates. Missing or incomplete mill test certificates trigger customs holds in regulated markets, delaying project timelines and incurring demurrage charges. [NEED_CITE: galvanized coating weight testing methods and acceptance criteria] When grade documentation fails to demonstrate equivalence across GB, ASTM, and JIS systems, engineering consultants may reject material outright regardless of actual chemical compliance — a paperwork failure that costs more than the steel itself.
Procurement Confidence Through In-House Testing and Full Documentation
Every Cold Rolled Galvanized Steel Plate Q235B SS400 Supplier order from our Jinan facility passes through an in-house physical and chemical laboratory before shipment. We test coating adhesion, zinc layer uniformity, and dimensional accuracy against the ±1% tolerance requirement — results documented in mill test certificates provided with each consignment. Our facility holds ISO 9001:2015 certification and welcomes SGS or BV third-party inspection at any production stage. We process plates to custom lengths, bend to specified radii, and punch hole patterns per drawing — reducing secondary handling at buyer sites. Professional container loading with edge protectors preserves the galvanized surface during ocean transit, and complete export documentation ensures smooth customs clearance in destination countries across 50+ markets.
Documentation & Compliance
- Mill test certificate documenting Q235B and SS400 chemical composition including carbon, manganese, sulfur, and phosphorus content per GB/T 700 and JIS G 3101
- Galvanized coating weight test report confirming zinc layer adhesion and uniformity across 1250mm width
- ISO 9001:2015 quality management certificate covering cold rolling and galvanizing production lines
- SGS or BV third-party inspection report available upon request, covering dimensional tolerance, surface quality, and coating thickness
- Material traceability by heat number linking each plate to its original slab and rolling batch
- Export customs documents including packing list, bill of lading, and certificate of origin formatted for destination country requirements
Packaging, Loading & Delivery

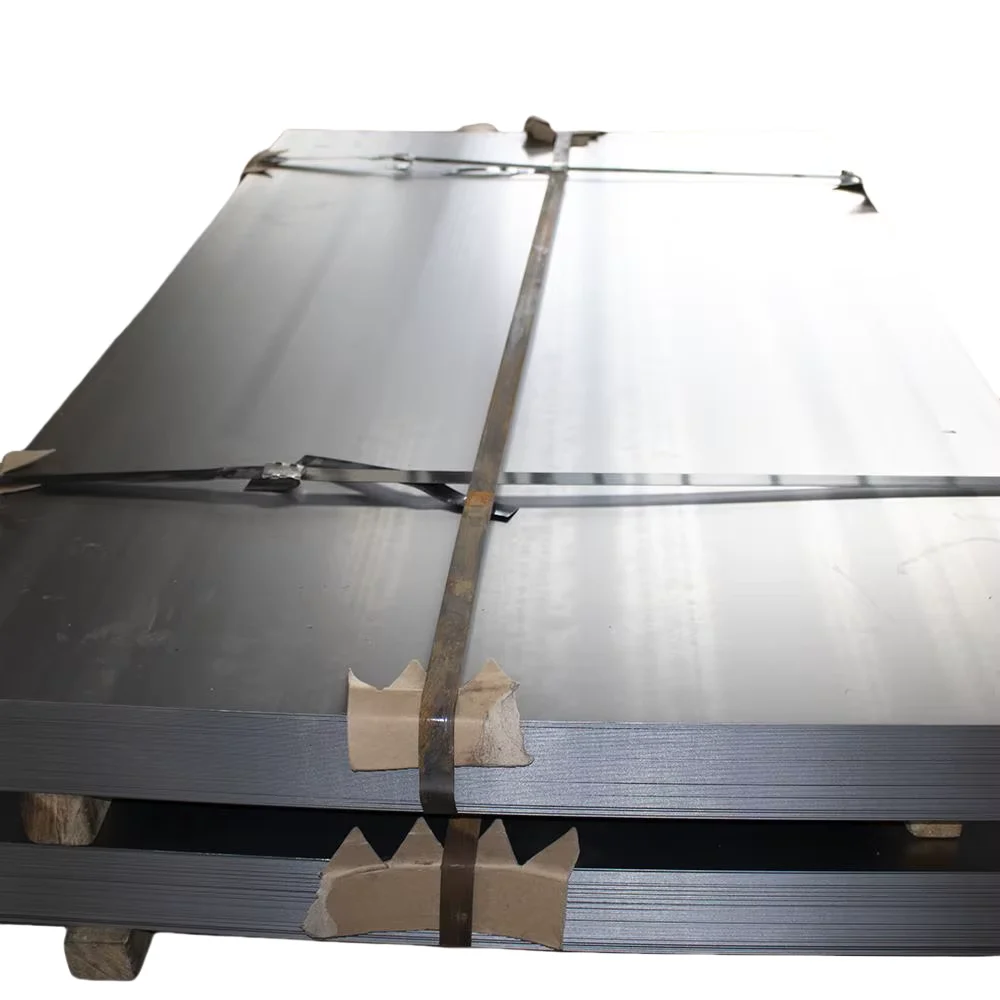

- Cold rolled galvanized plates bundled with steel strips and wrapped in waterproof kraft paper to protect the zinc coating from moisture during ocean transit

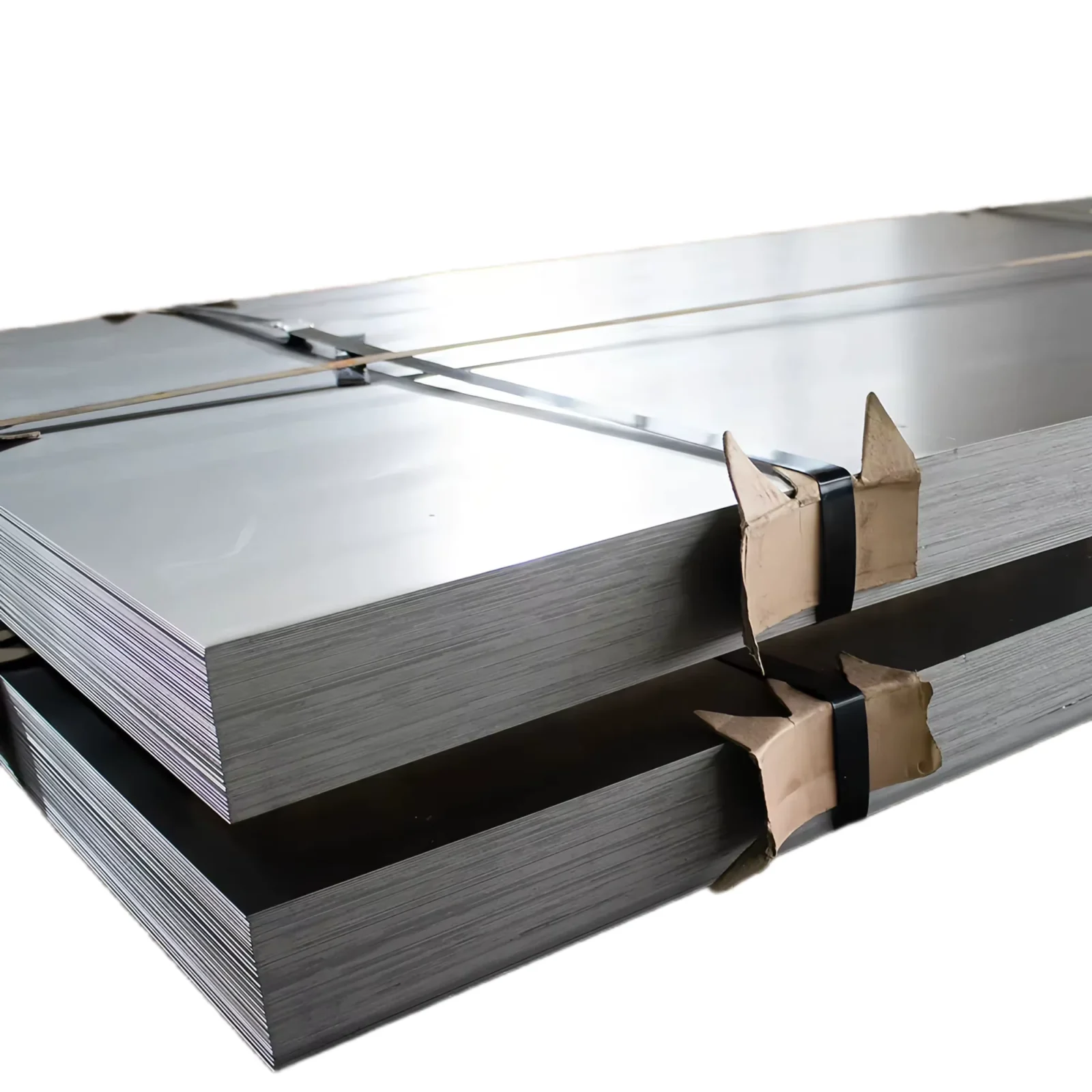

- Edge protectors installed on all four corners of each bundle to prevent coating damage from strap pressure and handling equipment

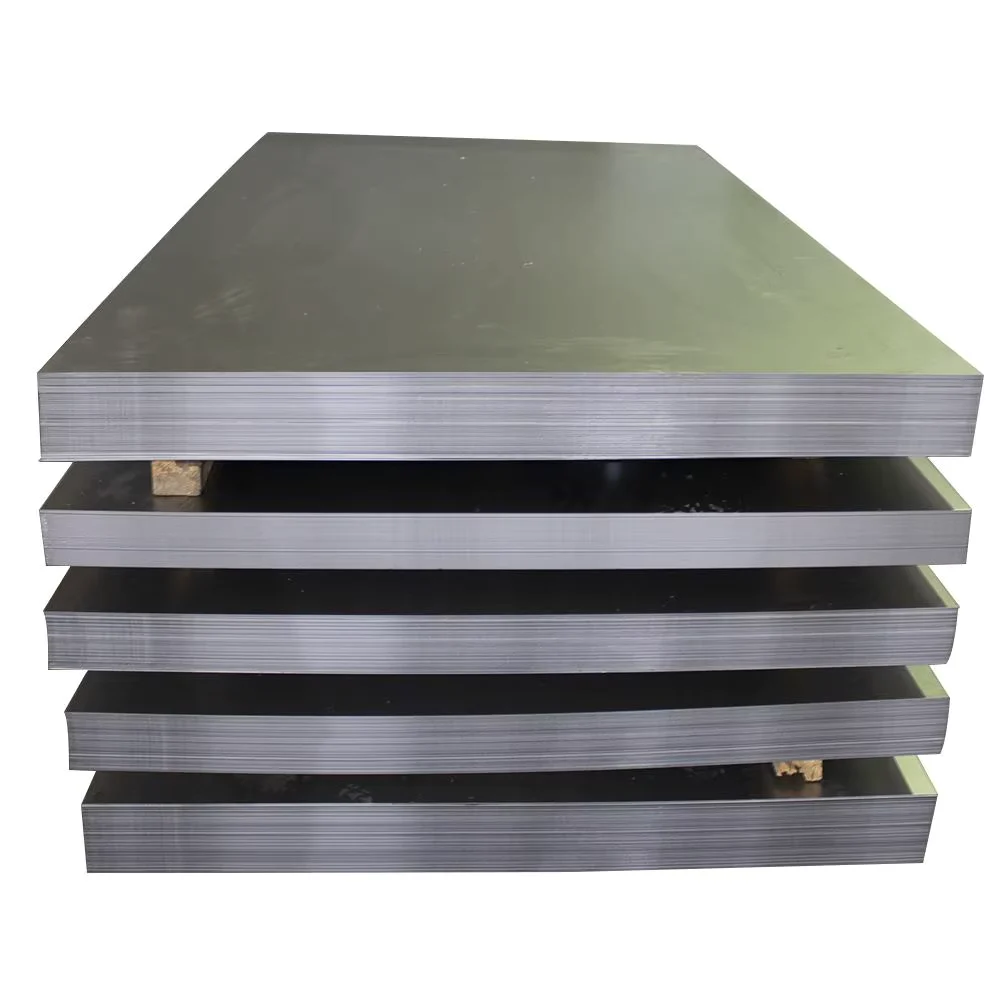

- Plates loaded in 20ft and 40ft containers with wooden spacers between layers to maintain separation and allow ventilation in humid climates
- Custom cutting to 2500mm length or project-specific dimensions available, with cut edges deburred and coated with cold galvanizing spray to maintain corrosion protection
- Heat number and steel grade stenciled on each plate surface for on-site traceability during fabrication and inspection
- FOB, CIF, and DDP shipping terms available with professional container loading plans optimized for 1250mm × 2500mm plate dimensions
Initiating Your Procurement with Verified Specifications
Submit your required thickness (1.4mm or 1.45mm), width, length, steel grade preference (Q235B, SS400, or A36), and destination port to receive a detailed quotation including unit price, production lead time, and available mill test certificates. For projects requiring custom cutting, bending, or punching, share fabrication drawings and we will confirm processing feasibility and tolerance capabilities. Third-party inspection arrangements through SGS or BV can be confirmed at the inquiry stage to align with your project quality plan.
Frequently Asked Questions
Q: What is the thickness tolerance for 1.4mm cold rolled galvanized plates?
A: Our cold rolled galvanized plates maintain a ±1% thickness tolerance, meaning 1.4mm plates measure between 1.386mm and 1.414mm across the full 1250mm width and 2500mm length.
Q: Can Q235B plates be used as equivalent to ASTM A36 or JIS SS400?
A: Q235B, A36, and SS400 share overlapping chemical composition ranges in the carbon structural steel category. We provide grade equivalence documentation with mill test certificates to support customs clearance and engineering approval in international markets.
Q: What processing services are available for these galvanized plates?
A: We offer cutting to custom lengths, bending to specified radii, decoiling, punching hole patterns per drawing, and welding services. All processing maintains the galvanized coating integrity, with cut edges treated using cold galvanizing spray.
Q: How do you verify the galvanized coating quality before shipment?
A: Our in-house laboratory performs coating adhesion tests, zinc layer thickness measurement, and uniformity checks across the plate surface. Mill test certificates document these results, and third-party inspection through SGS or BV is available upon request.
Q: What is the minimum order quantity for custom-cut galvanized plates?
A: The minimum order quantity is 1 Ton. Custom cutting, bending, and punching services are available for orders meeting this threshold, with processing details confirmed during the quotation stage.
