Description

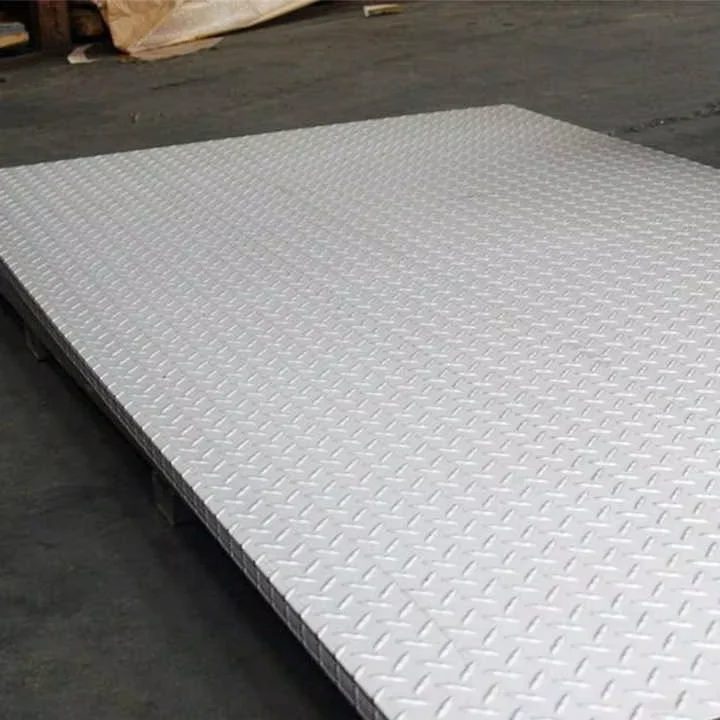

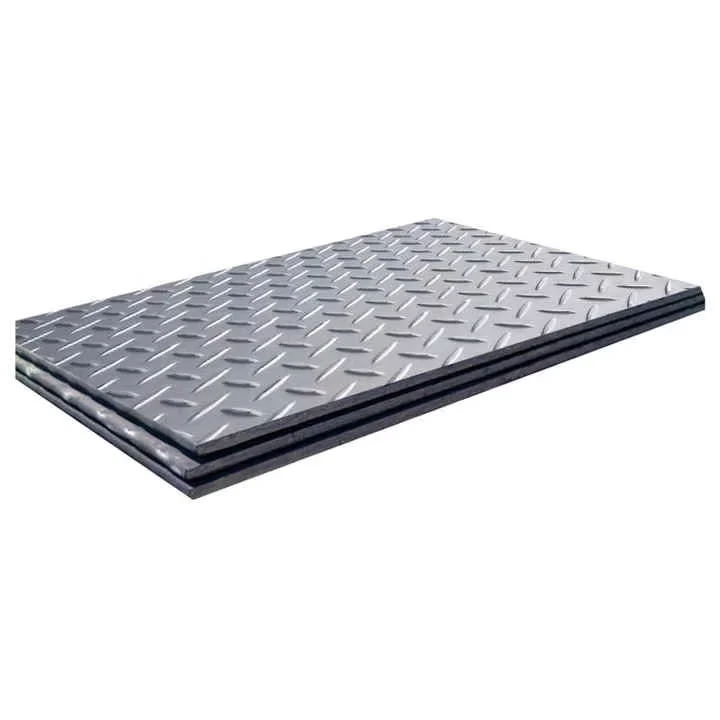

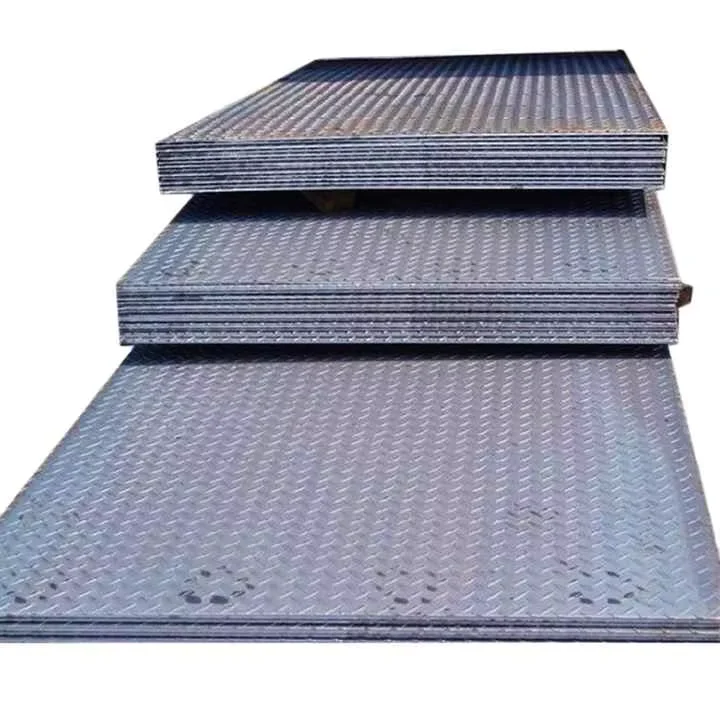

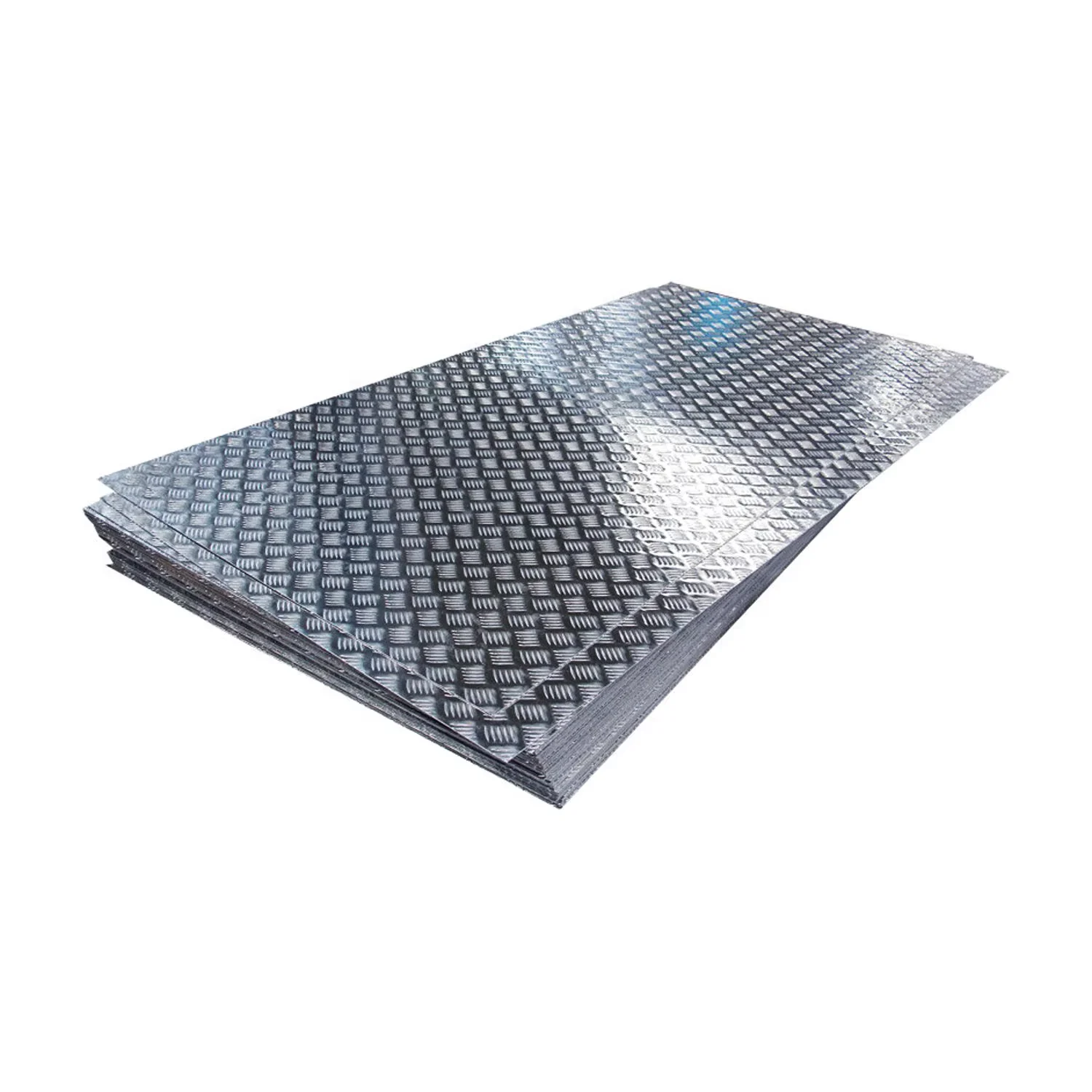

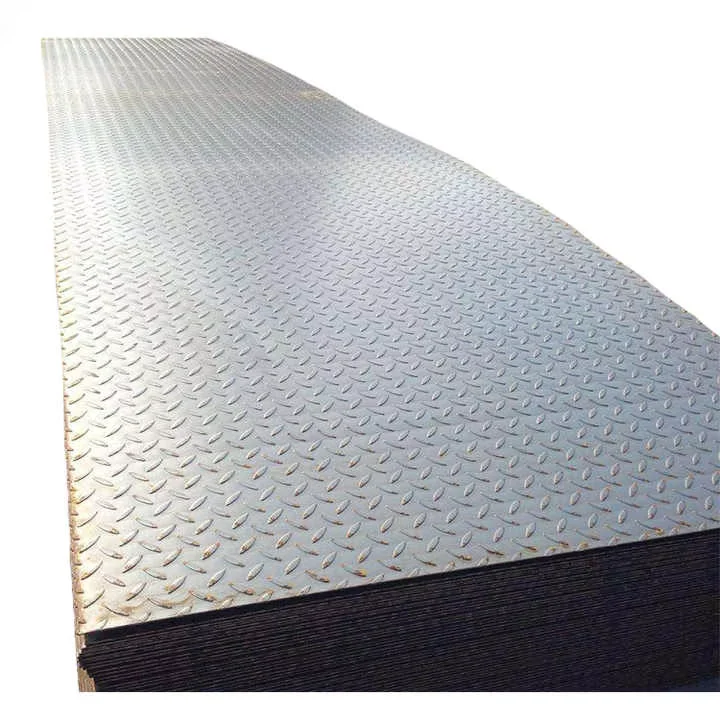

Direct Mill Supply for Checkered Plate — Hot rolled Q235B checkered plate produced and shipped from our Jinan facility with in-house laboratory testing and full export documentation.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Q235B Hot Rolled Carbon Steel Checkered Plate |
| Product Type | Steel Plate (Checkered / Tear Drop Pattern Plate) |
| Steel Grade | Q195, Q235, Q235B, A36, SS400, S235 |
| Standard | JIS G3101 (SS400), GB/T 700 (Q235), ASTM A36 (A36), EN 10025 (S235) |
| Section Shape | Flat Plate with Raised Diamond / Lentil / Round Bean Pattern |
| Width | 1000mm – 3000mm |
| Thickness | 1.0mm – 100mm |
| Length | 2000mm – 6000mm (customizable) |
| Technique | Hot Rolled |
| Surface Treatment | Oiled / Black / Custom Required |
| Embossed Design | Diamond, Round Bean, Flat Mixed Shape, Lentil Shape |
| Application | Commercial buildings / Industrial flooring / Stair treads / Truck bed liners / Workshop platforms / Anti-slip walkways / Machinery base plates |
| MOQ | 5 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Construction & Infrastructure | Stair treads, anti-slip walkways, industrial flooring in commercial buildings and factories |
| Transportation & Logistics | Truck bed liners, trailer flooring, loading ramp platforms |
| Machinery & Equipment | Machine base plates, work platforms, safety grating replacements |
Why Pattern Depth Variance Reaches Your Site as a Rejection Notice
Inconsistent embossing height across a batch means uneven load distribution and failed anti-slip compliance during inspection.
Project engineers specifying Q235B hot rolled carbon steel checkered plate for flooring applications have encountered plates where the diamond pattern barely rises above the base metal — acceptable for light foot traffic, but a liability under forklift loads or wet conditions. The root cause sits in the rolling mill: worn rolls or improper temperature control during the hot-rolling pass produce shallow patterns that look correct from a distance but fail under scrutiny. [NEED_CITE: hot rolled checkered plate pattern depth tolerance standards] Buyers sourcing from trading companies rather than direct mills rarely catch this until third-party inspection at destination, by which point return freight costs exceed the material value.
Matching Embossed Pattern Selection to Load and Environment Requirements
The choice between diamond, lentil, and round bean patterns is not aesthetic — it directly affects how weight transfers through the plate and how surface liquids drain under operational conditions. Diamond pattern Q235B hot rolled carbon steel checkered plate provides directional grip suitable for inclined walkways and stair treads where foot traffic moves in a consistent direction. Lentil and round bean patterns distribute point loads more evenly across the plate surface, making them preferable for machinery base plates and workshop platforms where equipment vibration and static loads dominate. Our hot-rolling process maintains consistent pattern depth across the full 1.0mm to 100mm thickness range, verified through dimensional checks in our in-house laboratory before any plate leaves the production line.
Structural Compliance and Certification Requirements for Checkered Plate Procurement
Checkered plate used in structural flooring and load-bearing platforms must meet dimensional tolerance requirements defined by the relevant national or international standard — GB/T 700 for Q235B, JIS G3101 for SS400, ASTM A36 for North American projects, and EN 10025 for European destinations. [NEED_CITE: EN 10025 structural steel plate dimensional tolerances] Thickness tolerance directly affects theoretical weight calculation and load-bearing capacity; plates rolled to negative tolerance beyond acceptable limits will fail structural verification even if the steel grade chemistry is correct. Surface treatment selection — oiled black for indoor use, custom coating for corrosion-prone environments — must align with the project specification to avoid premature degradation. For EU-bound shipments, CE marking and EN standard references on the mill test certificate determine whether customs clearance proceeds or stalls.
Steel Grade Equivalence and Hot-Rolling Process Fundamentals
Q235B, SS400, A36, and S235 represent the same structural steel category across different standard systems — Chinese GB, Japanese JIS, American ASTM, and European EN respectively. [NEED_CITE: steel grade equivalence between GB Q235B and international standards] Selecting the correct designation for your project’s governing standard prevents material rejection at inspection. Hot-rolling at controlled temperatures above the recrystallization point produces the raised patterns through precision roll passes, ensuring the embossed design integrates with the base metal rather than sitting as a surface addition. Width options from 1000mm to 3000mm and lengths up to 6000mm cover standard container loading configurations while minimizing on-site cutting waste. The oiled black surface treatment applied after rolling provides temporary corrosion protection during transit and storage before final surface preparation at the fabrication shop.
Hidden Costs When Pattern Depth and Material Certification Fall Short
Plates with insufficient pattern height pass visual inspection at the mill but fail anti-slip testing at destination, triggering rejection claims that the buyer absorbs. [NEED_CITE: checkered plate anti-slip performance testing requirements] Material certificates that list the correct steel grade but omit heat number traceability create documentation gaps that delay customs clearance in regulated markets. Thickness deviation beyond standard tolerance means the actual weight received differs from the ordered weight — a discrepancy that surfaces during project cost reconciliation and often leads to disputes over short shipment claims. These failures trace back to sourcing from intermediaries who lack direct access to mill test records and cannot verify pattern quality before shipment.
Direct Mill Capability That Eliminates Procurement Risk
We produce Q235B hot rolled carbon steel checkered plate on our own rolling lines in Jinan, meaning every plate’s chemistry, mechanical properties, and pattern dimensions are tested in our physical and chemical laboratory before release. Our in-house lab issues mill test certificates with heat number traceability, eliminating the documentation gaps that trading companies cannot resolve. The full thickness range from 1.0mm to 100mm and width up to 3000mm are produced from stock or to order, covering light-duty walkway requirements and heavy industrial platform specifications from a single source. Custom cut-to-length service reduces on-site fabrication waste, and our export packaging team understands how to protect embossed patterns during container loading to prevent surface damage in transit. International certifications including ISO 9001:2015, Lloyd’s CE, and Singapore FPC support clearance requirements across 50+ export markets.
Documentation & Compliance
- Mill test certificate documenting Q235B chemical composition and mechanical properties per GB/T 700, with heat number traceability for each plate
- CE certificate confirming compliance with EN 10025 for European market entry, referencing the correct steel grade designation
- ISO 9001:2015 quality management certificate covering the full production and testing process for hot rolled checkered plate
- SGS or BV third-party inspection report available upon request, verifying pattern depth, dimensional tolerance, and surface quality before shipment
- Material traceability by heat number linking each plate to its production batch, chemistry analysis, and mechanical test results
- Complete customs documentation including packing list, bill of lading, and certificate of origin formatted for destination port requirements
Packaging, Loading & Delivery
- Hot rolled Q235B checkered plate bundled with steel strips and edge protectors to preserve embossed pattern integrity during ocean transit
- Oiled black surface treatment applied before packaging to prevent rust formation during storage and shipping in humid environments
- Container loading optimized for plate dimensions up to 3000mm width and 6000mm length, maximizing payload while preventing pattern-to-pattern contact damage
- Cut-to-length service available for the full 2000mm to 6000mm range, reducing on-site cutting requirements and material waste at the project location
- Heat number and steel grade clearly marked on each plate and corresponding bundle tag for traceability verification at destination
- FOB, CIF, and DDP shipping terms supported with professional export documentation and tracking through to final delivery
Submit Specifications to Receive Mill Test Certificates and Pricing
Provide your required steel grade, pattern type, thickness, width, length, and quantity to receive a detailed quotation with mill test certificate samples and production lead time. Our engineering team reviews specifications for standard compliance and suggests alternatives if your project allows equivalent grades or pattern options. Confirm certification requirements and destination port to ensure documentation supports smooth customs clearance.
Request Your Q235B Checkered Plate Quote with Full Documentation
Submit your specifications and destination details to receive pricing, mill test certificate samples, and confirmed production timelines. Contact our export team at +86 188 5315 7756 (WhatsApp/WeChat) or admin@sdxjypipe.com.
Frequently Asked Questions
Q: What is the difference between diamond, lentil, and round bean patterns for checkered plate?
A: Diamond pattern provides directional grip ideal for stair treads and inclined walkways. Lentil and round bean patterns distribute point loads more evenly, making them suitable for machinery base plates and workshop platforms where equipment vibration and static loads are the primary concern.
Q: Can you produce Q235B checkered plate in non-standard thickness or width?
A: Yes, we produce hot rolled checkered plate in thickness from 1.0mm to 100mm and width up to 3000mm. Custom non-standard dimensions are available with low minimum order quantities, and our in-house laboratory verifies dimensional compliance before shipment.
Q: What surface treatment options are available for outdoor applications?
A: Standard delivery is oiled black surface treatment providing temporary corrosion protection during transit. For outdoor or corrosion-prone environments, custom coating options are available based on your project requirements and environmental conditions.
Q: How do you ensure pattern depth consistency across the full plate surface?
A: Our hot-rolling process uses precision rolls with controlled temperature management to maintain consistent pattern depth across the entire plate width and length. Every production batch undergoes dimensional verification in our in-house laboratory before release.
Q: What documentation do you provide for EU market customs clearance?
A: We provide mill test certificates with heat number traceability, CE certification confirming EN 10025 compliance, and complete export documentation including packing list, bill of lading, and certificate of origin. Third-party inspection reports from SGS or BV are available upon request.
