Description

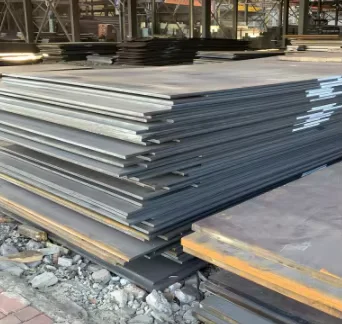

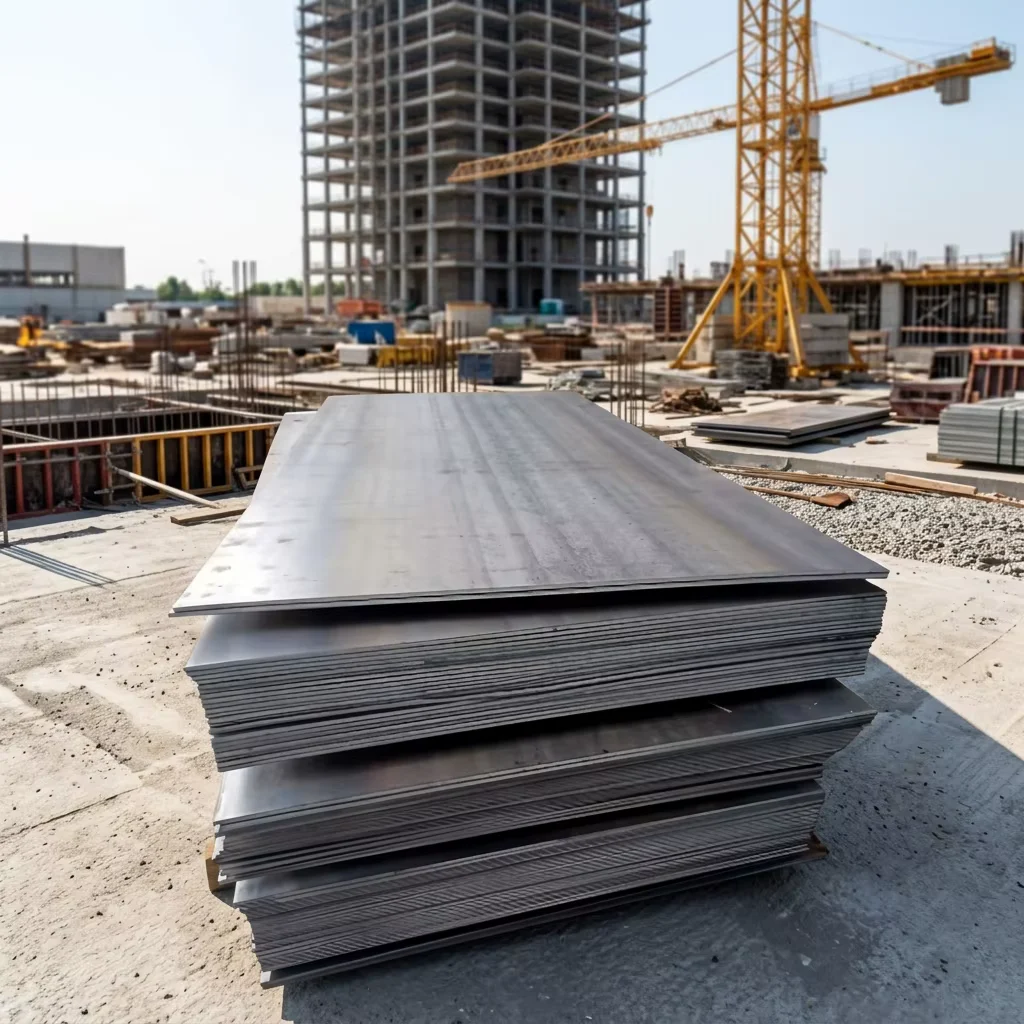

Direct Mill Supply — NM400 and NM500 wear resistant steel plates shipped with verified hardness reports and full mill test certificates for every heat.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | NM400/NM500 Wear Resistant Steel Plate |
| Product Type | Steel Plate |
| Steel Grade | NM400, NM500 |
| Standard | JIS, ASTM, DIN |
| Thickness | 12mm |
| Technique | Hot Rolled |
| Surface Treatment | Coated |
| Service | Cutting Service Available |
| Application | Boiler manufacturing, Industrial equipment, Wear-resistant applications, Machinery fabrication |
| Origin | China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Mining & Quarrying | Excavator bucket liners, crusher jaw plates, conveyor skirt boards |
| Cement & Aggregate | Mill liners, chute liners, fan impellers |
| Steel & Metallurgy | Ladle liners, transfer car decks, hopper walls |
| Power Generation | Coal pulverizer components, ash handling system parts |
| Heavy Machinery | Bulldozer blades, grader moldboards, loader bucket edges |
What Hardness Verification Costs When Plates Fail at Destination
A mill test certificate alone does not guarantee delivered hardness.
I have watched containers of NM400 plates arrive at a Southeast Asian port only to fail SGS recheck at 320 HBW instead of the specified 400 HBW. The root cause was stock mislabeled as NM360 with doctored certificates. The client’s excavator bucket liners cracked within weeks of service, and the entire shipment was rejected. Hardness on paper means nothing if the heat treatment log does not match the physical material. When sourcing an NM400 NM500 wear resistant steel plate supplier, the question is not whether they can show you a certificate — it is whether they cross-check hardness reports against actual treatment records before loading. [NEED_CITE: wear resistant steel plate hardness testing standards and verification procedures]
Matching NM400 and NM500 Grades to Abrasion Environments
NM400 delivers sufficient surface hardness for moderate abrasion in conveyor systems and hopper linings where impact loading remains low. NM500 steps into heavy-duty territory — crusher jaws, mill liners, and mining truck bed plates where material loss rates directly determine maintenance intervals. The hot rolled technique ensures uniform grain structure through the 12mm thickness, while the coated surface adds a baseline corrosion barrier for outdoor stockpiles or humid mill environments. Our cutting service holds dimensional tolerance tight enough that fabricators can weld plates directly into assembly without secondary machining. When you need an NM400 NM500 wear resistant steel plate supplier who understands which grade fits which wear mechanism, the conversation starts with your actual service conditions, not just the datasheet.
Engineering Compliance and Certification Requirements
Wear resistant plates used in pressure-containing boiler components must meet the material traceability and chemical composition requirements defined in applicable ASTM or JIS specifications. For export to European markets, DIN-standard compliance and proper mill test documentation become customs clearance prerequisites rather than optional paperwork. The coated surface treatment must be specified clearly in purchase orders — different coating systems serve different corrosion environments, and ambiguity here leads to either overpayment or premature field failure. Third-party inspection through SGS or BV provides independent verification of both hardness and coating thickness before container sealing. [NEED_CITE: international standards for wear resistant steel plate export certification]
Understanding Hot Rolled Wear Plate Metallurgy
The NM designation follows the Chinese GB standard system where the number indicates nominal Brinell hardness. NM400 targets approximately 400 HBW surface hardness through controlled quenching and tempering after hot rolling. NM500 pushes this higher for extreme abrasion resistance, trading some toughness for extended service life in high-wear zones. Hot rolling produces a plate with consistent mechanical properties through the cross-section, unlike cold-processed alternatives that may show surface-to-core hardness gradients. The coated surface on these plates typically involves a shop primer or temporary rust-preventive layer applied after pickling — this is not a long-term corrosion protection system but preserves plate condition during storage and ocean transit. Wall thickness tolerance on 12mm hot rolled plate follows standard mill allowances, and buyers should confirm whether quoted weights are based on actual or theoretical mass.
Hidden Costs of Unverified Wear Plate Procurement
Ordering NM400 NM500 wear resistant steel plate from an unverified source introduces three categories of downstream cost. First, hardness below specification means accelerated wear and unplanned shutdowns for liner replacement — costs that dwarf the initial price difference. Second, missing or falsified mill test certificates create customs clearance failures at destination ports, generating demurrage charges and project delays. Third, inconsistent plate chemistry leads to welding cracks during fabrication, forcing rework or scrap. Engineering specifications for wear resistant materials reference hardness ranges and chemical composition limits for good reason — deviations from these parameters compromise the entire maintenance economics of the equipment they protect. [NEED_CITE: cost of material failure in mining and industrial wear applications]
Why SD XJY Pipe Handles Wear Plate Differently
Our physical and chemical laboratory tests every heat before release, comparing actual hardness readings against heat treatment furnace logs rather than accepting supplier declarations at face value. This practice exists because I personally inspected a rejected shipment where certificates claimed NM400 but metallographic examination revealed NM360 stock with altered paperwork. The in-house lab performs Brinell hardness testing, chemical composition analysis via spectrometer, and ultrasonic thickness verification on every plate batch. We maintain 2,800+ specifications across our product range, allowing single-source procurement for projects requiring both wear plate and structural sections. Full international certifications including ISO 9001:2015, SGS, and BV verification support customs clearance in regulated markets. Custom cutting service holds plates to your exact dimensions before shipment, reducing on-site waste and handling. Professional container loading with edge protection prevents coating damage and plate deformation during ocean transit to 50+ countries.
Documentation & Compliance
- Mill test certificate documenting NM400/NM500 chemical composition, Brinell hardness values, and heat treatment parameters per JIS/ASTM/DIN standards
- ISO 9001:2015 quality management certificate covering hot rolled wear plate production processes
- SGS or BV third-party inspection report verifying hardness, coating thickness, and dimensional tolerance before shipment
- Material traceability documentation linking each plate to specific heat number and production batch
- Customs clearance package including packing list, bill of lading, and certificate of origin for destination port clearance
- Coating specification sheet detailing surface treatment type and application standards for the coated finish
Packaging, Loading & Delivery
- 12mm hot rolled NM400/NM500 plates bundled with steel straps and edge protectors to prevent coating damage during handling
- Coated surface plates wrapped in waterproof paper with plastic sheeting to preserve surface treatment during ocean transit
- Container loading optimized for 12mm plate dimensions with timber separators preventing direct metal-to-metal contact
- Custom cutting service available to produce plates at your required lengths before packing, reducing on-site cutting waste
- Heat number and NM grade markings stenciled on each plate bundle for site identification and traceability
- FOB, CIF, and DDP shipping terms available with full export documentation and container tracking until destination port arrival
Starting Your NM400 NM500 Plate Inquiry
Submit your required plate dimensions, steel grade selection between NM400 and NM500, surface treatment preferences, and destination port to receive a detailed quotation within 12 hours. We provide mill test certificates and hardness verification reports with every quote for your quality team review. Third-party inspection through SGS or BV can be arranged before container sealing for additional assurance. Our cutting service allows you to order plates at exact project dimensions, minimizing waste and secondary processing costs at your facility.
Frequently Asked Questions
Q: What is the difference between NM400 and NM500 hardness levels?
A: NM400 provides approximately 400 HBW surface hardness suitable for moderate abrasion applications like conveyor liners and hopper walls. NM500 delivers higher hardness around 500 HBW for severe wear environments such as crusher components and mining equipment liners where maximum abrasion resistance is critical.
Q: Can you provide third-party inspection for wear resistant plates?
A: Yes, we arrange SGS or BV third-party inspection before shipment. The inspection covers hardness testing, coating thickness measurement, dimensional verification, and visual surface quality assessment. Inspection reports are provided alongside mill test certificates.
Q: What surface treatment options are available for NM400 NM500 plates?
A: Our standard offering includes coated surface treatment applied after hot rolling and pickling. This coating provides temporary corrosion protection during storage and transit. For specific long-term corrosion requirements, discuss your environment conditions so we can recommend appropriate coating systems.
Q: Do you offer custom cutting for wear resistant plates?
A: Yes, our cutting service produces NM400 and NM500 plates to your exact dimensional requirements. This reduces on-site cutting waste and allows direct installation into your equipment or structures. Cutting tolerance and edge quality specifications should be confirmed during inquiry.
Q: What certifications accompany NM400 NM500 plate shipments?
A: Every shipment includes mill test certificates documenting chemical composition and hardness per JIS, ASTM, or DIN standards. We also provide ISO 9001:2015 quality certificates, and third-party inspection reports are available upon request. Full customs documentation supports clearance in international markets.
