Description

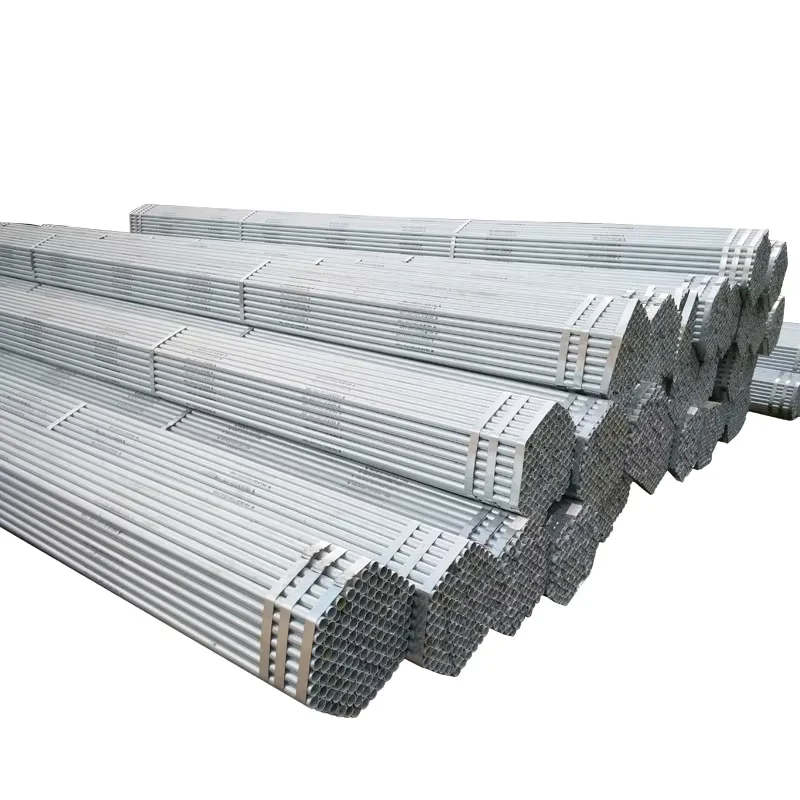

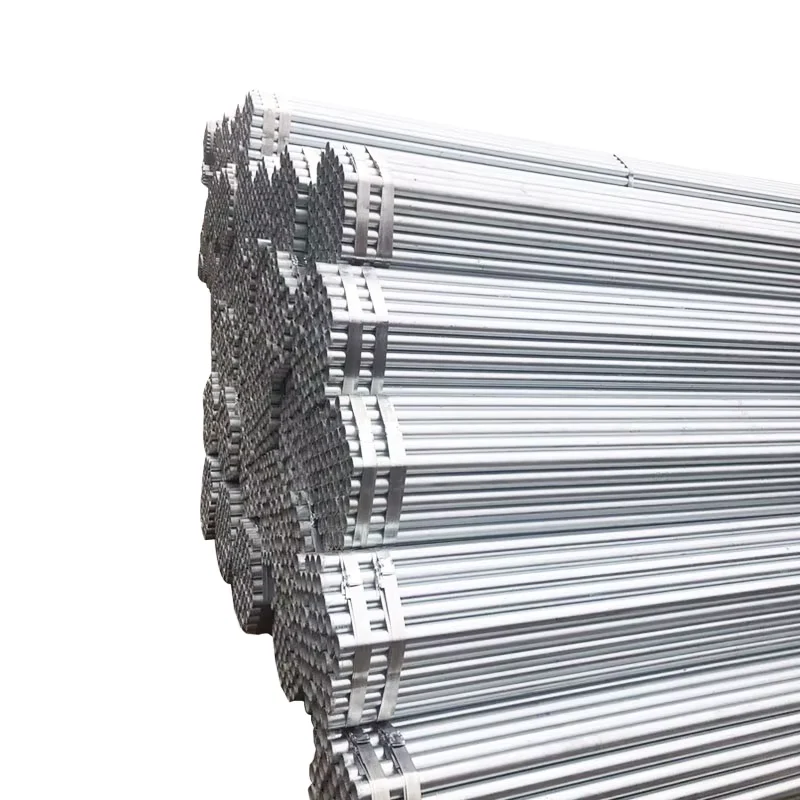

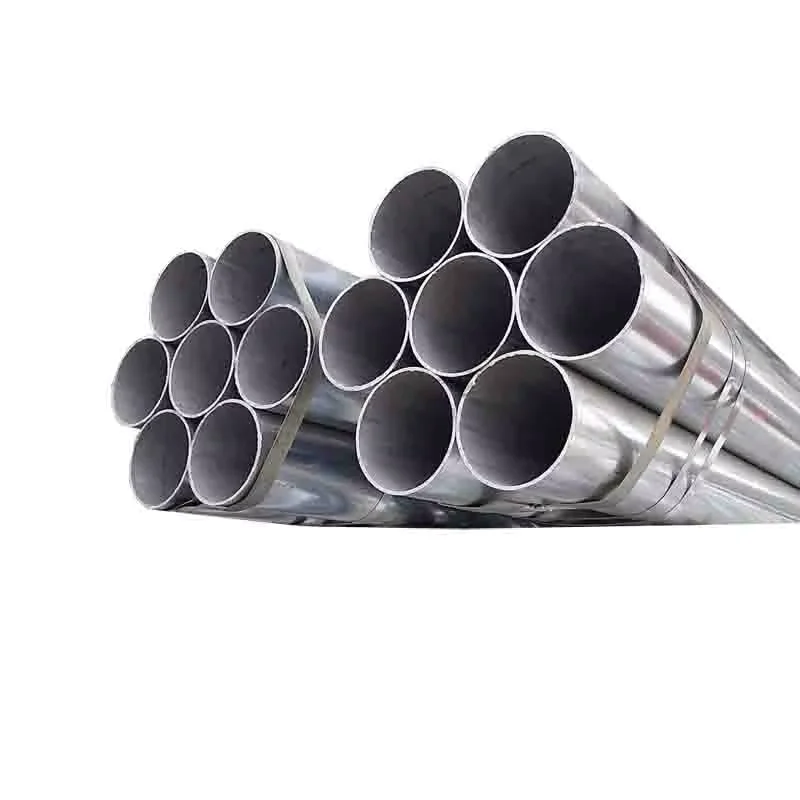

Factory-direct supply — Gr.B ERW galvanized round pipes produced in-house with hot dip zinc coating minimum 300g/m², shipped with full mill test certificates and third-party inspection support for project clearance.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | Gr.B ERW Galvanized Round Steel Pipe |
| Product Type | ERW Galvanized Round Steel Pipe |
| Steel Grade | Gr.B (ASTM A53 Grade B equivalent) |
| Standard | BS 1387, API |
| Section Shape | Round |
| Size Range | 1/2″–8″ (DN15–DN200) / 21.3–660 mm |
| Wall Thickness | 1.8mm–20mm |
| Length | 5.8m / 6m / 12m |
| Technique | ERW (Electric Resistance Welded) |
| Surface Treatment | Hot Dip Galvanized (Zinc Coated Min 300g/m²) |
| Ends | Threaded with couplings (NPT/BS) |
| Tolerance | ±5% / ±10% / ±15% |
| Application | Fluid transport / Gas pipeline / Structure / Construction / Boiler |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| EPC Construction Projects | Water supply reticulation, fire protection standpipes, scaffolding uprights |
| Oil & Gas Distribution | Low-pressure gas lines, fuel oil transfer pipes, metering skid piping |
| Industrial Infrastructure | Boiler feed lines, heat exchanger headers, compressed air mains |
| Steel Structure Fabrication | Column bracing tubes, purlin supports, handrail posts |
Where Zinc Coating Thickness Determines Service Life on Site
A DN15 PN10 galvanized steel pipe with substandard zinc will corrode from the inside out before the project warranty expires.
On EPC sites across West Africa, I have seen galvanized pipes arrive with a faint spangle and uneven coating — the kind that looks acceptable at the port but fails within months under humid tropical conditions. The root cause is always the same: zinc coating below 300g/m², or worse, electroplated instead of hot dip. When a DN15 PN10 galvanized steel pipe is specified for fluid transport or gas distribution, the zinc layer is the only barrier between the Gr.B steel substrate and the corrosive medium. [NEED_CITE: hot dip galvanizing coating thickness requirements per BS 1387] Procurement teams who accept the lowest quote without verifying coating weight end up paying twice — once for replacement pipes and again for the labour to rip out corroded lines buried inside concrete chases or above suspended ceilings.
Matching DN15 PN10 Galvanized Steel Pipe to Fluid and Gas Distribution Systems
Threaded ends with NPT or BS couplings allow field crews to assemble DN15 PN10 galvanized steel pipe networks without welding permits or hot-work protocols — a critical advantage on live plant sites and occupied buildings. The 21.3mm to 660mm diameter range covers everything from branch take-offs to main distribution headers, while wall thickness up to 20mm accommodates pressure ratings from PN10 through higher classes. Hot dip galvanizing with minimum 300g/m² zinc ensures that internal bore surfaces remain protected against tuberculation, maintaining flow capacity over decades of potable water or compressed air service.
Engineering Compliance and Certification for Global Project Delivery
Structural applications of Gr.B ERW pipes must conform to load-bearing calculations per AISC or local building codes, where the specified wall thickness and yield strength of ASTM A53 Grade B determine allowable spans and point loads. For projects entering European markets, CE marking per EN 10219 or EN 10210 becomes a customs clearance prerequisite — without it, containers sit at Rotterdam or Lagos ports awaiting documentation that never arrives. [NEED_CITE: EN 10219 cold-formed structural hollow section compliance requirements] The threaded ends must match the coupling standard of the destination market: NPT taper threads for North American and Middle Eastern sites, BS parallel threads for Commonwealth countries. Cut-to-length service at 5.8m or 6m reduces on-site welding and waste, while 12m lengths optimise container utilisation for long-distance pipeline runs.
Understanding Gr.B Steel Grade and ERW Manufacturing Process
Gr.B corresponds to ASTM A53 Grade B, a carbon manganese steel with minimum yield strength suitable for moderate pressure and structural applications. The ERW (Electric Resistance Welded) process forms the round tube by passing steel strip through forming rolls and welding the seam using electrical resistance heat — no filler metal is added, producing a uniform weld zone with mechanical properties matching the parent strip. Hot dip galvanizing immerses the finished ERW pipe in molten zinc at approximately 450°C, creating a metallurgical bond between zinc and steel that provides cathodic protection even if the coating is scratched during handling. [NEED_CITE: metallurgical bond formation in hot dip galvanizing process] Wall thickness tolerance of ±5% to ±15% depending on diameter class means procurement teams must calculate actual weight per metre rather than relying solely on nominal tables, as negative tolerance stacking across a large order can shift total tonnage significantly.
Hidden Costs of Procuring Non-Compliant Galvanized Pipes
Material substitution — receiving a lower grade or thinner wall than specified — voids engineering sign-off and forces costly re-inspection or full replacement. Missing or falsified mill test certificates trigger customs holds, demurrage charges, and project delays that dwarf the original pipe cost. [NEED_CITE: consequences of non-compliant steel imports on construction project timelines] Zinc coating below specification leads to premature rust-through, particularly at threaded joints where the cutting process exposes bare steel that must be cold-galvanised on site — a labour-intensive touch-up that rarely matches the durability of the original hot dip layer.
Why Project Procurement Teams Source DN15 PN10 Galvanized Steel Pipe Here
Every DN15 PN10 galvanized steel pipe rolls through our own ERW mills and galvanizing kettles — no trading company markup, no blended stock from unknown sources. Our in-house physical and chemical laboratory tests every heat for composition and mechanical properties before release, generating mill test certificates traceable by heat number. The factory holds ISO 9001:2015 certification alongside Lloyd’s CE marking for EN 10210/EN 10219 and Singapore FPC approval, covering 2,800+ specifications across round, square, and rectangular profiles. Professional container loading with anti-damage measures — developed from years of handling galvanized finishes — prevents zinc flaking and edge dents during ocean transit to 50+ countries.
Documentation & Compliance
- Mill test certificate documenting Gr.B chemical composition (carbon, manganese, phosphorus, sulphur) and mechanical properties per ASTM A53
- CE certificate per EN 10210/EN 10219 for structural hollow sections entering European Economic Area markets
- ISO 9001:2015 quality management system certificate covering ERW welding and hot dip galvanizing processes
- SGS or BV third-party inspection report verifying zinc coating thickness, dimensional tolerance, and thread gauge compliance
- Material traceability by heat number stamped on each pipe length, linking physical product to laboratory test data
- Customs documentation including packing list, bill of lading, and certificate of origin for destination-country clearance
Packaging, Loading & Delivery

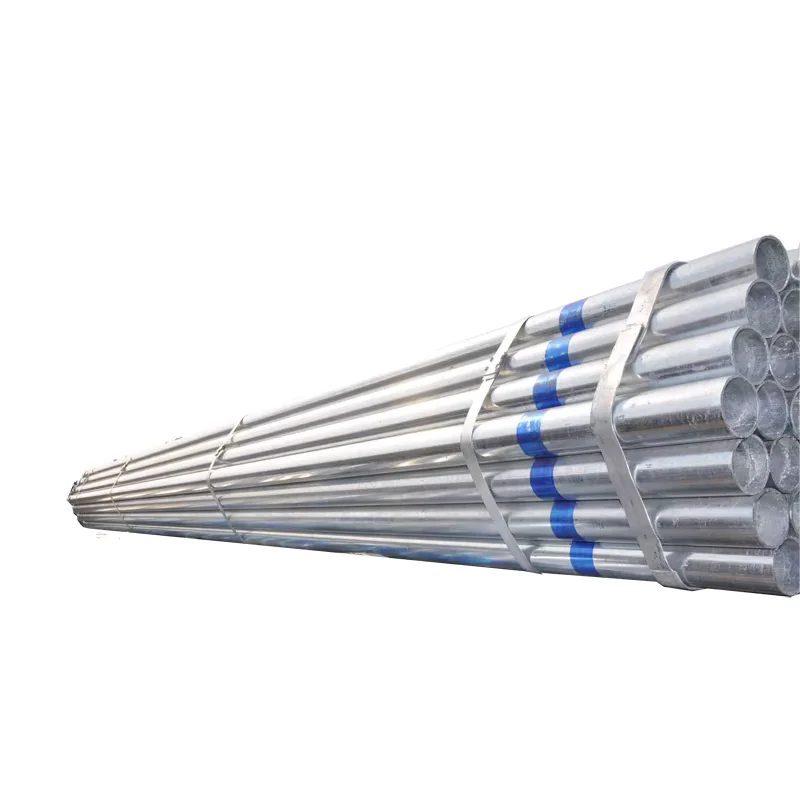

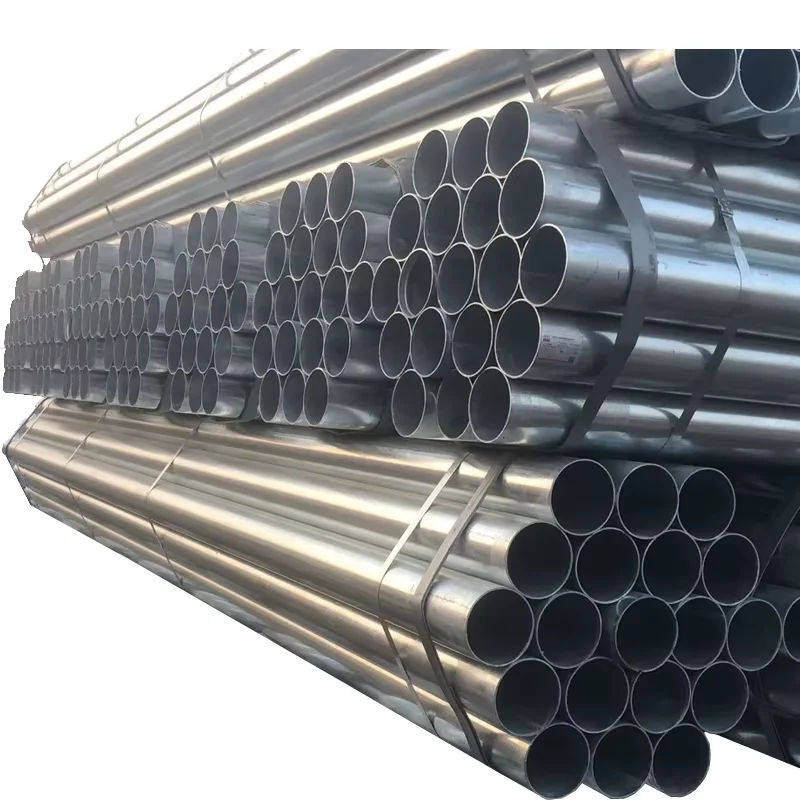

- Gr.B ERW galvanized round pipes bundled with steel strips and edge protectors to preserve the hot dip zinc coating during handling and ocean transit
- Threaded ends fitted with plastic caps to protect NPT/BS threads from damage and contamination before installation
- Container loading optimised by combining 5.8m/6m lengths with 12m pieces to maximise payload while preventing pipe movement
- Cut-to-length service available at 5.8m, 6m, or 12m to match project specifications and reduce on-site cutting waste
- Heat number and Gr.B grade stencilled on each pipe for site traceability and inspection verification
- FOB, CIF, and DDP shipping terms with professional lashing and anti-rust measures for galvanized surfaces
Initiating Your DN15 PN10 Galvanized Steel Pipe Inquiry
Submit your required diameter, wall thickness, length, steel grade, and destination port to receive a detailed quotation including unit pricing, production lead time, and shipping terms. We provide mill test certificates and arrange third-party inspection before shipment to confirm compliance with BS 1387 or project-specific standards.
Request Quotation and Mill Test Certificate
Send your DN15 PN10 galvanized steel pipe specifications by email or WhatsApp to receive pricing, certification documentation, and container loading plans within 12 hours.
Contact: Shandong Xin Jiyuan Special Steel Tube Co., Ltd
Email: admin@sdxjypipe.com
WhatsApp: +86 188 5315 7756
Frequently Asked Questions
Q: What is the difference between BS 1387 and ASTM A53 galvanized pipes?
A: BS 1387 is a British standard specifying dimensions, mass, and coating requirements for screwed and socketed black and galvanized steel pipes, while ASTM A53 covers seamless and welded steel pipe for general mechanical and pressure applications. Gr.B under ASTM A53 defines the steel grade, whereas BS 1387 defines the pipe dimensions and galvanizing requirements. Both standards can apply to the same physical product depending on the certification requested.
Q: How to verify zinc coating thickness on galvanized pipes?
A: Zinc coating thickness is verified using magnetic induction gauges or by weighing the coating mass per square metre. Our hot dip galvanized DN15 PN10 galvanized steel pipe carries minimum 300g/m² zinc coating, and we provide third-party inspection reports from SGS or BV confirming coating weight and uniformity before shipment.
Q: What are the standard lengths and threading options available?
A: Standard lengths are 5.8m, 6m, and 12m. Ends are threaded with couplings in NPT (taper) or BS (parallel) thread forms to match the installation standard of your destination market. Custom cut lengths are available upon request.
Q: Can you provide third-party inspection certificates for EU markets?
A: Yes. We arrange SGS or BV inspection covering dimensional checks, zinc coating measurement, thread verification, and visual inspection. For EU customs clearance, we also provide CE certificates per EN 10210/EN 10219 alongside mill test certificates.
Q: What is the delivery time for stock vs custom sizes?
A: Standard sizes in DN15–DN200 range typically ship from stock or enter production with typical lead times. Custom non-standard sizes or specific cut lengths enter production scheduling, and we confirm exact timelines upon receipt of your inquiry.
