Description
Direct Mill Supply for ASTM A106 High-Temperature Service — Every ASTM A106 Gr.B seamless carbon steel pipe leaves our Jinan facility with in-house spectrographic analysis and dimensional checks before crating.
Technical Specifications
| Parameter | Value |
|---|---|
| Designation | ASTM A106 Gr.B Seamless Carbon Steel Pipe |
| Product Type | Seamless Round Steel Pipe |
| Steel Grade | ASTM A106 Gr.B / Q195 / Q235 / Q345 / S235JR / S275JR / S355JR |
| Standard | ASTM A106 / JIS / GB |
| Section Shape | Round |
| Size Range | Customizable Outer Diameter |
| Wall Thickness | Customizable |
| Length | 1–12 m (standard 6 m / 12 m) |
| Technique | Seamless (Hot Rolled) |
| Surface Treatment | Black Painted / Oiled / Non-oiled |
| Tolerance | ±1% |
| Ends | Plain / Beveled (for welding) |
| Application | Fluid transport / Boiler / Oil & Gas pipeline / Hydraulic system / Structure pipe / Chemical fertilizer pipeline / Drilling |
| MOQ | 10–20 Tons |
| Origin | Shandong, China |
Application Suitability
| Industry | Typical Applications |
|---|---|
| Oil & Gas EPC | Transmission and distribution pipelines for crude, refined products, and natural gas |
| Power Generation | High-temperature boiler tubes, superheater headers, and pressure vessel piping |
| Petrochemical | Process fluid lines, heat exchanger bundles, and chemical fertilizer pipeline systems |
| Industrial Machinery | Hydraulic cylinder barrels, hydraulic system manifolds, and high-pressure fluid circuits |
| Infrastructure | Structural support columns, piling casings, and drilled shaft reinforcement |
Where Wall-Thickness Deviation Decides Hydrostatic Test Results
A 0.3 mm shortfall on a 10 mm nominal wall turns a routine hydrostatic test into a rejection event.
I have watched entire container loads of ASTM A106 Gr.B seamless carbon steel pipe fail at destination because the mill ran wall thickness at the absolute edge of minus tolerance. Third-party inspectors measure at random points; one reading below the specified minimum triggers full-batch rejection. The cost is not just the pipe—it is crane time, weld prep labor, and a rescheduled commissioning window. Buyers who only check the invoice weight against theoretical weight miss the problem until the hydrotest pump reaches working pressure. [NEED_CITE: ASTM A106 hydrostatic test pressure calculation requirements]
Matching High-Temperature Service and Pressure Containment
ASTM A106 Gr.B seamless carbon steel pipe is specified specifically for elevated-temperature service where creep resistance matters. The hot-rolled seamless process eliminates the weld seam that becomes a failure path under thermal cycling. Our production covers the full OD and wall range needed for boiler circuits and process headers, with beveled ends ready for butt-welding per ASME B16.25. The ±1% dimensional tolerance keeps fit-up gaps within welding procedure specification limits, reducing welder rework on site.
Engineering Code Compliance and Material Traceability
Pressure-containing piping systems must comply with ASME B31.1 (Power Piping) or B31.3 (Process Piping), both of which require documented material properties and heat-by-heat traceability. ASTM A106 Gr.B meets the chemical composition and tensile requirements referenced in these codes. For projects entering EU-regulated markets, equivalent material certification under EN 10216-2 P265GH may be required, and we supply cross-referenced documentation. Every heat number is traceable from slab receipt through final shipping. [NEED_CITE: ASME B31.3 material requirements for elevated temperature service]
Seamless Hot-Rolling and Grade Selection Logic
The hot-rolled seamless process starts with a solid round billet pierced and elongated on a mandrel mill, producing a homogeneous grain structure with no longitudinal weld. This matters for ASTM A106 Gr.B because the grade is designed for forming and bending at high temperatures—operations that expose weld defects. The Gr.B designation sits between Gr.A (lower strength) and Gr.C (higher strength) in the ASTM A106 family, offering a balance of formability and 415 MPa minimum tensile strength. Our ability to supply equivalent grades—Q195 through Q345 for domestic-spec projects, S235JR through S355JR for EN-spec work—means one purchase order covers mixed-standard procurement without splitting shipments across suppliers.
Black painted finish protects the surface during ocean transit and storage; oiled finish provides short-term corrosion inhibition for machined ends; non-oiled bare pipe suits immediate indoor use or when the buyer applies their own coating system.
The Hidden Cost of Unverified Material Certificates
A mill test certificate that lists chemistry matching the standard but skips actual test values is a customs delay waiting to happen. EU notified bodies and Middle East project owners increasingly reject shipments where the MTC format does not conform to EN 10204 3.1 requirements, or where heat numbers do not match the physical stamping on the pipe. Grade substitution—shipping Q235 against an ASTM A106 Gr.B order—passes visual inspection but fails spectrographic analysis at the port. The resulting demurrage, re-export cost, and project delay dwarf any per-ton price saving from an unverified source. [NEED_CITE: EN 10204 inspection document types for steel products]
Why Project Procurement Teams Specify SD XJY Pipe
We operate three seamless pipe production lines in Jinan with an in-house physical and chemical laboratory that performs spectrographic analysis, tensile testing, and dimensional inspection on every heat. Our 2,800+ specification range covers the non-standard OD and wall combinations that stockholders cannot fill. ISO 9001:2015 certification, Lloyd’s Register CE marking, and SGS/BV third-party inspection availability satisfy the documentation requirements of EPC contractors and project owners across 50+ export destinations. Custom cut-to-length, beveling, and marking per client drawing are standard—not premium-priced extras. Professional container loading with anti-damage measures prevents the bending and surface scoring that triggers rejection at destination ports.
Documentation & Compliance
- Mill Test Certificate per EN 10204 3.1 documenting ASTM A106 Gr.B chemical composition (C, Mn, Si, P, S) and mechanical properties (tensile strength, yield strength, elongation) for each heat number
- CE Certificate of Conformity under EN 10216-2 for projects requiring EU pressure equipment directive compliance, cross-referenced to ASTM A106 equivalent grades
- ISO 9001:2015 Quality Management System certificate covering seamless pipe manufacturing, inspection, and testing processes
- SGS or BV third-party inspection report verifying dimensional accuracy, surface quality, and marking before container sealing
- Material traceability sheet linking heat number, slab origin, chemical analysis, and mechanical test results to each pipe length
- Full export documentation package including commercial invoice, packing list, bill of lading, and certificate of origin per destination country requirements
Packaging, Loading & Delivery

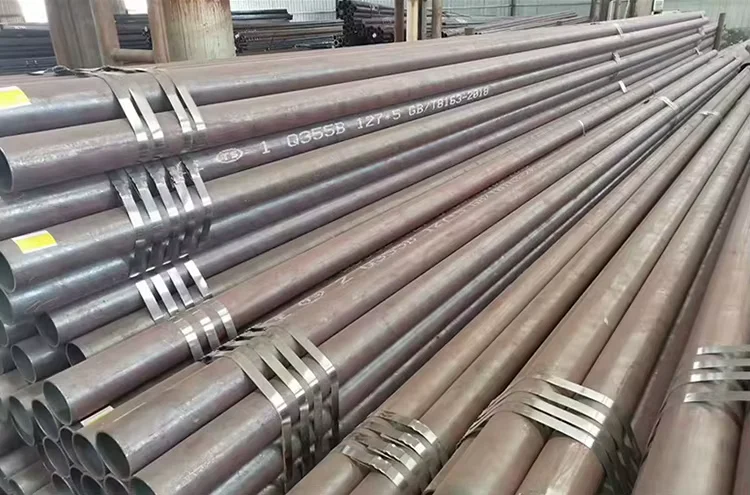

- ASTM A106 Gr.B black painted pipes bundled with steel strips and edge protectors to preserve the paint coating during ocean transit and crane handling
- Oiled or non-oiled pipes wrapped with waterproof paper and plastic sheeting to prevent surface oxidation during container loading and humid climate storage
- Standard 6 m and 12 m lengths loaded in dedicated pipe racks within 20ft and 40ft containers, maximizing payload while preventing contact damage between lengths
- Custom cut-to-size pipes (1–12 m) bundled by length and clearly marked with heat number, steel grade, and dimensional specifications on each bundle tag
- Beveled-end pipes protected with plastic end caps to prevent edge damage and maintain welding preparation quality during transport
- FOB Jinan/Qingdao, CIF destination port, or DDP project site delivery with full container tracking and export documentation support
Getting Your ASTM A106 Gr.B Quote and Mill Test Certificate
Submit your specification sheet—OD, wall thickness, length, quantity, steel grade, and destination port—and receive a detailed quotation with unit pricing, production lead time, and shipping terms within 12 hours. Request sample pipes and mill test certificates for quality confirmation before contract signing. Third-party inspection by SGS or BV can be arranged at our facility before shipment.
Request ASTM A106 Gr.B Pricing and Documentation
Send your specification requirements to receive a detailed quotation with mill test certificate samples and production lead time.
